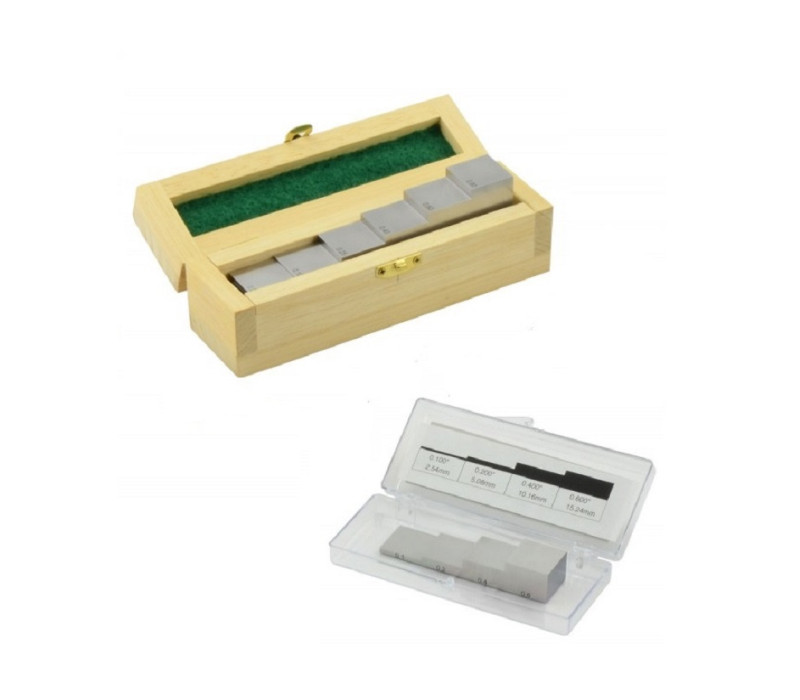

TI-SB4 Steel Test Block


A Practical Solution for Routine Gauge Verification

The TI-SB4 steel test block provides a fast and reliable way to verify the calibration of ultrasonic wall thickness gauges, making it ideal for routine checks when NIST-certified reference blocks are not required.

Key Features

  • Functional stepped design: Features 4 and 6 precision-machined steps that allow quick verification of gauge accuracy and repeatability without the need for certification.
  • Durable construction: Manufactured from high-quality carbon steel, ensuring long-term stability and resistance to wear.
  • Easy to use: Perfect for daily calibration checks where certified reference standards are unnecessary but measurement reliability is essential.

Key Benefits

  • Flexible verification: Suitable for a wide range of industrial applications, offering a cost-effective solution for thickness gauge performance checks.
  • Cost efficiency: An economical alternative to certified blocks without compromising on quality or accuracy.
  • Broad compatibility: Compatible with most ultrasonic thickness gauges, ensuring straightforward integration into existing testing setups.



For more information or to request a quotation, please contact us. Our technical team will be happy to help you select the most suitable verification block for your measurement needs.

Features

  • Type: Uncertified steel test block for routine verification
  • Design: Includes 4 and 6 precision-machined steps for quick accuracy checks
  • Purpose: Designed for convenient confirmation of ultrasonic thickness gauge calibration without requiring NIST certification
  • Material: High-quality carbon steel providing long-term dimensional stability
  • Use: Ideal for production, workshop and field environments where rapid verification is required
  • Compatibility: Suitable for use with most Checkline and third-party ultrasonic thickness gauges
Models with step sizes
ModelStep 1Step 2Step 3Step 4Step 5Step 6

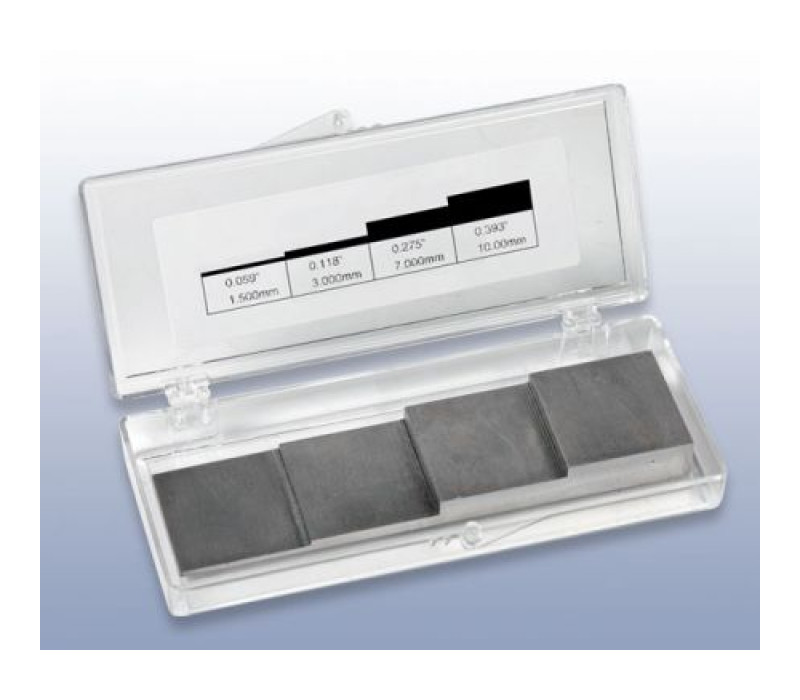

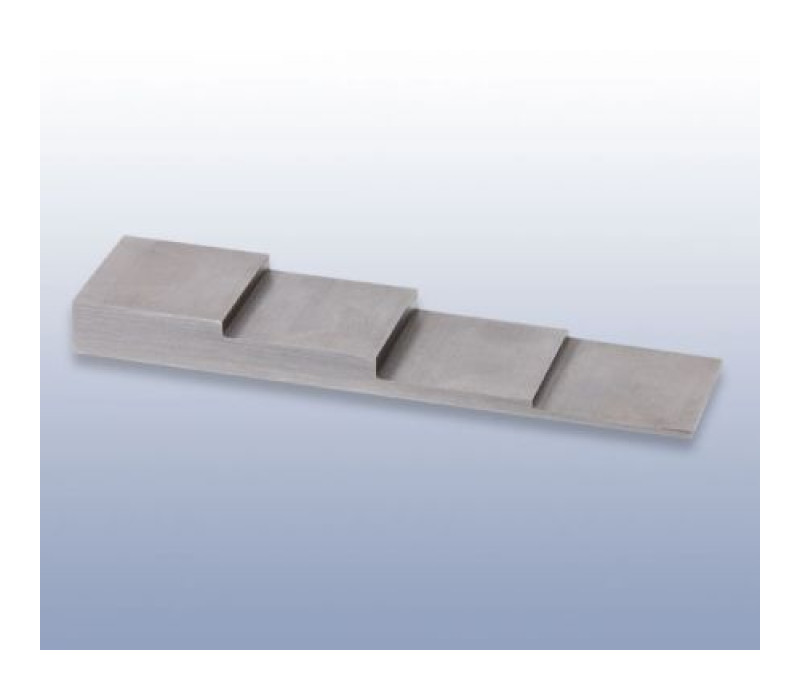

SB42.54 mm5.08 mm10.16 mm15.24 mmN/AN/A

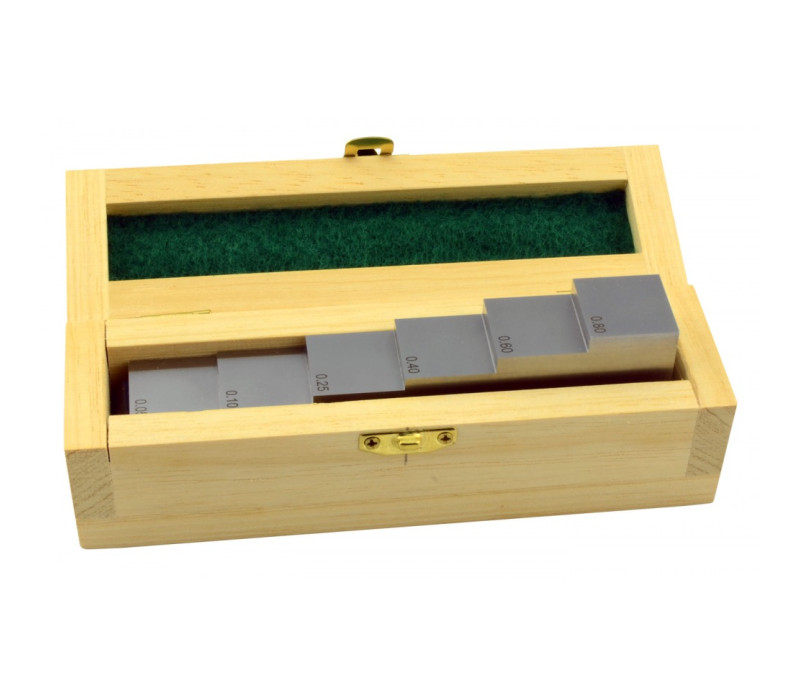

SB61.27 mm2.54 mm6.35 mm10.16 mm15.24 mm20.32 mm
- Tolerance: ±0.02mm
- Base Width: 19 mm
Related Products

TI-SB Steel Test Blocks


  • Precision Machined and Finished: Each test block is precision-machined and surface-finished to tight tolerances, ensuring excellent acoustic coupling and long-term dimensional stability.
  • Includes NIST Certificate and Test Data: Supplied with a full calibration certificate traceable to NIST standards, including measured values and test data for complete verification accuracy.
  • Includes Wooden Storage Box: Delivered in a durable hardwood storage case that protects the block from environmental effects and mechanical damage during storage or transport.

More details

TI-SB Steel Test Blocks

Buy Now

Products

Product
Price
Quantity
130190
TI-SB4 Uncertified Steel Test Block
€ 136,00
136138
PRBSPGCS SPG Coating Texture Probe for PosiTector
€ 527,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
