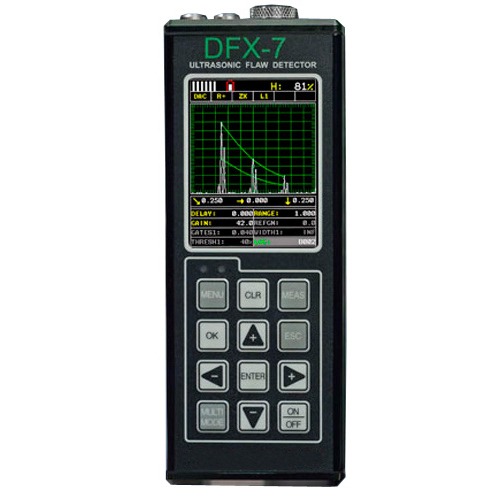

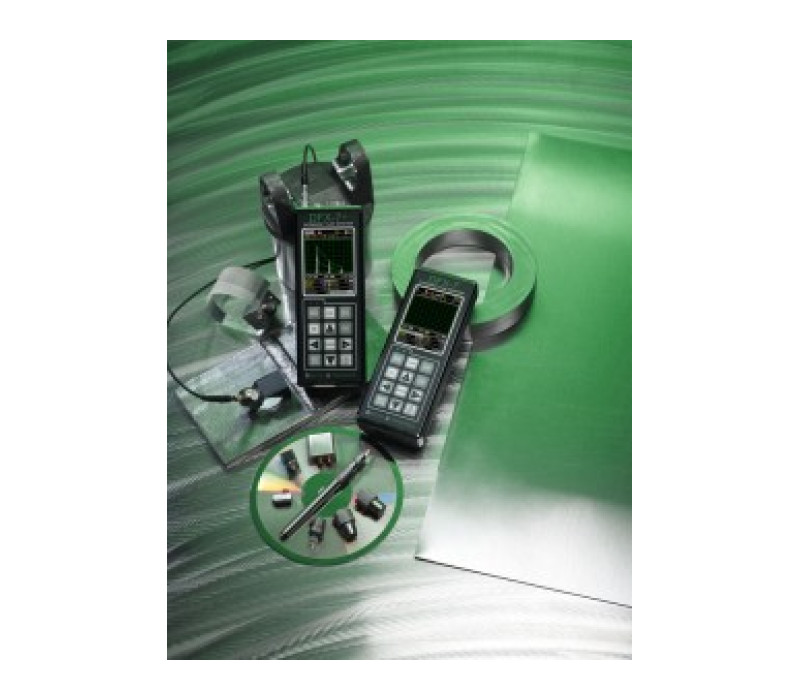

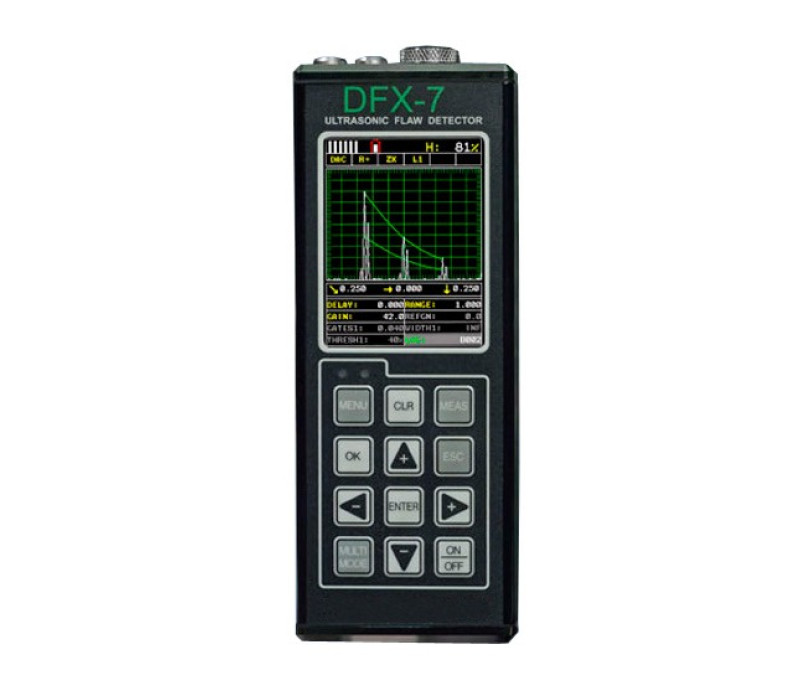

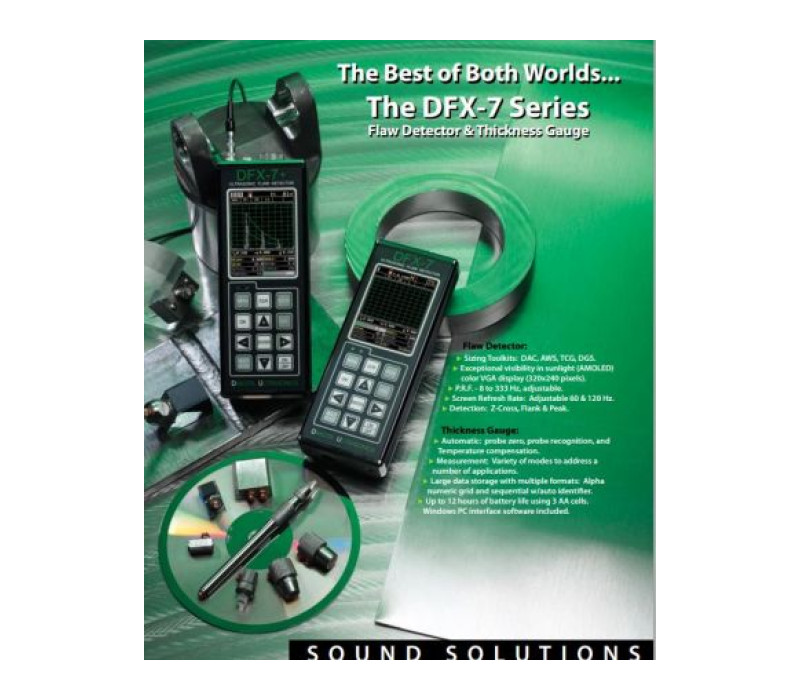

| GENERAL | ----------------------------------------------------- |
| Size: | 63.5 x 165 x 31.5mm |
| Weight: | 400 gr. with batteries |
| Case: | Extruded aluminum body with nickel plated aluminum end caps (gasket sealed) |
| Display: | 1/4 VGA AMOLED color display (320 x 240 pixels). Viewable area 43.2 x 57.6 mm.
16 color pallete, multiple color options, and variable brightness |
| Screen Refresh Rate: | Selectable 60 or 120Hz |
| Display Views: | Flaw Detector: Full wave, +/- Rectified, or RF. Thickness Gauge: Digits, +/- Rectified, RF, or B-Scan |
| Timing: | Precision 25MHz TCXO with single shot 100 MHz 8 bit ultra low power digitizer |
| Measurement Gates: | Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms |
| Operating Temperature: | -10 °C to 60 °C |
| Environmental: | Meets IP65 requirements |
| Warranty: | 2 year limited |
| CALIBRATION | ----------------------------------------------------- |
| Automatic Calibration: | Longitudinal (straight), or Shear (angle) |
| Probe Types: | Single Contact, Dual, Delay, and Angle |
| Units: | English (in), Metric (mm), or Time (s) |
| Velocity: | 256–16,000 m/s |
| Test Range: | 7,11 mm minimum, to 30,48 cm maximum at steel velocity. Continuously variable |
| Zero Offset (Probe Zero): | 0–999.999 ìs |
| Material Velocity Table: | Contains longitudinal and shear velocities for a variety of material types |
| PULSER | ----------------------------------------------------- |
| Pulser Type: | Two adjustable square wave pulsers and receivers |
| P.R.F.: | 8 to 333Hz in selectable steps (8, 16, 32, 66, 125, 250, 333Hz) |
| Pulser Voltage: | 200 volt peak amplitude, rise/fall time < 10ns into 50ohm |
| Pulse Width: | 40 to 400 ns. Selectable step options (spike, thin or wide) |
| RECEIVER | ----------------------------------------------------- |
| Gain: | 0 to 110dB with 0.2dB resolution. Manual and AGC control |
| Damping: | 50, 75, 100, 300, 600, & 1500 ohms |
| Frequency Bands: | DFX7 & 7+: Broadband 1.8 – 19 MHz (-3dB). DFX-7+: Three narrow bands centered at 2MHz, 5MHz, 10MHz |
| Horizontal Linearity: | +/- 0.4% FSW |
| Vertical Linearity: | +/- 1% FSH |
| Amplifier Linearity: | +/- 1 dB |
| Amplitude Measurement: | 0 to 100% FSH, with 1% resolution |
| Delay: | 0 - 253,75cm at steel velocity |
| MEMORY | ----------------------------------------------------- |
| Log Formats: | Grid (Alpha Numeric), or Sequential (Auto Identifier) |
| Graphics On: | 8,000 readings, A/B Scan image, & all gauge settings for every reading |
| Graphics Off: | 210,000 readings (coating, material, min & max. (Thickness gauge only) |
| Custom Setups: | 64 user configurations |
| POWER SOURCE | ----------------------------------------------------- |
| Battery: | 3x 1.5V alkaline, 1.2V AA Nicad cells, 1.2V AA NI-MH, or other other equivalent power source |
| Battery life (continuous use): | Alkaline (12hrs), Nicad (5hrs), and NI-MH (12hrs), with default settings |
| CONNECTIONS | ----------------------------------------------------- |
| Output: | RS232 serial interface. PC software & USB converter cable included |
| Transducer Connectors: | Two LEMO 00 connectors |
| CERTIFICATION | ----------------------------------------------------- |
| Thickness Gauge: | Factory calibration traceable to NIST & MIL-STD-45662A |
| Flaw Detector: | EN12668-1 compliant |
