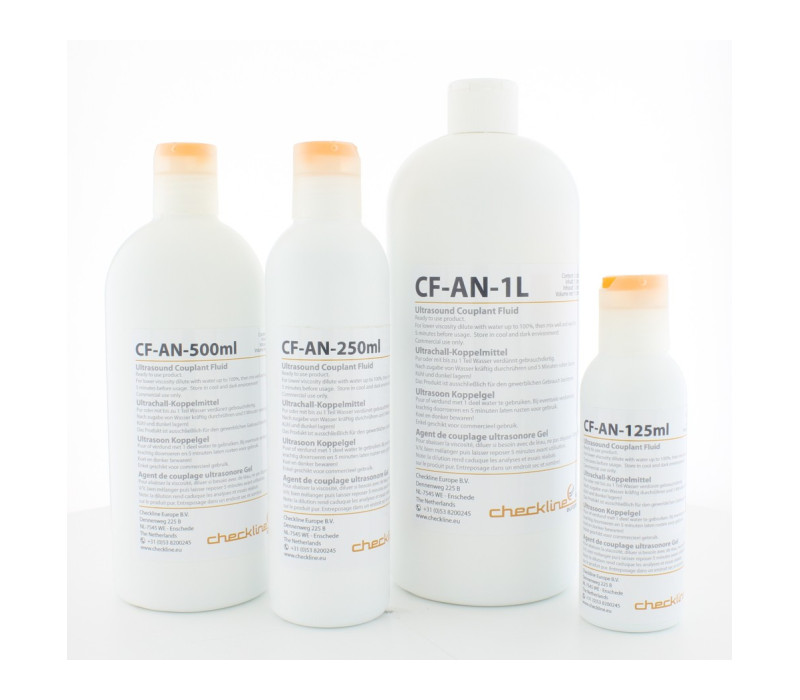

CF-AN CF-AN Coupling Fluid

Ultrasonic Coupling Fluid

Essential for Accurate Ultrasonic Measurements

CF-AN Coupling Fluid is an essential medium for performing precise thickness measurements and non-destructive ultrasonic testing. Its specially formulated, anti-corrosive composition ensures optimal sound transmission between the transducer and the test surface, effectively eliminating acoustic impedance mismatches caused by air gaps.

Key Features

Proven performance: Ensures consistent ultrasonic wave transmission without interference from trapped air bubbles, delivering reliable and repeatable readings.
Wide temperature range: Operates effectively between -5 °C and 97 °C, suitable for a variety of industrial and laboratory environments.
Broad compatibility: Works with most ultrasonic transducers and probes, ideal for general-purpose and specialised testing applications.

Key Benefits

Corrosion protection: The anti-corrosive formulation improves coupling efficiency while safeguarding transducers and test surfaces from oxidation or damage.
Easy application: Smooth, stable consistency allows uniform coverage with minimal reapplication, improving workflow efficiency.
Multiple volume options: Available in 125 ml, 250 ml, 500 ml, 1 L, 5 L and 25 L containers to meet both laboratory and industrial-scale requirements.

For further details or to request a quotation, please contact us. Our technical team will be pleased to help you choose the most suitable couplant for your ultrasonic testing applications.

CONTENT:

125 ml
250 ml
500 ml
1 l
5 l

Shop now

Purpose: Creates an ultrasonic coupling layer between the transducer and the material being measured
Temperature Range: -5 °C to +97 °C
Available Volumes: 125 ml, 250 ml, 500 ml, 1 L, 5 L and 25 L
Formula: Anti-corrosive composition for enhanced sound transmission and equipment protection
Compatibility: Suitable for use with most Checkline and third-party ultrasonic thickness gauges and transducers

Material Safety Data Sheet

Application:	Technical couplant for ultrasonic testing
Form:	Fluid, high-viscosity
Colour:	Green, clear
pH-value (at 20°C):	8 – 9
Melting-point:	-5° C
Boiling point:	> +97° C
Density (at 20°C):	1.022 kg/l ± 5 %
Viscosity (at 20° C):	30000 mPa·s ± 5 %
Chloride & Fluoride Content:	< 0.0250 %
Sulphur Content:	< 0.0250 %

Products

Item	Product	Price
135573	CF-AN-125ml Coupling Fluid 125ml Bottle	€ 9,95
135572	CF-AN-250ml Coupling Fluid 250ml Bottle	€ 15,00
135571	CF-AN-500ml Coupling Fluid 500ml Bottle	€ 24,50
135403	CF-AN-1L Coupling Fluid 1 Liter Bottle	€ 42,50
135402	CF-AN-5L Coupling Fluid 5 Liter	€ 185,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
