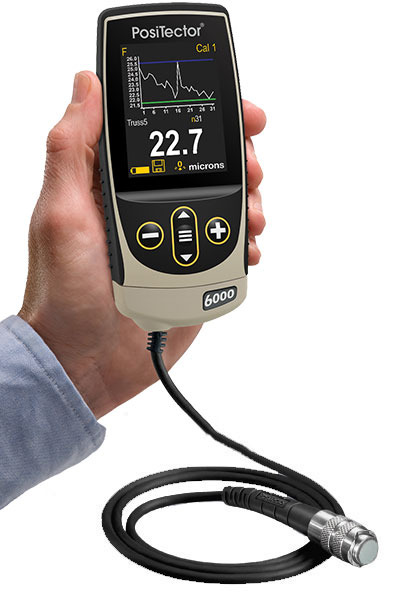

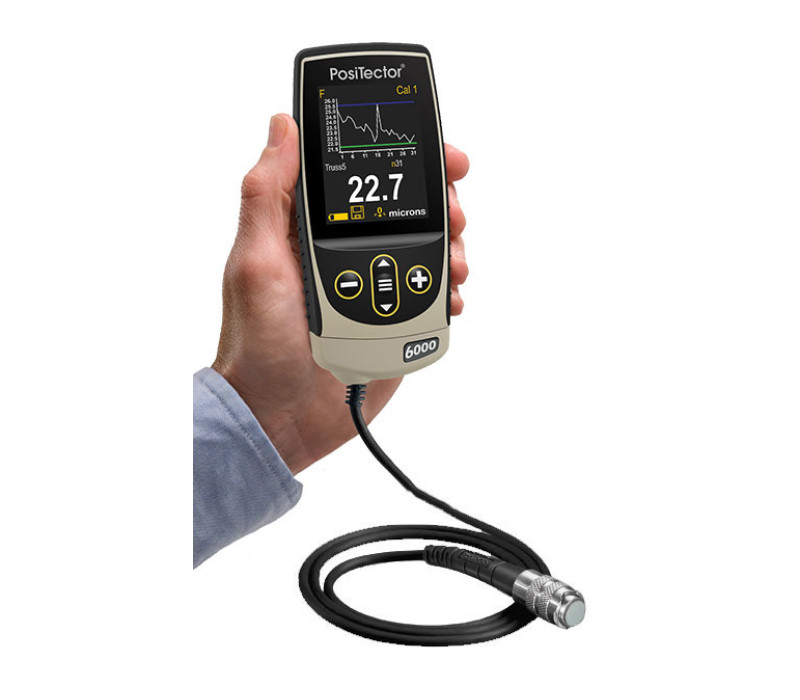

PosiTector 6000 FXS Xtreme Coating Thickness Probe for Rough Surfaces
The PosiTector 6000 FXS Xtreme is a heavy-duty coating thickness probe designed for measuring on ferrous (steel) substrates, especially in harsh industrial environments and on rough, abrasive surfaces. Engineered for demanding applications, it combines high durability, fast measurement speed, and reliable accuracy, even on hot surfaces up to 250 °C (500 °F) where conventional coating thickness probes wear out quickly.
Models
Available in the 6000-FXS1 and 6000-FXS3 models, the FXS Xtreme measures coating thicknesses from 0 to 2000 µm (0 – 80 mils). Its zirconia-toughened alumina wear face provides exceptional resistance to abrasion and wear, making it ideal for continuous use on blasted steel, thermally sprayed coatings, pipelines, offshore structures, bridges, marine applications, industrial fabrication, and protective coating inspection in aggressive environments.
Why Accurate Coating Thickness Measurement Matters
Coating thickness inspection plays a critical role in corrosion prevention, coating performance, and compliance with project specifications. The PosiTector 6000 FXS Xtreme helps inspectors, coating applicators, and quality control professionals obtain fast and repeatable measurements even under the toughest conditions.
Incorrect coating thickness can lead to:
- Premature coating failure
- Corrosion beneath the coating
- Loss of adhesion
- Cracking or delamination
- Reduced service life
- Increased maintenance costs
Insufficient coating thickness can lead to premature corrosion and coating failure, while excessive thickness may cause cracking, adhesion problems, or unnecessary material costs.
Compatibility: The probe is compatible with PosiTector instrument bodies with serial numbers higher than 700,000.
Need assistance? Contact us and our team will assist you with your inquiry.
Features
- Designed for measuring on ferrous substrates, especially in harsh industrial environments and on rough, abrasive surfaces.
- Measures coating thicknesses from 0 to 2000 µm (0 – 80 mils)
- Up to 250 °C (500 °F)
- Long Form Certificate of Calibration traceable to NIST
Probe - Feature Comparison Chart
| Feature Comparison Chart | Standard (1) |
Advanced (3) |
| Hi Contrast LCD Display |  Color |
 Color |
| General Features | Standard (1) |
Advanced (3) |
| FAST mode - faster measurement speed for quick inspection | ||
| SCAN Mode - take continuous readings without lifting the probe | - |
|
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits |
|
|
| Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring |
|
|
| Onscreen help, real time graphing, picture prompting and batch notes | - | |
| Memory Features & Capacity | Standard (1) |
Advanced (3) |
| Reading Storage Capacity | 1000 in one group | 250,000 in up to 1000 groups |
| Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | - | |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | - | |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | - | |
| Connection Options | Standard (1) |
Advanced (3) |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ||
| WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | - | |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | |
| PosiSoft Solutions | Standard (1) |
Advanced (3) |
| PosiSoft Desktop Software Desktop software for PC or Mac computer | ||
| PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers | ||
| PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings | ||
| PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments | - |
|
X-treme |
|||
|---|---|---|---|
 |
Probe Model: | FXS | |
| Range: |
0 - 2000 µm |
||
| Accuracy*: |
± (0.05 mils + 1%) 0 - 2 mils ± (1 µm + 1%) 0 - 50 µm |
||
*Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. |
|||

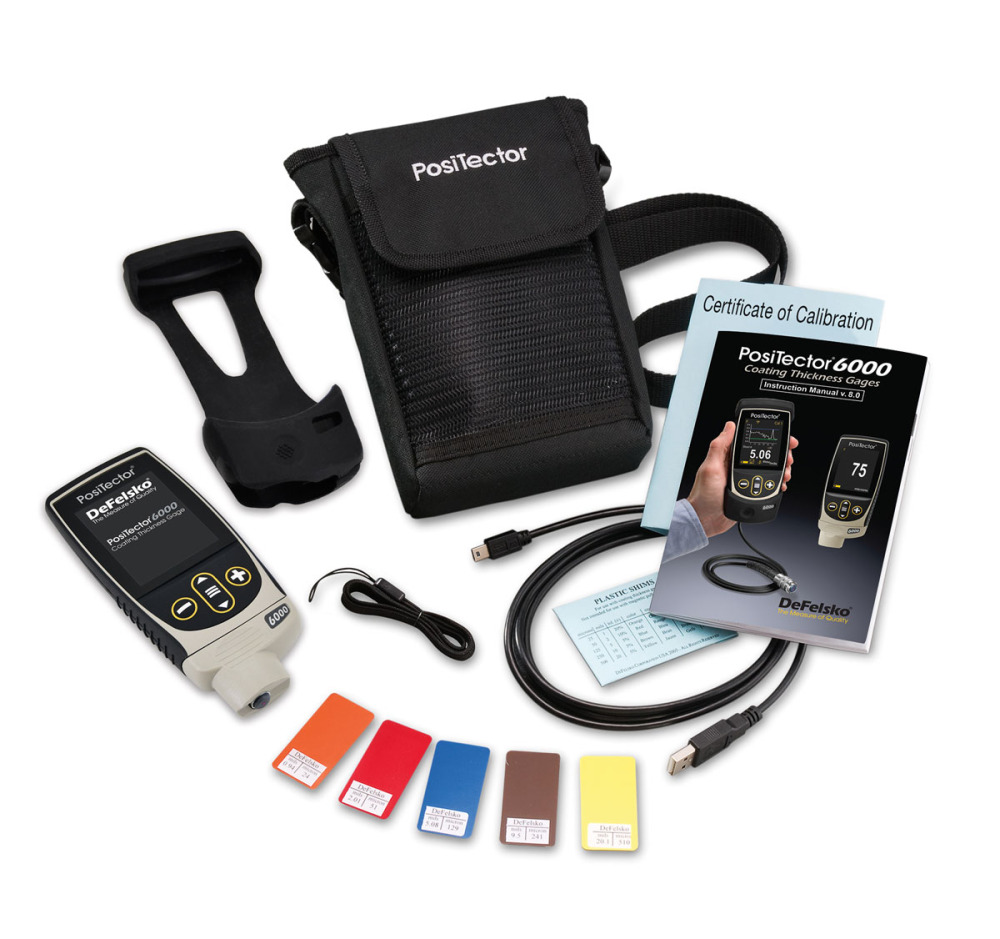

All gauges are supplied as a complete kit including:
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap
- 3 AAA alkaline batteries
- Instructions
- Nylon carrying case with shoulder strap
- Protective lens shield
- Long Form Certificate of Calibration traceable to NIST
- USB cable
- Two-year warranty

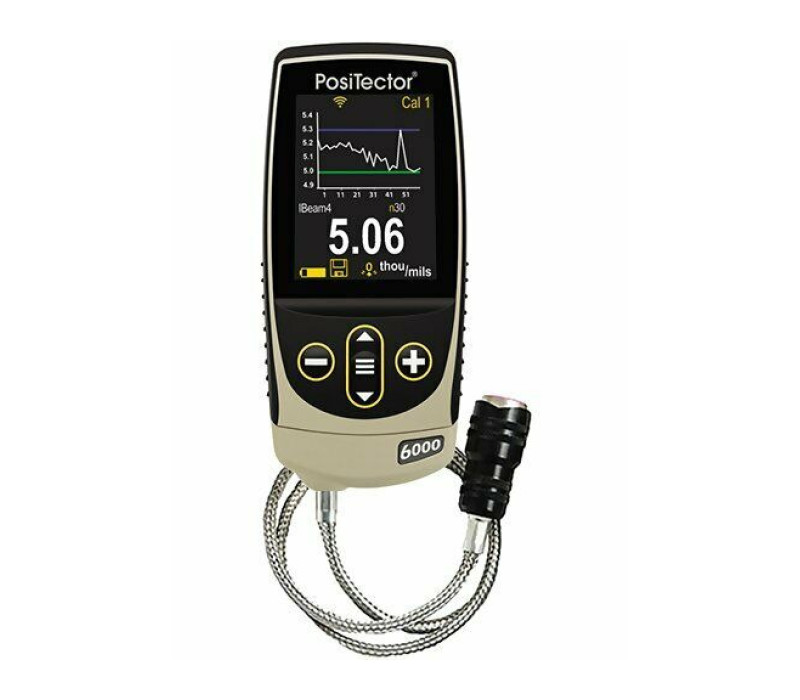

PosiTector 6000 FHXS Coating Thickness Gauge
- Probe Versatility: Probes are fully interchangeable and compatible with all PosiTector gauge bodies, offering flexibility in accessory choice.
- Advanced Connectivity: Includes USB, WiFi, and Bluetooth ports for easy integration with PosiSoft software systems, allowing efficient data and report management.
- Durable Support: Shock-absorbing protective rubber holster with belt clip ensures durability and ease of transport.
More details
Positector 6000TC Coating Thickness Gauge
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
- Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments
More details
Positector 6000TCX Coating Thickness Gauge
- For extra thick paint and coatings up to 13 mm (150-500 mils)
More details

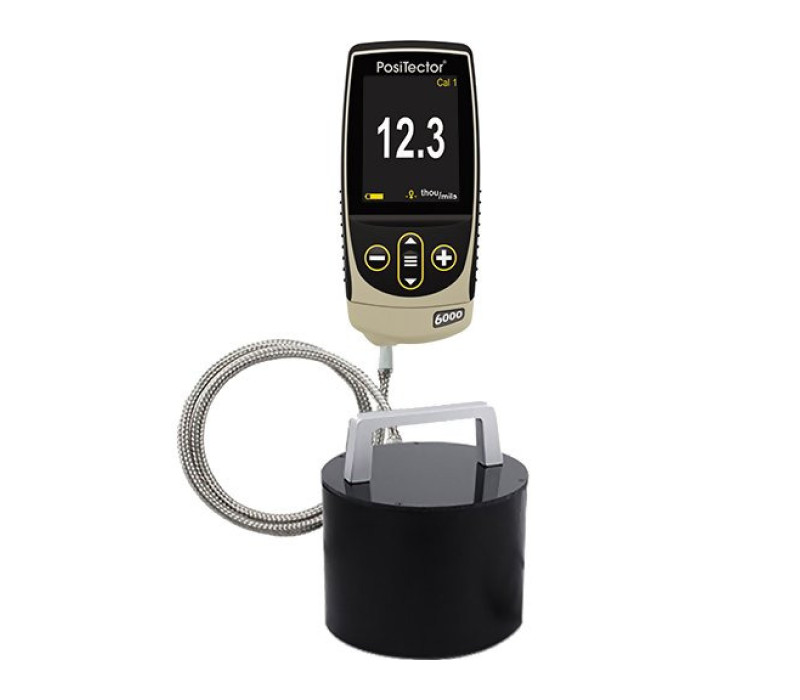

PosiTector 6000GS Coating Thickness Gauge
- FAST Mode: Increases measurement speed for quick and efficient inspections, ideal for large-scale projects.
- Extensive Storage: Capacity to store up to 250,000 readings in multiple batches, with instant graphing and real-time data management.
- Customizable Interface: Automatic rotating display and selectable language options to suit any user and work environment.
More details
Specifications
| Range: | 0 - 2000 µm |
| Accuracy: | ± (1 um + 1%) 0- 50 um / ± (2 um + 1%) > 50 um |
| Temperature range: | Up to 250˚ C (500˚ F) |

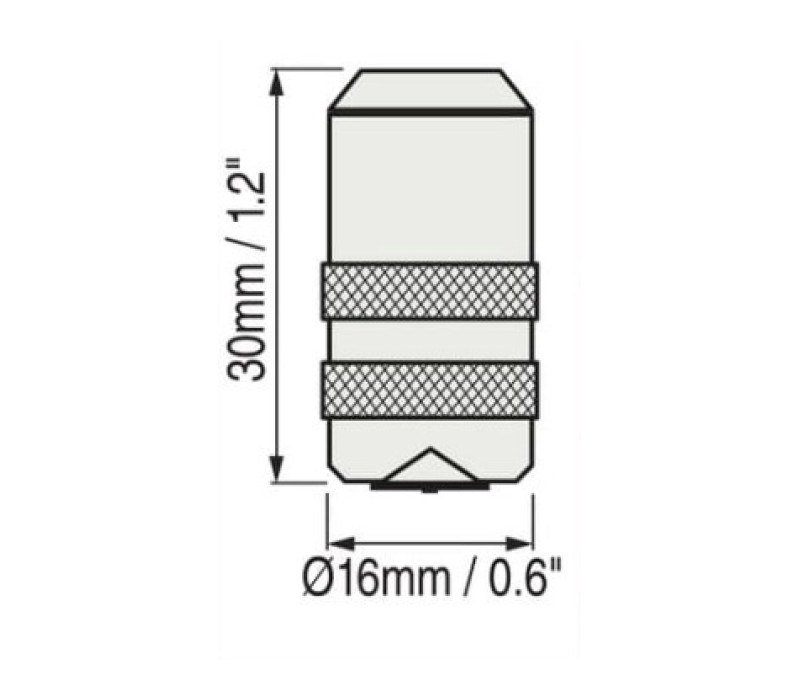

| Probe dimensions: | 30 mm (1.2") height / Diameter of 16 mm (0.6") |
| Calibration Certificate: | Includes a Long Form Certificate of Calibration traceable to NIST |
| Warranty: | 2 Years |
| Country of Origin: | United States |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
