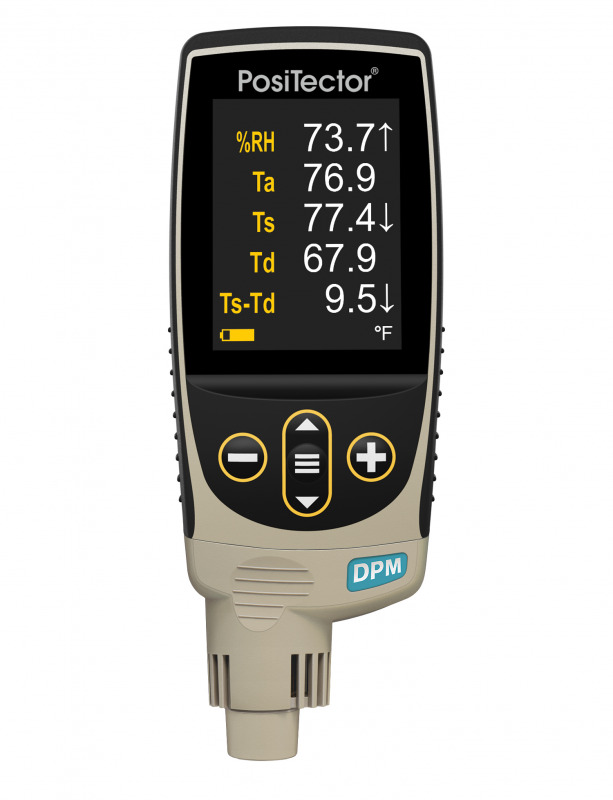

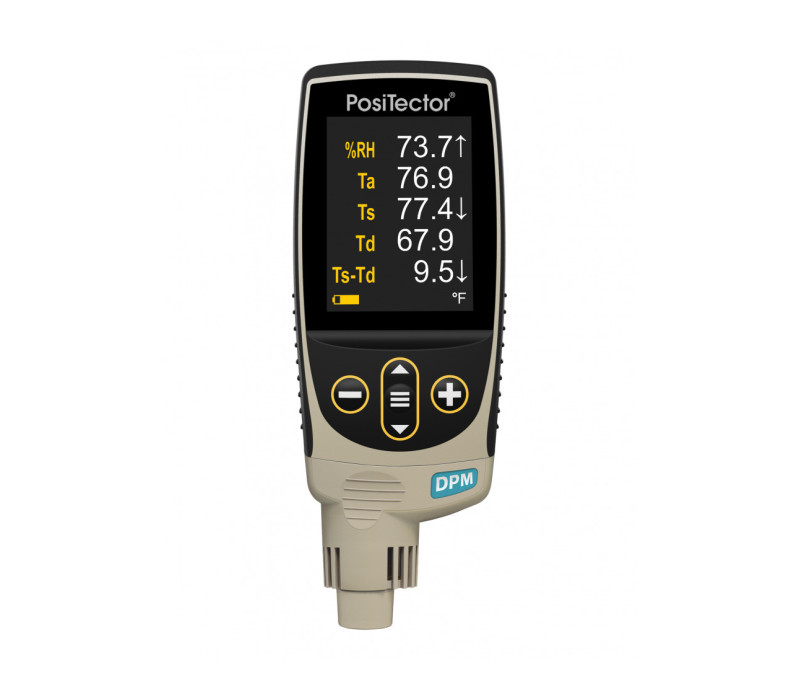

PosiTector-DPM Dew Point Meter

The PositecTor DPM measures climatic parameters including air temperature, surface temperature, dew point temperature and the difference between surface and dew point temperatures, which is critical for determining condensation probability. This meter is ideal for surface preparation, as required by ISO 8502-4.

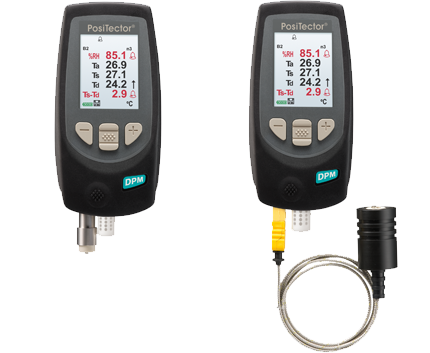

Available with built-in probe or separate probe

Simple

Large, easy-to-read, graphics LCD with multilingual support
Enhanced one-handed menu navigation
No need to consult complex tables or use a slide rule calculator
Audio and visual alarm – indicates when climate conditions are unsuitable for painting
All readings are constantly updated and displayed simultaneously
RESET feature instantly restores factory settings

Durable

Rugged, outdoor/indoor instrument
Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X
Shock-absorbing protective rubber holster with belt clip and wrist strap
Two (2) year warranty on both body and sensors

Accurate

Fast response precision sensors provide accurate, repeatable readings with high reliability and long term stability
Smart Trend Indicators™ identify rising, falling or stable readings
Certificate of Calibration showing traceability to NIST included
Conforms to national and international standards including ISO 8502-4, BS 7079-B4, ASTM D3276, NSTM 009-32, IMO PSPC, and SSPC-PA7

Versatile

Internal Memory stores datasets with the simple touch of a button

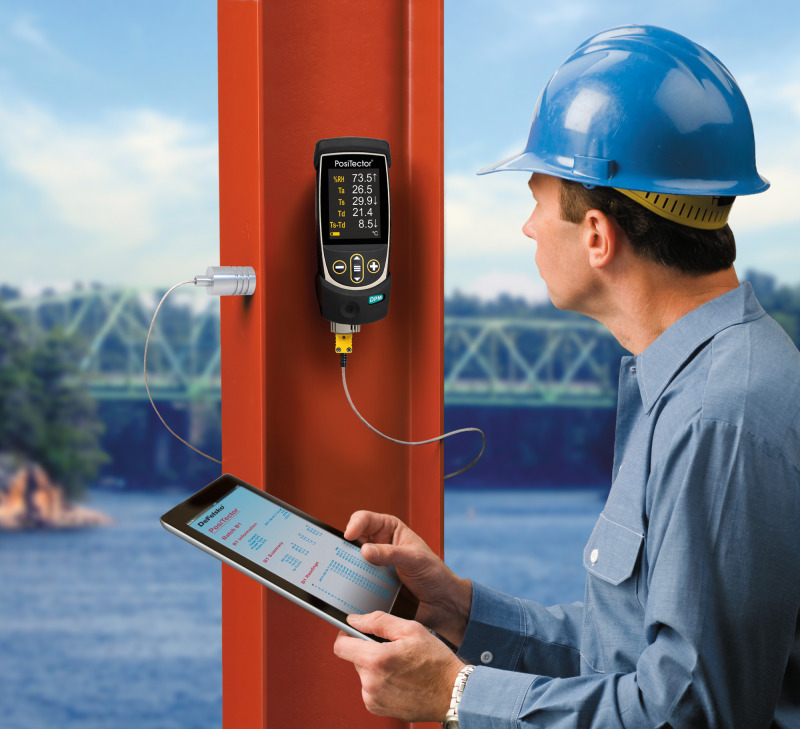

Auto Log Mode automatically records 5 parameters at user selected time intervals. Ideal for unattended operation
Field calibratable
Celsius/Fahrenheit switchable
Selectable display languages
Hi Contrast backlit display for bright or dark environments
Flip display enables right-side-up viewing
Uses alkaline or rechargeable batteries (built-in charger)

Powerful

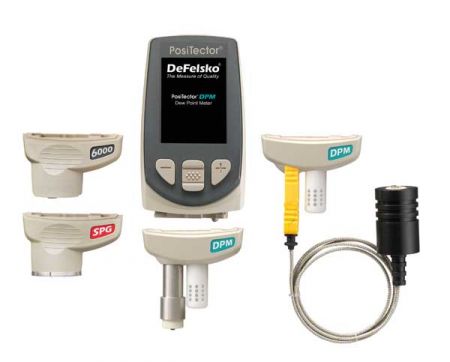

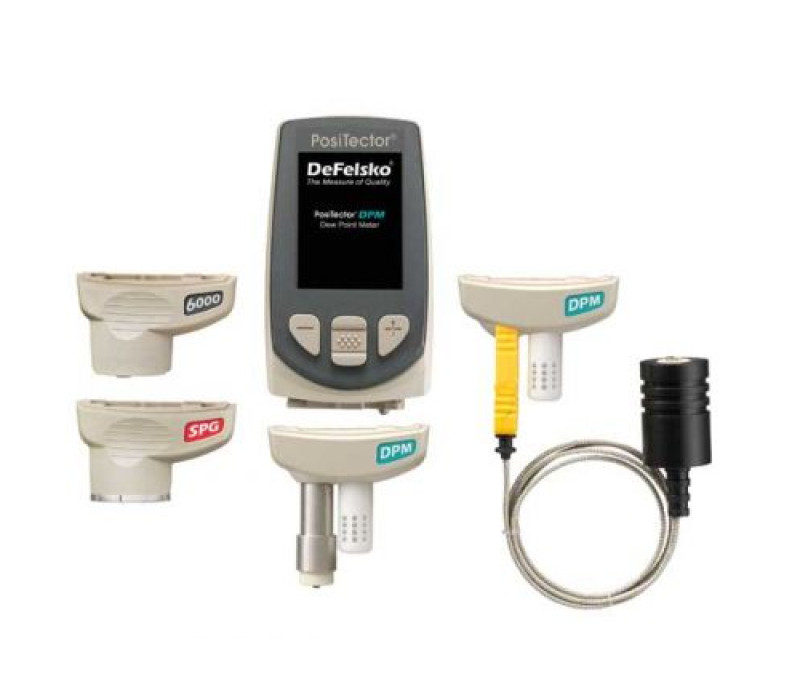

Universal body accepts all PosiTector DPM (environmental), 6000 (coating thickness) and SPG (surface profile) probes
Hold function freezes the display allowing measurements to be manually recorded
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Software updates via web keep your gage current
Multiple measurement download/transfer options:
- USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
- PosiTector.net - a free web-based application offering secure storage of thickness readings
- PosiSoft Software Compatible - Continue using the familiar legacy software you have used for years. Available as a free download.
Every stored measurement is date and time stamped

Not designed for use in pressurized systems.

Price from € 318,00

Shop now

The PT-DPM comes complete with, humidity, air and surface temperature sensors, protective rubber holster with belt clip and wrist strap , batteries, instructions, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST and a 2 yaer warranty

Feature Comparison Chart	Standard (1)	Advanced (3)
Hi Contrast LCD Display	Color	Color
General Features	Standard (1)	Advanced (3)
FAST mode - faster measurement speed for quick inspection	✔	✔
SCAN Mode - take continuous readings without lifting the probe	-	✔
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits	✔	✔
Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring	✔	✔
Onscreen help, real-time graphing, picture prompting and batch notes	-	✔
Memory Features & Capacity	Standard (1)	Advanced (3)
Reading Storage Capacity	1,000 in one group	250,000 in up to 1,000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.	-	✔
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels	-	✔
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings	-	✔
Multiple stored calibration adjustments for measuring on a variety of substrate conditions	-	✔
Connection Options	Standard (1)	Advanced (3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included	✔	✔
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality	-	✔
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer	-	✔
PosiSoft Solutions	Standard (1)	Advanced (3)
PosiSoft Desktop Software for PC or Mac computer	✔	✔
PosiSoft USB Drive allows you to access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers.	✔	✔
PosiSoft.net, formerly PosiTector.net, is a cloud-based application offering centralized management of PosiTector readings.	✔	✔
PosiSoft Mobile gage-based software application featured in all PosiTector Advanced instruments	-	✔

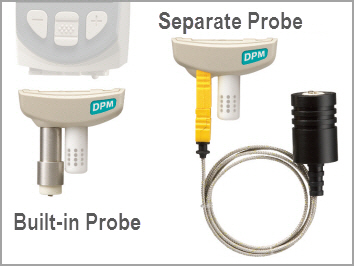

Select Probe Style

(Built-in or Separate)

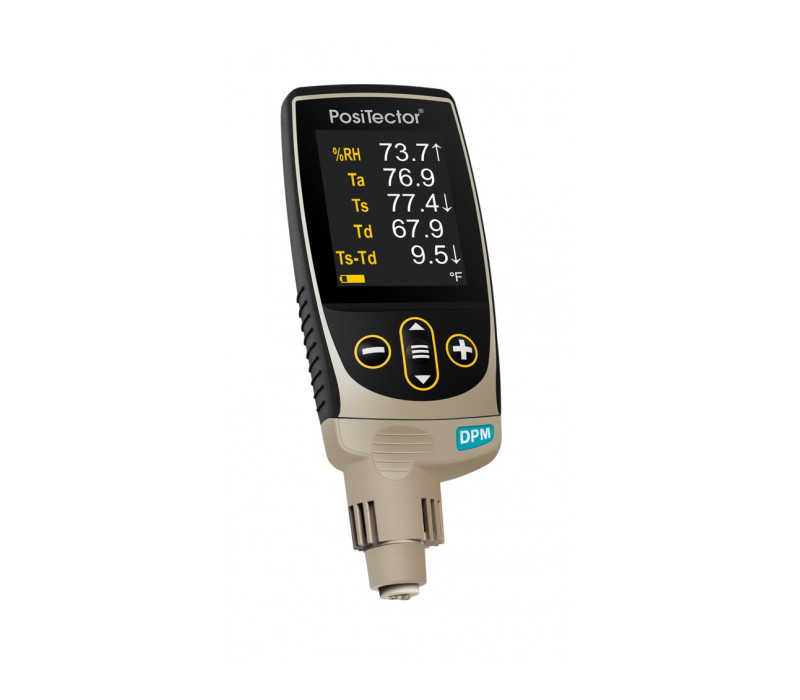

Built-in Probe

Includes built-in air temperature/humidity sensor and thermocouple surface temperature sensor

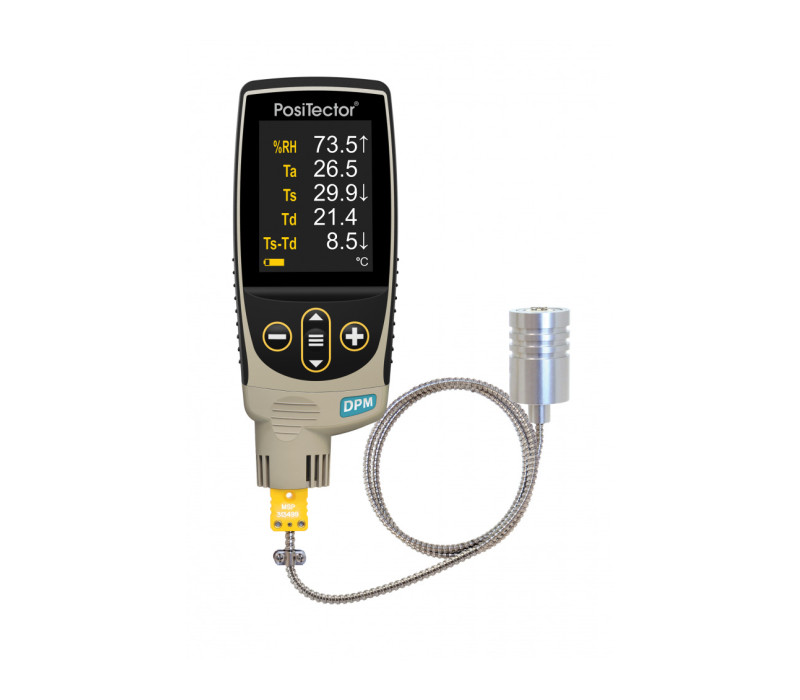

Separate Probe

Includes built-in air temperature/humidity sensor and K-type connector

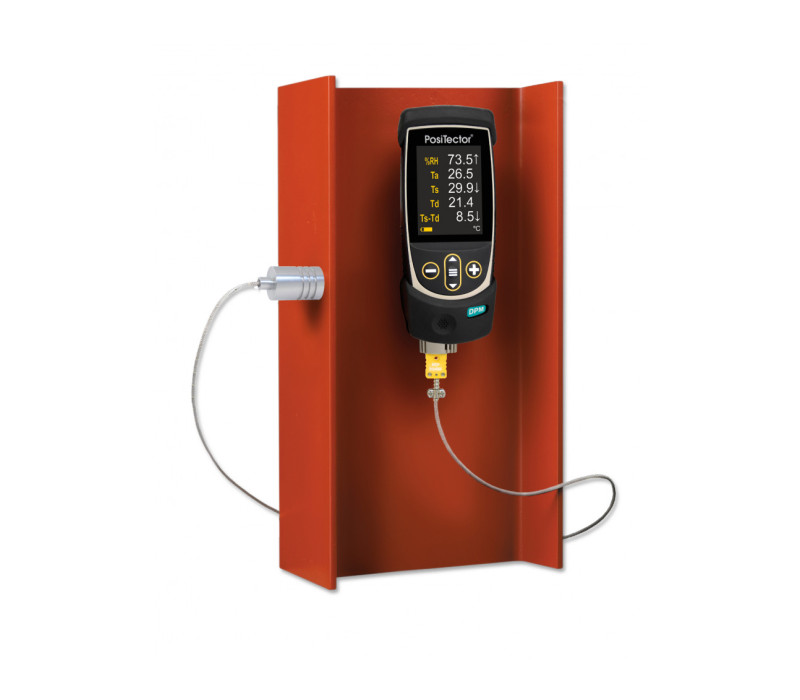

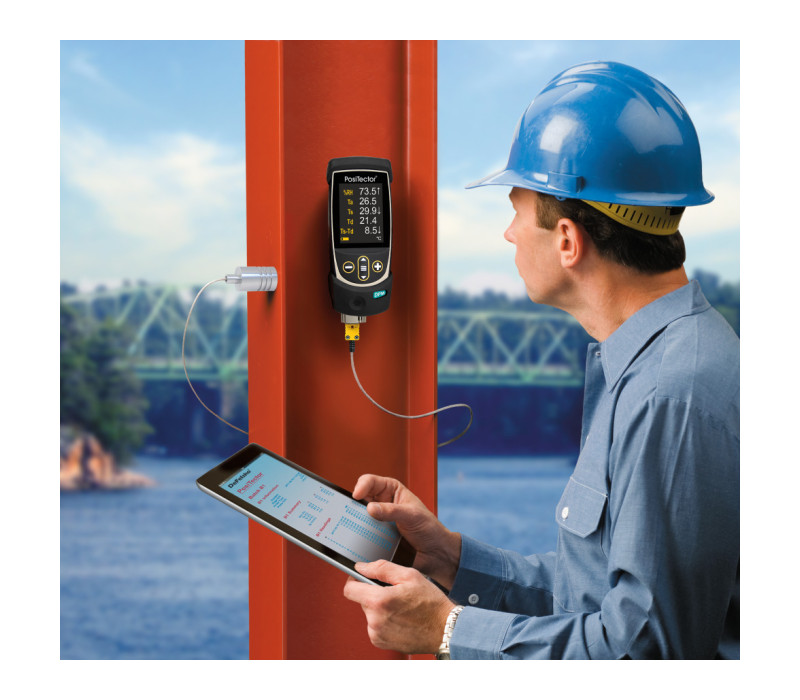

Magnetic surface temperature sensor with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation
Includes magnetic tab to attach the gage body onto steel structures

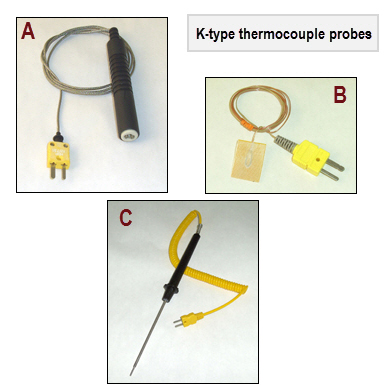

Easily converts to accept other optional K-type probes including:

A) Hand-held Surface Temperature Probe – for spot checking hard-to-reach surfaces
B) Self-adhering Surface Temperature Probe – sticks to solid materials including aluminum, wood, concrete, etc. Ideal for unattended monitoring.
C) Liquid Temperature Probe – general purpose probe with stainless steel shaft

Specifications

Specifications	Range	Accuracy	Resolution
Surface-Temperature	–40° to 80° C	±0.5° C	0.1° C
	80° to 190° C	±1.5° C	0.1° C
	–40° to 175° F	±1° F	0.1° F
	175° to 375° F	±3° F	0.1° F
Air-Temperature	–40° to 80° C	±0.5° C	0.1° C
Air-Temperature	–40° to 175° F	±1° F	0.1° F
Humidity	0 to 100%	±3%	0.1%

Data Sheet

Positector DPM

Products

Item	Product	Price	Quantity	Action
132526	PosiTector-1- Basic Body, Standard Gauge Body without probe	€ 318,00
132528	PosiTector-3-Advanced Body Only	€ 770,00

Accessories

Item	Product	Price
137684	DPML DPM L Wireless Logger Probe for PosiTector	€ 470,00
133238	PosiTector DPM, Integral Dew Point Meter Probe for PosiTector	€ 423,00
137513	PositTector DPMD, Cabled Dew Point Meter Probe with NPT Threads for PosiTector	€ 432,00
137512	PRBDPMIR DPM IR Integral Probe for PosiTector	€ 475,00
133239	PRBDPMS DPM Cabled Probe with K-Type Sensor for PosiTector	€ 532,00
133634	PRBDPMHSP DPMHSP Probe for PosiTector DPMS	€ 166,00
133635	PRBDPMLTP Liquid Temperature Sensor for PosiTector DPMS	€ 109,00
133045	PRINTERBT Bluetooth Printer for PosiTector Advanced	€ 369,00
131193	PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer	€ 22,00
137143	USBAC USB/AC Adapter Power Kit for PosiTector	€ 49,00
135393	LENSSHIELD Protective Lens Shields (5pk) for PosiTector	€ 11,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

PosiTector-DPM Dew Point Meter

Probe - Feature Comparison Chart

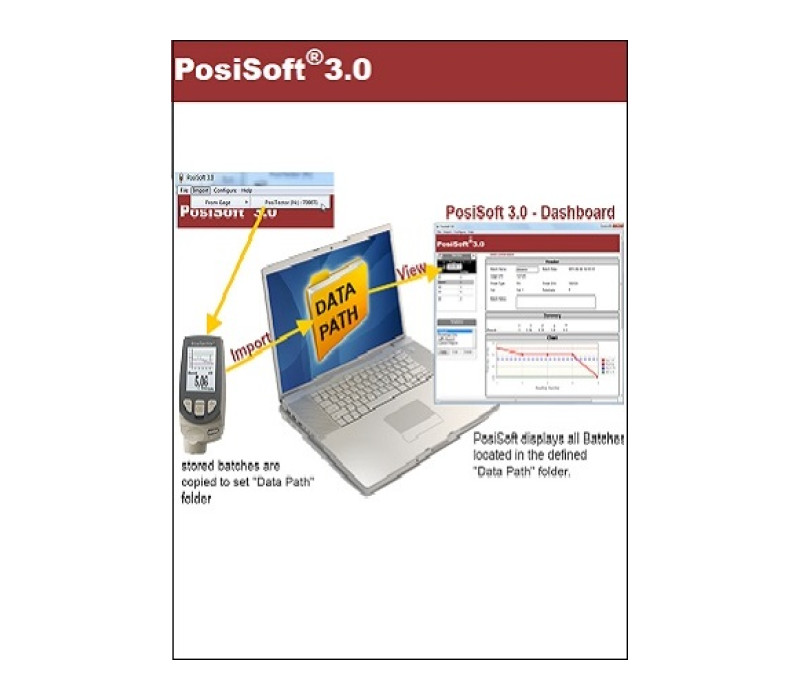

PosiSoft 3.0 Desktop Software
