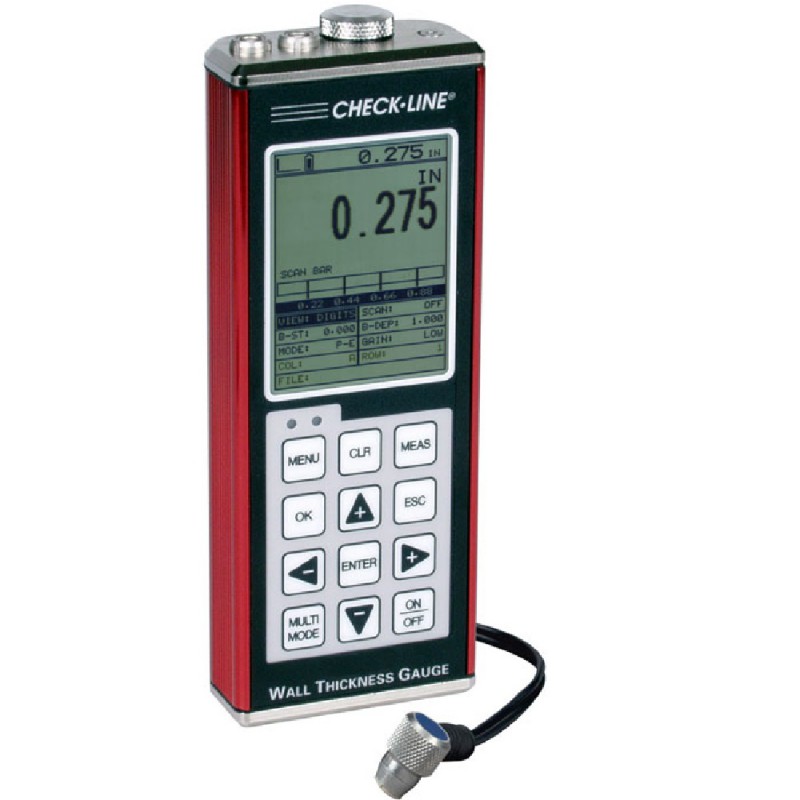

TI-MMX-SDL High Performance Data Logging Wall Thickness Gauge


Made in  USAThe CHECKLINE ultrasonic thickness gauge model TI-MMX-SDL provides the user with many advanced features. It has a complete alphanumeric system for datalogging which can store thousands of data values.

The TI-MMX-SDL is easy to use and has the highest resolution graphic LCD available on the market.


Features

  • Equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform and Large Digits).
  • The time-based B-Scan feature displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
  • Built in hardware AGC gain control for through paint measurements in multi mode operation.
  • The TI-MMX-SDL has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • CE Certified
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
  • Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
  • The TI-MMX-SDL also comes complete with our Windows® PC software for transferring data to and from a PC.
  • Includes NIST Calibration Certificate
  • 2 Year warranty

Complete Kit

The TI-MMX-SDL is supplied as a complete kit with:
- TI-MMX-SDL wall thickness gauge
- 4 oz. bottle of coupling fluid
- 2 AA batteries
- NIST Calibration Certificate
- data transfer software
- serial output cable
- instruction manual
- delivered in a foam-fitted carrying case

TRANSDUCER SOLD SEPERATELY

Accessories

TI-SB


  • Precision Machined and Finished
  • Includes NIST Report and Test Data
  • Includes Wooden Storage Box

More details

TI-SB4


  • Uncertified Steel Test Block
  • For convenient confirmation of thickness gauge calibration
  • 4 steps: 2.54 | 5.08 | 10.16 | 15.24 mm

More details

TICC-MVX


  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop
  • Includes wrist & shoulder straps

More details

TI-V-BLOCK


  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
    For 3/16" & 1/4" Transducers only.

More details

CF-AN


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
  • Temperature Range: -5 to 97 ºC

More details

TI-PRINTER


  • Small, portable and easy to use
  • Prints statistical data from ultrasonic wall thickness gauges with a serial (RS232) output

More details

N-306-0010


  • RS232 (DB-9 to Lemo) Data Cable 182cm

More details

DataComm


  • Compatible for Windows Vista and Windows 7.

More details

CF-4H


  • Temperature Range:
    0° to 600° F
    -18° to 315° C
  • Very slow drying; allows for long-term coupling without reapplication
  • Excellent corrosion inhibition
  • Supplied in 118ml / 4oz tube

More details

CF-4H-950F


  • Temperature range from 316ºC to 404 ºC
  • Very slow drying; allows for long-term coupling without reapplication
  • Excellent corrosion inhibition
  • Supplied in 120ml tube

More details

Cic-Wall


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
  • Possibility to adjust and repair

More details


Specifications

Range in Steel:
Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)

Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches).
Range will vary +/- depending on the thickness of the coating.
Resolution:
0.01mm (.001 inches)
Velocity Range:
.0492 to .3936 in./ms
1250 to 9999 meters/sec
Units:
English & Metric
Measurement Modes:
- Pulse-Echo (flaws, pits)
- Echo-Echo (thru-paint)
Transducer Types:
Dual Element (1 to 10 MHz).
Memory:
16 megabit non-volatile ram
Memory capacity:
12.000 pages with 1 reading and waveform per page
Power Source:
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life:
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off:
if idle 5 min
Display:
1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard:
Membrane switch with twelve tactile keys
Case:
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature:
-10° to 60°C (-14° to 140°F)
Weigth, net:
383 grams
Dimensions:
63.5 W x 165 H x 31.5 D mm
Warranty:
2 year limited
Certification:
CE Approved, Factory calibration traceable to US standards

Downloads


Download DataComm 2 Software


Related Products

DataComm Software


  • Compatible for Windows Vista and Windows 7.

More details


Buy Now

Product


Product name
Price
Quantity
TI-MMX-SDL Ultrasonic Thickness Gauge PROBE NOT INCLUDED
€ 1.969,00



Accessories


Product name
Price
Quantity
T-102-2700 - 1/4" dia 5.0 MHz alpha hi-damp transducer for through paint measurement
€ 329,00

T-104-0600 - 1/4" dia 5.0 MHz alpha hi-damp transducer for through paint measurement
€ 345,00

T-104-1000 - 1/2" dia. 2.25 MHz transducer
€ 297,00

T-102-1000 - 1/4" dia. 2.25 MHz transducer
€ 286,00

T-104-2000 - 1/2" dia. 5.0 MHz transducer
€ 297,00

T-101-2000 - 3/16" dia. 5.0 MHz transducer
€ 286,00

T-102-3300 - 1/4" dia. 7.5 MHz transducer
€ 324,00

T-042-2000 - 1/4" dia. 5.0 MHz high temp (650°F) transducer
€ 345,00

T-044-2000 - 1/2" dia. 5.0 MHz high temp (650°F) transducer
€ 372,00

V-BLOCK - V-Block Transducer holder
€ 189,00

CAL-DKD - Callibration Inspection Certificate
€ 99,00

TICC-MVX - Protective Holder
€ 82,00

TI-SB4 - Uncertified Steel Testblock
€ 136,00

TI-SB-4H - Steel Test Block
€ 372,00

TI-SB-4L - Steel Test Block
€ 372,00

TI-SB-5L - Certified Steel Test Step Block
€ 372,00

CF-AN - Coupling Fluid - 200ml
€ 15,00

All mentioned prices are excluding VAT & excluding shipment costs.
