TST and TSTH Manual Torque Test Stands

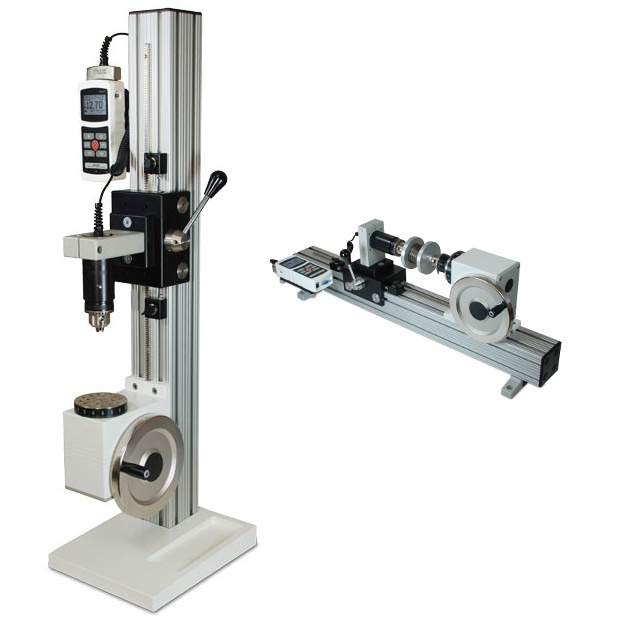

Made in the USAThe TST vertical and TSTH horizontal manual torque test stands are developed for a variety of test applications up to 11,5 Nm, and measures clockwise and counter-clockwise. Like the TSTM-DC test stands they can be used for fastener torque testing, bottle cap testing, torsion spring testing and more.

The TST torque test stand is lever operated to support the up and down movement, torque transfer is generated through a smooth hand wheel operation that turns the torque loading plate with tapped holes. Torque sensors are mounted directly to the column of the test stand and are available in various models and capacities.

An optional digital angle indicator is useful for torsion spring testing, medical device testing, and other applications.

The TST(H) requires a torque indicator like the Model 3I, 5I or 7I, that displays the torque value measured by a torque sensor. The TST(H) is a test stand only, In order to measure torque, a torque sensor, display and appropriate test fixtures are needed.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • Adjustable travel stops
  • Load capacity: 11,5 Nm
  • Travel rate: 12° per wheel revolution
  • Torque plate with tapped holes for grip and fixture mounting
  • Smooth hand wheel operation
  • Lever operated slider for engaging and disengaging samples
  • Maximum angular travel: no limit
  • Throat: 104 mm

Video


Complete Kit

The TST and/or TSTH Torque Test Stands include:

  • Torque measurement test stand
  • Base (TST)
  • Mounting leg with hardware (TSTH)
  • Column cap
  • 4x thumb screws for base installation
  • Mounting hole drill template (TST)
  • Additional column cap with hardware (TSTH)
  • Allen wrench set


Dimensions
TST
Dimensions-TST

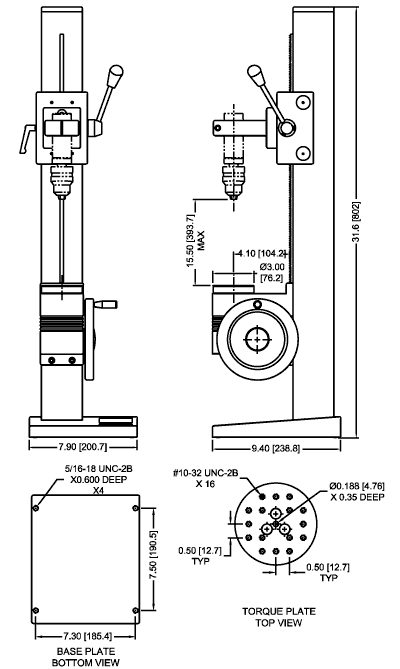

Dimensions of the TST vertical torque test stand,
all dimensions are in inch with [mm] behind.

TSTH
Dimensions-TSTH


Dimensions of the TSTH horizontal torque test stand,
all dimensions are in inch with [mm] behind.


Accessories

Category Torque Accessories


Grips & Attachments for torque gauges and torque test stands. Universal torque grips and special attachments for specific applications.

More details

Category  Torque Accessories 0

Jacobs Chuck Grip For TST Jacobs Chuck Grips For TST Test Stand


  • Jacobs Chuck Grips For TST Test Stand

More details

Jacobs Chuck Grip For TST Jacobs Chuck Grips For TST Test Stand 126097

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands


  • Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

More details

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands 126115

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Specifications
Maximum torque:11,5 Nm
Maximum angular travel:no limit
Throat:104 mm
Angular rate:12° per wheel revolution
Maximum slider travel:394 mm
Slider travel rate:26,6 mm / lever revolution
Weight (test stand only):15 kg
