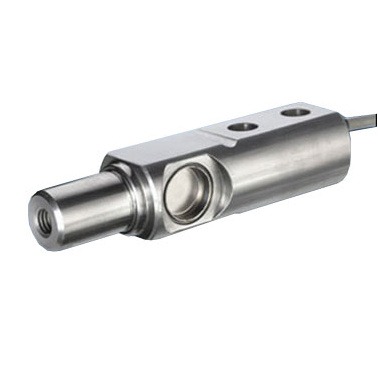

SK 122 FM High-Capacity, Water-Proof Online Tension Sensor


Made in Germany3 Ranges
200 KG (440 LBS/2000N)
300 KG (660 LBS/3000N)
500 KG (1100 LBS/5000N)

The new CHECK-LINE Model SK 122 FM Tension Sensor measures the running line tensions of wires, cables and similar process materials.

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection.

Features

  • 17mm non-rotating bearing journal
  • Designed as a single-roller system -uses an existing reversing point for tension measurement
  • System of protection IP67 - waterproof
  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Overload protection up to 800%
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available
  • Custom sensor designs can be developed to meet specific applications requirements.

Dimensions

Dimensions Tension Sensors SK 122 FM


Related Products

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output

More details

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation

More details

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors


  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Export data in ASCII format

More details


Tension & Force Definitions


Specifications

Measuring Ranges
200 KG (440 LBS/2000N)
300 KG (660 LBS/3000N)
500 KG (1100 LBS/5000N)
Measuring Principle
Strain Gauge
Accuracy
±0.5% Full Scale or better
Sensor Excitation
10 VDC (12 VDC, max.)
Sensor Output
1.5 mV/V
Input Resistance
1000 Ohms ± 4
Output Resistance
1000 Ohms ± 2
Overload Protection
400 - 800%
Deflection
0.07mm (max.)
Housing Material
Stainless Steel
Environmental Protection
IP67 (Water-Proof)
Cable Type
5.5 mm diameter shielded cable with bare leads
Cable Length
10 ft. (3 meter), longer lengths available. Inquire
Operating Temperature
15 to 122° F (-10 to 50° C)
Fequency Responce
5 msec (200 Hz)
Zero Adjustment
±45%
Weight
450g
