RFS150-XY Radial force sensor with 2 measuring axis

Made in GermanyAvailable in 14 rated load ranges:
0 - 5N to 0 - 1000N

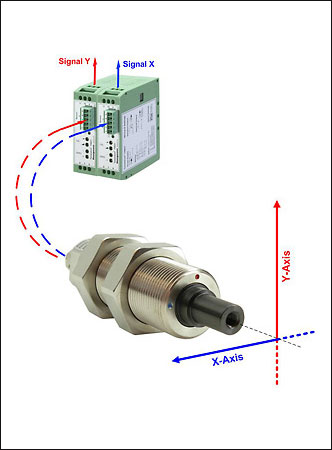

The dual-axis radial force sensor offers two measuring axis, vertically to each other. Force introduction occurs radially at the bearing journal. Any acting force can be splitted vectorially into X- and Y-components.

Fields of application:


  • for research and industry
  • acquisition of axle loads, bearing reactions and unbalances
  • XY-force measurement on shafts and axles force measurement on pivot joints and crankshafts
  • recording of polar force diagrams

The high mechanical stiffness of the load cell enables measurement with virtually no excursion.

The specified and calibrated accuracy remains unchanged throughout the unit’s service life and, across wide ranges, is independent of direct axial forces.
Both force signals get conditioned with a 2-channel measuring amplifier solution. Value and direction of the acting force are acquired.

For analysis the data can be stored in the PC, e.g. with the software HCC-Easy.

Its export function enables the user to transfer the data to further software for extended analysis, e.g. generating a XY-diagram.


  • 2 measuring axis, vertically to each other
  • Independent of the force introduction point, i.e. the sensor is not affected by lever arm action
  • Thought-through concept of housing for simple mounting
  • High overload protection
  • No influence of any axial tilt torques or direct axial forces which might appear
  • Robust, stainless steel housing

Related Products

TS621 Strain Gauge Amplifier

  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output

More details

DPM502 Digital Tension Indicator

  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation

More details

MU621 Tension Indicator/Amplifier Console

  • For strain gauge sensors
  • 1 to 4 measuring channels

More details


±0.2 %
Input resistance
350 Ohm ± 3
Output resistance
350 Ohm ± 1
Operational temperature
Sensor: -10 to 70 °C
Connection Cable: -30 to 80 °C
Storage temperature
-30 to 70 °C
Overload Protection
400 - 800 % (depending on nominal force)
400 g
Sensor Material
Stainless Steel
