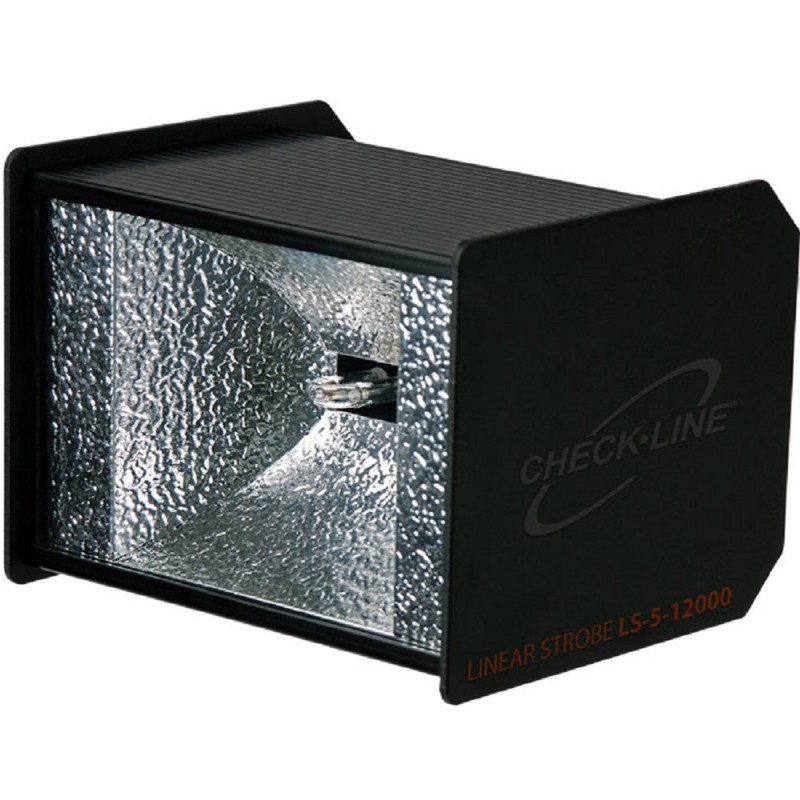

LS-5-12000 Compact Linear Stroboscope


Made in GermanyThe new Checkline LS-5-12000 Linear Strobe is designed for fixed mounting on all machinery that utilize a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more.

The LS-5's flash rate can be externally triggered by an external sensor/controller on the process machine or the LS-5-RCU Remote Controller can be optionally specified for this purpose. Refer to separate webpage on the LS-5-RCU.

The LS-5 produce a bright, sharp image under observation when the flash rate is synchronized with the "repeat rate" of the web material. The strobe operates using 24V DC (15 - 28V DC) using power already available on the machine or by using our worldwide AC-DC power adapter available as an option.

The brightness, sharpness and uniform light output provided by the LS-5 is unmatched in the market based on it compact size and low cost. It is especially well-suited for use on narrow web equipment up to 16 inches in width (400 mm width) and even wider. Two or more units can be used together in a Master/Slave arrangement when wider web widths must be covered.


Features

  • Unmatched brightness, sharpness and uniformity from any strobe in its class
  • Uses long-life Xenon U-tube which is easily replaced after 200 Million flashes
  • Extremely short flash duration of less than 5 microseconds (µs) provides for a super-sharp image for easy observation
  • Can be powered using 24V DC already available on the machine or using option AC-DC power adapter.
  • Externally triggered using industry standard TTL-type square-wave signal at rates up to 208Hz and even higher
  • Aluminium enclosure is efficiently dissipates heat eliminating the need for bulky heat sinks
  • Two (2) or more LS-5 Strobes can be connected to each other for wider web coverage
  • CE-certified for use worldwide
  • Threading holes provided for fixed-mounting on machine frame or articulating arm
  • Optional UV-Kit is offered to illuminate any UV printing requiring inspection. Includes special UV flashtube and lens.

Light Output (LUX) vs Distance


Related Products

LS-SCU Remote Control Unit



More details

LS-FCM Flash Control Module



More details

SAS-DT300 Articulating Stroboscope Swing Arm


  • 41" when fully extended
  • Heavy duty construction with internal springs

More details

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps


  • The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes.
  • Only label sensor on the market that is immune to the interference caused by a strobe.
  • IP66/Nema 4 rating provides excellent physical protection and is waterproof.

More details

LS-REGSENSOR Registration Mark Sensor


  • Includes remote Autoset™ and Selectable Pulse Stretcher
  • Single, one pushbutton set-up
  • Color Mark registration detection on transparent and translucent, including many metalized films and paper

More details

Linear Stroboscope


  • Super-bright Xenon Tube and highly-polished hammertone reflector combines to generate industry-leading light intensity and uniformity
  • Models are offered in 10 inch (250 mm) and 15 inch (380 mm) widths
  • Internal and External control of flash rate and flash intensity (brightness)
  • Steel enclosure is specifically-designed to efficiently dissipate heat eliminating the need for bulky heat sinks
  • 2 or more LS models can be connected to each other for wider web coverage

More details

DT-TRI-HD Tripod for Tachometers and Stroboscopes


  • Expands from 10 1/2" to 40"
  • Steel leg construction, non-slip rubber feet & 2-way panhead

More details

Leica TRI100 Large Tripod


  • Aluminium tripod with easy fine adjustment
  • Robust tilt head
  • Bubble level
  • ¼” fixing screw on removable head plate
  • Flip levers for easy adjustment
  • Weight: 2.4 kg
  • Working height from 0.70m to 1.72m

More details

LS-5-UVKIT UV Strobe Conversion Kit for LS-5-12000 Stroboscope



More details

LS-5-LED LED Fixed-Mount Linear Stroboscope


  • Light intensity of 6000 Lux peak
  • Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.
  • Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.
  • LEDs provide lifetime use and never require replacement.
  • Powered by 24 VDC, An optional universal AC-DC power supply is available.
  • For web widths greater than 12" (300mm), two or more strobes can be connected in parallel.

More details

LS-9-12000 Linear Xenon Stroboscope


  • Unmatched image brightness (2500 Lux) along with best sharpness and light uniformity from any strobe in its class
  • Uses long-life Quartz Glass Xenon linear tube with lifetime of over 200 Million flashes
  • Extremely short flash duration of less than 10 microseconds (µs) provides for a super-sharp image for easy observation
  • Can be powered using 24V DC already available on the machine or using option AC-DC power adapter.
  • Externally triggered using industry standard TTL-type square-wave signal at rates up to 208Hz and even higher
  • 9 inch wide (230 mm) aluminum enclosure efficiently dissipates heat eliminating need for bulky heat sinks
  • Two (2) or more LS-9 Strobes can be connected to each other for wider web coverage
  • CE-certified with safety and EMV approvals suitable for use worldwide
  • Threading holes provided for fixed-mounting on machine frame or articulating arm
  • Adjustable light intensity 30-100% to optimize brightness for any application
  • Optional UV-KIT provides for illumination of UV Inks and adhesives allowing for visual inspection by operators

More details


Downloads


Specifications

Flash Range
0 - 12,500 FPM (flashes per minute)
Power Supply
15 - 28 V DC / 12 Watts
DIN 41525 5-pin standard plug
Universal power supply unit available
External Trigger Input
3 - 30 V / max 5 mA
(voltage-free optocoupler)
DIN 41524 5-pin standard plug
Uout = Uin, max 200 mA
Life Cycle
> 200,000,000 flashes (@6000 FPM)
Flash Duration
< 5 µs
Illumination Intensity
Single flash 10 megalux @ 30cm (12 inches)
Illumination intensity
500 lux @ 30cm (12 inches), 6000 FPM
Illumination Area
20x30 cm
Light Colour
6000 - 6500 K
Flash Energy
600 mJ @ ¡©¡Â 1200 FPM
Housing Material
Aluminum
Dimensions
150 x 130 x 112 mm / 6.0" x 5.1" x 4.4"
Weight
870 g (1.9 lbs.)
Ambient Temperature
0 - 40 °C (32-104 °F)
Air Humidity
Max 95%, non-condensing
Mounting Holes
Threaded 1/4 x 20 unc and 2x M5 holes on bottom side of strobe housing
