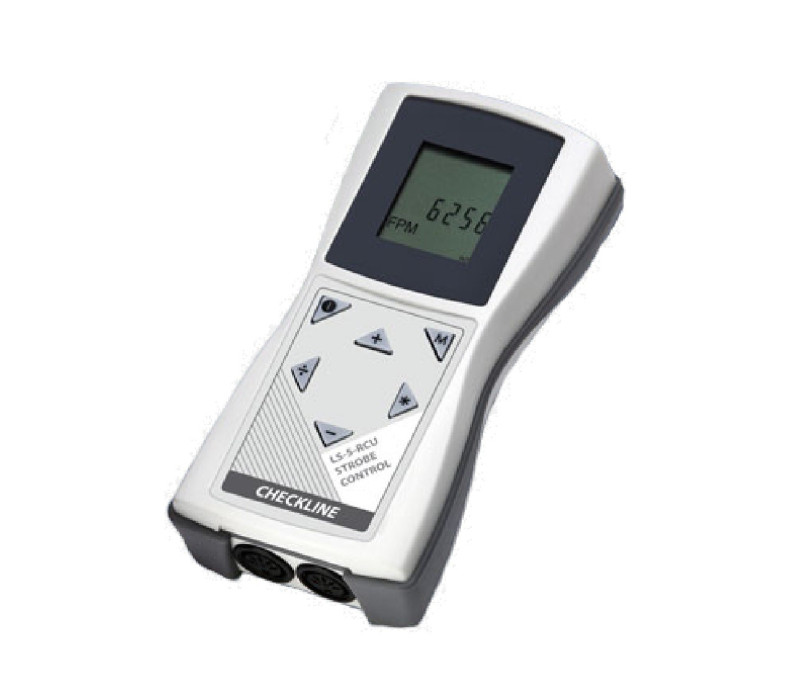

LS-SCU Remote Control Unit

LS-SCU Remote Control Unit

Name: LS-SCU Remote Control Unit
SKU: 126476

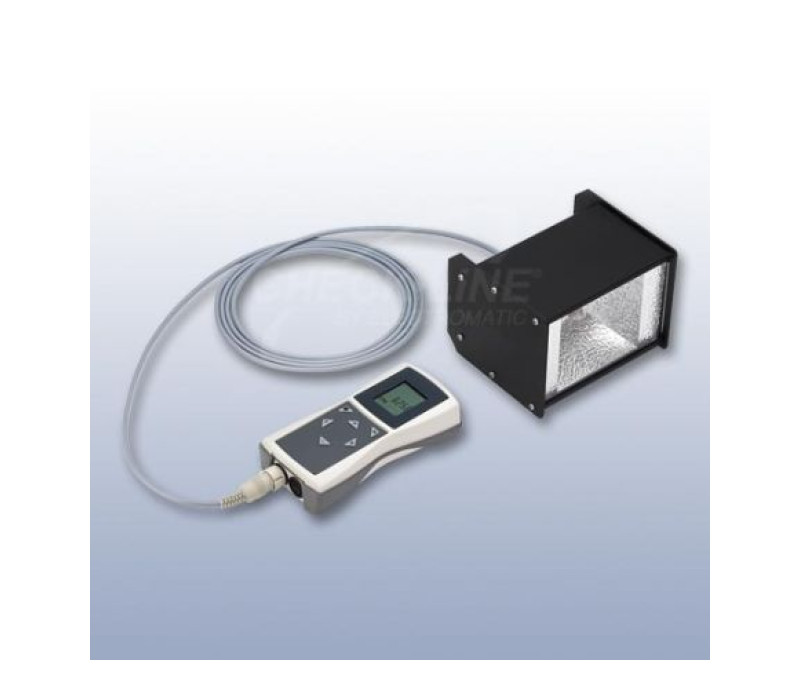

Designed to provide a programmable frequency output for use to Control Xenon and LED Stroboscopes. Programmable adjustments include flash rate (FPM or Hz), Pulse Duration (usec), Pulse Degree, Delay (msec), Phase Shift (Degree), Divider and more.

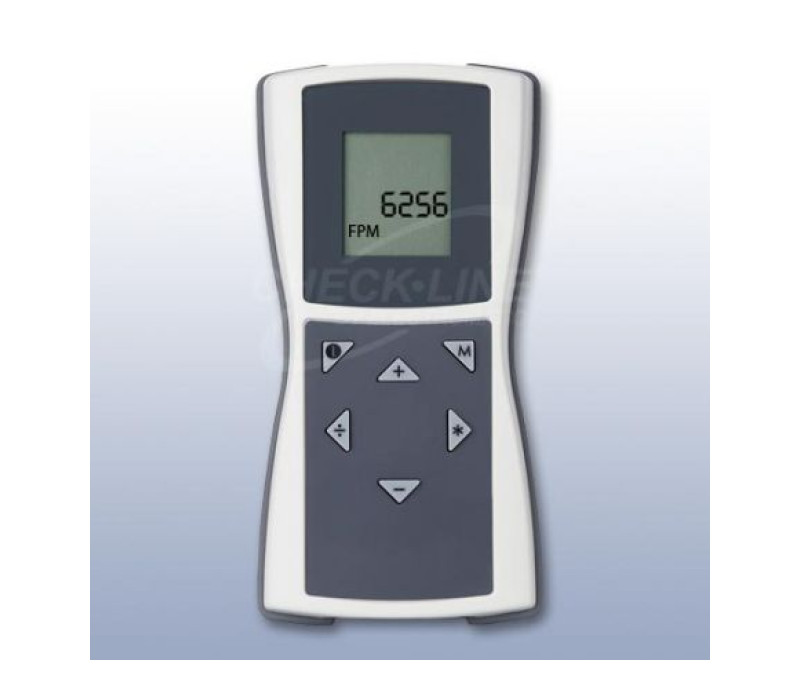

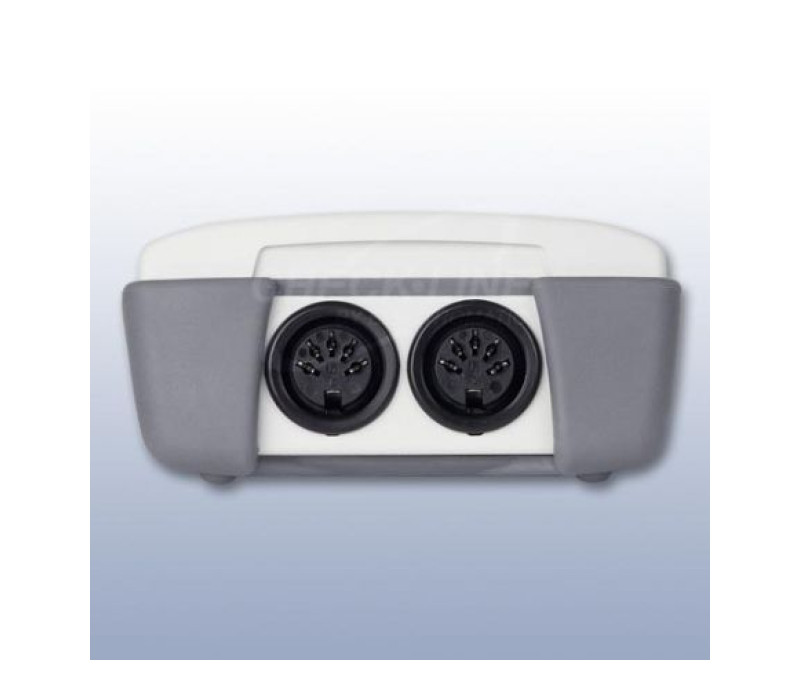

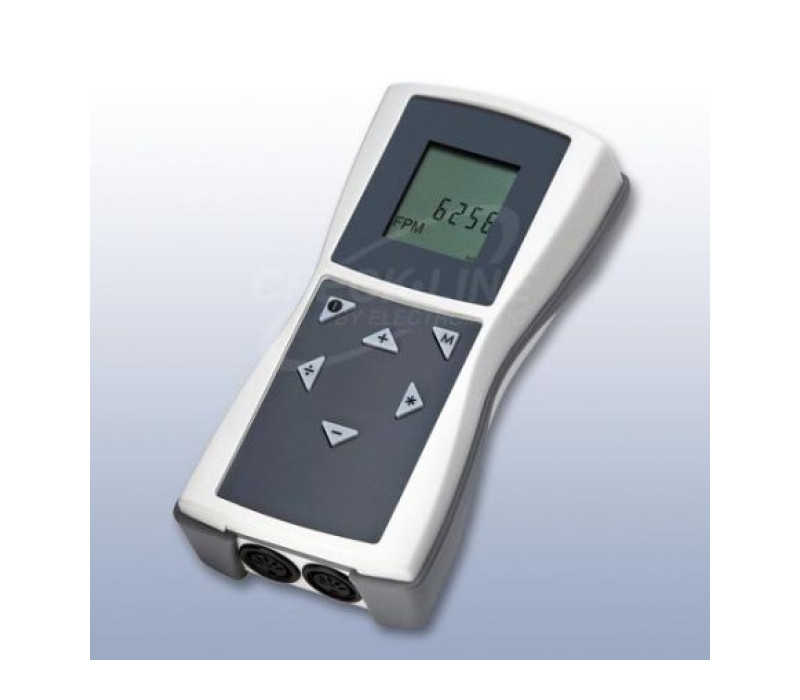

All controls are accessed via 6 tactile buttons on the front of the controller with all values shown on an alpha/numeric LCD Display. Unit is 24V DC powered and is supplied with 5 ft. connection cable.

Universal Power Supply with 4 plug adapters (for use with 100–265V AC) available as an option.

Request price >>

LS-SCU Data Sheet

Frequency	30.0 - 999.9 FPM ± 0.1 1,000 - 600,000 FPM ±1 0.5 - 999.9 Hz ± 0.1 1,000 - 10,000 HZ ± 1
Pulse Width	absolute (± 1) and relative (± 1°) adjustable
Phase Shift	0 - 359° ±1°
Delay	0.0 - 2,000.0 ms ± 0.1 ms
Divider	1 - 255 ± 1
Power Supply	10 - 32 V DC, with reverse polarity protection
Current intake	≤ 50 mA
Principle	Optocouple, voltage-free
Low Level	≤ 1 V
Level	3 - 32 V, NPN + PNP
Minimum pulse Length	50 µs
Reverse voltage protection	Yes
Principle	Short circuit and overvoltage proof transistor output to the optocoupler control, non-isolated
Level	NPN, max 32 V
Pulse Length	adjustable
Maximum Current	50 mA
Reverse Voltage Protection	Yes

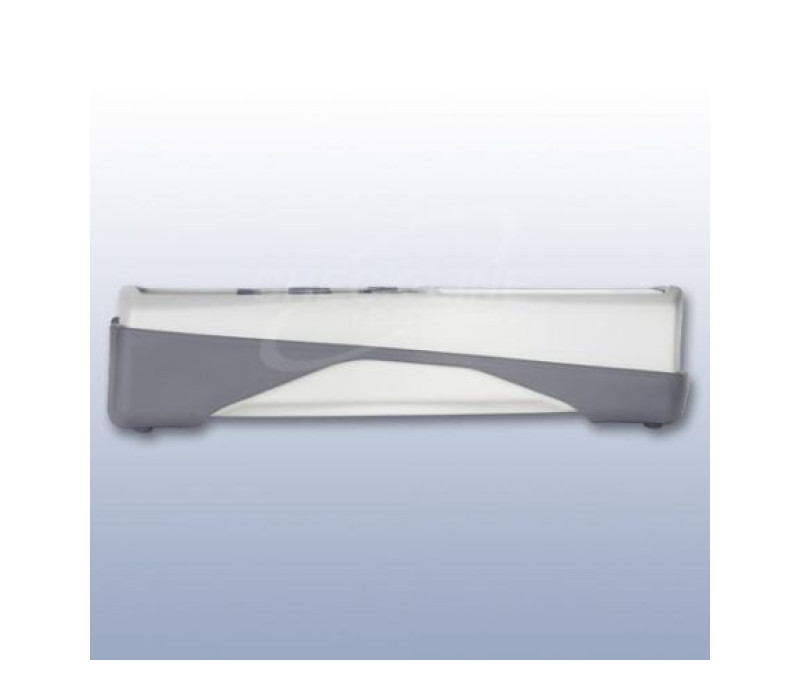

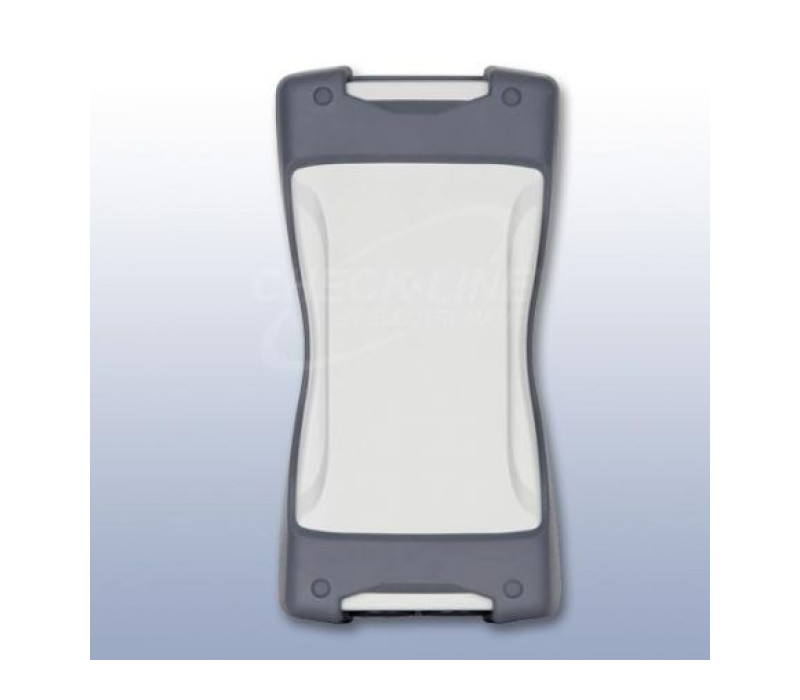

Housing Material	ABS / EPDM
Dimensions	162x82x40 mm / 6.4x3.3x1.6 inch
Weight	230 g
Ambient Temperature	0 - 50 °C (32 - 122 °F)

Products

Item	Product

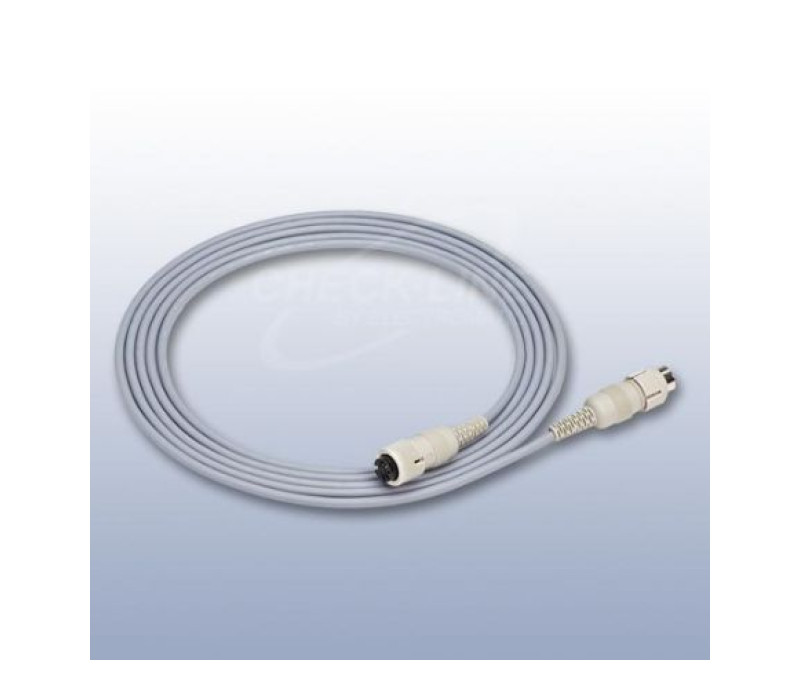

130696	LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)

Accessories

Item	Product
130698	LS-AC-WORLD Universal Power Supply for LS-RCU or LS-5-12000 Strobes
130699	LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigger signal
130700	LS-DIN 5 Pin DIN Connector

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
