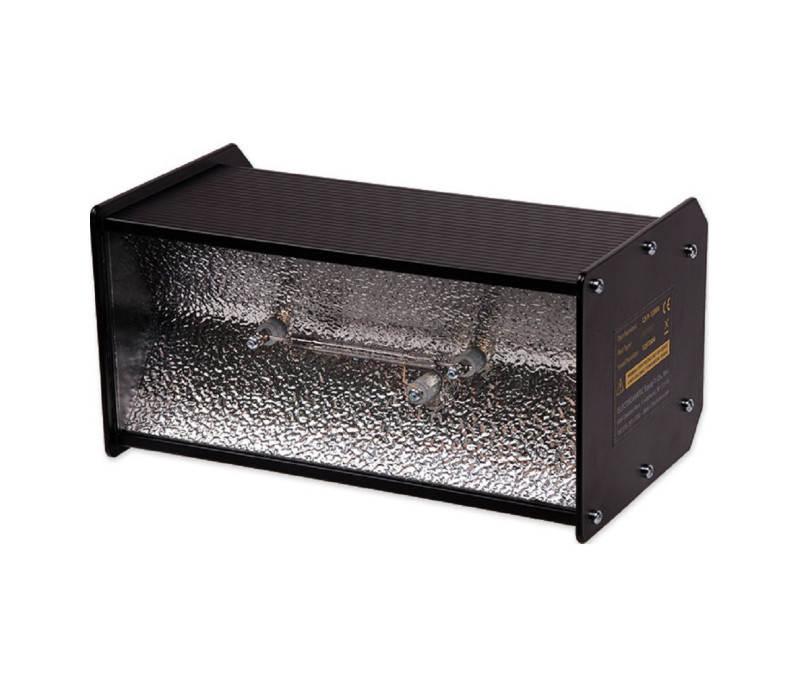

LS-9-12000 Linear Xenon Stroboscope

LS-9-12000 Linear Xenon Stroboscope

Name: LS-9-12000 Linear Xenon Stroboscope
SKU: 127054

The new Checkline LS-9-12000 Linear Strobe is designed for fixed mounting on all machinery that utilize a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more.

The LS-9's flash rate can be externally triggered by an external sensor/controller on the process machine or the following optional accessories; the LS-FCM Flash Control Module or the LS-SCU Remote Strobe Controller. Refer to a separate webpage on these accessories by clicking the links in the "Related Products" section. The strobe operates using 24V DC (18 - 28V DC) using power already available on the machine or by using the our worldwide AC-DC power adapter available as an option.

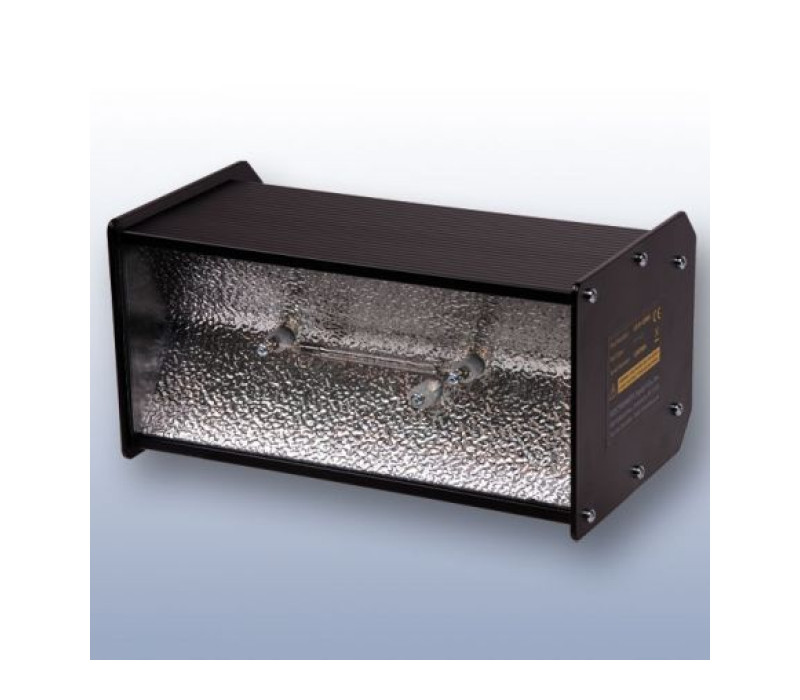

The LS-9 produces an extremely bright, sharp image employing a quartz glass xenon tube with extremely short flash duration of less than 10µs allowing detailed visual inspection of fast-moving targets. While under observation, when the flash rate is synchronized with the "repeat rate" of the web material, the image will appear "frozen" allowing for convenient inspection.

The brightness, sharpness and uniform light output provided by the LS-9 makes this model an excellent choice for fixed applications. It is especially well-suited for use on narrow web equipment up to 24 inches in width (600 mm width) and even wider. 2 or more strobes can be combined in a Master/Slave arrangement when wider web widths must be covered.

Price from € 205,00

Order now

Unmatched image brightness (2500 Lux) along with best sharpness and light uniformity from any strobe in its class
Uses long-life Quartz Glass Xenon linear tube with lifetime of over 200 Million flashes
Extremely short flash duration of less than 10 microseconds (µs) provides for a super-sharp image for easy observation
Can be powered using 24V DC already available on the machine or using the optional AC-DC power adapter.
Externally triggered using industry standard TTL-type square-wave signal at rates up to 208 Hz and even higher
9 inch wide (230 mm) aluminum enclosure efficiently dissipates heat eliminating need for bulky heat sinks

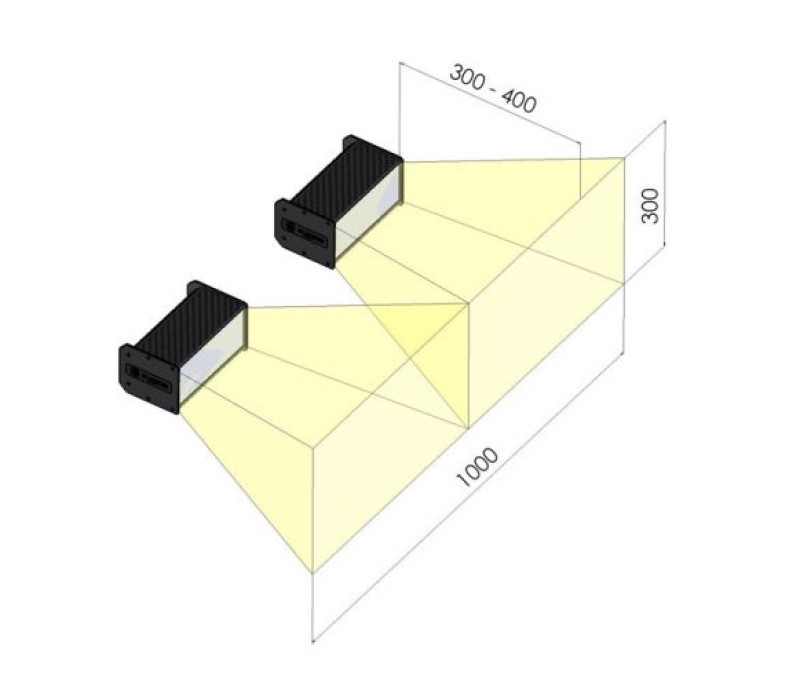

Two (2) or more LS-9 Strobes can be connected to each other for wider web coverage
CE-certified with safety and EMV approvals suitable for use worldwide
Threading holes provided for fixed-mounting on machine frame or articulating arm
Adjustable light intensity 30-100% to optimize brightness for any application
Optional UV-KIT provides for illumination of UV Inks and adhesives allowing for visual inspection by operators

Light Output (LUX) vs Distance

LS-9-12000 Data Sheet

Flash range	0 - 12,500 FPM (flashes per minute)
Power Supply	18 - 28 V DC / 40 Watts DIN 41525 5-pin standard plug Universal power supply unit available
External Trigger Input	3 - 30 V / max 5 mA (voltage-free optocoupler) DIN 41524 5-pin standard plug Uout = Uin, max 200 mA
Life Cycle	> 200,000,000 flashes (@6000 FPM)
Flash Duration	< 10 usec (microseconds)
Flash Brightness	Single flash 20 megalux @ 30cm (12 inches)
Flash Brightness	2500 lux @ 30cm (12 inches), 6000 FPM
Flash Energy	2 Joules (2000 mJ @ 900 FPM)

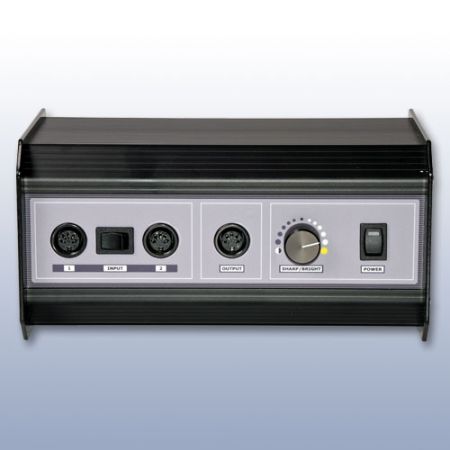

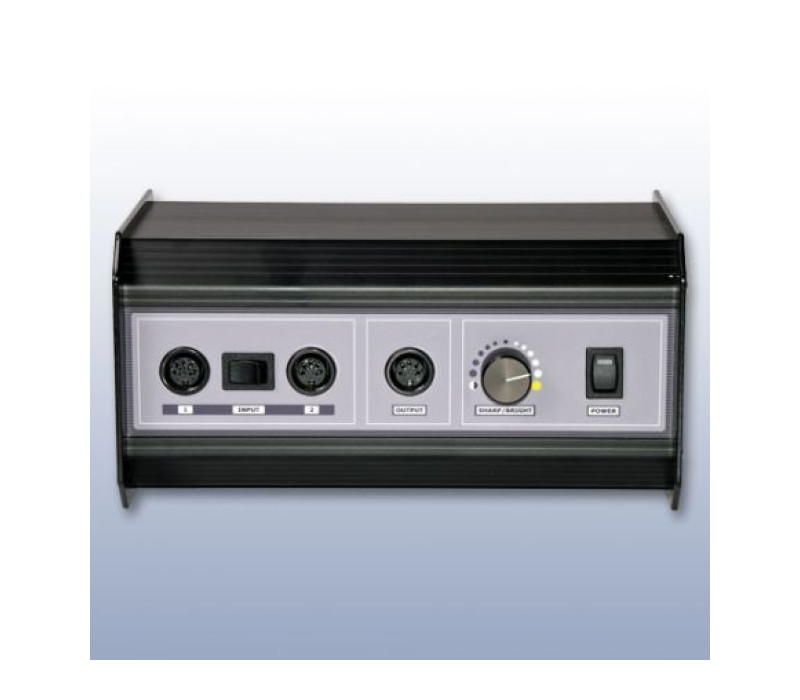

Brightness Adjustment	30 - 100% via knob on backside panel

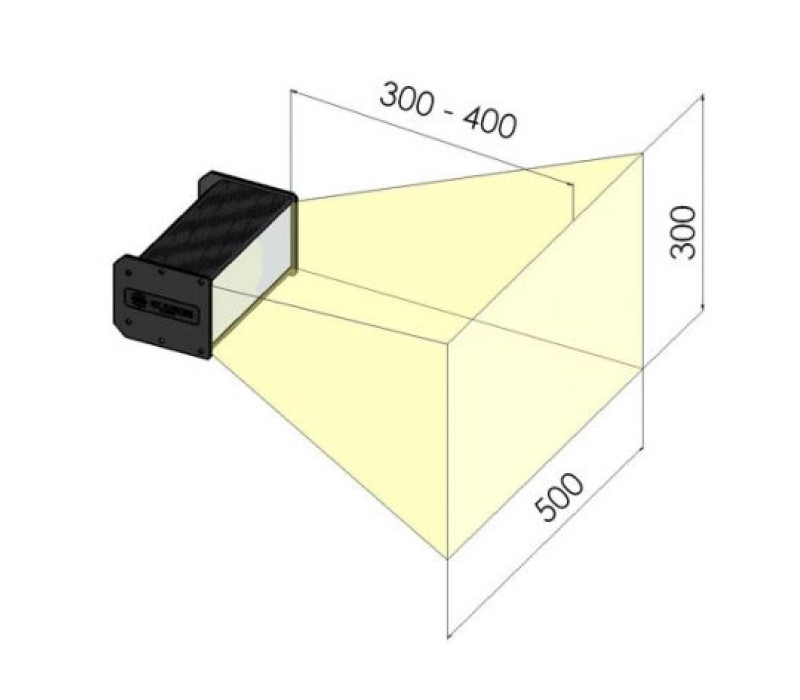

Illumination Area	approx. 12" x 20" (300 x 500 mm)
Light Colour	6000 - 6500 K
Housing Material	Aluminum
Dimensions	9.1" x 5.1" x 4.4" (230 x 130 x 112 mm)
Weight	1400 g (3 lbs.)
Ambient Temperature	0 - 40 °C (32-114 °F)
Storage Temperature	-25 - 70 °C (-10 - 125 °F)
Air Humidity	Max 95%, non-condensing

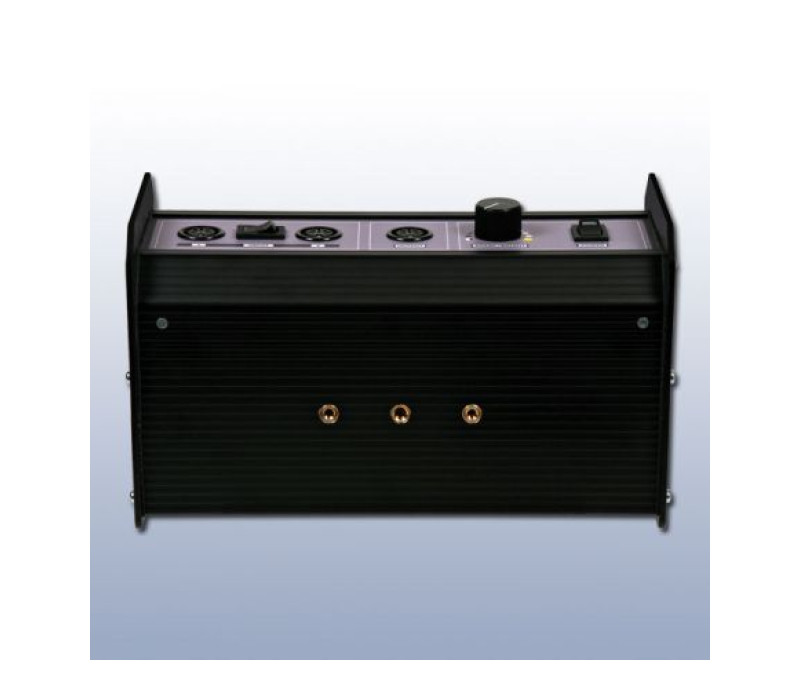

Mounting Holes	Threaded 1/4 x 20 unc and 2x M5 holes on bottom side of strobe housing

Products

Item	Product	Price	Quantity	Action
133833	LS-9-12000 Linear Xenon Stroboscope (without power supply)	€ 1.295,00
134040	LS-9-TBE Spare Flash Tube for LS-9-12000	€ 205,00

Accessories

Item	Product	Price
130696	LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)	€ 470,00
133601	LS-AC-WORLD-90VA Universal Power Supply for LS-18-LED or LS-9-12000	€ 190,00
130699	LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigger signal	€ 80,00
133170	LS-FCM Flash Control Module for manual adjustment of flash rate	€ 135,00
130268	SAS-DT300 Flexible swing arm for DT-311A/315A stroboscope	€ 340,00
131288	DT-TRI-HD Mini Tripod
131143	LS-GAPSENSOR for triggering strobe on gaps between labels	€ 191,00
132205	LS-REGSENSOR for triggering strobe on registration marks on printed piece
130700	LS-DIN 5 Pin DIN Connector	€ 14,95
130231	Leica Tripod TRI100	€ 75,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

LS-9-12000 Linear Xenon Stroboscope

Features

Specifications

LS-SCU Remote Control Unit

LS-5-UVKIT UV Strobe Conversion Kit for LS-5-12000 Stroboscope

LS-FCM Flash Control Module

SAS-DT300 Articulating Stroboscope Swing Arm

LS-GAPSENSOR Label Sensor for Triggering On Label Gaps

LS-REGSENSOR Registration Mark Sensor

DT-TRI-HD Tripod for Tachometers and Stroboscopes

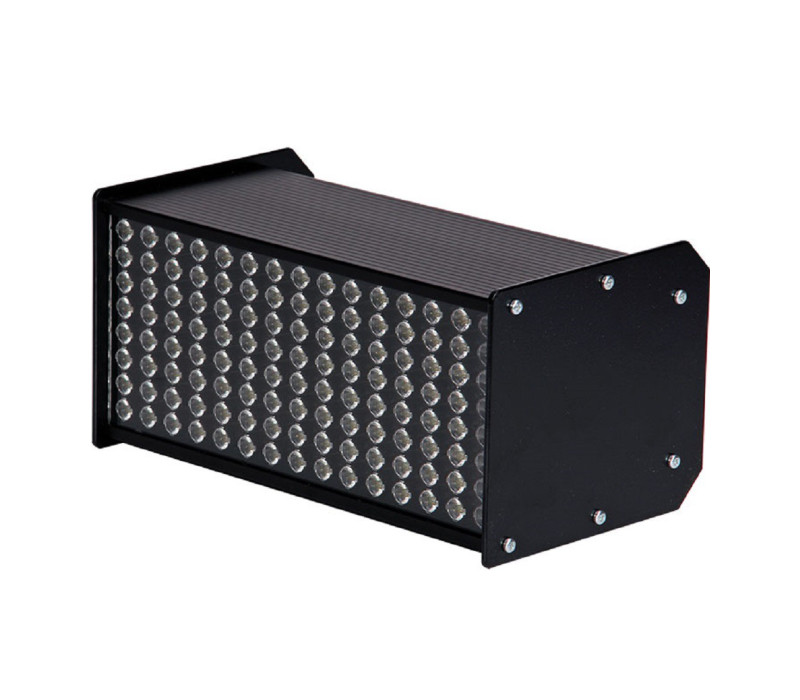

LS-9-LED Fixed-Mount Linear Stroboscope
