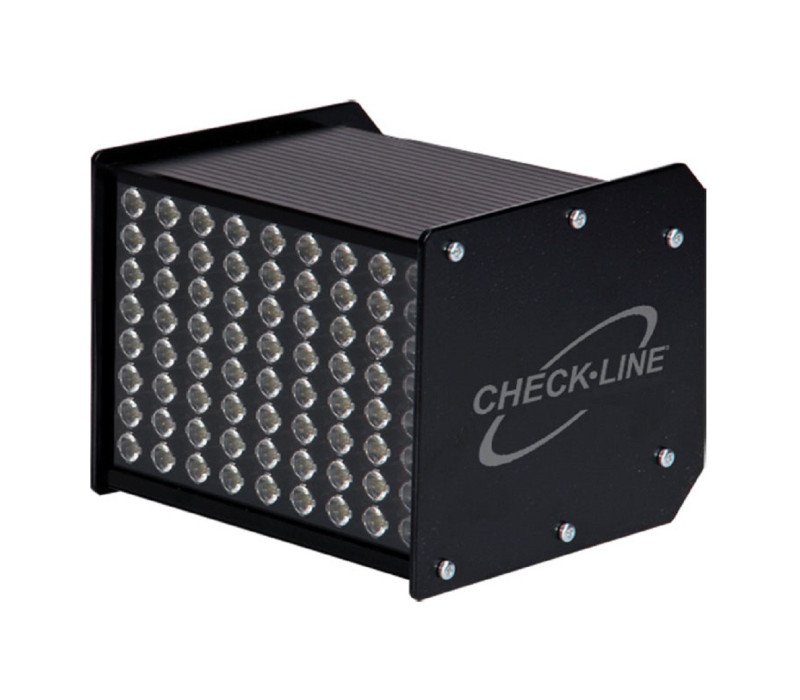

LS-5-LED Fixed-Mount Linear Stroboscope

Name: LS-5-LED Fixed-Mount Linear Stroboscope
SKU: 126918

The new LS-5-LED is a high-performance LEDs produce a bright/sharp image and uniform light distribution for web widths up to 12" (300mm) and wider.

High Light Output: 80 high-performance LEDs provide powerful light intensity. The large, homogeneous illumination surface delivers superb results in difficult light conditions, making the LS-5-LED suitable for a wide range of measurement, observation and inspection functions, especially for demanding applications, such as those in the printing industry.

Superb image sharpness: Adjustable flash duration from 1 to 1000 microseconds, allows you to easily find the best combination between light intensity and sharp images for every application.

Flexible adjustments for all applications: Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various strobe control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs.

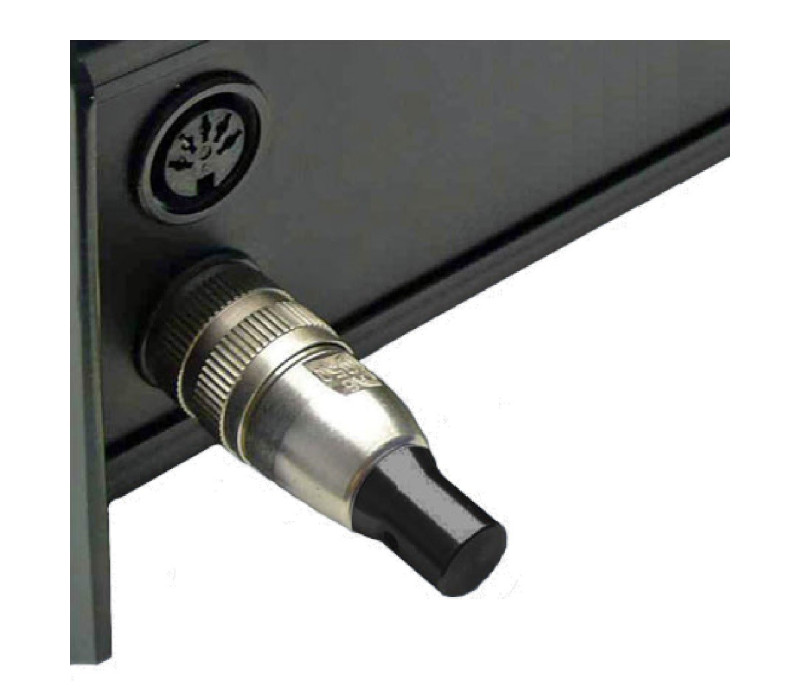

Additional control options: LS-5-FCM: A simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.

LS-5-RCU: For adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.

Request price >>

Light intensity of 6000 Lux peak
Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.

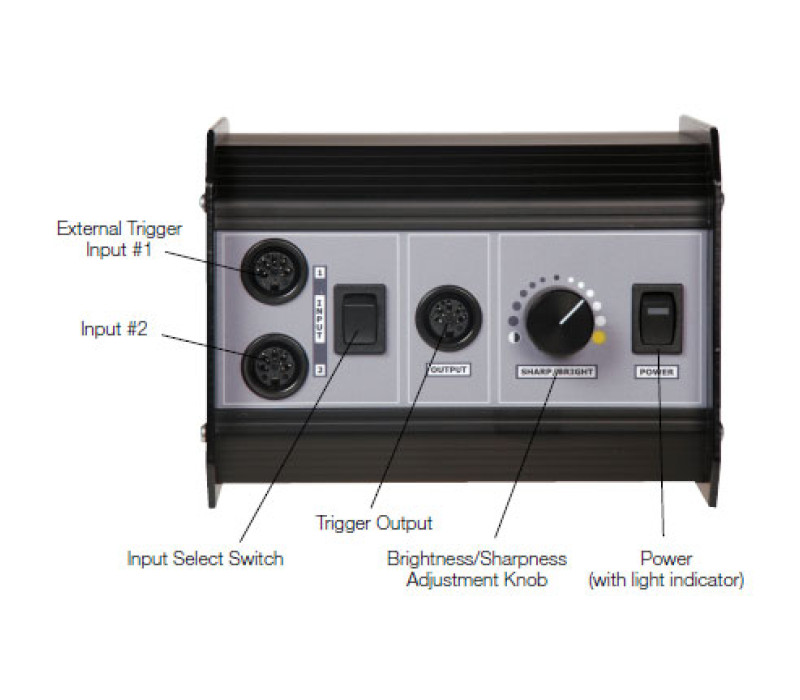

Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.
LEDs provide lifetime use and never require replacement.
Powered by 24 VDC, An optional universal AC-DC power supply is available.
For web widths greater than 12" (300mm), two or more strobes can be connected in parallel.

Light Output (LUX) vs Distance

Overview of LED Strobe Models

Model	LEDs	Array Size	Brightness (peak)	Housing Width
LS-5-LED	80	10 x 8	6000 Lux	150 mm (6 inch)
LS-9-LED	120	15 x 8	7500 Lux	230 mm (9 inch)
LS-9-LED-WB	120	5 x 8 (3x)	7500 Lux	440 mm (17 inch)
LS-18-LED	200	25 x 8	9000 Lux	440 mm (17 inch)

LS-5-LED Data Sheet

LEDs	200 in a 25 x 8 array
Frequency Range	0...120000 FPM (flashes per minute)
Power Required	24 VDC (+/-10%) / 40 W DIN 41524 5-pin standard plug universal power supply optionally available (LS-5-AC-WORLD)
External Trigger Input	3…30 V / max. 5 mA Potential-free optocoupler DIN 41524 5-pin standard plug Uout = Uin, max. 200 mA switchable trigger input
Trigger Output	for connection to 2nd Strobe (Slave)
Illumination Intensity	9,000 Lux / 12" / 30cm
Light intensity/sharpness	Adjustable with turning knob
Illumination intensity single flash	1.2 Mega-Lux / 12" / 30cm
Illumination area	12 x >20" (30 x >50cm)
Flash color	ca. 5000...8.300 K
Material	Aluminum
Dimensions	6.0" x 5.1" x 4.4" (150 x 130 x 112mm)
Weight	2.09 lbs
Ambient temperature	0°...40°C (32°...114°F)
Storage temperature	-25°C...70°C (-10°...125°F)
Humidity	max. 95% not condensing
Certifications	Certificate of CE conformity

Products

Item	Product
133150	LS-5-LED Linear LED Stroboscope with 80 LEDS (without power supply)

Accessories

Item	Product
130699	LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigger signal
134042	LS-CABLE-T Cable for connection to 2nd Strobe transferring ONLY trigger signal from primary to slave
130700	LS-DIN 5 Pin DIN Connector
130698	LS-AC-WORLD Universal Power Supply for LS-RCU or LS-5-12000 Strobes
133170	LS-FCM Flash Control Module for manual adjustment of flash rate

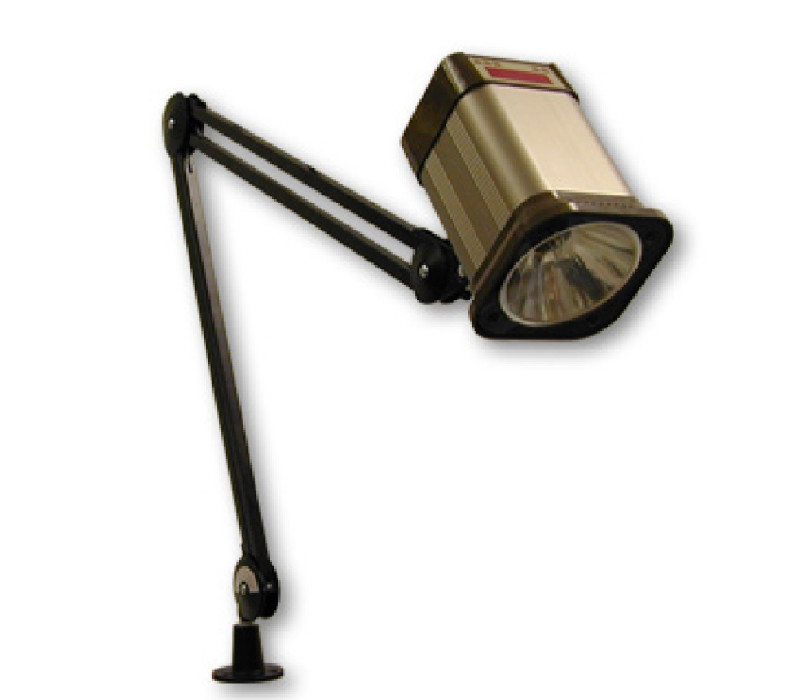

130268	SAS-DT300 Flexible swing arm for DT-311A/315A stroboscope

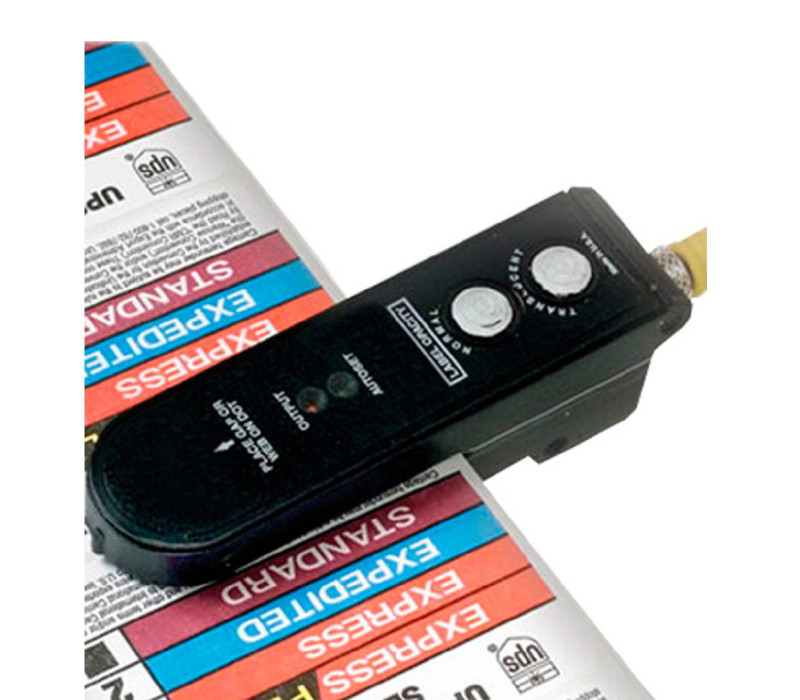

131143	LS-GAPSENSOR for triggering strobe on gaps between labels

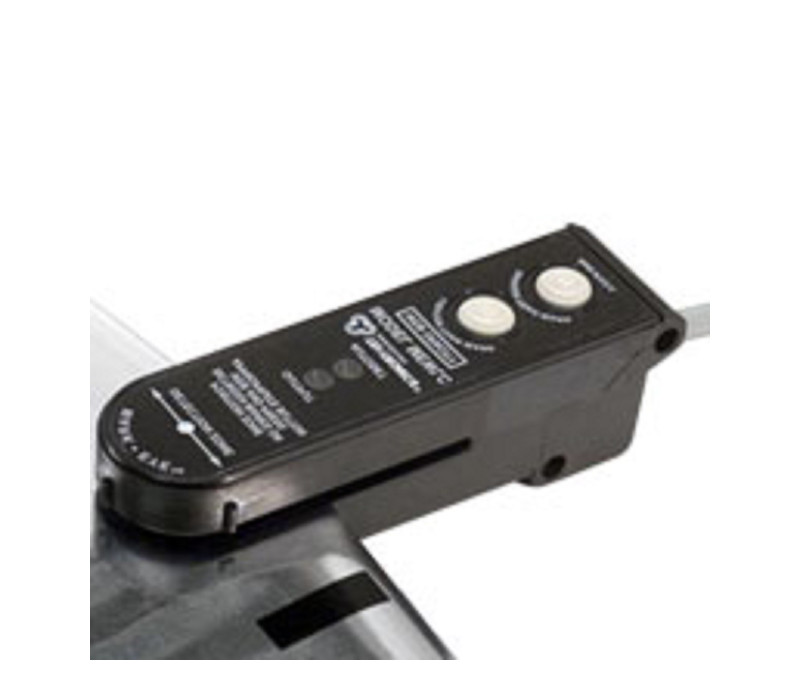

132205	LS-REGSENSOR for triggering strobe on registration marks on printed piece

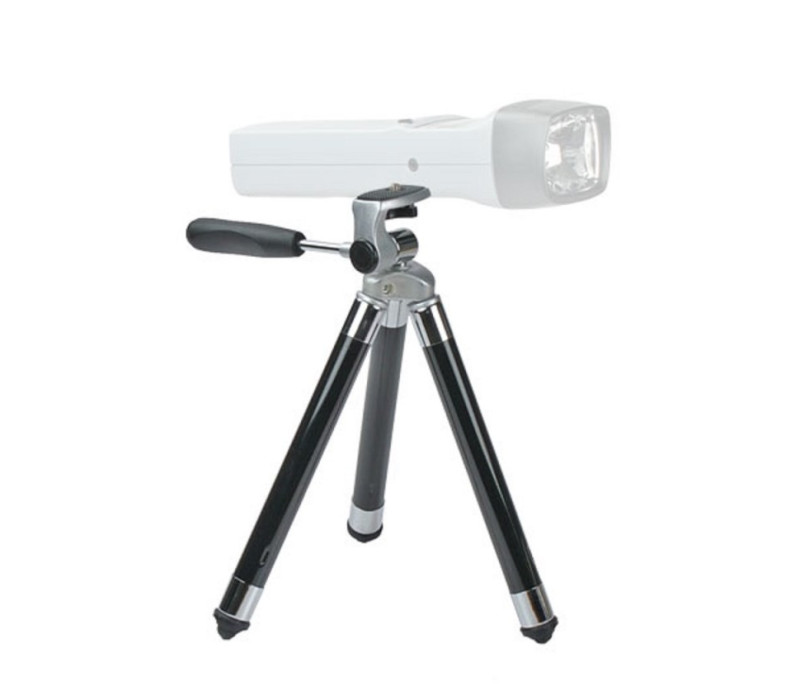

131288	DT-TRI-HD Mini Tripod
130231	Leica Tripod TRI100

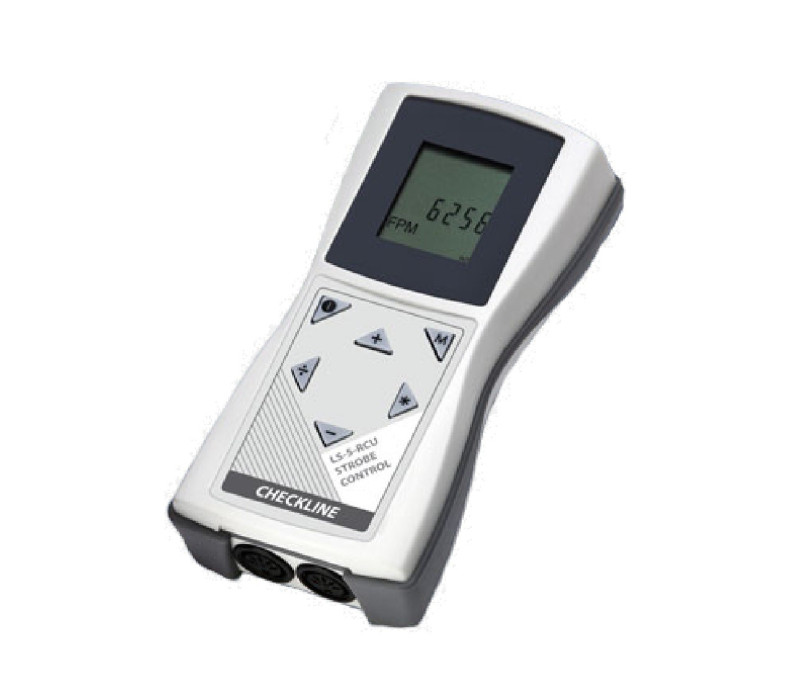

130696	LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
