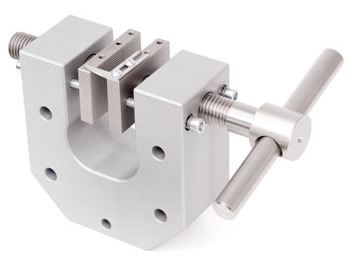

G1100 Large Parallel Jaw Grip


Made in the USAThe G1100 Parallel Jaw Grip is the larger of the three parallel jaw grips designed for general tensile and pull testing applications.
It has a maximum capacity of 9 kN and a jaw opening of up to 34 mm.

The jaws are equipped with pyramidal jaw faces and an adjustable stop for consistent sample placement between the jaws.
Additional there are extended 100 mm jaws available to accommodate larger samples.

The G1100 parallel Grip uses an integrated eye-end mounting, therefore an eye-end-adapter is required to mount this vice to a force gauge, force sensor or test stand.


Features
  • Individually adjustable, serrated jaws.
  • Available extended length jaws.
  • Eye end mounting
  • Max. sample thickness: 34.0 mm
  • Adjustable stop for consistent sample placement between the jaws.

Dimensions
G1100 Large Parallel Jaw Grip
Dimensions-G1100 Large Parallel Jaw Grip


All sizes are noted in inch with metric sizes in [mm] behind.


Specifications
Capacity:9 kN
Housing material :Aluminum
Material clamp jaws:Hardened steel, 58 RC
Weight:2,7 kg
Shipping weight3,2 kg

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

G1101 Clamping grip 1kN


  • Individually adjustable, serrated jaws.
  • Available extended length jaws.
  • Eye end mounting

More details

G1101 Clamping grip 1kN

G1013 Parallel Jaw Grip


  • Small parallel grip with individually adjustable jaws
  • Capacity 1000 N
  • Rugged and compact with serrated jaws

More details

G1013 Parallel Jaw Grip

Downloads

Buy Now
Product

Product
Price
Quantity
136907
G1100 Parallel jaw grip, large, eye end
€ 685,00

Accessories

Product
Price
Quantity
136847
AC1070-1 Jaws for G1100, 2.36” length, set of 2 (included with G1100)
€ 323,00
136848
AC1070-2 Jaws for G1100, 3.94” length, set of 2
€ 367,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
