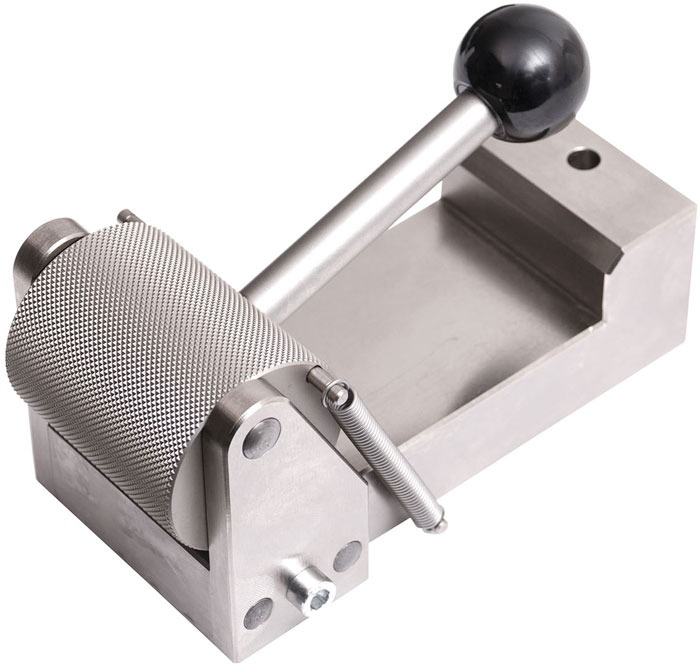

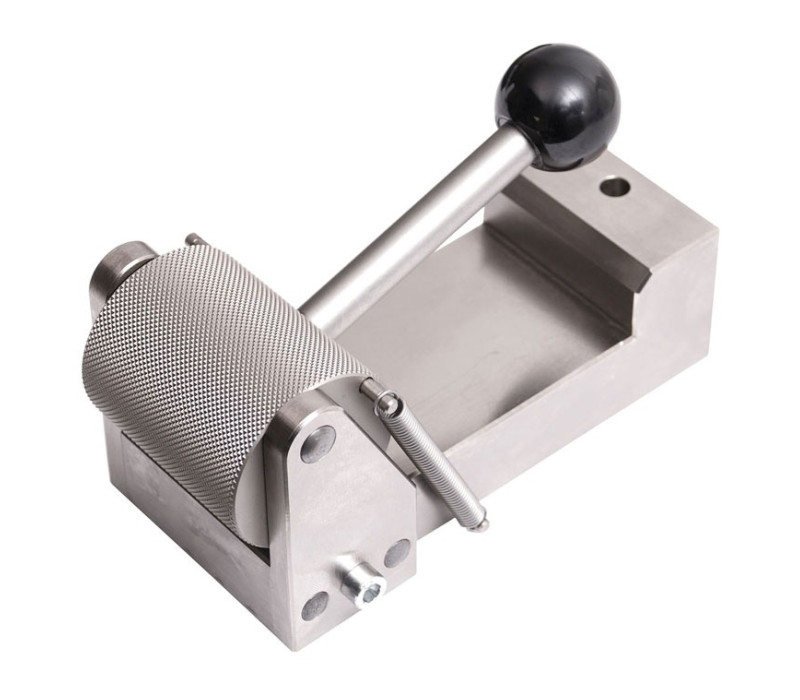

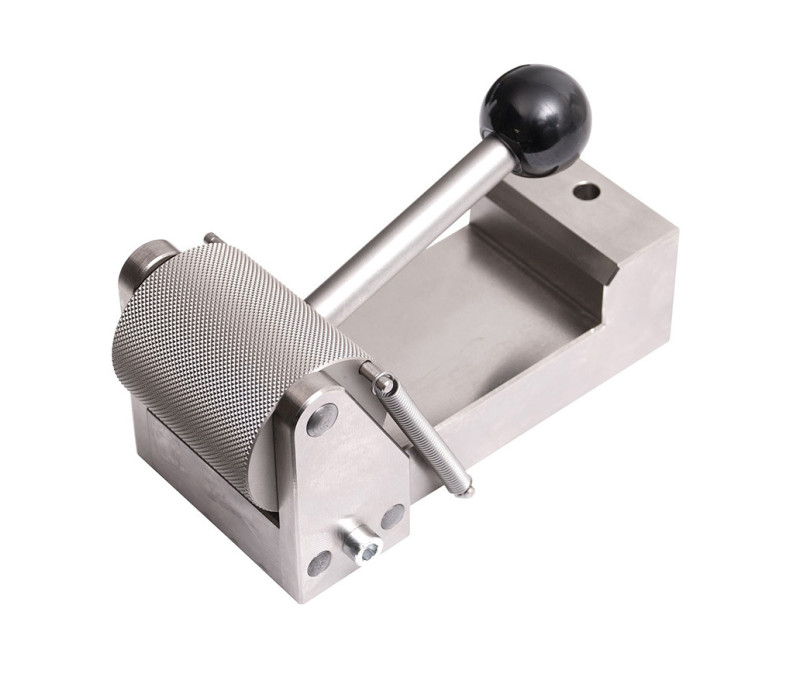

G1094 High Capacity Eccentric Roller Grip


Made in the USAThe G1094 Eccentric Roller Grip is developed as a strong self-clamping grip with a serrated, spring loaded cam that effectively secures wires, plastics, textiles, and other materials during pull testing applications.

This precision grip made from high quality materials will provide secure and accurate results with measurements up to 9 kN and a maximum sample size of 32 x 60 mm.
It is eye-end mounted and therefore needs an eye-end-adapter to attach it to the test equipment.


Features
  • Spring-loaded cam accomodates a wide range of materials
  • Max. sample size: 32 mm thick x 60 mm wide
  • Includes Eye end mounting

Dimensions
G1094 Eccentric Roller Grip
Dimensions-G1094 Eccentric Roller Grip


All sizes are noted in inch with metric sizes in [mm] behind.


Specifications
Capacity:9 kN (2,000 lbF)
Maximum sample size32 mm thick x 60 mm wide
Weight:3.4 kg (7.4 lb)

Related Products

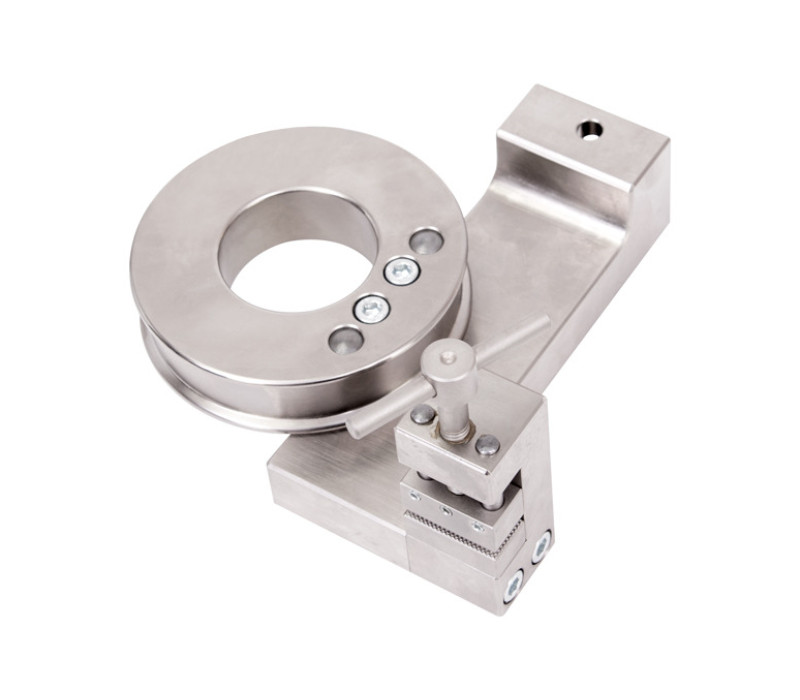

G1092


  • Fixture designed for pull testing of wire, rope, and yarn
  • Bollard / capstan design effectively secures wire, rope, and other samples
  • Max sample size: Ø 10 mm

More details

G1092

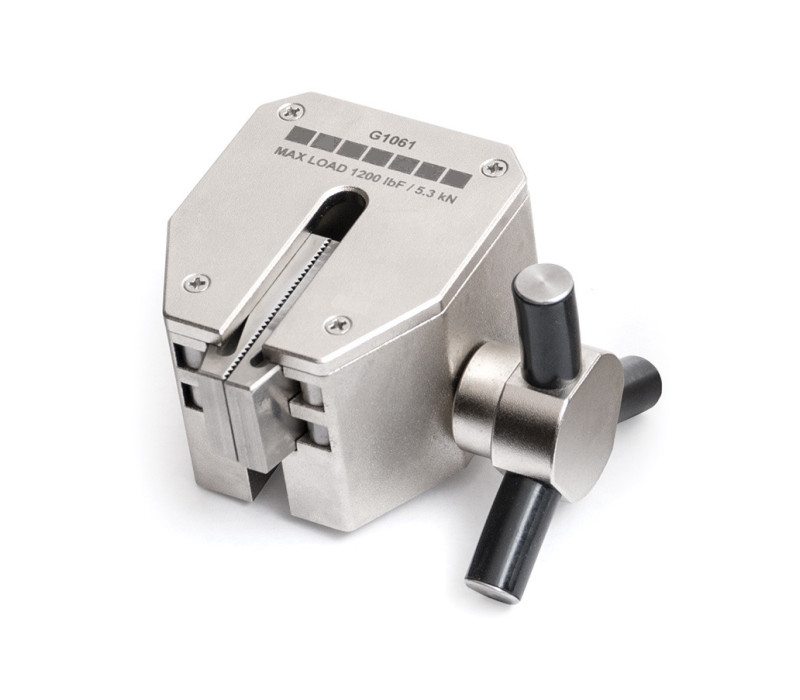

G1061 Wedge Grip


  • 4 versions available
  • Thru slot for samples of unlimited width

More details

G1061 Wedge Grip

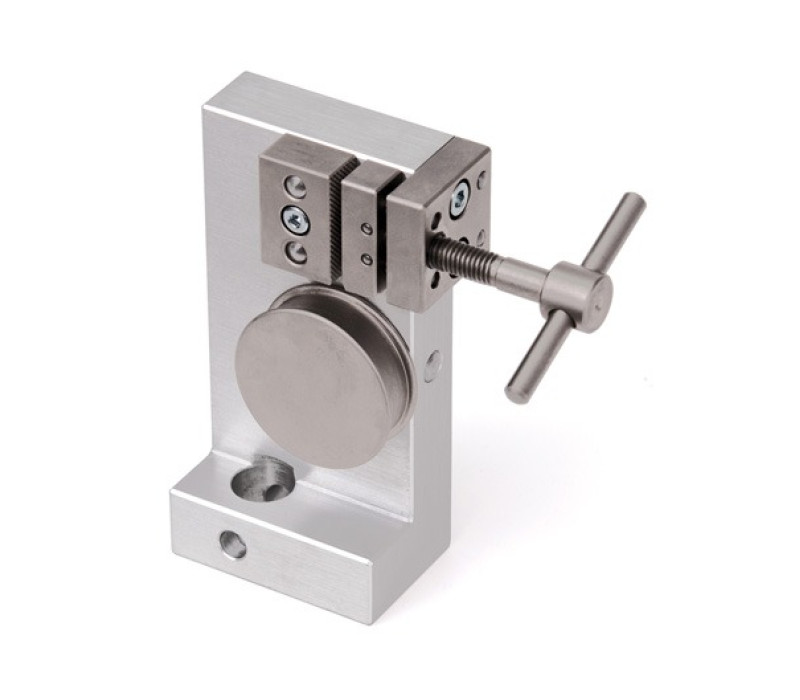

G1102 Cable/rope handle 5 kN


  • Bollard / capstan design effectively secures rope, wire and other samples.
  • Integrated eye end mounting.
  • Designed for wire, rope, and yarn pull testing applications.

More details

G1102 Cable/rope handle 5 kN

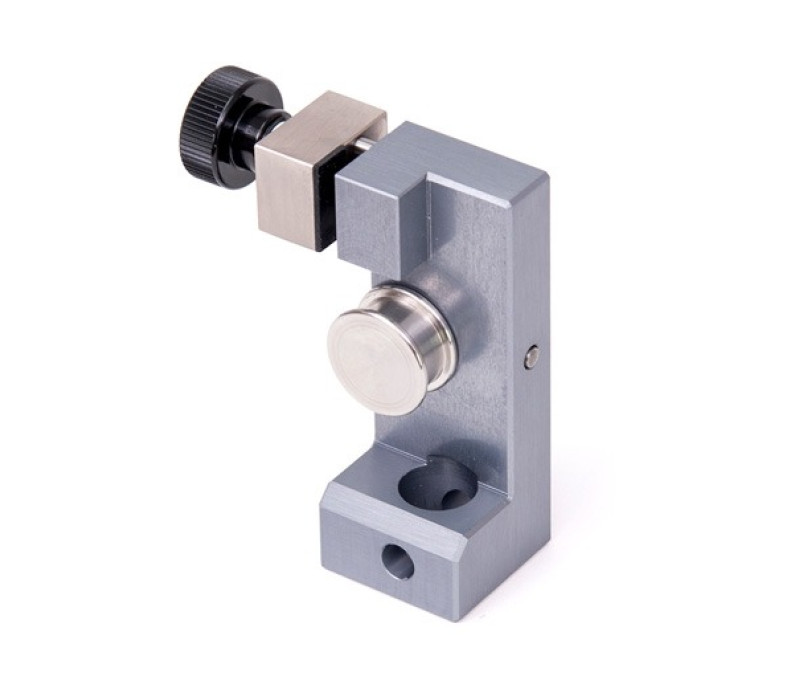

G1103 Wire / Rope Grip


  • Effectively secures wire, rope, and other samples with bollard / capstan design.
  • Integrated eye end mounting - eye end adapter required.
  • Features rubber jaw faces

More details

G1103 Wire / Rope Grip

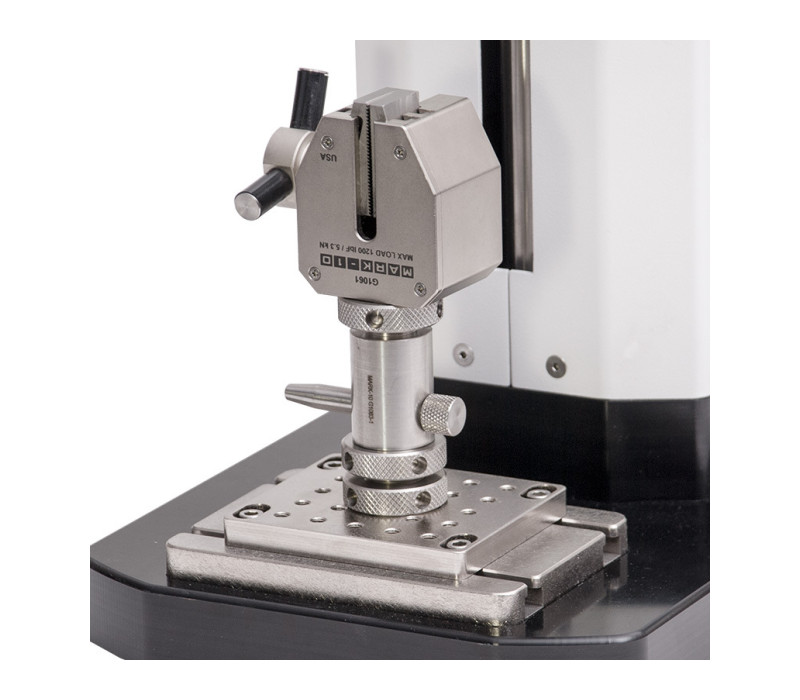

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

Downloads

Buy Now
Product

Product
Price
Quantity
136150
G1094 High capacity eccentric roller grip, eye end
€ 1.094,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
