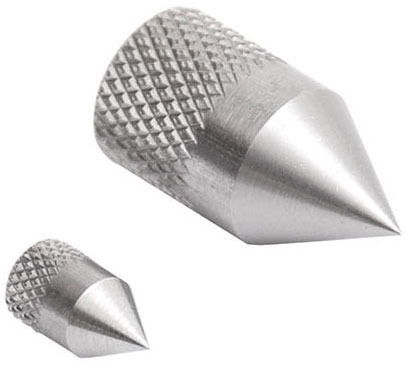

G1026-G1033 Cones


Made in the USAThe G1026 and G1033 Cone heads are basic attachments for Series # Mark-10 force gauges.
These cones are used for material penetration and compression testing.

The cones come in 2 sizes with a capacity of 1000 and 2500 N.


Features
  • Available in 2 sizes
  • Capacity 1000 and 2500 N
  • Suited for puncture and compression testing

Dimensions
G1026 - G1033 Cone Attachments
Dimensions-G1026 - G1033 Cone Attachments


ModelA mmØB mmC
G102612,76,4#10-32F
G103325,412,75/16-18F

Specifications
ModelCapacity (N)Weight (g)
G102610001.4
G1033250013,6

Related Products

G1028-G1038-G1035-G1042 Hooks


  • Tensile testing
  • Capacities available from 100 N up to 4500 N
  • Select from four sizes, snap hook is also available

More details

G1028-G1038-G1035-G1042 Hooks

G1025-G1032 Chisels


  • Available in 2 sizes
  • For compression testing
  • Capacity 1000 N / 2500 N

More details

G1025-G1032 Chisels

G1024-G1031 Extension Rods


  • Suitable for tension and compression testing (not reconmended for compression testing see general)
  • Capacity 1000/2500 N
  • Male and Female thread

More details

G1024-G1031 Extension Rods

G1027-G1034 V-Grooves


  • Available in 2 sizes
  • 200 lb / 500 lb capacity,
  • Compression testing

More details

G1027-G1034 V-Grooves

G1029-G1036 Flat Head


  • General compression testing
  • Capacity 1000 N / 2500 N
  • Available in 2 sizes

More details

G1029-G1036 Flat Head

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Downloads

Buy Now
Products

Product
Price
Quantity
130581
G1026 Cone Tip, #10-32F
€ 19,00
130822
G1033 Cone Point, 5/16-18F
€ 24,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
