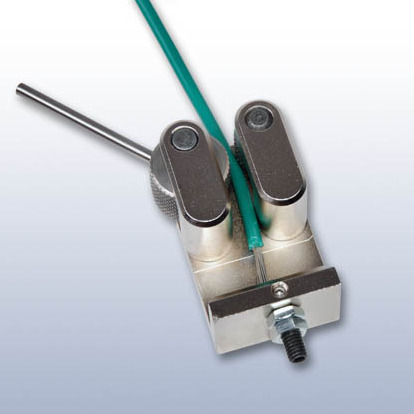

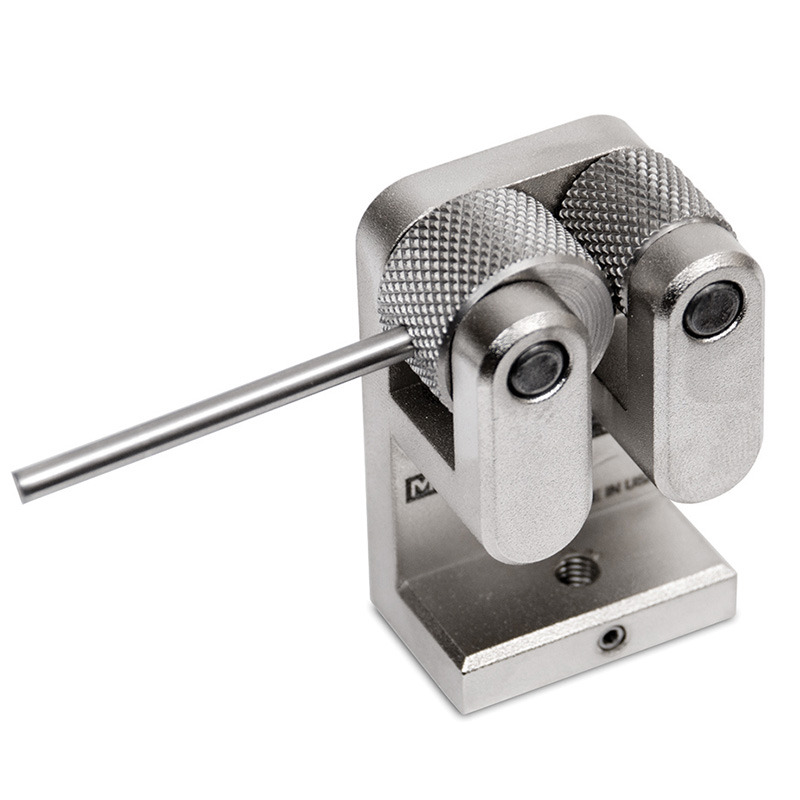

The G1002 Cam Grip wedges the end of a wire, between a fixed and an eccentric, serrated steel roller, securing it for pull testing.
Engaging and disengaging samples can be done quick and easy, with a side slot for sample insertion.
The G1002 grip is available in two sizes that fit samples in between 0 and 5,6mm and 2,5 and 8,6mm. It grips the ends of wires, cable, and tubing samples for pull testing.
It is commonly used with the G1001 wire terminal grip and (Quick Change) Eye end adapters to secure the grips to a Test Stand, Load Cell or Force Gauge.
| Model | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] |
|---|---|---|---|---|---|---|---|
| G1002-1 | 33,0 | 50,8 | 19,1 | 2,5 - 8,6 | 6,4 | 16,5 | 25,4 |
| G1002-1 | 33,0 | 50,8 | 19,1 | 2,5 - 8,6 | 6,4 | 16,5 | 25,4 |
| Capacity: | 2500 N (500 lb) |
| Thread: | #10-32 UNF |
| Sample size: | G1002: 6.3mm x 12.7mm max. G1002-1: 8.6mm x 12.7mm max. |
| Weight: | G1002: 90 g. G1002-1: 110 g. |
