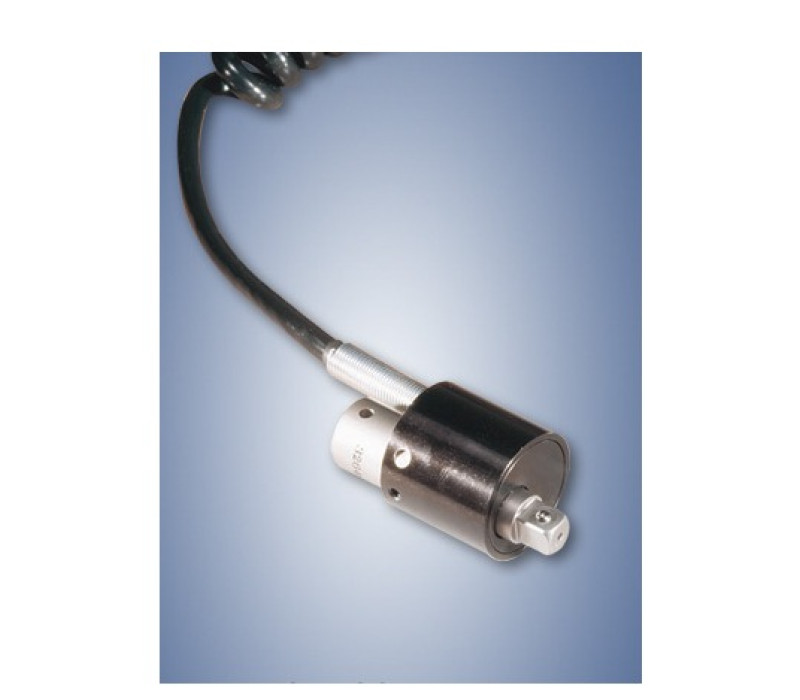

    Torque Socket Transducer for space constraints

    The SMX is a Torque Socket Transducer to measure the torque force applied and converts any ratchet wrench into a torque sensor. It needs to be connected to the square drive of a wrench and requires PTT or LTT torque display units.
    • Accuracy +/-.25% of full scale
    • Bi-directional
    • Converts any ratchet wrench into a torque sensor
    • Various models that range 2.5 lbf.in to 500 lbf.ft
    • Compact and robust housing
    • Ideal for applications with limited space accessibility
    Rated Output2 mv/v Nominal
    Zero Balance± 2% of Rated Output
    Safe Overload125% of Rated Output
    Excitation (VDC or VAC)10 Recommended, 18 Max.
    Bridge Resistance1000 ohms Nominal
    Nonlinearity±.2% of Rated Output
    Operating Temp.-40 to 180°F (-40 to 82°C)
