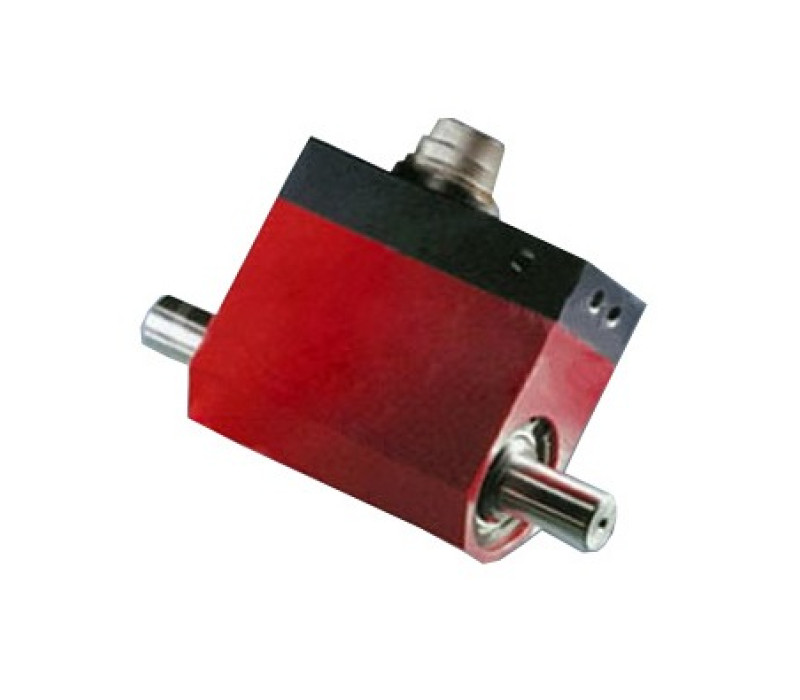

BLRTSX-R Compact Brushless Rotary Torque & Angle Shaft Transducer
This Brushless Rotary Torque & Angle Shaft Transducer is ideal for motor testings, high RPM Tools or rotational measurement applications.
This device is used in-line with rotating shafts or nutrunners for feed back control.
RA Models are as follows:
- Angle output 2-channel quadrature
- 360 pulses per rotation
- Ability to measure the rotation angle of a fastener
- Joint rate & breakaway torque can be measured too
Features
- Accuracy +/- 0.2% of full scale
- Non-contact signal transfer and maintenance free
- The brushless rotary torque & angle sensor is a compact design & bi-directional
Torque ranges
| Model | Range | ||||
| BLRTSX140z-R | 0.17 - 1.00 N.m | ||||
| BLRTSX140z-RA | 0.17 - 1.00 N.m | ||||
| BLRTSX18i-R | 0.22 - 2 N.m | ||||
| BLRTSX18i-RA | 0.22 - 2 N.m | ||||
| BLRTSX44i-R | 0.45 - 5 N.m | ||||
| BLRTSX44i-RA | 0.45 - 5 N.m | ||||
| BLRTSX89i-R | 1 - 10 N.m | ||||
| BLRTSX89i-RA | 1 - 10 N.m | ||||
| BLRTSX177i-R | 2 - 20 N.m | ||||
| BLRTSX177i-RA | 2 - 20 N.m | ||||
| BLRTSX36F-R | 5 - 50 N.m | ||||
| BLRTSX36F-RA | 5 - 50 N.m | ||||
| BLRTSX73F-RA | 10 - 100 N.m | ||||
| BLRTSX148F-RA | 20 - 200 N.m | ||||
| BLRTSX368F-RA | 50 - 500 N.m | ||||
| BLRTSX738F-RA | 100 - 1000 N.m | ||||
Dimensions
LTT Torque and Angle Analyzer with integrated Bench Stand
- Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
- Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
More details
PTT Torque Analyzer - the new generation of hand-held torque analyzer
- System Accuracy +/- 0.5% of reading from 20% to 100% of full scale
- Selection of six operating modes: Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test.
More details
LS-REGSENSOR Registration Mark Sensor
- Color Mark registration detection on transparent and translucent, including many metalized films and paper
More details
Specifications
| Accuracy | ± 0.2% of full scale |
| Rated Output | ± 5VDC ± 0.2% FS |
| Excitation Recommended | 11VDC to 26VDC (pole secure) |
| Nonlinearity | 0.2% FS |
| Usable Temperature Range | 41 to 122 F |
| Mating Connector | Tuchel Series 581 (98-2030-09-12) |
| Safe Overload | 150% of Rated Output |
