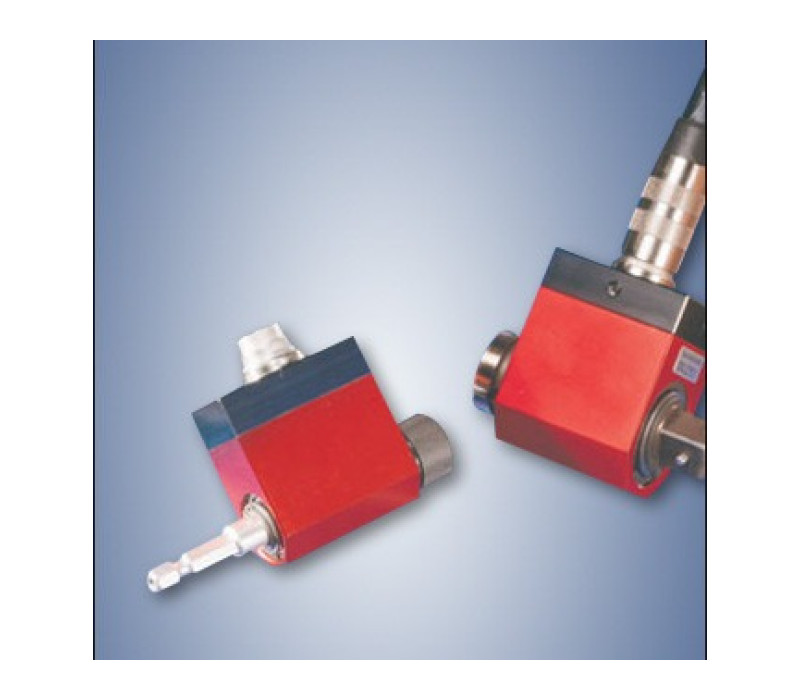

BLRTSX Brushless Rotary Torque Transducer

Brushless Rotary Torque Transducer

For use with most hand tools, power tools or rotational measurement applications. Connects between the power tool and the joint for monitoring actual torque being applied from the driver to the fastener.

The Brushless Rotary Transducer has the big advantage that it eliminates the well-known and annoying "brush bounce”. Also incorporated in the sensor is an instant auto-recognition system of the BLRTSX connected to the PTT.

Note: This is only the sensor. It requires either the PTT or LTT display, as well as the connection cable.

Accuracy +/-.25% of full scale.
Use with most hand tools, power tools or rotational measurement applications.
The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
Bi-directional

Video

Output at Rated Capacity	> 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchangeability	Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity	+0.2% FS
Excitation Recommended	10V DC or AC RMS
Bridge Resistance	350 ohms
Usable Temperature Range	41-122 degrees F
Safe Overload	125% of rated output

Brushless Rotary Torque Transducer

Features

Specifications

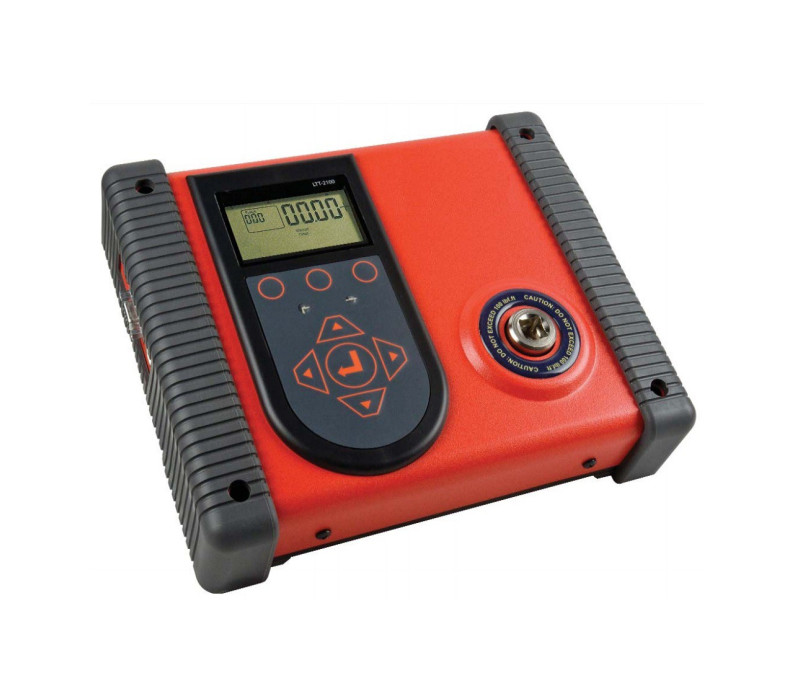

Torque and Angle Analyzer with integrated Bench Stand

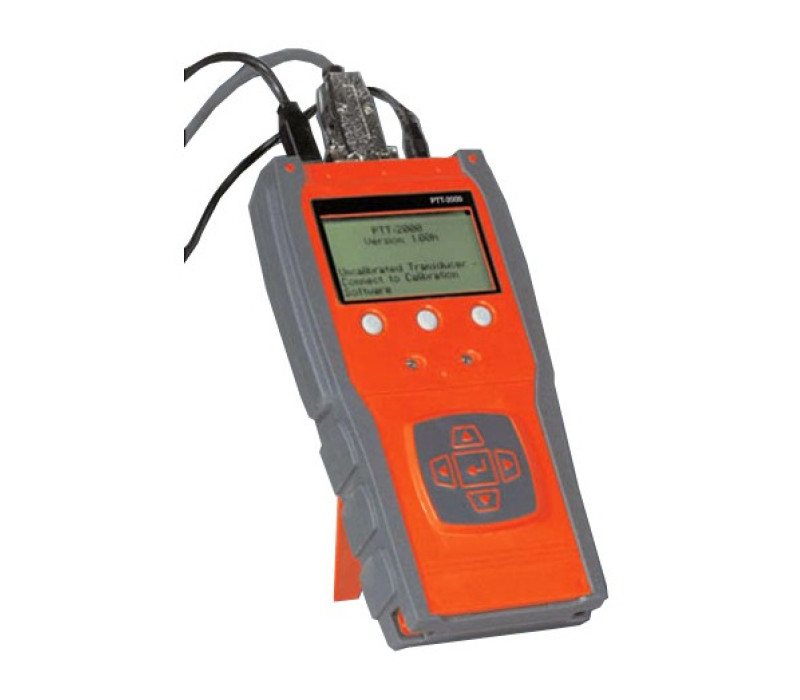

Torque Analyzer - the new generation of hand-held torque analyzer
