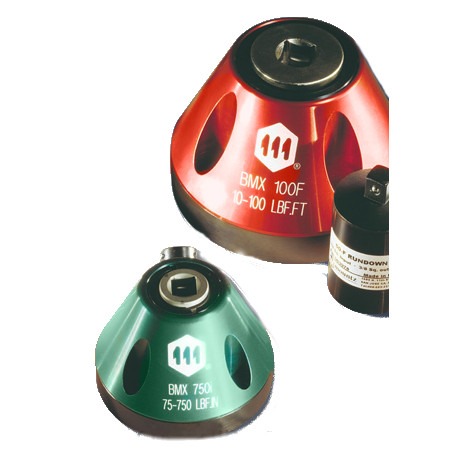

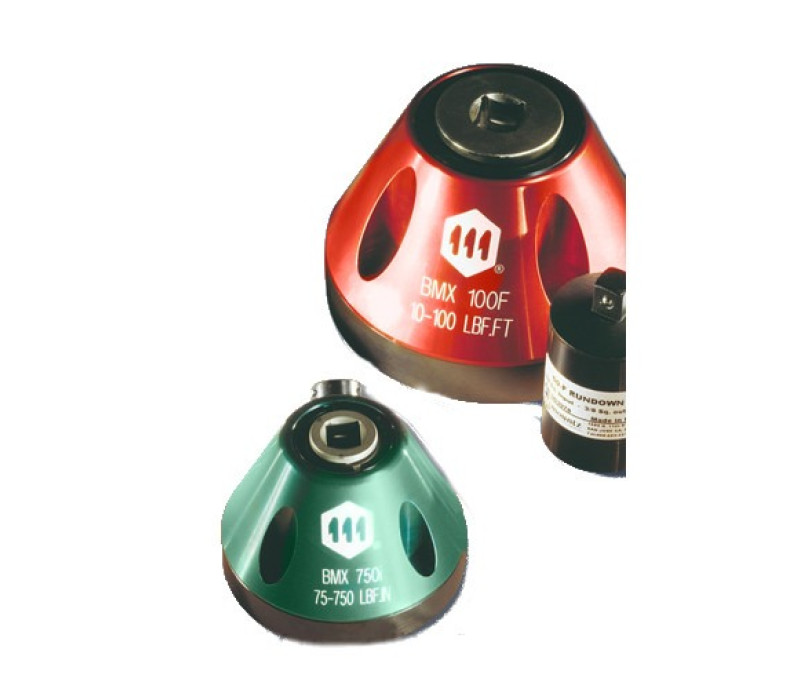

Torque Reaction Sensor for calibrating tools

For calibrating hand screwdrivers, wrenches, and power tools, the BMX is to be used together with a digital torque display.

This versatile torque sensor is perfectly adapted for testing multiple torque ranges for a variety of torque tools deployed in production, maintenance and calibration laboratories. This device allows for wrench calibration, screwdriver calibration as well as electric & pneumatic screwdriver calibration.

Accuracy ± .25% of full scale (± 0.5% for 10,000F & 20,000F models)
Bi-directional measurement
Female square drive
Mounting brackets available, optional

Rated Output	2mv/v Nominal
Safe Overload	125% of Rated Output
Bridge Resistance	350 Ohms Nominal
Nonlinearity	± .1% of Rated Output
