LTT Torque and Angle Analyzer with USB Output

Torque and Angle Analyzer with integrated Bench Stand

Name: Torque and Angle Analyzer with integrated Bench Stand
SKU: 126931

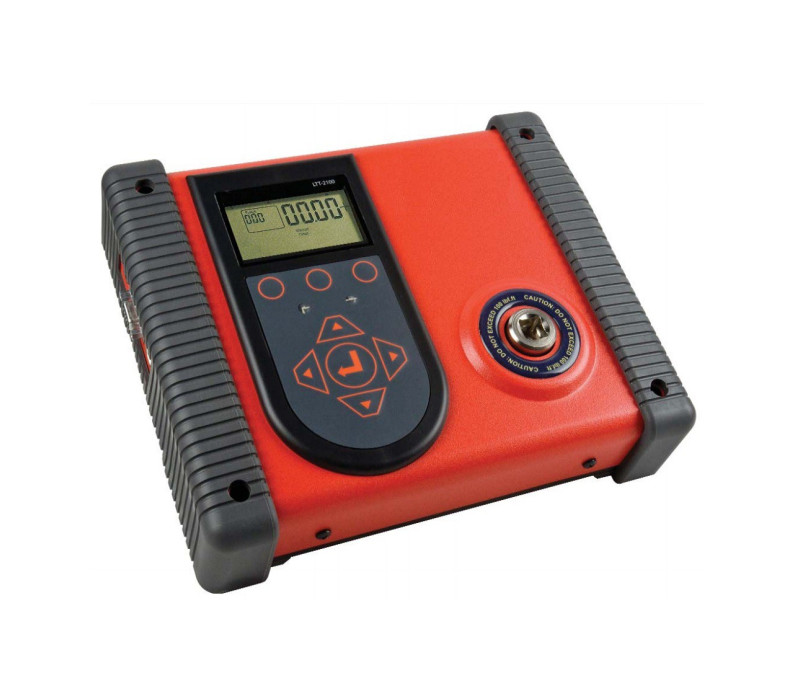

The new LTT is the next generation of torque analyzer. It offers “EZ-Plug & Play” with instant auto recognition with transducers. The LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.

The LTT includes three PC Windows based software programs:
Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
Torque Meter Boot loader - for updating the LTT operating systems.
Statistics Calculator - for SPC, CP & CPK calculations.

Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
Built-in Tool Tests operation.
Stores a total of 2500 data points.
Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
Recommended for all hand screwdrivers, wrenches or power tools.
"Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).
Supplied with NIST-Traceable Certification of Calibration

Tension Ranges

Model	Ranges	Range
LTT-10i	1-10 lbf-in 11.3 - 113 cN-m 1.2 - 11.5 kgf-c	1/4" F/Sq
LTT-25i	2.5-25 lbf-in 28.25 - 282.5 cN-m 2.9 - 28.8	1/4" F/Sq
LTT-50i	5 - 50 lbf-in 56.5 - 565 cN-m 5.8 - 57.6 kgf	1/4" F/Sq
LTT-100i	10 - 100 lbf-in 113 - 1130 cN-m 11.5 - 115 k	1/4" F/Sq
LTT-250i	25 - 250 lbf-in 282.5 - 2825 cN-m 28.8 - 288	1/4" F/Sq
LTT-50F	5 - 50 lbf-ft 6.8 - 67.8 N-m 0.7 - 6.9 kgf-m	3/8" F/Sq
LTT-100F	10 - 100 lbf-ft 13.56 - 135.6 N-m 1.4 - 13.8	1/2" F/Sq
LTT-250F	25 - 250 lbf-ft 33.9 - 339 N-m 3.5 - 34.5 kg	1/2" F/Sq

Tool Tests & Graphing

The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It’s the ideal solution for organizing and storing test data for ISO and SPC documentation.

The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.

The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations.

Cable Chart

Transducer	Cable Item #
RTSX-AA	072000
BLRTSX	072001
BMX	072002
SDX	072004
RTSX	072005
ETX	072006
*Contact us for connecting a SMX to the LTT

Standard Accessories

Universal Charger (100 - 240 VAC)
USB Cable
Software - Torque Meter Interface Program
Software - Torque Meter Boot loader
Software - Statics Calculator
Protective Cover
