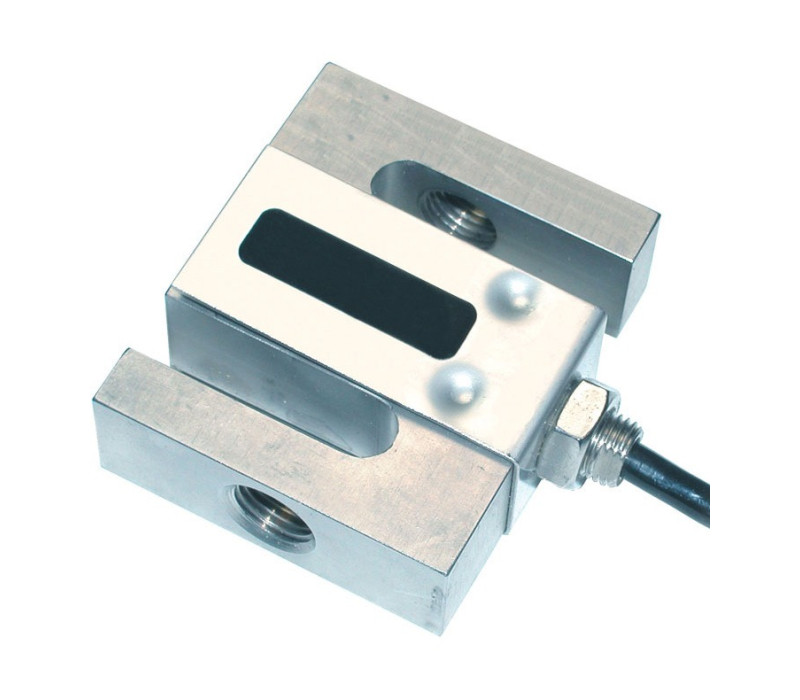

R01 Series S-Beam Force Sensor

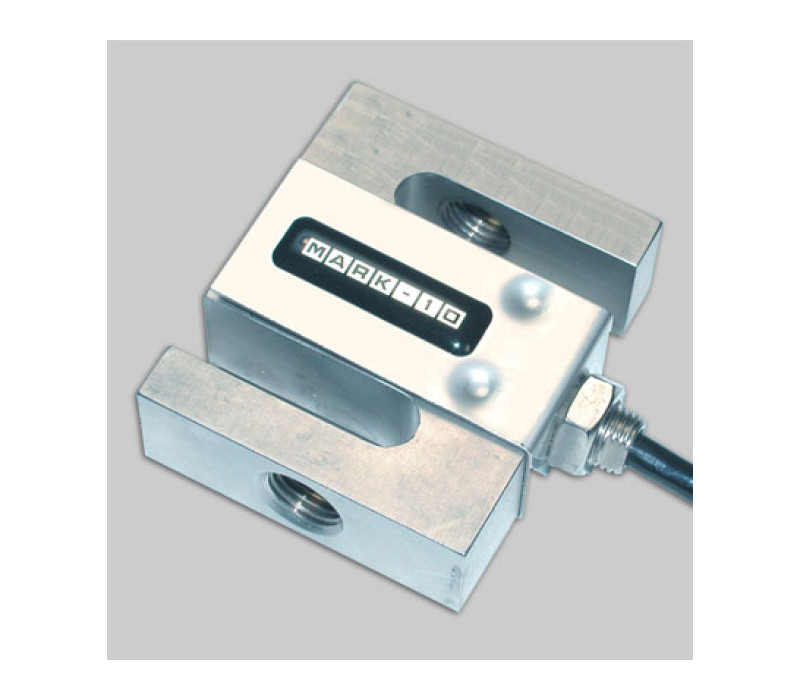

Series R01 universal force sensors are ideal for numerous tension and compression testing applications.

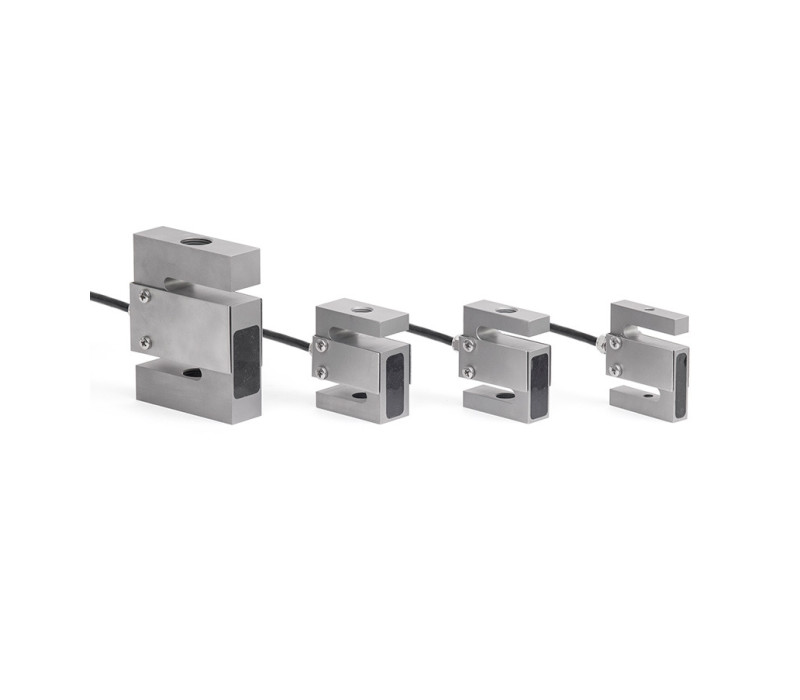

Family of interchangeable Series R01 rugged smart sensors.

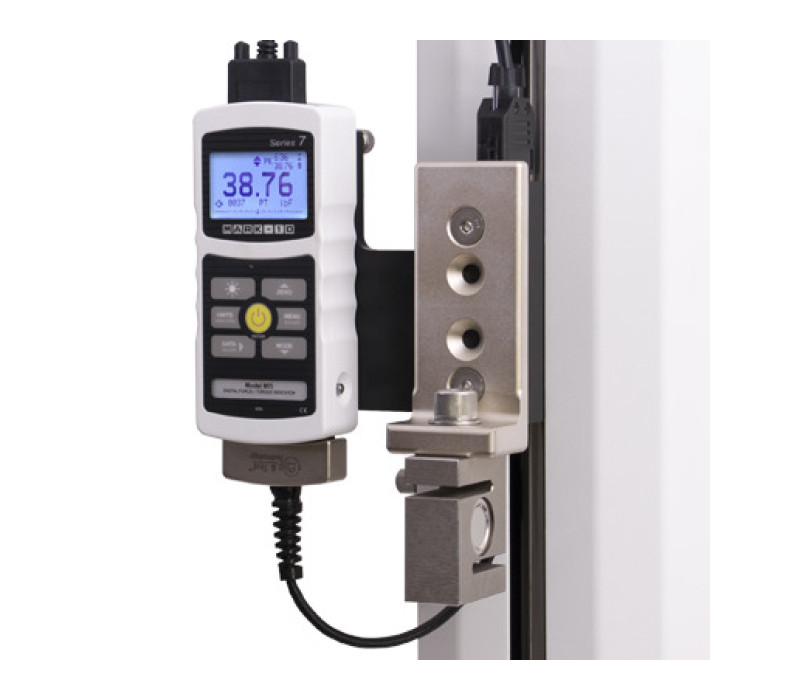

Optional AC1062 mounting kit adapts a Series R01 sensor to an ESM303 test stand.

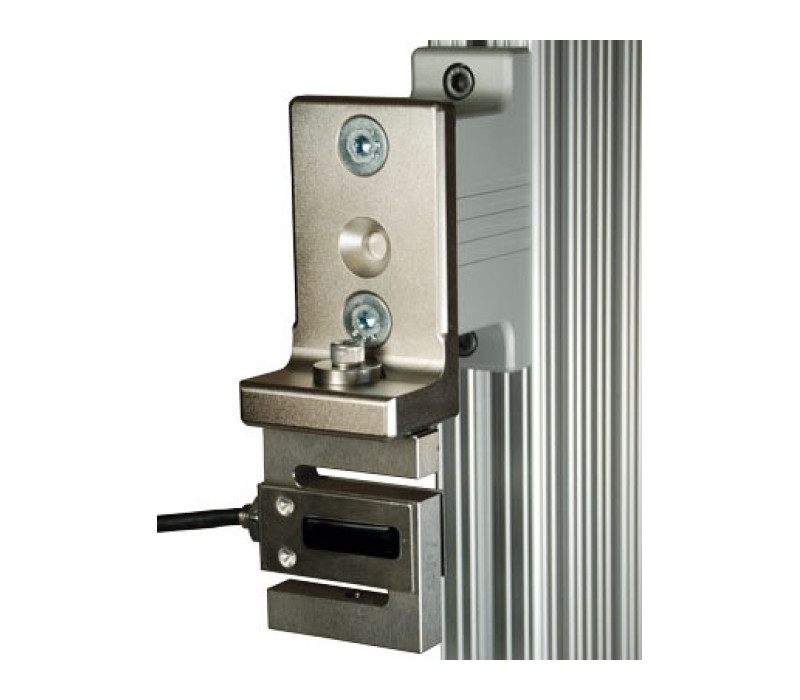

Series R01 mounted on a AC1018 bracket to attach it to a test stand.

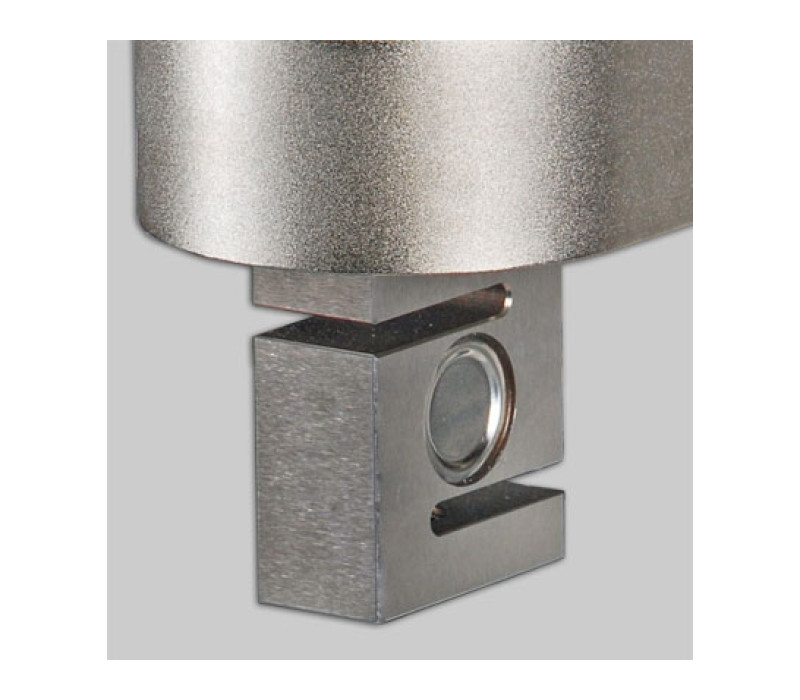

Series R01 sensor is shown mounted to an ESM1500LC test stand.

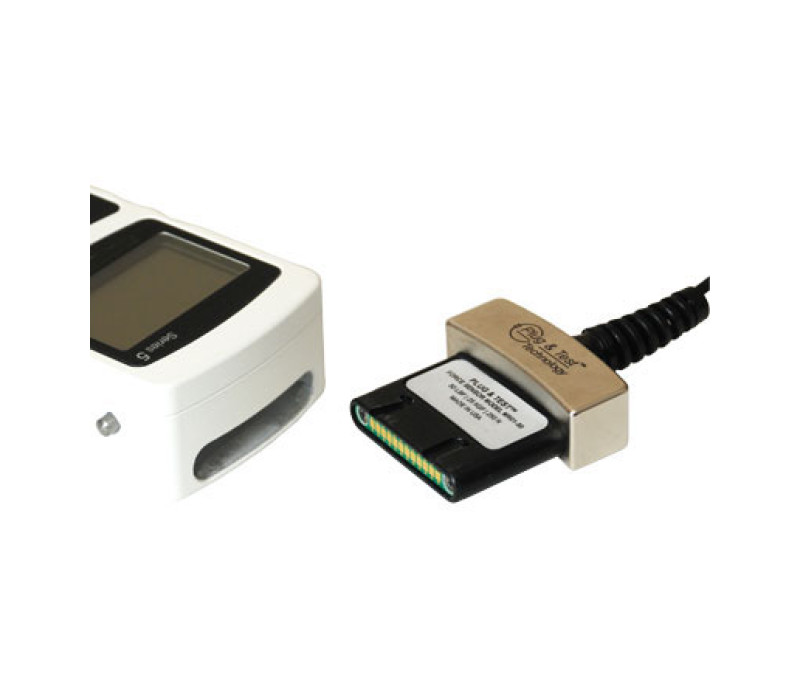

Unique Plug & Test® technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

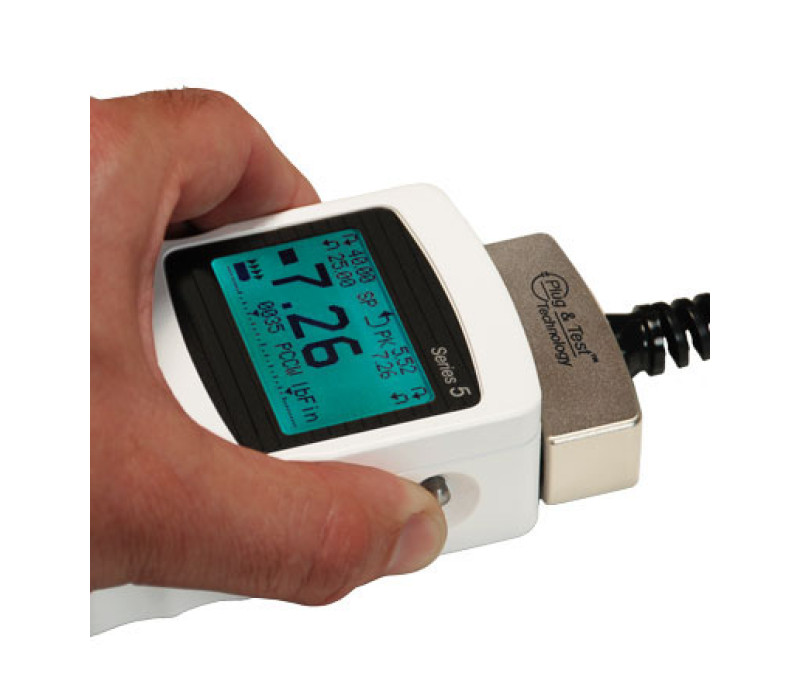

The Plug & Test® connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

R01 Series S-Beam Force Sensor

Name: R01 Series S-Beam Force Sensor
SKU: 126903

The Series R1 Force sensor is designed for tension and compression testing in a broad variety of industries and /or laboraties. It has a rugged S-beam design that is equipped with threaded holes on top and bottom.

It uses the Plug & Test^® system to connect to a Mark-10 Indicator, 3I, 5I, 7I or a Series F test stand. This system has the benefit of an internal pcb which stores calibration and configuration, this makes an indicator interchangeable during testing.

The R01 series is available in a range of 11 different capacities from 250 N to 50 kN. The R01 comes with a NIST-traceable certificate of calibration with data is included. Standard cable length is 6 m but for test stand use a suffix -1 can be added to the model number, a version with a 254mm cable will be shipped.

Price from € 643,00

Order now

Unique Plug & Test connector holds all calibration and configuration data
Measures tensile and compressive forces
NIST-traceable certificate of calibration included
Durable S-beam load cell
Capacities available from 250 N to 50 kN
Two threaded holes on each side

Plug & Test® Smart Force & Torque Sensors

General information

Mark-10 M7I, M5I, and M3I indicators are used in combination with Plug & Test® sensors and can therefore accommodate numerous force and torque measurement requirements, from 1 N to 50 kN (0.25 to 10,000 lbF) of force, and from 7 Ncm to 550 Nm (10 ozFin to 5,000 lbFin) of torque.

Plug & Test® sensors can be used handheld or mounted to a fixture or test stand for more accurate and repeatable testing results.
The sensors are separately calibrated therefore they can be disconnected from one indicator and connected to another without the need for re-calibration or re-configuration as this is stored in the PCB located inside the smart connector.

Accuracy

System accuracy is determined by the combination of Indicator and sensor combined. To determine the total system accuracy the accuracy value of the sensor is added to the value of the indicator.
As the Indicators have different accuracy values the total system accuracy may vary between the different indicator/sensor combinations. Indicator Model Accuracy M7I / M5I ±0,1% of full scale M3I ±0,2% of full scale.

Example 1 Model MR01-100 sensor with Model M5I Indicator MR01-100 ±0,15% of full scale + M5I ±0,1% of full scale = Total ±0,25% of full scale This translates into a fixed error of up to: 0,25% x 500 N = 1,25 N

Example 2 Model MR50-50Z sensor with Model M3I Indicator MR50-50Z ±0,35% of full scale + M3I ±0,2% of full scale = Total ±0,55% of full scale This translates into a fixed error of up to: 0,55% x 50 Ncm = 0,275 Ncm

Because accuracy is defined as a percentage of full scale, the fixed error is possible anywhere on the scale from 0 to the capacity. As such, this value represents an increasingly large error as percentage of reading towards the low end of the scale. It is, therefore, recommended that a sensor is selected with capacity as close as possible to the expected load. The resolution may be different for some sensors depending on whether a M7I, M5I, or M3I indicator is being used. For example, a Series R01 force sensor will display finer resolution when connected to a M5I indicator than when connected to a M3I indicator.

D1 no header

Model	A	B	C	D	E
MR01-200	2.40 [61.0]	2.00 [50.8]	0.46 [11.7]	0.90 [22.9]	1/4-28 UNF
MR01-200	2.40 [61.0]	2.00 [50.8]	0.46 [11.7]	0.90 [22.9]	1/4-28 UNF
MR01-200	2.40 [61.0]	2.00 [50.8]	0.46 [11.7]	0.90 [22.9]	1/4-28 UNF
MR01-300	2.40 [61.0]	2.00 [50.8]	0.71 [18.0]	1.10 [27.9]	1/2-20 UNF
MR01-500	2.40 [61.0]	2.00 [50.8]	0.71 [18.0]	1.10 [27.9]	1/2-20 UNF
MR01-750	2.40 [61.0]	2.00 [50.8]	0.71 [18.0]	1.10 [27.9]	1/2-20 UNF
MR01-1000	2.40 [61.0]	2.00 [50.8]	0.71 [18.0]	1.10 [27.9]	1/2-20 UNF
MR01-1500	2.40 [61.0]	2.00 [50.8]	0.96 [24.4]	1.40 [35.6]	1/2-20 UNF
MR01-2000	2.40 [61.0]	2.00 [50.8]	0.96 [24.4]	1.40 [35.6]	1/2-20 UNF
MR01-5000	3.90 [99.1]	3.00 [76.2]	0.96 [24.4]	1.40 [35.6]	3/4-16 UNF
MR01-10000	3.90 [99.1]	3.00 [76.2]	1.21 [30.7]	1.63 [41.4]	3/4-16 UNF
MR01-XXXXX: 20 ft [6 m] - MR01-XXXX-1: 10 in [254 mm] *Add suffix “-1” for shortened cable, for use on ESM1500, ESM750, ESM303, and ESM303H test stands. Ex: MR01-1000-1. Test stand mounting hardware is included. Note that MR01-5000 and MR01-10000 cannot be mounted to the ESM303 or ESM303H test stands.

Capacity x Resolution With Models 5i and 7i Indicators

Model	kN	N	kgF	gF	ozF	lbF
MR01-50	-	250 x 0,1	25 x 0,01	25000 x 10	800 x 0,5	50 x 0,02
MR01-100	-	500 x 0,2	50 x 0,02	50000 x 20	1600 x 1	100 x 0,05
MR01-200	1 x 0,0005	1000 x 0,5	100 x 0,05	-	3200 x 2	200 x 0,1
MR01-300	1.5 x 0,001	1500 x 1	150 x 0,1	-	4800 x 5	300 x 0,2
MR01-500	2.5 x 0,001	2500 x 1	250 x 0,1	-	8000 x 5	500 x 0,2
MR01-750	3.75 x 0,002	3750 x 2	375 x 0,2	-	12000 x 10	750 x 0,5
MR01-1000	5 x 0,002	5000 x 2	500 x 0,2	-	16000 x 10	1000 x 0,5
MR01-1500	7.5 x 0,005	7500 x 5	750 x 0,5	-	24000 x 20	1500 x 1
MR01-2000	10 x 0,005	10000 x 5	1000 x 0,5	-	32000 x 20	2000 x 1
MR01-5000	25 x 0,01	25000 x 10	2500 x 1	-	-	5000 x 2
MR01-10000	50 x 0,02	50000 x 25	5000 x 2	-	-	10000 x 5

Capacity x Resolution With Model 3I Indicator

Model	kN	N	kgF	lbF
MR01-50	-	250 x 0,5	25 x 0,05	50 x 0,05
MR01-100	-	500 x 0,5	50 x 0,05	100 x 0,1
MR01-200	-	1000 x 1	100 x 0,1	200 x 0,2
MR01-300	-	1500 x 2	150 x 0,2	300 x 0,5
MR01-500	-	2500 x 2	250 x 0,2	500 x 0,5
MR01-750	-	3750 x 2	375 x 0,2	750 x 0,5
MR01-1000	-	5000 x 5	500 x 0,5	1000 x 1
MR01-1500	-	7500 x 10	750 x 1	1500 x 2
MR01-2000	-	10000 x 10	1000 x 1	2000 x 2
MR01-5000	25 x 0,02	-	2500 x 2	5000 x 5
MR01-10000	50 x 0,05	-	5000 x 5	10000 x 10

Video

▶

R01-50-100-200 Solid Models

R01-500-1000 Solid Models

R01-1500-2000 Solid Models

R01-5000-10000 Solid Models

CE declaration of conformity

UKCA declaration of conformity

Accuracy:	± 0.15% of full scale + indicator
Weight:	From 0.9 kg to 1.4
Warranty:	3 years

Products

Item	Product	Price
133172	MR01-50 Force Sensor 250N	€ 643,00
133173	MR01-100 Force Sensor 500N	€ 643,00
133174	MR01-200 Force Sensor 1000N	€ 643,00
133175	MR01-500 Force Sensor 2500N	€ 643,00
136864	MR01-750 Force Sensor 3750 N	€ 643,00
133176	MR01-1000 Force Sensor 5 kN	€ 643,00
136866	MR01-1500 Force Sensor 7.5 kN	€ 643,00
133177	MR01-2000 Force Sensor 10 kN	€ 643,00
133178	MR01-5000 Force Sensor 25 kN	€ 964,00
133179	MR01-10000 Force Sensor 50 kN	€ 964,00

Accessories

Item	Product	Price	Quantity	Action
131959	AC1018 Mounting kit, R01/R03 to test stand	€ 161,00
134923	AC1062 Mounting kit, indicator / load cell to ESM303	€ 243,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
