R52 Series Torque Sensor for Tool Calibration

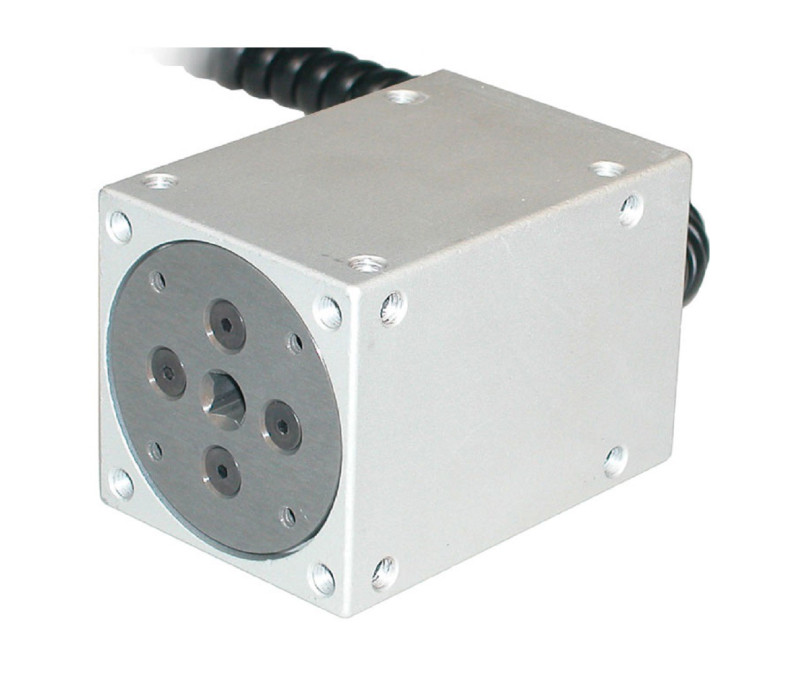

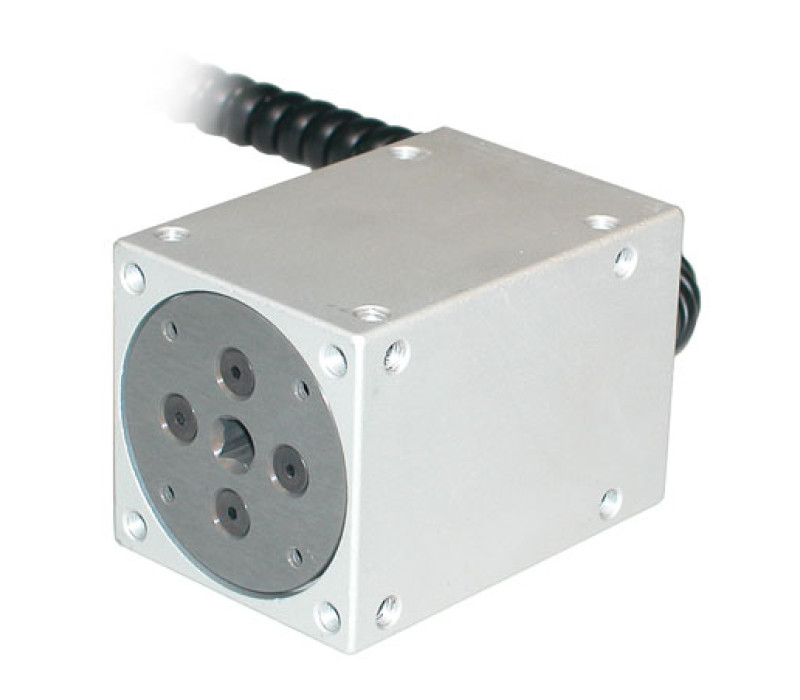

The R52 torque sensors' square design with threaded mounting holes on each surface lend this sensor to flexible configurations.

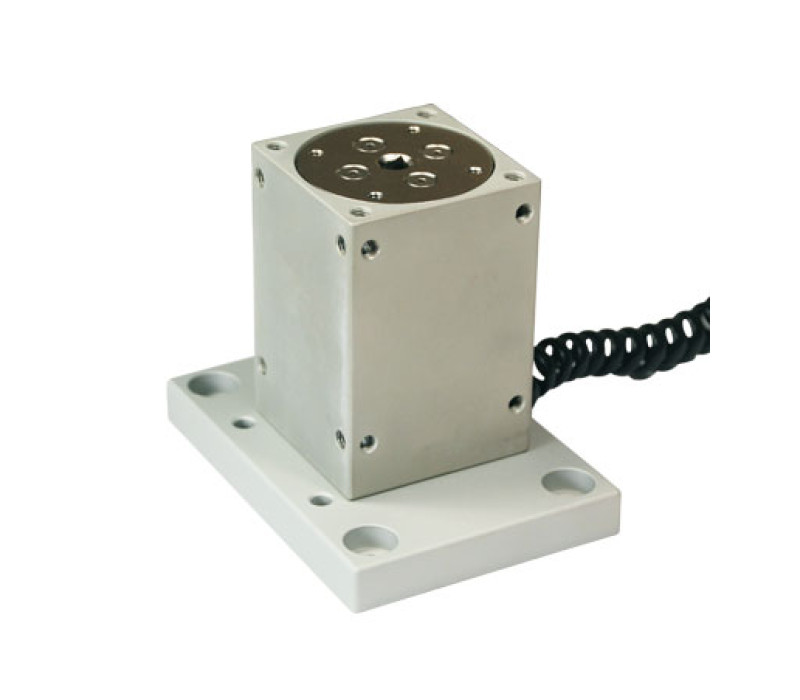

Series R52 torque sensors include threaded holes on all surfaces for flexibility in a variety of mounting configurations. Shown with the optional AC1006 tabletop mounting kit.

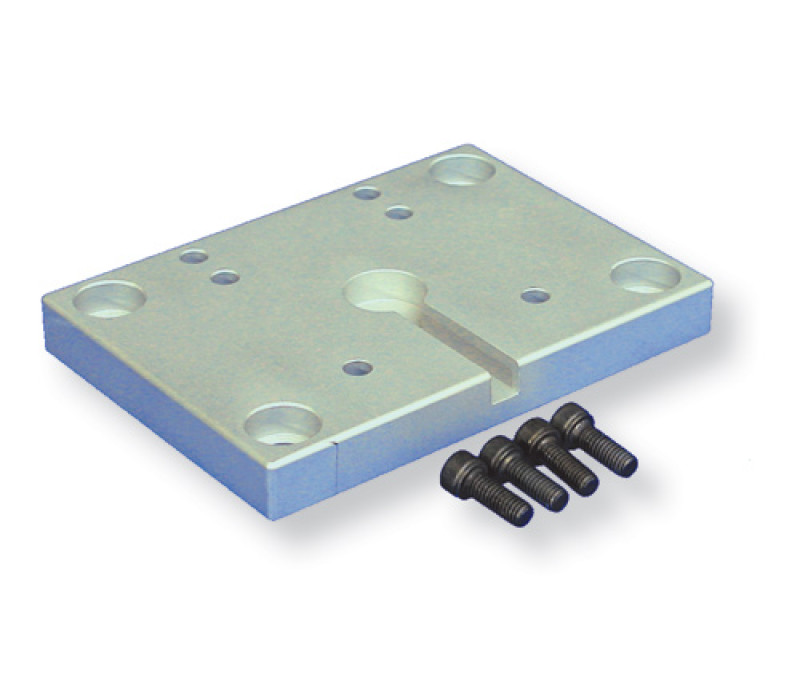

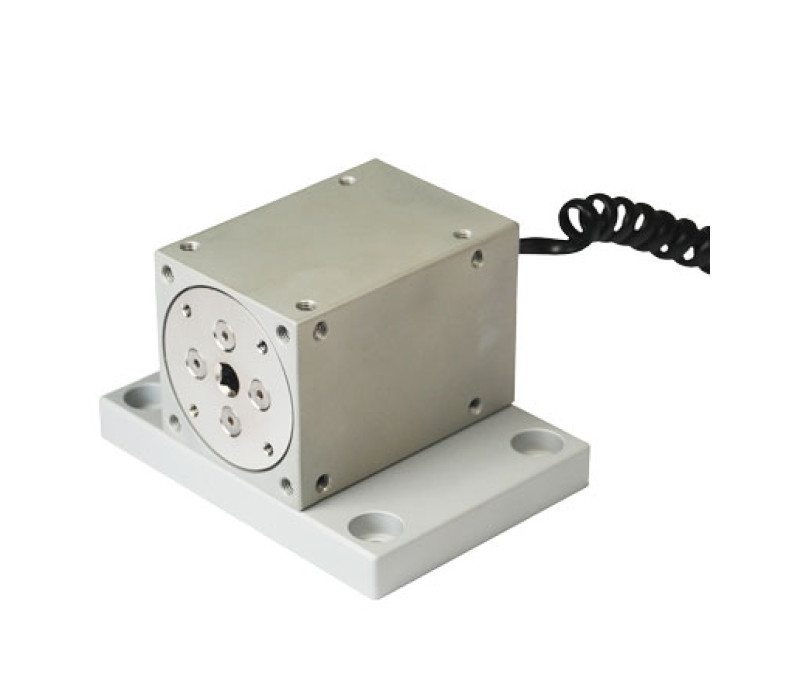

Optional tabletop mounting kit AC1006 may be used to hold the sensor in place. Square hole and mounting holes on round torque plate permit the mounting of various attachments.

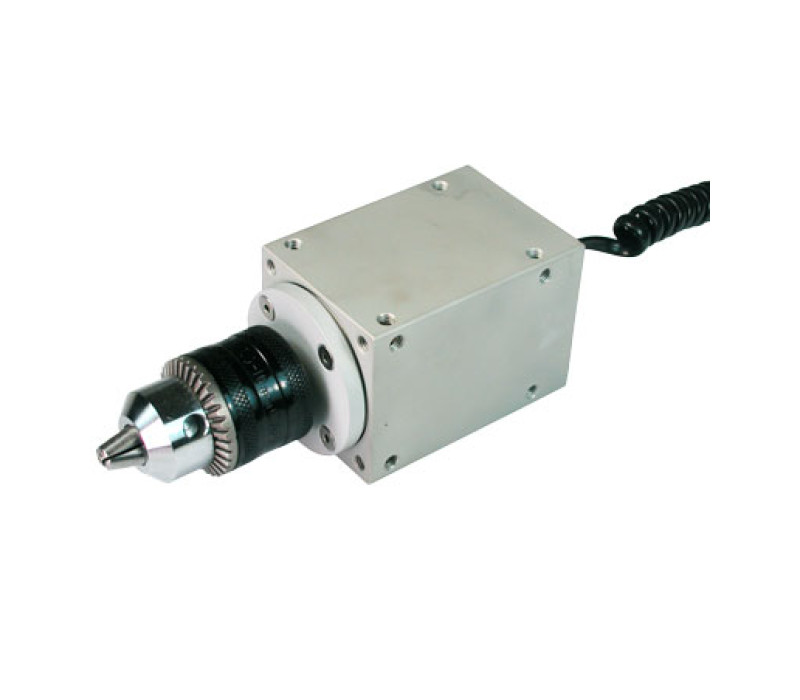

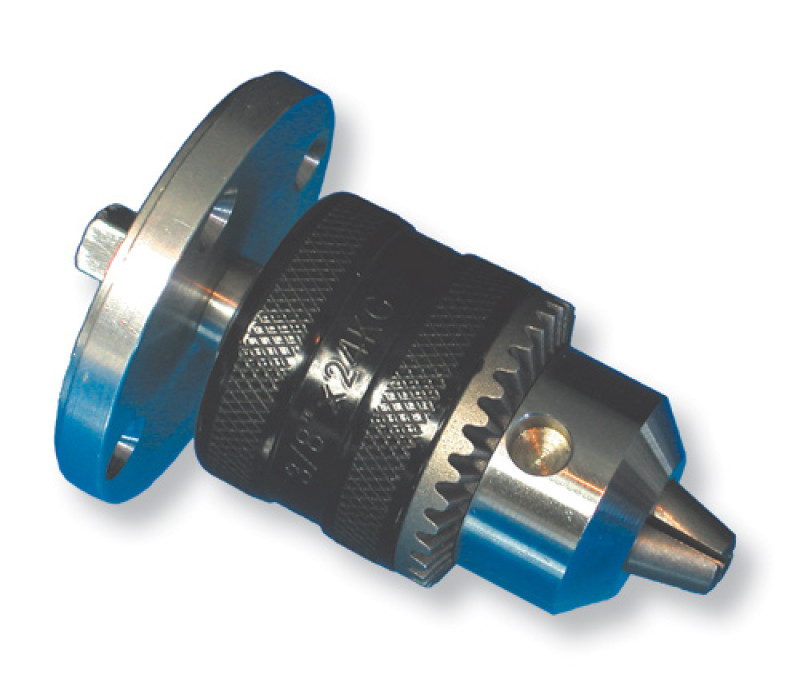

A Series R52 torque sensor is shown with the optional AC1014 Jacobs chuck attachment.

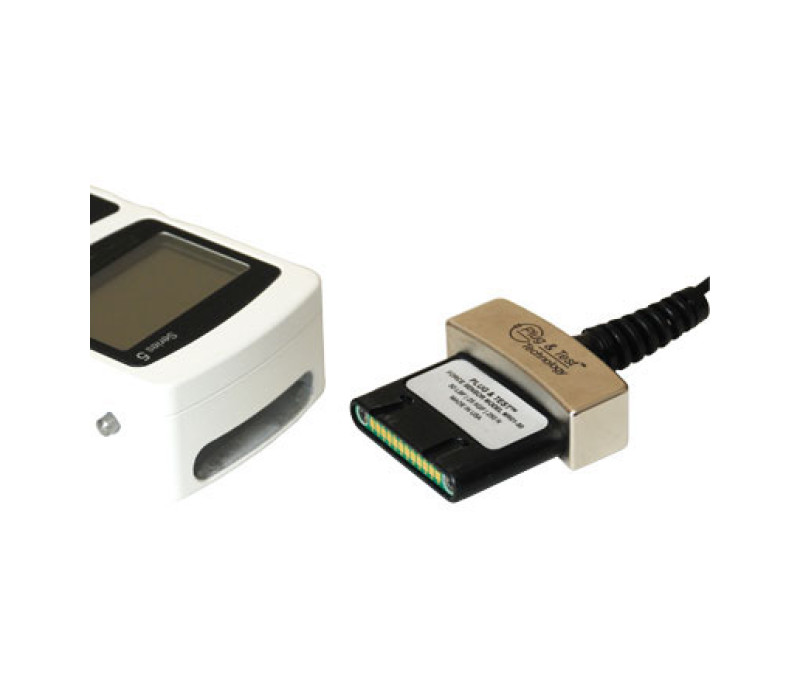

Unique Plug & Test® technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

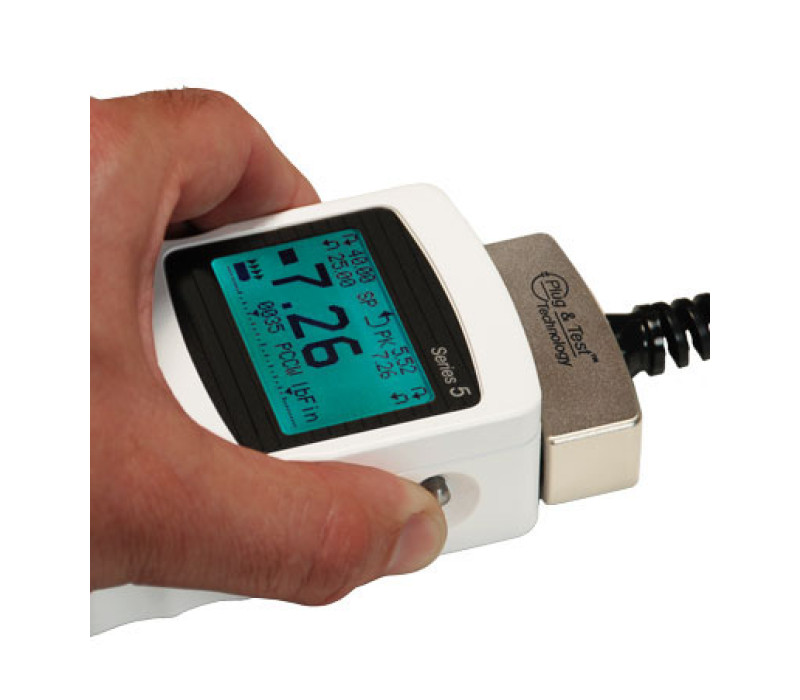

Optional tabletop mounting kit may be used to hold the sensor in place

Torque Sensor for calibrating tools

Name: Torque Sensor for calibrating tools
SKU: 126912

The Series R52 torque sensors are developed as a bi-directional torque tool calibration sensor, as basic tester combined with an optional Indicator or as part of a larger torque testing system. With its square design and tapped holes on every surface it can be mounted in virtually direction and setup. A tabletop mounting kit, AC1006, and two different size chucks, AC1014 and AC 1014-1, are sold separately. The Series R52 sensors are available in 6 versions ranging from 7 Ncm to 11,5 Nm.

The sensor connects to an I3, I5 or I7 indicator (sold separately) using the Plug & Test® system. This stores the calibration and configuration data in its internal PCB.

Delivery includes a certificate of calibration which contains 10 data points in each measuring direction.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 903,00

Order now

Rugged aluminum housing
Universal mounting
May be used for torque tool calibration or as a component of a torque testing system
NIST-traceable certificate of calibration included
Unique Plug & TestTM connector holds all calibration and configuration data
Capacities available from 7 to 1150 Ncm
3 years warranty

Tension Ranges

Model	Capacity with Model 7i / 5i	Resolution with Model 7i / 5i	Capacity with Model 3i	Resolution with Moel 3i
MR52-10Z	10 ozFin 700gFcm 7kgFmm 70Nmm	0.006ozFin 0.5gFcm 0.005kgFmm 0.05Nmm	10ozFin 7kgFmm 7Ncm	0.01ozFin 0.005kgFmm 0.005Ncm
MR52-20Z	20ozFin 1400gFcm 14kgFmm 140Nmm	0.01ozFin 1gFcm 0.01kgFmm 0.1Nmm	20ozFin 14kgFmm 14Ncm	0.02ozFin 0.01kgFmm 0.01Ncm
MR52-50Z	50ozFin 3600gFcm 36kgFmm 350Nmm	0.02ozFin 2gFcm 0.02kgFmm 0.2Nmm	50ozFin 36kgFmm 35Ncm	0.05ozFin 0.05kgFmm 0.05Ncm
MR52-12	12IbFin 1IbFft 140kgFmm 135Ncm	0.005IbFin 0.0005IbFft 0.1kgFmm 0.1Ncm	12IbFin 140kgFmm 135Ncm	0.01IbFin 0.1kgFmm 0.1Ncm
MR52-50	50IbFin 4IbFft 580kgFmm 570Ncm	0.02IbFin 0.002IbFft 0.5kgFmm 0.5Ncm	50IbFin 580kgFmm 570Ncm	0.05IbFin 0.5kgFmm 0.5Ncm
MR52-100	100IbFin 8IbFft 1150kgFmm 1150Ncm	0.05IbFin 0.005IbFft 0.5kgFmm 0.5Ncm	100IbFin 1150kgFmm 1150Ncm	0.1IbFin 1kgFmm 1Ncm

R52 dimensions

Dimensions of the R52 torque sensor with Plug & Test connector.

All dimensions are in Inch with [mm] behind.

Accuracy:	± 0,35% of full scale + indicator
Weight:	0,5 kg
Shipping weight	1,4 kg
Warranty:	3 years
