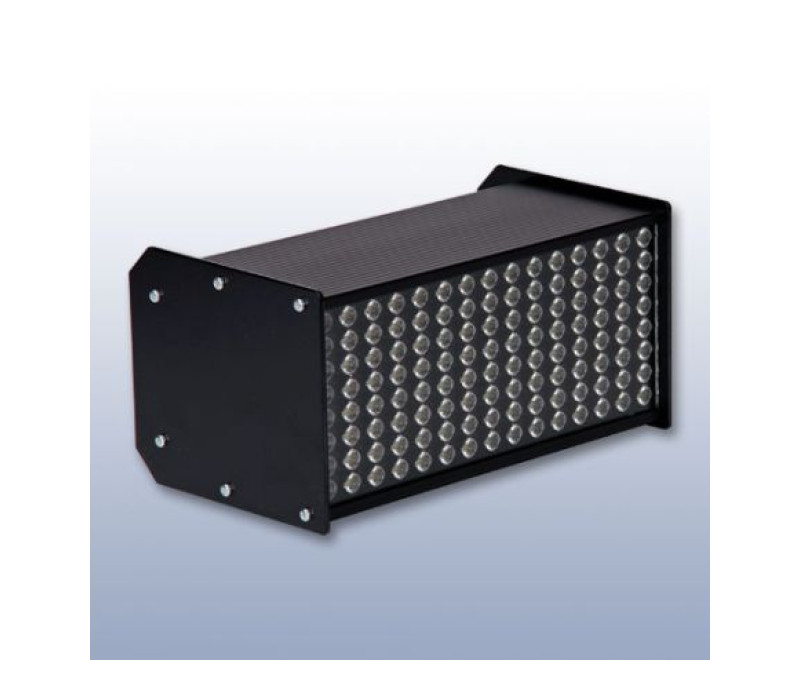

Back Panel

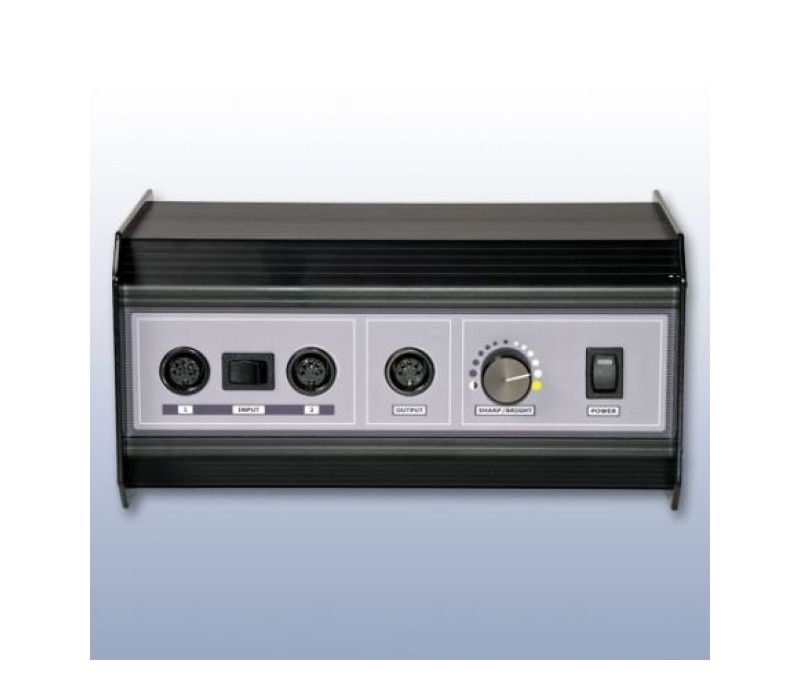

LS-9-LED-WB Wide Body Configuration

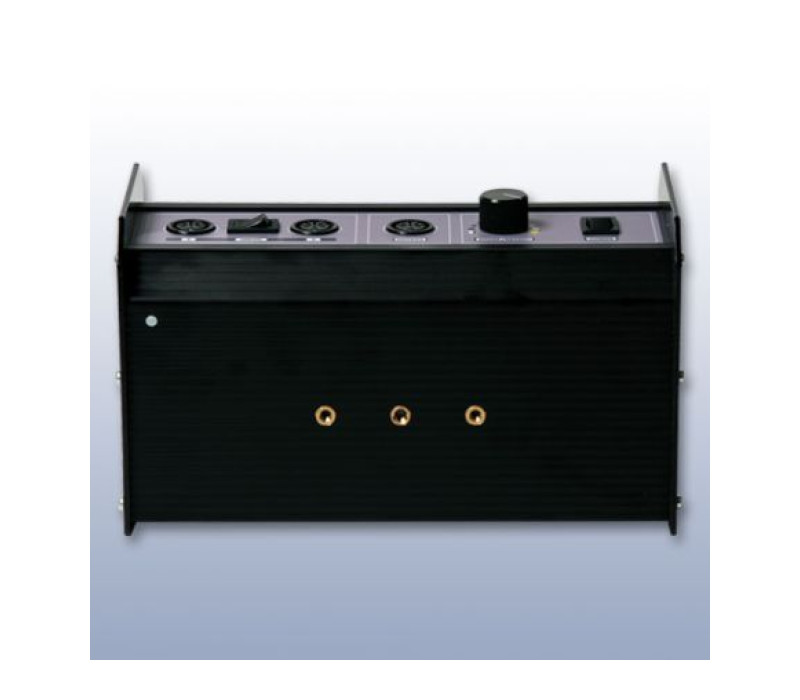

LS-9-LED-WB Wide Body back panel

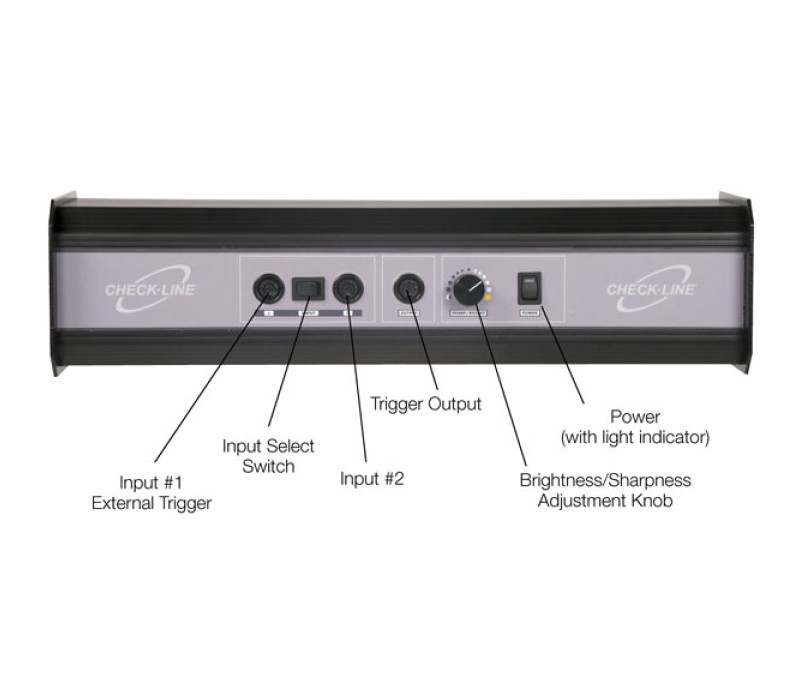

Power Supply

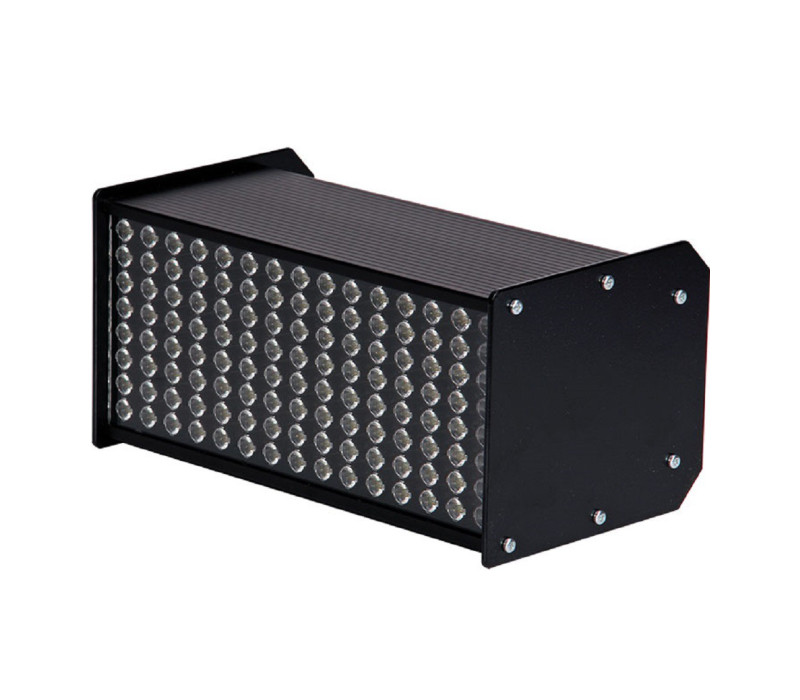

LS-9-LED Fixed-Mount Linear Stroboscope

The new LS-9-LED is a high-performance stationary LED-stroboscope with powerful light output and uniform light distribution over a large area for use on web-widths up to 500mm (20 inches) and wider.

High light output
Due to the configuration with 120 high-performance LEDs, the LS-9-LED offers a powerful light intensity. The large, homogeneous illumination surface delivers superb results even at difficult light conditions, making the LS-9-LED suitable for a very wide range of measurement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.

Superb image sharpness
With an adjustable flash duration from 1-1000 seconds, you will easily find the best combination between light intensity and sharp images for every application.

Flexible adjustments to all applications
Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various RT STROBE control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs by using the switch on the reverse side of the device.

Additional control options
The LS-9-LED control model range includes two devices for varying the control of RT STROBE 5000LED:
RT STROBE eco control - a simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.
RT STROBE control - for adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.

Request price >>

LEDs provide lifetime use and never require replacement
Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")
Uses 120 of the newest generation LEDs in a 8 x 15 matrix. Adjustable brightness and image sharpness
For web widths > 500 mm (20"), Two (2) or more strobes can be connected in parallel

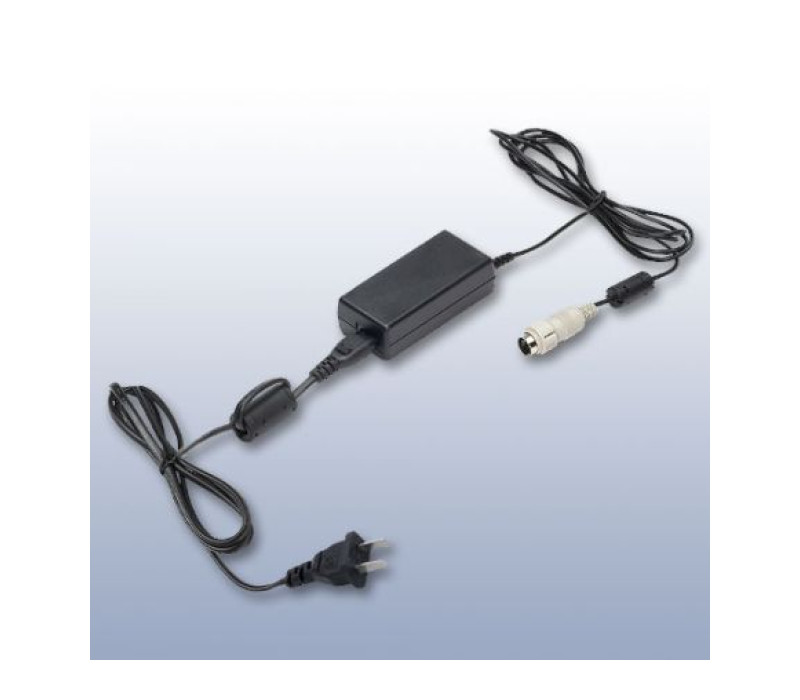

Powered by 24V DC (1.5A peak). An optional universal AC-DC Power supply is offered as an option
Connections include two (2) trigger inputs and 1 trigger output. Power can be connected in either of these 3 locations

Wide-Body Housing Configuration

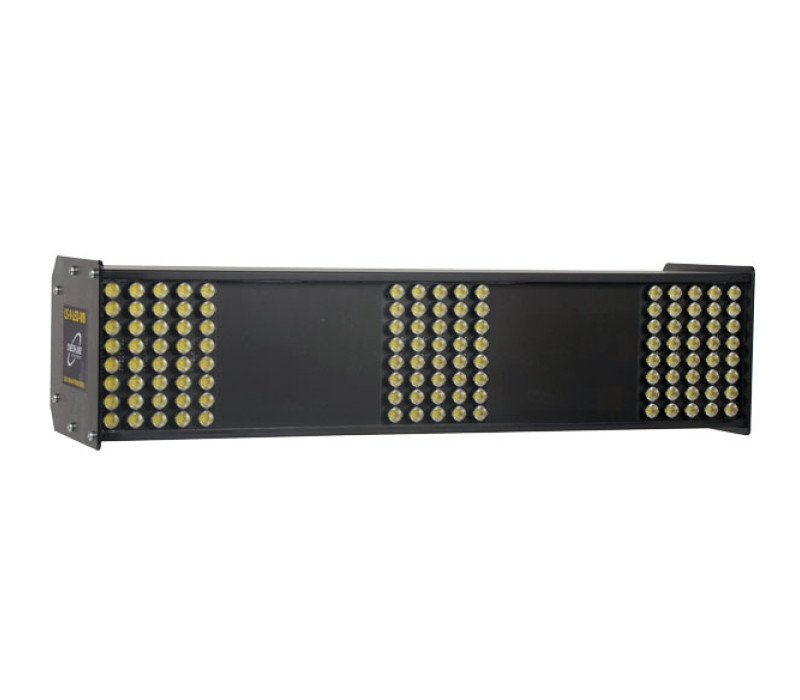

We offer a special configuration of the LS-9-LED Linear Stroboscope packaged in 440 mm width housing (17.3 inches) designed to provide a more aesthetically-pleasing solution when the strobe is fixed-mounted on a machine frame that is 18 inches or wider (460 mm+).

The 120 LEDs are spread in three (3) separate "clusters" each containing 40 LEDs, arranged in a 5x8 array. The position of each "cluster" is optimized to provide the optimal light uniformity over the entire illumination area with the same effective brightness as the standard version of the LS-9-LED (7500 Lux, peak). This model is popular with OEM Machine Manufacturers of Slitter/Rewinders and similar machines used in the label and printing industries.

Light Output (LUX) vs Distance

Overview of LED Strobe Models

Model	LEDs	Array Size	Brightness (peak)	Housing Width
LS-5-LED	80	10 x 8	6000 Lux	150 mm (6 inch)
LS-9-LED	120	15 x 8	7500 Lux	230 mm (9 inch)
LS-9-LED-WB	120	5 x 8 (3x)	7500 Lux	440 mm (17 inch)
LS-18-LED	200	25 x 8	9000 Lux	440 mm (17 inch)

Frequency Range	0 -120000 RPM (flashs per minute)
Power Supply	3...30 V / max. 5 mA potential free optocoupler DIN 41524 5-pin standard plug Uout=Uin, max. 200 mA switchable trigger input for parallel connection
Trigger output	For parallel connection
Light intensity/sharpness	Adjustable with turning knob
Illumination intensity single flash	ca. 1 Mega-Lux/30cm / 12"
Illumination Intensity	5.000 Lux/30 cm / 12" with 2°
Illumination area	30x50 cm/11,8x19,7"
Flash color	ca. 5000...8.300 K
Material	Aluminum
Dimensions	230x130x112 mm / 9,1x5,1x4,4
Weight	1.400 g
Ambient temperature	0°...40°C (32°...114°F)
Storage temperature	-25°C...70°C (-10°...125°F)
Humidity	max. 95% not condensing
Certifications	Certificate of CE conformity

Products

Item	Product
133151	LS-9-LED Linear LED Stroboscope with120 LEDs (without power supply)
133366	LS-9-LED-WB Linear LED Stroboscope Wide-Body Housing with120 LEDs (without power supply)

Accessories

Item	Product
130696	LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)
130699	LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigger signal
134042	LS-CABLE-T Cable for connection to 2nd Strobe transferring ONLY trigger signal from primary to slave
130700	LS-DIN 5 Pin DIN Connector
130698	LS-AC-WORLD Universal Power Supply for LS-RCU or LS-5-12000 Strobes
133170	LS-FCM Flash Control Module for manual adjustment of flash rate
130268	SAS-DT300 Flexible swing arm for DT-311A/315A stroboscope
131143	LS-GAPSENSOR for triggering strobe on gaps between labels
132205	LS-REGSENSOR for triggering strobe on registration marks on printed piece
131288	DT-TRI-HD Mini Tripod
130231	Leica Tripod TRI100
