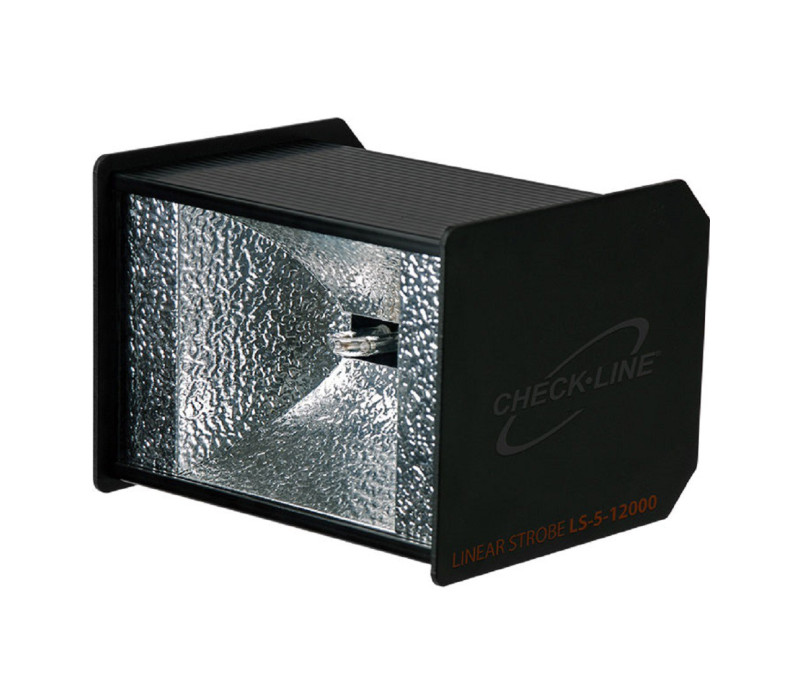

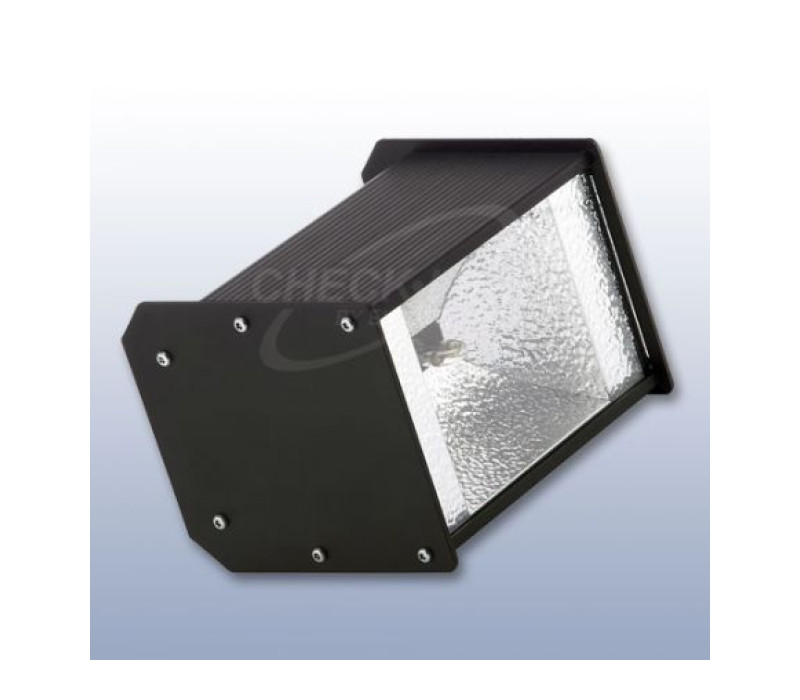

Name: LS-5-12000 Compact Linear Stroboscope
SKU: 126474

The Checkline LS-5-12000 Linear Strobe is designed for fixed mounting on all machinery that utilize a strobe for visual inspection including, rewinders, slitters and similar process equipment in the label printing and process market as well as many others markets including vibration analyzers, balancers, metal producing equipment and much more.

The LS-5's flash rate can be externally triggered by an external sensor/controller on the process machine or the LS-5-RCU Remote Controller can be optionally specified for this purpose. Refer to a separate webpage on the LS-5-RCU.

The LS-5 produces a bright, sharp image under observation when the flash rate is synchronized with the "repeat rate" of the web material. The strobe operates using 24V DC (15 - 28V DC) using power already available on the machine or by using our worldwide AC-DC power adapter available as an option.

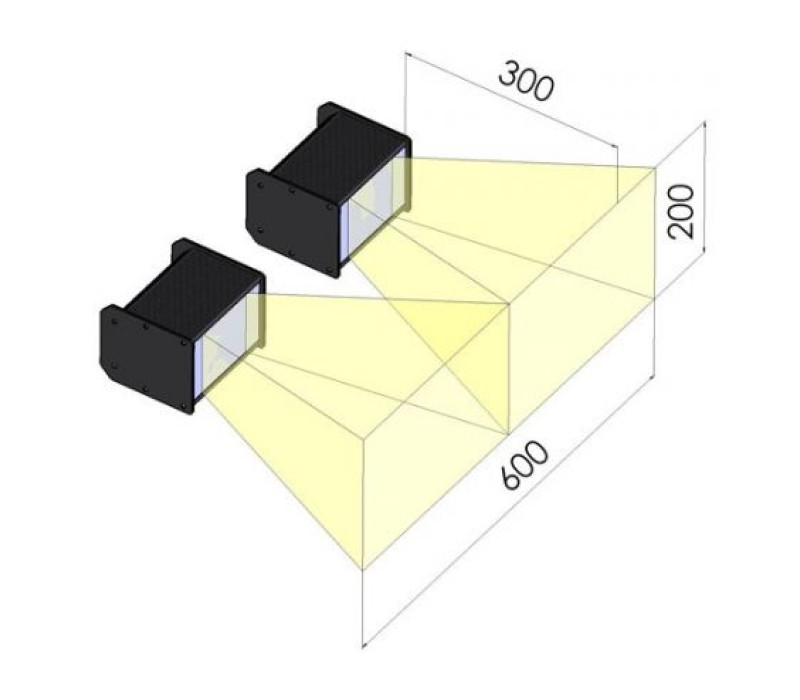

The brightness, sharpness and uniform light output provided by the LS-5 is unmatched in the market based on its compact size and low cost. It is especially well-suited for use on narrow web equipment up to 16 inches in width (400 mm width) and even wider. Two or more units can be used together in a Master/Slave arrangement when wider web widths must be covered.

Request price >>

Unmatched brightness, sharpness and uniformity from any strobe in its class

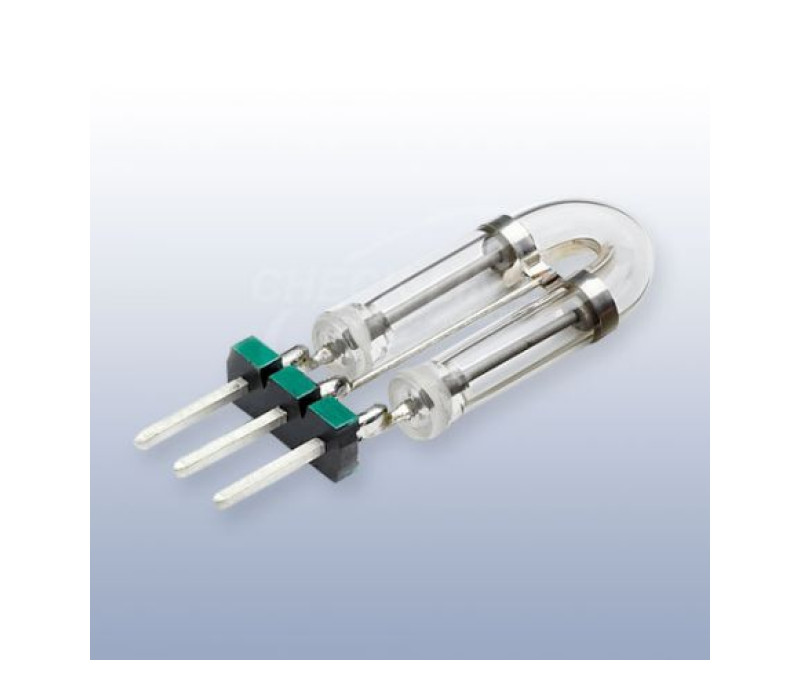

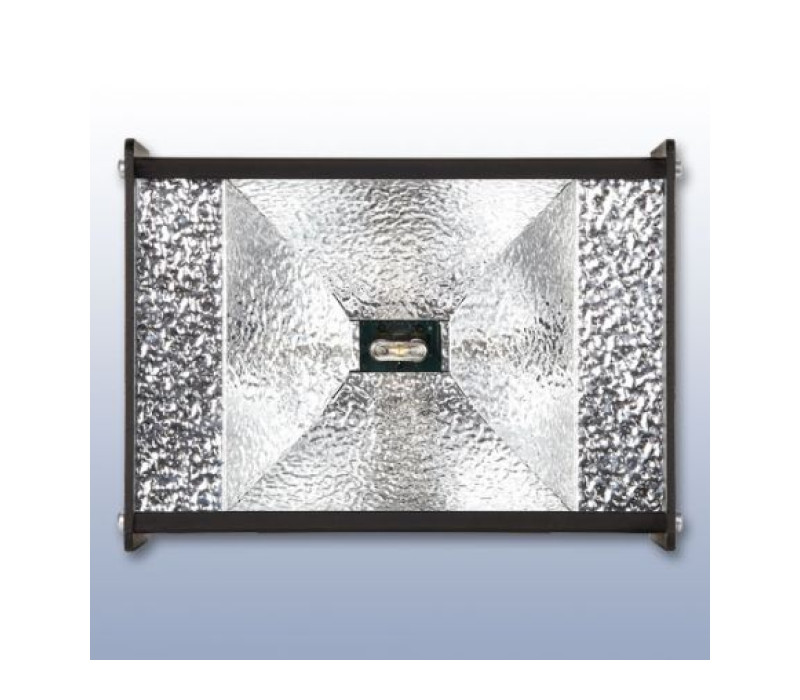

Uses long-life Xenon U-tube which is easily replaced after 200 Million flashes
Extremely short flash duration of less than 5 microseconds (µs) provides for a super-sharp image for easy observation
Can be powered using 24V DC already available on the machine or using the optional AC-DC power adapter.
Externally triggered using industry standard TTL-type square-wave signal at rates up to 208 Hz and even higher
Aluminum enclosure is efficiently dissipates heat eliminating the need for bulky heat sinks
Two (2) or more LS-5 Strobes can be connected to each other for wider web coverage

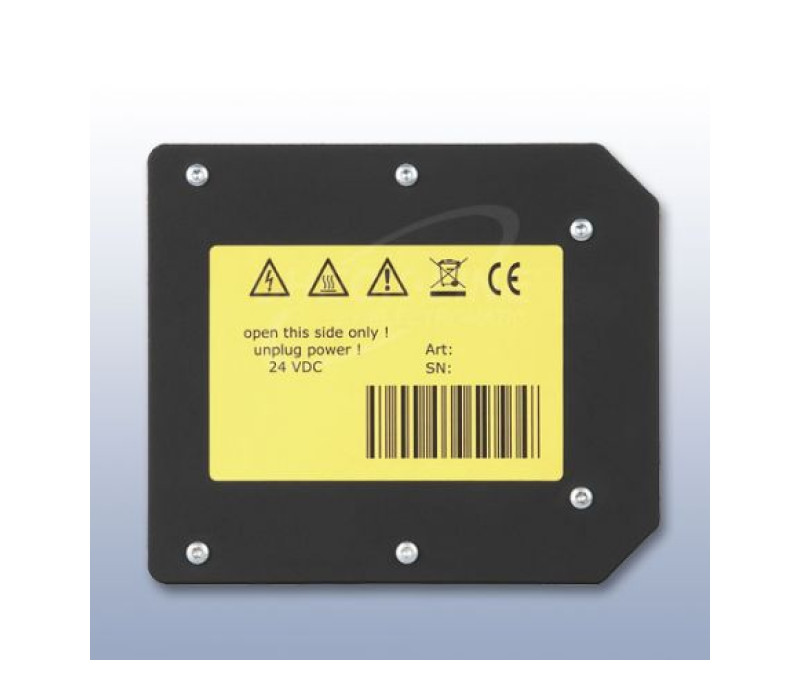

CE-certified for use worldwide

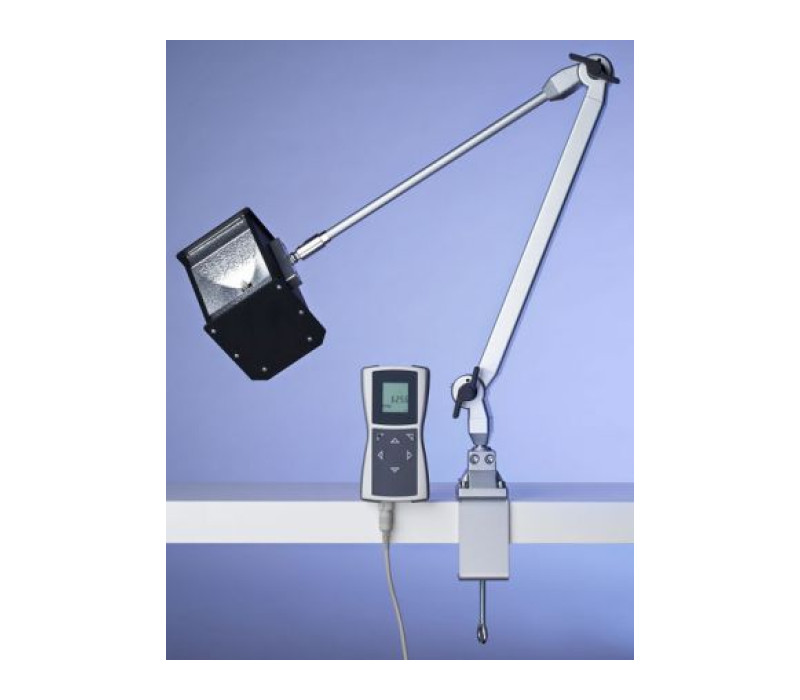

Threading holes provided for fixed-mounting on machine frame or articulating arm
Optional UV-Kit is offered to illuminate any UV printing requiring inspection. Includes special UV flashtube and lens.

LS-5-12000 Data Sheet

Flash Range	0 - 12,500 FPM (flashes per minute)

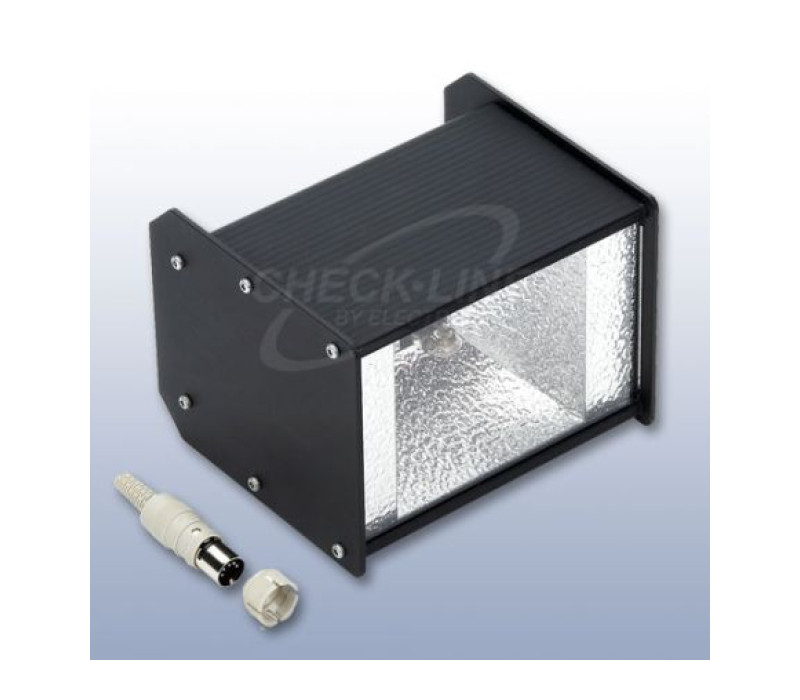

Power Supply	15 - 28 V DC / 12 Watts DIN 41525 5-pin standard plug Universal power supply unit available

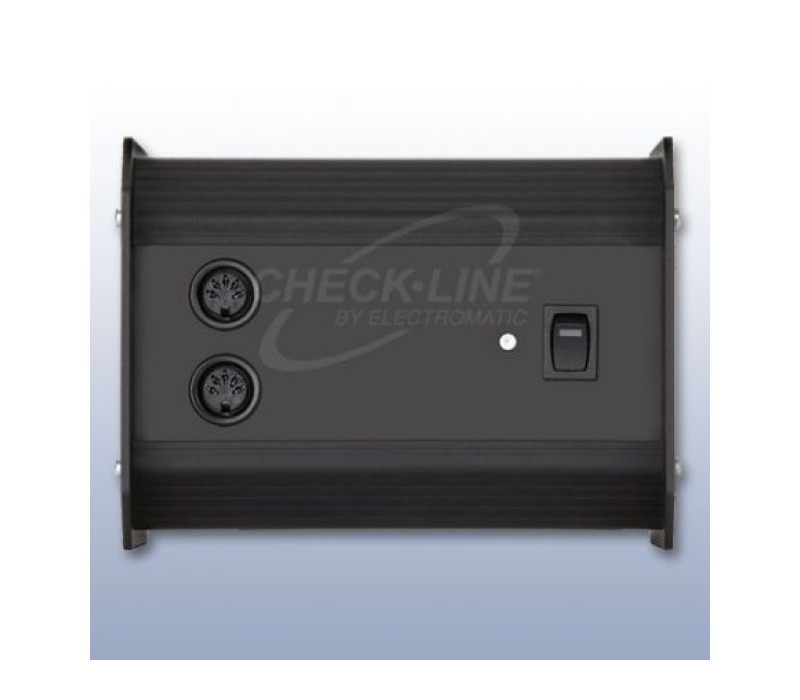

External Trigger Input	3 - 30 V / max 5 mA (voltage-free optocoupler) DIN 41524 5-pin standard plug Uout = Uin, max 200 mA
Life Cycle	> 200,000,000 flashes (@6000 FPM)
Flash Duration	≤ 5 µs
Illumination Intensity	Single flash 10 megalux @ 30cm (12 inches)
Illumination intensity	500 lux @ 30cm (12 inches), 6000 FPM

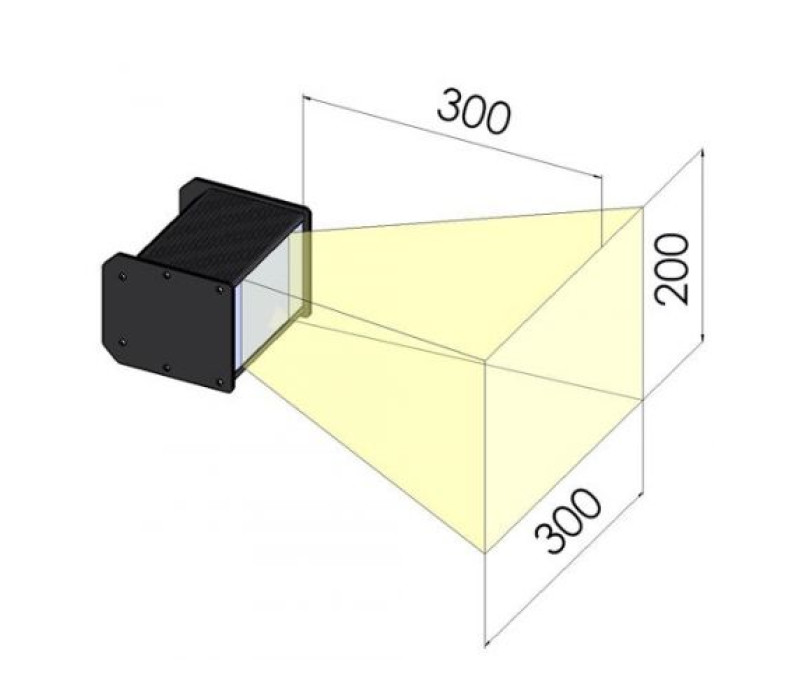

Illumination Area	20x30 cm
Light Colour	6000 - 6500 K
Flash Energy	600 mJ @ ¡©¡Â 1200 FPM
Housing Material	Aluminum
Dimensions	150 x 130 x 112 mm / 6.0" x 5.1" x 4.4"
Weight	870 g (1.9 lbs.)
Ambient Temperature	0 - 40 °C (32-104 °F)
Air Humidity	Max 95%, non-condensing

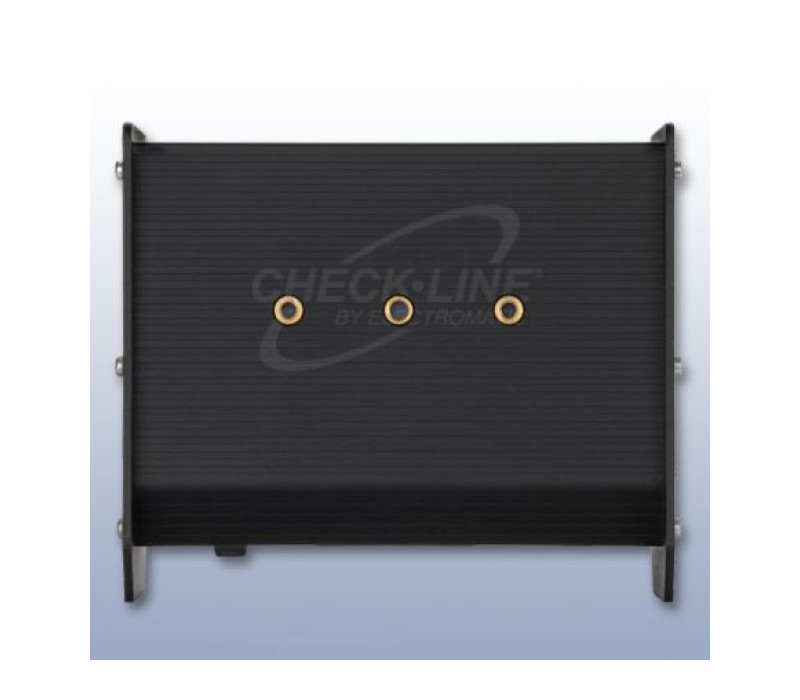

Mounting Holes	Threaded 1/4 x 20 unc and 2x M5 holes on bottom side of strobe housing

Products

Item	Product
130695	LS-5-12000 Linear Stroboscope (without power supply)

Accessories

Item	Product

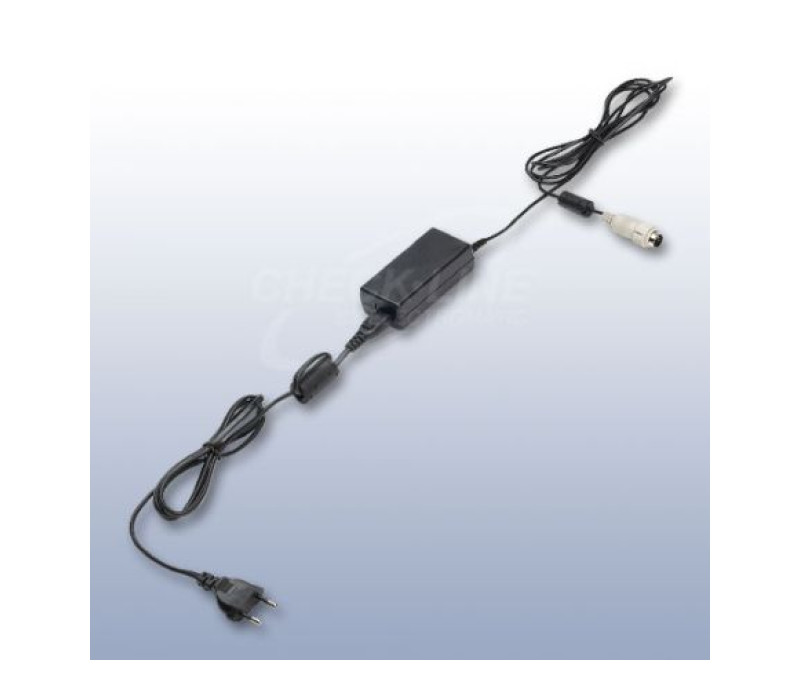

130698	LS-AC-WORLD Universal Power Supply for LS-RCU or LS-5-12000 Strobes

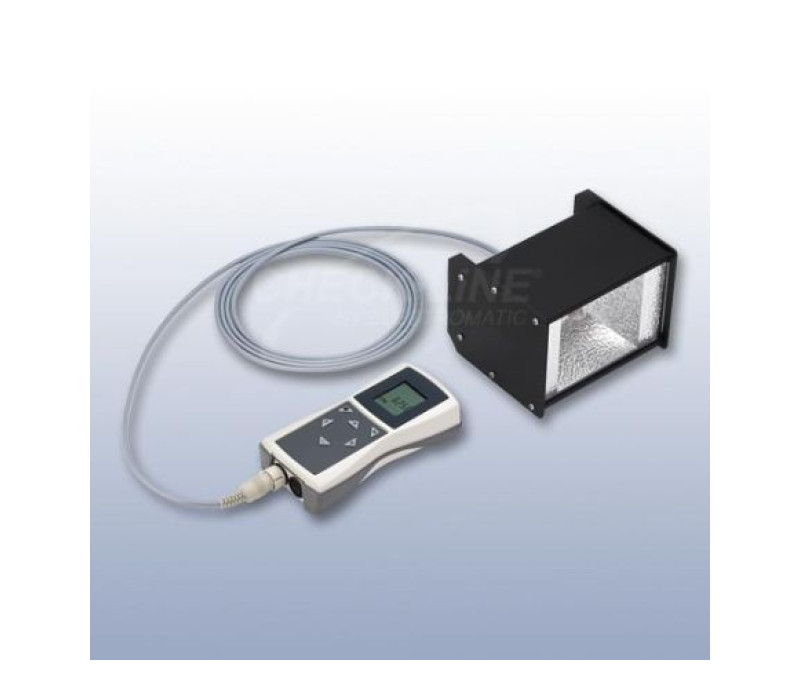

130696	LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)
133170	LS-FCM Flash Control Module for manual adjustment of flash rate

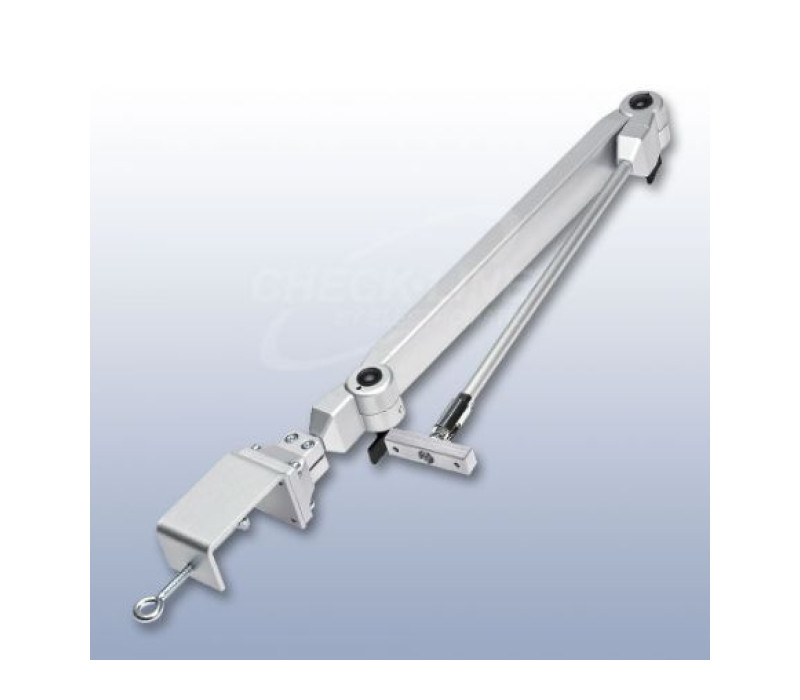

130268	SAS-DT300 Flexible swing arm for DT-311A/315A stroboscope
131288	DT-TRI-HD Mini Tripod
