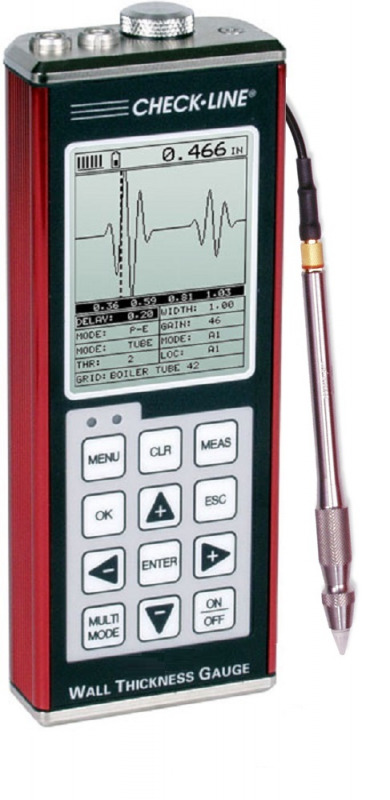

TI-PVX Precision Ultrasonic A-scan Wall Thickness Gauge


Made in the USAThe TI-PVX Precision Ultrasonic Wall thickness gauge gives the user the necessary flexibility for both high resolution and penetration requirements.

It is the perfect tool for very precise and delicate measurements. This is due to the ability of the TI-PVX to use a variety of single element transducers for specific applications. These are: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications).

There are different viewing options available like RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar.

Additional there is the time based B-Scan feature which displays a cross section of the test material and can display the profile of the opposite surface of the material.

Another available feature is the high speed scan function which speeds up the inspection process (32 measurements per second). With this feature the user can scan a larger area in a relatively short period of time. After the transducer is removed from the test material, the minimum thickness measured will appear on the display.


Download DataComm 2 Software


Features

  • Multiple calibration options: One Point, Two Point, or selection from a Material List.
  • 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
  • Hardware AGC gain control for multiple echo and thru-paint measurement.
  • The TI-PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
  • The high speed scan feature
  • Visual and audible alarm with hi and lo limit settings for specific application tolerances.
  • Adjustable resolution settings
  • Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view.
  • The TI-PVX comes complete with our Windows® PC software for transferring data to and from a PC.
  • 2 year limited warranty
  • CE Certified
  • Includes NIST traceable calibration certificate
  • 1/4" 15MHz Delay Line Probe p/n T-402-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe

Accessories

TI-SB Steel Test Block with NIST-Traceable Certificate


  • Precision Machined and Finished
  • Includes NIST Report and Test Data

More details

TI-SB4 Uncertified Steel Test Block


  • Uncertified Steel Test Block
  • For convenient confirmation of thickness gauge calibration

More details

TICC-MVX Protective Holder for Ultrasonic Gauges


  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop
  • Includes wrist & shoulder straps

More details

CF-AN Coupling Fluid - CF-AN


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

More details

N-306-0010 RS232 (DB-9 to Lemo) Data Cable 182cm


  • RS232 (DB-9 to Lemo) Data Cable 182cm

More details

DataComm Software


  • Compatible for Windows Vista and Windows 7.

More details

CF-4H High Temperature Coupling Fluid


  • Temperature Range:
    0° to 600° F
    -18° to 315° C

More details

CF-4H-950F High Temperature Coupling Fluid


  • Temperature range from 316ºC to 404 ºC

More details

Cic-Wall | Wall Thickness Gauge Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
  • Possibility to adjust and repair

More details

T-402-5507 Spare / Replacement 15 MHz Probe for TI-007


  • Spare / Replacement 15 MHz Probe for TI-007

More details


Delay Line Tips for TI-PVX

P/N Description Standard / Optional Image
X-152-0000 1/16” Dia. x .450" L Standard
X-752-0000 1/8" Dia. x .450" L Optional

Delay Line Tips for TI-PVX-5507

P/N Description Standard / Optional Image
X-231-0000 1/4" x 3/8"
for all metals
(Short)
Standard
X-241-0000 1/4" x 1/2"
for all metals
(Long)
Standard
X-633-0000 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)
Optional
X-532-0000 3/16" x 3/8"
Conical Tip
for all metals
(Cone)
Optional
X-533-0000 3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone)
Optional

Complete Kit

The TI-PVX is supplied as a complete kit with the gauge and pencil probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.

Specifications

Range:
Interface-Echo Mode:
Steel 1.27mm - 25.4mm (0.05 - 1.0 in). Plastics from 0.127mm (.005in.).

Echo-Echo Mode:
Steel 0.15mm - 12.7mm (.006in -.500in).

Pulse-Echo Contact Mode:
Steel 1mm - 254mm (.040in - 10.0in). Plastics from 0.254mm (.010in).

Echo-Echo Contact mode:
Steel thru-paint 2.54mm - 76.2mm (.100in - 3.0in).
Resolution:
(selectable) +/- 0.01 mm (.001in), or +/- 0.001mm (.0001in).
Velocity Range:
.0492 to .3936 in./ms
1250 to 9999 meters/sec
Units:
English & Metric
Memory:
16 megabit non-volatile ram.
Data Logger:
12.000 readings and waveforms (alpha numeric storage).
Display:
1/8 in. VGA grayscale display
Setups:
16 factory and 48 user-defined setups.
Display Views:
A-Scan:
Rectified +/- (half wave view) RF (full waveform view)

B-Scan:
Time based cross section view. Display speed of 15 secs per screen.

Large Digits:Standard thickness view. Digit Height: 10mm (0.400 in).
Scan Bar:

6 readings per second. Viewable in B-Scan and Large Digit views.

Repeatability Bar Graph:
Bar graph indicates stability of reading.
Power Source:
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life:
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Power off:
Auto power off if idle 5 min.
Operating Temperature:
-10° to 60°C (-14° to 140°F).
Size:
63.5 W x 165 H x 31.5 D mm (2.5 W x 6.5 H x 1.24 D inches).
Weight:
0.4 kg (0.9 lbs )
Warranty:
Gauge: 2 Years
Probe: 90 Days

Downloads


Related Products

DataComm Software


  • Compatible for Windows Vista and Windows 7.

More details


Buy Now

Products


Product name
Price
Quantity
TI-PVX Complete Kit includes 10MHz Pencil Probe
€ 3.147,00

TI-PVX-5507 Complete Kit with 1/4" 15MHz Delay Line Probe instead of Pencil Prob
€ 3.000,00



Accessories


Product name
Price
Quantity
CF-AN - Coupling Fluid - 250ml
€ 15,00

Calibration Certificate - Calibration Inspection Certificate
€ 99,00

TICC-MVX - Protective holder for MVX
€ 84,00

N-306-0010 - Data Cable 182cm
€ 139,00

X-152-0000 - 1/16" Delay Line Tip for Pencil Probe
€ 62,00

X-752-0000 - 1/8"Dia. x .450 Delay Tip for Pencil Probe
€ 62,00

TI-SB4 - Uncertified Steel Testblock
€ 139,00

TI-SB-4H - Steel Test Block
€ 382,00

TI-SB-4L - Steel Test Block
€ 382,00

TI-SB-5L - Certified Steel Test Step Block
€ 382,00

T-481-4507 - Pencil Probe for TI-PVX
€ 719,00

T-681-4507 - 90° Pencil Probe for TI-PVX
€ 719,00

T-402-5507 - 1/4" 15MHz Delay Line Probe
€ 636,00

T-402-2805 - FCR-2550 Single element contact transducer, 1/4" 5 MHz, for TI-PVX, without cabl
€ 321,00

T-404-2805 - FCR-5050 Single element contact transducer, 1/2" 5 MHz for TI-PVX, without cable
€ 321,00

N-104-0020 Cable Lemo to Microdot (1.20m)
€ 73,00

N-110-0020 Transducer Cable, Lemo to microdot Single ( 3 meter)
€ 89,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
