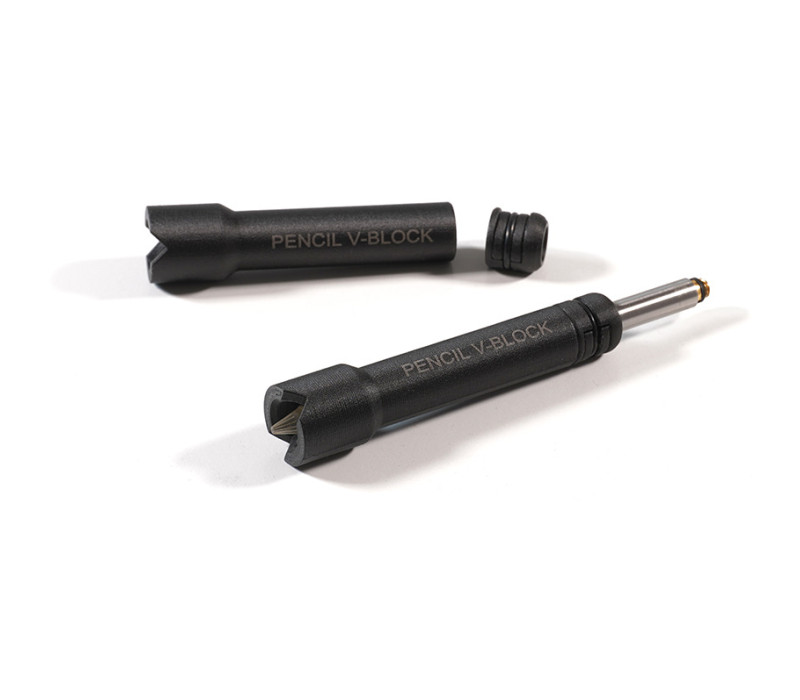

V-Block Accessory for Pencil Transducers

SINGLE ELEMENT DELAY LINE PENCIL TRANSDUCERS

High Precision and Accessibility for Specialised Applications

Checkline's single-element delay line pencil transducers are essential tools for precise thickness measurement of materials such as aluminium, titanium, steels and thin plastics. Optimised for use with the TI-PVX Ultrasonic Thickness Gauge, these probes are ideal for testing in hard-to-reach areas and for small-scale applications that demand accuracy.

Key Features:

Precise Focus Point: Concentrates the ultrasonic beam into a 1/16" or 1/8" spot, enabling highly accurate measurements on containers, small-diameter pipes and turbine blades.
Robust Construction: Each model is fitted with a 1/4" crystal and a microdot connector, ensuring secure connectivity and reliable mounting.
Ergonomic Design: Available in configurations such as top-entry or right-angle for ease of use across different industrial applications.

Key Benefits:

Application Flexibility: Offered in multiple variants, including T-481-5507 (10 MHz), T-681-4507 (10 MHz, 90° right-angle) and T-581-5507 (15 MHz), to meet specific testing requirements.
High-Resolution Measurements: Delivers the precision required for critical thickness evaluations and defect detection across sensitive materials.
Material Adaptability: Supplied with acrylic and graphite delay tips to enable accurate measurements on a wide range of plastics, compensating for different acoustic impedances.

Important Note: Measurement ranges in plastics and other materials may vary depending on the selected model and type of delay tip, ensuring both flexibility and precision in application.

Contact us for further details or to place an order. Our team is ready to assist you in choosing the right pencil transducer for your project, ensuring accuracy and efficiency in ultrasonic testing.

Price from € 872,00

Order now

Measurement Ranges

Probe Diameter	Frequency	Mode	Delay Tip	Diameter Tip	Range*
3/16"	10 MHz	Echo-Echo	X-152-0000	1/16"	0,15 mm - 7,6 mm ST
3/16"	10 MHz	Pulse-Echo	X-152-0000	1/16"	0,25 mm - 10 mm ST
3/16"	10 MHz	Echo-Echo	X-152-0000	1/16"	0,127 mm - 7,6 mm PL
3/16"	10 MHz	Pulse-Echo	X-152-0000	1/16"	0,127 mm - 7,6 mm PL
3/16"	10 MHz	Echo-Echo	X-752-0000	1/8"	0,15 mm - 7,6 mm ST
3/16"	10 MHz	Pulse-Echo	X-752-0000	1/8"	0,25 mm - 12,7 mm ST
3/16"	10 MHz	Echo-Echo	X-752-0000	1/8"	0,127 mm - 10 mm PL
3/16"	10 MHz	Pulse-Echo	X-752-0000	1/8"	0,127 mm - 10 mm PL
3/16"	15 MHz	Echo-Echo	X-152-0000	1/16"	0,15 mm - 2,5 mm PL
3/16"	15 MHz	Pulse-Echo	X-152-0000	1/16"	0,2 mm - 6,35 mm ST
3/16"	15 MHz	Echo-Echo	X-152-0000	1/16"	0,127 mm - 3,8 mm PL
3/16"	15 MHz	Pulse-Echo	X-152-0000	1/16"	0,127 mm - 6,35 mm PL
3/16"	15 MHz	Echo-Echo	X-752-0000	1/8"	0,15 mm - 3,8 mm ST
3/16"	15 MHz	Pulse-Echo	X-752-0000	1/8"	0,15 mm - 10 mm ST
3/16"	15 MHz	Echo-Echo	X-752-0000	1/8"	0,127 mm - 2,5 mm PL
3/16"	15 MHz	Pulse-Echo	X-752-0000	1/8"	0,127 mm - 3,8 mm PL
* Ranges have been established using standard 4340 steel calibration blocks and common plastic samples. Actual measurement ranges may vary depending on material type, acoustic properties and surface condition.

Delay Line Tips for TI-PVX

P/N	Description	Standard / Optional	Image
X-152-0000	1/16” Dia. x .450" L	Standard
X-752-0000	1/8" Dia. x .450" L	Optional

Delay-Line Pencil Probe

The delay-line pencil probe is designed with a compact form factor for precision ultrasonic measurements in restricted spaces. The standard model features a robust body with interchangeable delay-line tips in multiple diameters, ensuring adaptability for different materials and inspection requirements.

Overall probe length is 58.0 mm, with a front section diameter of 8.0 mm and a delay-line tip length of 8.0 mm. Additional detailed dimensions, including tip diameters from 2.0 mm up to 9.75 mm, are illustrated in the diagram above. All sizes are shown in millimetres.

A slim-line version with a reduced tip diameter is also available for measurements in narrow channels and hard-to-access areas.

Products

Item	Product	Price
130578	T-481-4507 Pencil Probe for TI-PVX 10 MHz	€ 872,00
138203	T-581-5507 Pencil Probe for TI-PVX 15 MHz	€ 989,00
126845	T-681-4507 90° Right Angle Microdot Side 10 MHz	€ 872,00

Accessories

Item	Product	Price
126860	X-152-0000 1/16" Delay Line tip for Pencil Probe	€ 67,00
130273	X-752-0000 Delay Line Tip 1/8" Dia. x .450 for Pencil Probe	€ 67,00
137608	PEN-V-BLOCK Pencil probe positioner	€ 149,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
