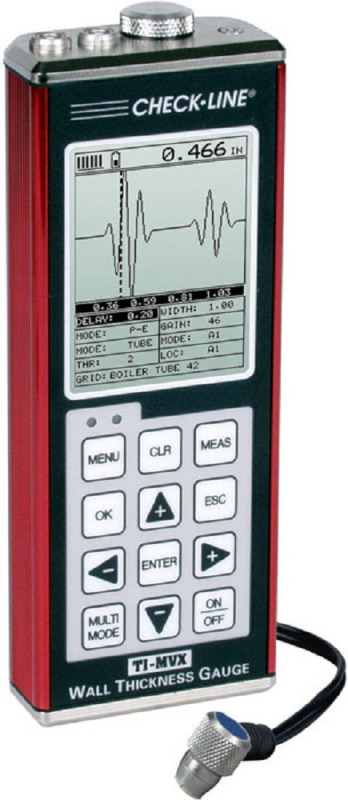

TI-MVX Ultrasonic Thickness Gauge with Enhanced Display and adjustable gain
The CHECKLINE model TI-MVX provides the user with many advanced features like A-Scan, B-Scan as well as a complete alphanumeric system for datalogging which can store thousands of data values and A-scan captures.
The TI-MVX is easy to use and has the highest resolution graphic LCD available on the market. The gauge including accessories is supplied as a complete kit in a carrying case with FREE software, NIST-Traceable Calibration Certificate and transfer cable.
The MVX is equipped with multiple viewing
options to provide users with a complete set
inspection tools: (RF waveform, +/-
waveform, Time based B-Scan, and Large Digits).
Built in hardware AGC gain control for through
paint measurements in multi mode operation.
The MVX has the ability to store 64 custom
user defined setups. All factory setups can
be selected, edited and saved to any setup
Use the visual alarm to set hi and lo limits for
applications requiring specific tolerances.
If the actual thickness value is above or below
the limits, a red light is illuminated.
Includes NIST Calibration Certificate
The A-Scan rectified mode is commonly used
for detecting flaws/pits in pulse-echo mode
and measuring through paint and coatings in
The time-based B-Scan feature of the MVX
displays a cross section of the test material.
It is commonly used to display the profile of
the bottom surface of the test material.
The high speed scan feature speeds up the
inspection process by making 32 measurements
per second. Remove transducer from
the test material, and display the minimum
Use the find feature to locate the detection
point, while automatically adjusting the display
to bring the signal into view.
MVX also comes complete with our Windows®
PC software for transferring data to and
from a PC.
Includes Flaw Inspection - Prove Up Mode, (special probe required)
The TI-MVX is supplied as a complete kit with the gauge, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
TI-SB Steel Test Block with NIST-Traceable Certificate
The A-Scan rectified mode is the preferred display view for flaw and pit detection applications and measuring through paint and coatings in the echo-echo mode.
The B-Scan view displays a time-based cross section of the test material. It is commonly used to display the profile of the blind or underside of a pipe or tank.
The Large Digits view provides a basic digital thickness gauge look and feel. The large display makes it easy for the operator to monitor the thickness readings.
Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches) Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches) Range will vary +/- depending on the thickness of the coating. Range varies by transducer, multiple transducers are required to cover entire range.
