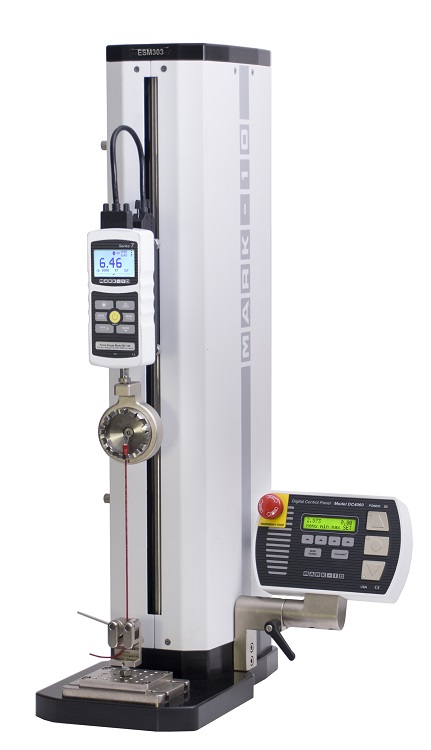

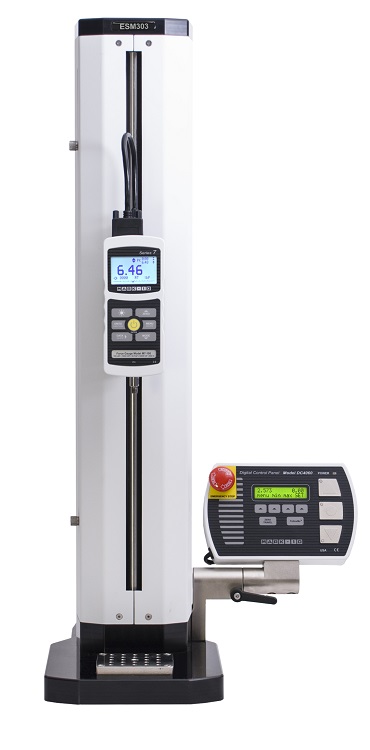

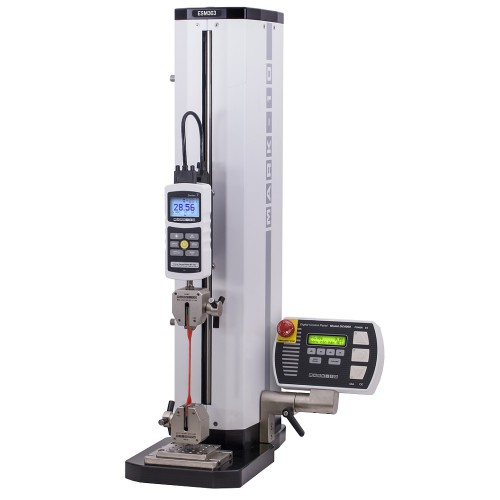

ESM303 Motorized Teststand with PC Control


Made in the USAThe ESM303 is a highly configurable single-column force tester for tension and compression measurement applications up to 1.5 kN, with a rugged design suitable for laboratory and production environments.

The ESM303 is stepper motor-driven, producing smooth and quiet operation with no speed variation under load

The ESM303 is easy to adjust for every application.
When the standard clearance is insufficient for the application, its modular mechanical design allows for single- and double-column extensions. Modularity extends to the controller functions as well.

With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more.

Individual functions, such as travel measurement, cycling, loadholding, etc., may be purchased either upfront or enabled in the field through an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget.

Sample setup and fine positioning are a breeze with available FollowMe™ force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password. Save up to 50 profiles to accommodate a range of test methods.

Force and travel data can be output to a PC for graphing and analysis using MESUR™gauge software. Or, fully control the stand by a PC through a custom-written program with ASCII communication.


Key Features
Simple controller interface Simple controller interface
Rugged aluminum up/down/stop keys are designed for industrial environments. Zero Travel and FollowMeTM keys add convenience. Removable for remote use. See the following page for a full list of available functions.

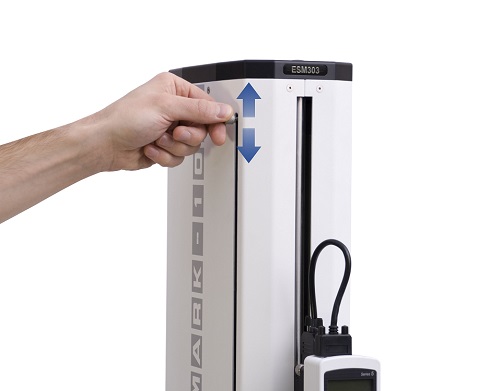

Limit switches Limit switches
Adjustable upper and lower solid state limit switches stop test stand travel with 0.025 mm repeatability.
Adjustable mounting plate with T-slot base Adjustable mounting plate with T-slot base
The mounting plate may be repositioned in the X- and Y-directions, for proper sample alignment. Matrix of threaded holes for fixture mounting.
Modular design Modular design
All electronics are installed onto a single panel, easily accessible and removable for updating and service.

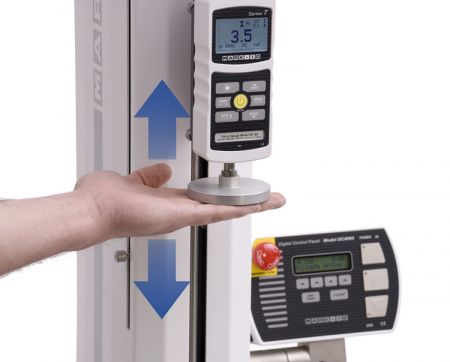

FollowMe FollowMe
Using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead. Responsive enough for quick positioning as well as fine adjustments.
Force gauges Force gauges
Consider a Series-7 or Series-5 gauge for force vs. time or force vs. travel data output, and to take advantage of all available test stand functions.
Grips and eye end adapters Grips and eye end adapters
Wide range of grips for tensile, peel, compression, and specialized applications. Eye end adapters allow for quick grip installation and removal, and prevent rotation.

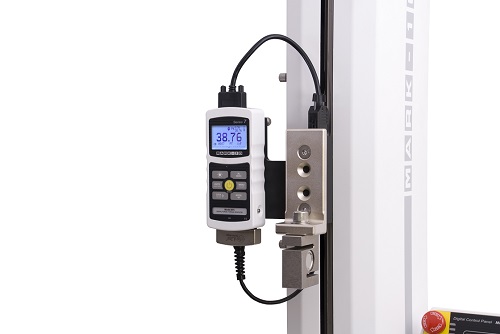

Indicator / load cell adapter Indicator / load cell adapter
Accommodates any Mark-10 indicator and Series R01 or R03 force sensors. Includes mounting hardware.

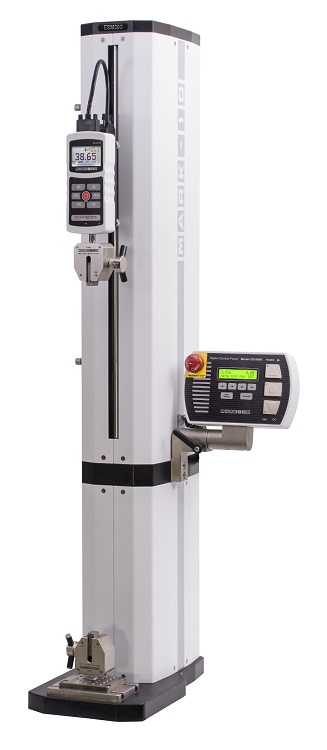

Single column extensions Single column extensions
Increase the vertical clearance for tall samples. Three lengths are available - 150, 300, and 600 mm

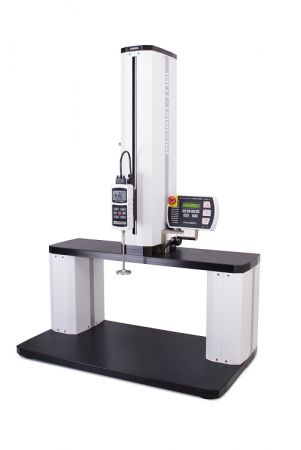

Double column extensions Double column extensions
Accommodate up to a 508 mm wide sample, or ø546 mm round sample.
Three heights are available - 150, 300, and 600 mm. Base contains rows of T-slots for fixture mounting.
MESUR gauge data collection software
Output force vs. time or force vs. distance data from the ESM303’s USB port. MESURgauge graphs, tabulates, calculates statistics, and provides reporting and output tools.

Features
  • Selectable speed setting
  • Adjustable, removal controller with intuitive menu navigation
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
  • Compact footprint, suitable for crowded workbenches
  • Upper and lower travel limit switches
  • Password protection of test parameters
  • USB output of force vs. time or force vs. travel
  • Ergonomic design, with smart, clean cable management
  • Integrated electronics assembly, easily removed and transported
  • Adjustable mounting plate with T-slot base

Specifications
Load capacity:1.5 kN @ up to 24 in/min (610 mm/min)
1 kN @ >24 in/min (610 mm/min)
Maximum travel distance: 457 mm
Maximum clearance:508 mm (extensions available)
Speed range: Standard: 13 - 330 mm/min
Optional: 0.5 - 1,100 mm/min
Speed setting accuracy:±0.2%
Speed variation with load:±0% (stepper motor driven)
Travel accuracy:±0.05 mm per 250 mm
Travel resolution:0.02 mm
Limit switch repeatability:0.03 mm
Power:Universal input 80-240 VAC, 50/60 H
Weight:25,6 kg
Warranty: 3 years

Optional Controller Features
Feature Part No. Description Requirements
FollowMe AF008 Crosshead movement responds to manually pushing or pulling on the force gauge shaft or load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning. Series 7 or 5 gauge or indicator with load cell.
09-1214 interface cable
Travel indication AF009 Travel is indicated on the control unit display, with output via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoder-based designs. Backlash and nonlinearity are virtually eliminated. Field hardware installation required.
If data output to a PC is required, add 09-1214 and 09-1158 cables, and a Series 7 or 5 gauge or indicator with load cell.
Computer control AF010 The ESM303 may be fully controlled by a PC through a custom-written program in any language supporting ASCII communications. Also responds to the legacy Chatillon TCD command set and legacy Nexygen TCD software (not available from Checkline). Series 5 or 7 force gauge
AF009 travel indication
AF011 programmable travel set points
09-1214 interface cable
09-1158 USB output cable
Programmable travel limits AF011 The stand stops at or cycles between programmable upper and lower travel distances. AF009 travel indication option
Overload protection AF012 Protects a force gauge or force sensor against overload. Program the desired percentage of full scale of the gauge. Adjustable analog voltage setting allows the stand to interface with virtually any gauge with analog output. Series 7 or 5 gauge or indicator with load cell
09-1214 interface cable
Auto Return AF013 The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the opposite limit. If reversing at force set point: Series 7 or 5 gauge or indicator with load cell, and 09-1214 interface cable
If reversing at travel limit: AF011 programmable travel limits option
If reversing at break: AF019 break detection option and 09-1214 interface cable
Cycling / dwell time AF014 Same as auto return, but with the ability to program up to 100,000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds. Same as auto return, at the same speed in each direction. Add AF016 for independent up and down speeds.
Independent Up and Down Speeds AF016 Configurable speeds for up and down directions. -
Low Speed Extension AF017 Extends the standard speed range down to 0.5 mm/min. -
High Speed Extension AF018 Extends the standard speed range up to 1,100 mm/min. -
Break Detection¹ AF019 Crosshead stops at a sudden drop in force. Programmable percentage of peak force. Series 7 or 5 gauge or indicator with load cell
09-1214 interface cable
Load Holding¹ AF020 Dynamically adjusts the crosshead position to maintain a programmed load for an indefinite or specified period of time. Series 7 or 5 gauge or indicator with load cell
If a specified time is required, add AF014 cycling / dwell time option
09-1214 interface cable
Preload / Sample Touch AF021 Stops the crosshead and/or zeroes the travel display at an initial preload - useful in tensile, compression, spring, elongation, and other applications. Preload is programmable as a percentage of force gauge/load cell full scale. Three modes: (1) stop, (2) stop and zero, and (3) zero without stopping. AF009 travel indication
Series 7 or 5 gauge or indicator with load cell
09-1214 interface cable
Load Holding¹ AF022 Save and recall sets of test parameters, such as speeds, travel limits, preloads, etc. Up to 50 profiles may be stored. -
Complete Options Package AFCOMP Includes all functions listed above, plus 09-1214 interface cable and 09-1158 USB cable. Requires a Series 7 or 5 gauge or indicator with load cell.

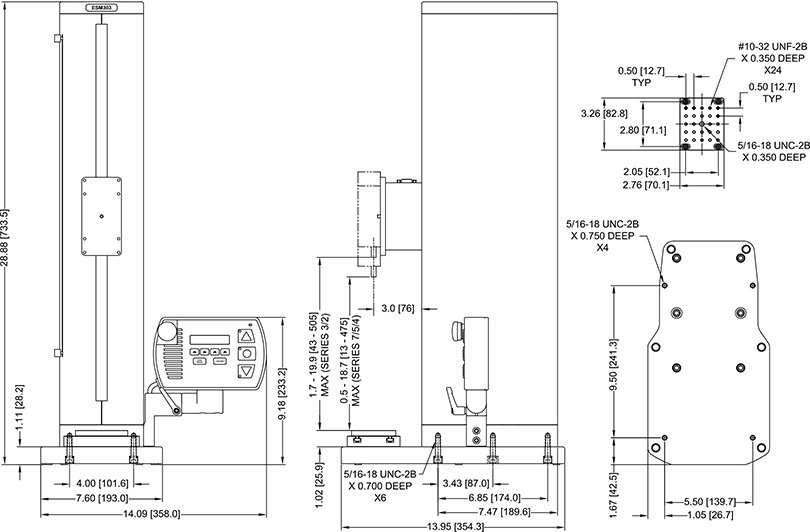

Dimensions
Dimensions ESM303


Complete Kit

The ESM303 includes:

  • 5” Extension rod
  • Small hook
  • Medium hook
  • #10-32 Coupler
  • 2” Dia. compression plate
  • Gauge/indicator mounting screws
  • Allen wrench set
  • Resource CD


Related Products

Series-5 Advanced Digital Force Gauge


  • High-speed 7,000 Hz peak sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-5 Advanced Digital Force Gauge

Series-7 Professional Digital Force Gauge


  • High-speed sampling rate: 14,000 Hz
  • Individual data point memory for up to 5,000 data points, downloadable to PC
  • Continuous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

More details

Series-7 Professional Digital Force Gauge

Series 5I Series 5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test technology
  • High-speed 7,000 Hz sampling rate

More details

Series 5I Series 5I Advanced Digital Force/Torque Indicator

Series 7I Advanced Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & TestTM technology (sensors are sold separately)
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
  • High-speed 14,000 Hz sampling rate

More details

Series 7I Advanced Force/Torque Indicator

R01 Series S-Beam Force Sensor


  • Unique Plug & Test connector holds all calibration and configuration data
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration included

More details

R01 Series S-Beam Force Sensor

R03 Series Smart sensor for tension and compression force


  • Compatible with the Series 7i, 5i and 3i digital indicators
  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Smart sensor with rugged aluminum housing

More details

R03 Series Smart sensor for tension and compression force

MESURgauge Mesurgauge Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

MESURgauge Mesurgauge Load & Travel Analysis Software

Accessories

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 1074

Downloads

Buy Now
Product

Product name
Price
Quantity
ESM303E - Motorized Test Stand
€ 2.964,00

Accessories

Product name
Price
Quantity
ESM303-001-1 - Single column extension for ESM303(H), 6” / 150 mm
€ 590,00
ESM303-001-2 - Single column extension for ESM303(H), 12” / 300 mm
€ 692,00
ESM303-001-3 - Single column extension for ESM303(H), 24” / 600 mm
€ 897,00
ESM303-002-1 - Double column extension for ESM303, 6” / 150 mm
€ 2.253,00
ESM303-002-2 - Double column extension for ESM303, 12” / 300 mm
€ 2.406,00
ESM303-002-3 - Double column extension for ESM303, 24” / 600 mm
€ 2.662,00
09-1214 - Multi-function cable, Series 7/5/4 to ESM303 test stand
€ 129,00
09-1158 - USB cable, type B to A
€ 32,00
AC1062 - Mounting kit, indicator / load cell to ESM303
€ 232,00
AC1064 - Load cell mounting hardware kit for ESM303
€ 53,00
AF008 - FollowMe™
€ 245,00
AF009 - Travel measurement
€ 925,00
AF010 - PC control
€ 925,00
AF011 - Travel limits
€ 245,00
AF012 - Overload protection
€ 245,00
AF013 - Auto return
€ 172,00
AF014 - Cycling
€ 245,00
AF016 - Independent up/down Speeds
€ 147,00
AF017 - Low speed range extension
€ 172,00
AF018 - High speed range extension
€ 172,00
AF019 - Break detection
€ 181,00
AF020 - Load holding
€ 390,00
AF021 - Preload / Sample Touch
€ 245,00
AF022 - Profiles
€ 488,00
AFCOMP - Complete options package for ESM303
€ 3.549,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
