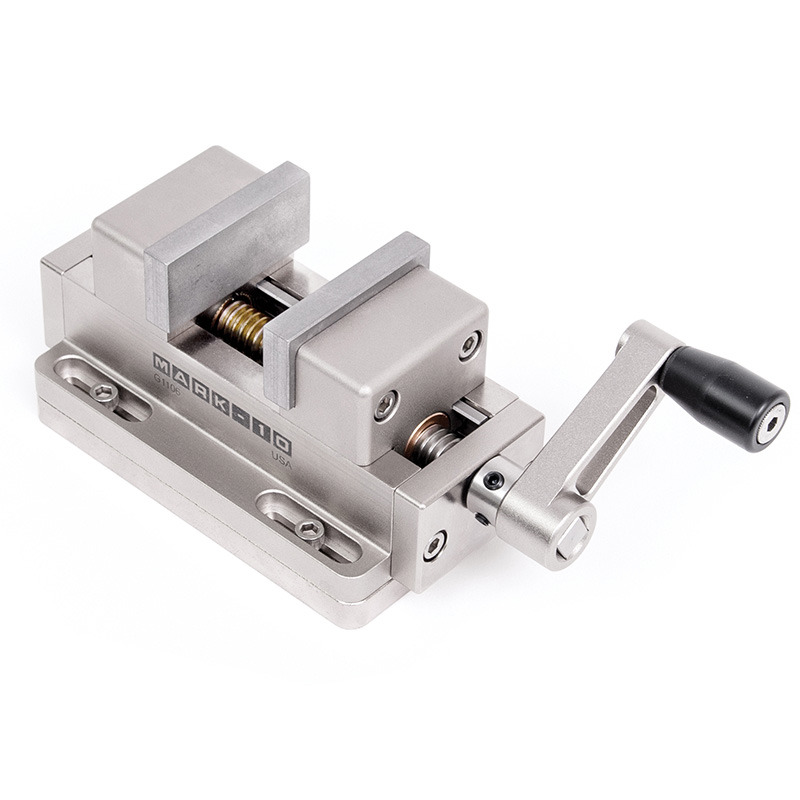

    G1106 Self Centering Vice Grip

    The G1106 vise grip is a versatile tool suitable for a wide array of tension and compression testing applications. Its robust design allows for testing loads of up to 2,5 kN.
    The vise features a wide opening range, 50,8 mm, to accommodate various sample sizes.
    Additionally, the self-centering jaws are smooth and can be modified in the field to enhance their gripping capabilities for pull testing purposes.

    To adjust the jaws, simply use the lever to move them closer or further apart. If needed, the jaws can be removed for customization or replacement by removing the two screws securing them to the slider.

    The G1106 vise grip is a general-purpose tool suitable for a broad range of tension and compression testing applications. It comes complete with mounting hardware and adapters for easy installation on the following test stands:

    • F105, F305, F505, F755 and F1505 test frames
    • ESM303, ESM1500/750 test stand (with AC1055 plate)
    • ES30, TSC1000, TSF, test stand
    • ES10/ES20 test stand (with AC1060 plate)

    This vise grip replaces Model G1070.
    € 1.080,00
    Order now
    • Self-centering vise grip
    • Smooth removable jaws
    • Ergonomic lever for smooth operation
    • Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505, F755, and F1505 test frames. ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands. Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
    • Warranty 3 years
    Complete Kit

    The G1106 vise comes with the following accessories:

    • Vise assembly
    • Test stand adapter plate
    • 8 pcs #10-32 mounting screws
    G1106 Self Centering Vice Grip
    Dimensions-G1106 Self Centering Vice Grip

    All sizes are noted in Inches with metric sizes in [mm] behind.

    Maximum Tension Force2,5 kN
    Maximum Sample Thickness50,8 mm
    MaterialAluminum
    Weight1,4 kg
    Shipping Weight1,8 kg

    Data sheet all grips
    G1106 Set-up Instructions

    Related Products

    Browse Related Products

    G1074 General Purpose Vise Grip

    G1074 General Purpose Vise Grip

    G1100 Large Parallel Jaw Grip

    G1100 Large Parallel Jaw Grip

    G1101 Medium Parallel Jaw Grip

    G1101 Medium Parallel Jaw Grip

    G1013 Parallel Jaw Grip

    G1013 Parallel Jaw Grip

    Order Now

    Products
    Item Product Price  Quantity Action
    136912G1106 Vise grip, self-centering € 1.080,00
    Accessories
    Item Product Price  Quantity Action
    136882AC1060 Base plate with matrix of threaded holes € 86,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
