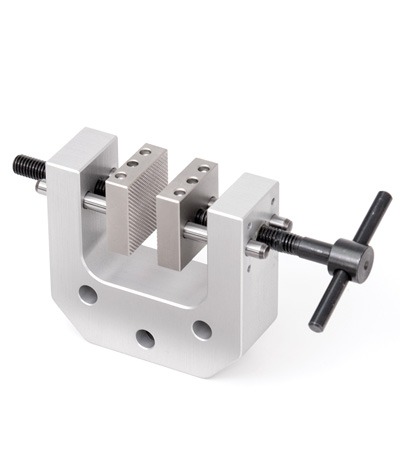

G1101 Medium Parallel Jaw Grip


Made in the USAThe Versatile G1101 Parallel Jaw Grip is the lighter version of the G1100 parallel grip.
It has a maximum capacity of 1000 N and a maximum jaw opening of 32.3 mm.

The G1101 grip has a standard set of jaws that are 30 mm wide, there are extended jaws available in 50, 80 and 100 mm
All jaws feature pyramidal jaw faces for a strong grip on a variety of test samples.

These grips are equipped with integrated eye end mounting, This makes it easy to connect to force gauges, force sensors, and test stands.
Please note that an eye end adapter is required for mounting.


Features
  • Individually adjustable, serrated jaws.
  • Available extended length jaws.
  • Eye end mounting
  • Max. sample thickness: 32.3 mm

Dimensions
G1101 Medium Parallel Jaw Grip
Dimensions-G1101 Medium Parallel Jaw Grip


All sizes are noted in inch with metric sizes in [mm] behind.


Specifications
Capacity:1 kN
Max. sample thickness: 32.3 mm
Housing material:Aluminum
Material clamping jaws:Hardened steel, 58 RC
Weight:0.5 kg
Verzend gewicht0,9 kg

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

G1100 Parallel clamping handle 9 kN


  • Individually adjustable, serrated jaws.
  • Available extended length jaws.
  • Eye end mounting

More details

G1100 Parallel clamping handle 9 kN

G1013 Parallel Jaw Grip


  • Small parallel grip with individually adjustable jaws
  • Capacity 1000 N
  • Rugged and compact with serrated jaws

More details

G1013 Parallel Jaw Grip

Downloads

Buy Now
Product

Product
Price
Quantity
136908
G1101 Parallel jaw grip, medium, eye end
€ 378,00

Accessories

Product
Price
Quantity
136849
AC1071-1 Jaws for G1101, 1.18” length, set of 2 (included with G1101)
€ 136,00
136850
AC1071-2 Jaws for G1101, 1.97” length, set of 2
€ 204,00
136851
AC1071-3 Jaws for G1101, 3.15” length, set of 2
€ 276,00
136852
AC1071-4 Jaws for G1101, 3.94” length, set of 2
€ 320,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
