G1071

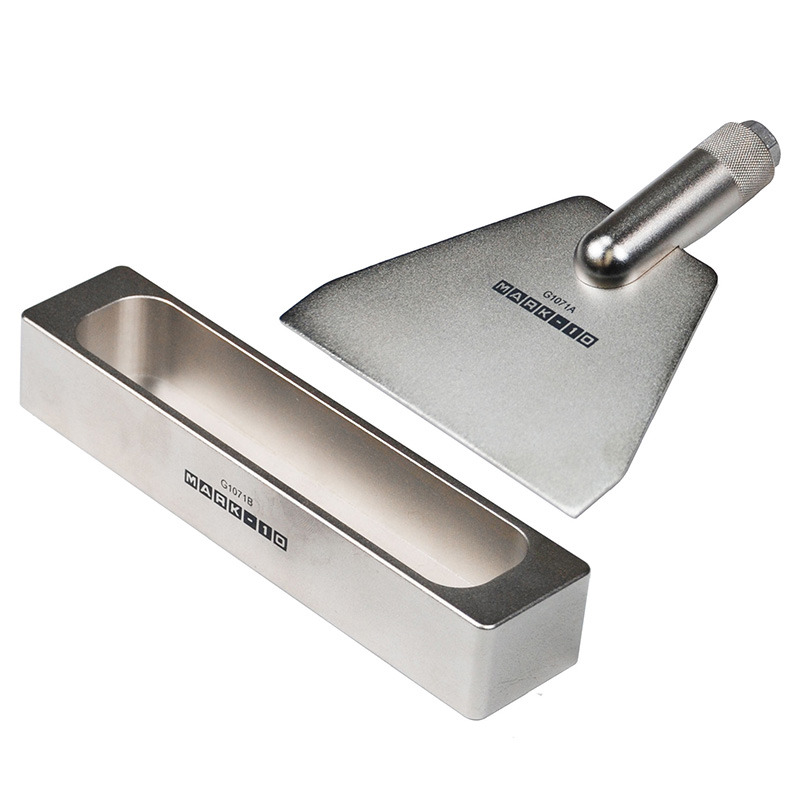

G1071 score bending fixture consists of an upper and lower die. Dimensions conform to TAPPI standard T829.

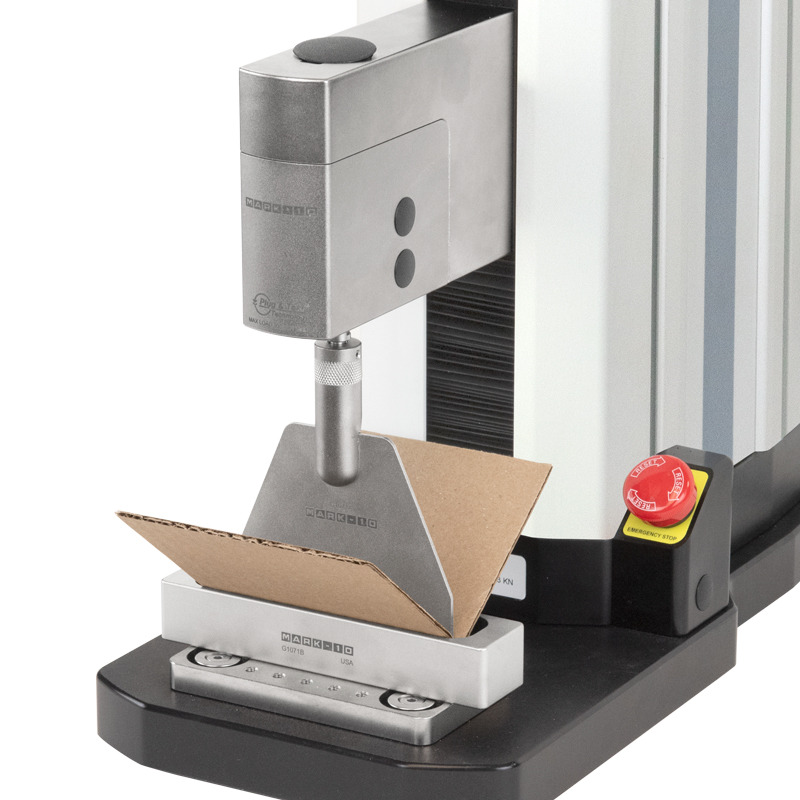

G1071 Score Bend Fixture mounted in a F305-EM Test Frame configured for a score bend test.

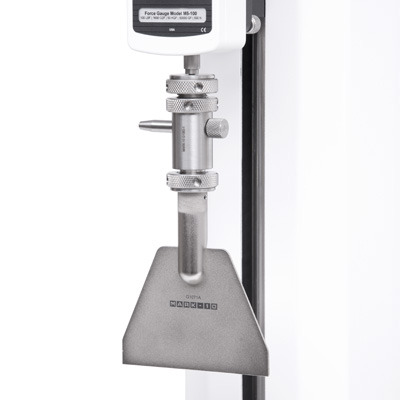

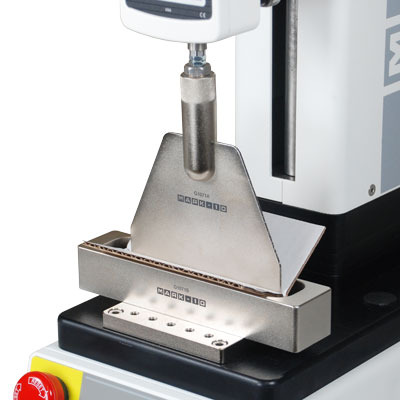

G1071 is shown mounted to a motorized test stand and force gauge.

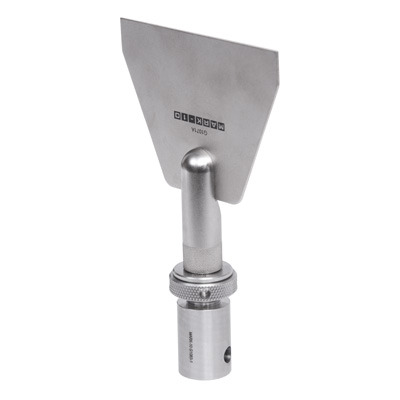

G1071 in combination with quick-change eye end adapters allow for simple grip removal / installation, and also prevent rotation.

Eye end adapters are compatible with a variation of test stands, load cells, and force gauges

G1071 Score Bend Fixture

The G1071 Score Bending Fixture is a 2 piece fixture that can be used to measure the score quality of corrugated containers according to TAPPI T829.
This fixture is used to perform a score quality test that evaluates the relative quality of scores in paperboard, corrugated containers, and plastics.

Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

The upper die includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
The lower die includes mounting hardware for the following test stands: ESM303, ESM1500/750 (w/AC1055 plate), ES30, TSC1000, TSF, ES10/ES20 (w/AC1060 plate).

Recommended for use with a motorized test stand.

Note: These fixtures are designed for compatibility with a Mark-10 force gauge and/or test stand. The resulting value displayed on the force gauge will be a force value. The abstract score ratio as called for in T829 is not automatically calculated.

€ 486,00

Order now

Set of upper and lower dies produce 90° bend in corrugated board and plastics
Meets the requirements of TAPPI T829
Fixtures are easily removable
Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505, F755, and F1505 test frames. ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands. Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.

G1071 Score Bend Fixture

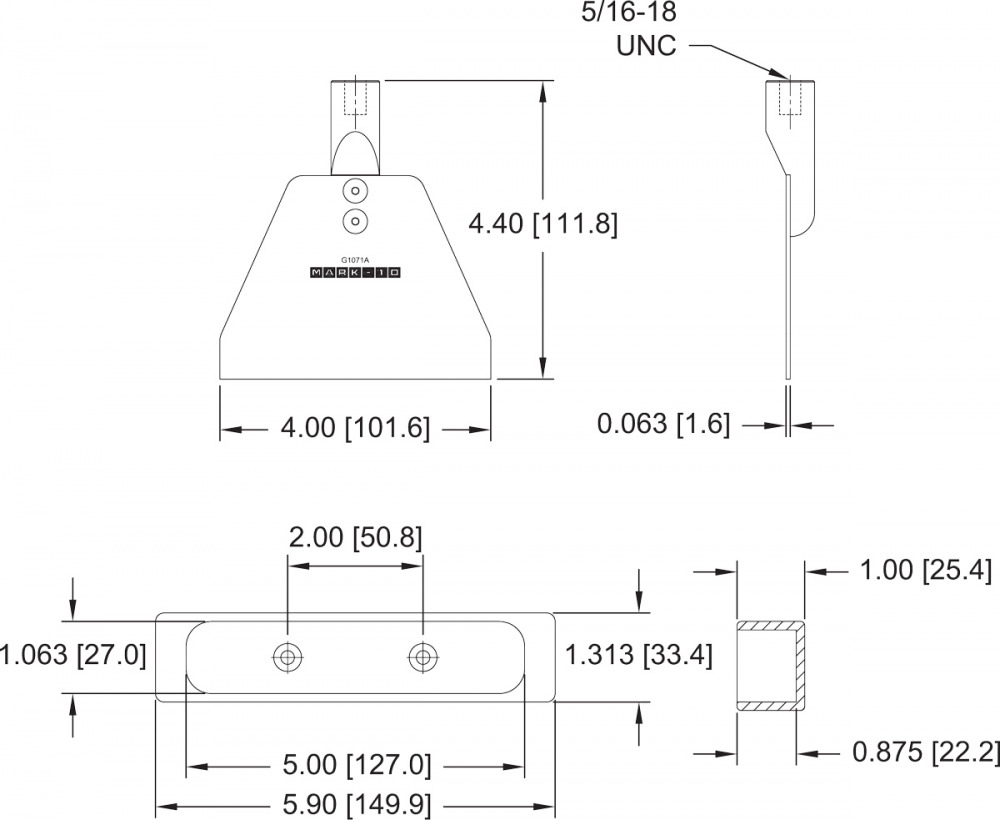

All sizes are in inch with metric sizes in [mm] behind.

Capacity	maximum 250 N
Weight	Upper die: 100 g Lower die: 100 g

Data Sheet for all grips

Solid Models G1071

Products

Item	Product	Price	Quantity	Action
136899	G1071 Score bend fixture set	€ 486,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
