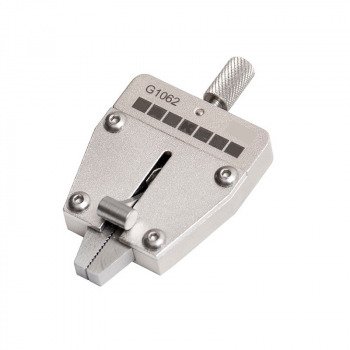

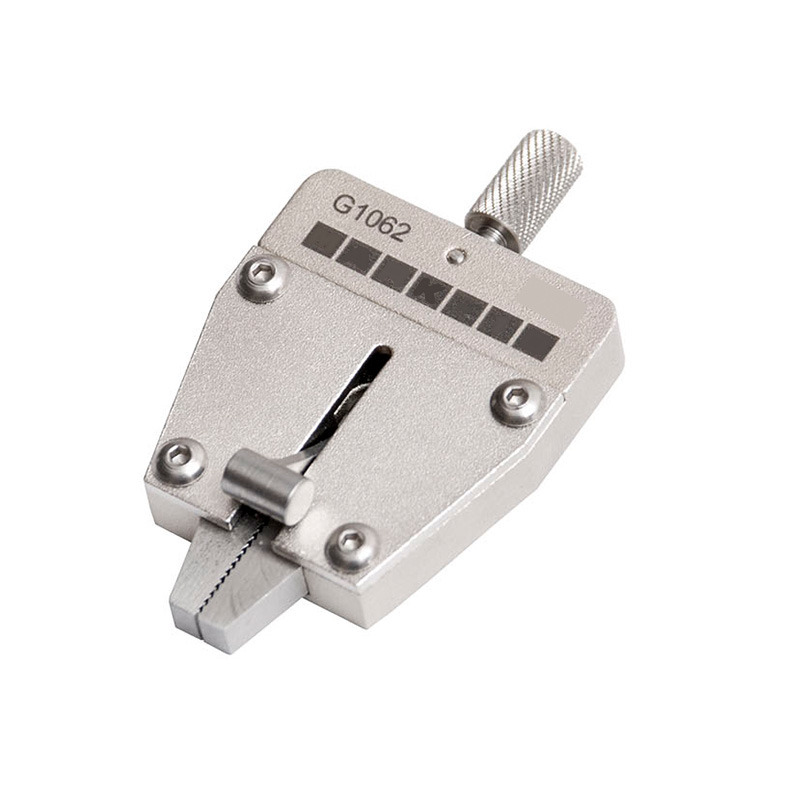

G1062 Miniature Wedge Grip


Made in the USAThe G1062 miniature wedge grip is a compact self-tightening grip for low force tensile testing.
This low force grip is equipped with spring loaded jaws that are lever operated, and it has a capacity of 500 N.
The #10-32F connection supports a 2 way swiveling motion.

The lever operation makes open and closing the jaws easy and efficient.

The G1062 comes including a #10-32 M/M stud with jam nuts.


Features
  • Serrated steel jaws
  • Spring-loaded lever
  • Thru slot for samples of unlimited width
  • Swiveling mounting attachment

Dimensions
G1062 Miniature Wedge Grip
Dimensions-G1062 Miniature Wedge Grip


IN [MM]

A B C D E F G
1.37
[34.8]
2.49
[63.1]
0.19
[4.8]
0.32
[8.1]
#10-32 UNF 0 - 0.09
[0 - 2.3]
0.15
[3.9]

Specifications
Capacity:500 N
Jaw material:303 SS
Weight:400 g
Shipping weight500 g

Related Products

G1061 Wedge Grip


  • 4 versions available
  • Thru slot for samples of unlimited width

More details

G1061 Wedge Grip

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

Downloads

Buy Now
Product

Product
Price
Quantity
133639
G1062 Miniature wedge grip, #10-32F
€ 333,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
