G1029-G1036 Flat Head
Click on an image for a larger image

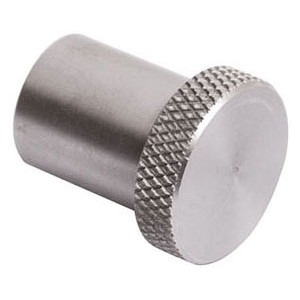

G1029-G1036, Flat heads

Call us for more information
+31 (0)53 8200245
Request Information / Quotation
Show similar products
View pricing

G1029 - G1036 Flat Heads


Made in the USAThe G1029 and G1036 Flat head attachments are ideal for compression testing of buttons, membrane switches, small springs etc.
These attachments are also part of the basic kit for most Series # Mark-10 force gauges.

These Flat head attachments are available in 2 sizes with a capacity of 1000 and 2500 N.




Features
  • General compression testing
  • Capacity 1000 N / 2500 N
  • Available in 2 sizes

Dimensions
G1029 - G1036 Flat Heads
Dimensions-G1029 - G1036 Flat Heads


ModelØA (mm)B (mm)C
G102912,712,7#10-32F
G103619,122,15/16-18F

Specifications
ModelCapacity (N)Weight (g)
G102910004,5
G1036250027,2

Related Products

G1009 Compression Plates


  • Available in two sizes, 51 mm and 76,8 mm,
  • Available with and without vented channels
  • G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts

More details

G1009 Compression Plates

G1087 Compression Plates, High Capacity


  • Concentric grooves aid in sample positioning
  • Select from two sizes
  • Integrated eye end mounting

More details

G1087 Compression Plates, High Capacity

G1025-G1032 Chisels


  • Available in 2 sizes
  • For compression testing
  • Capacity 1000 N / 2500 N

More details

G1025-G1032 Chisels

G1026-G1033 Cones


  • Available in 2 sizes
  • Capacity 1000 and 2500 N
  • Suited for puncture and compression testing

More details

G1026-G1033 Cones

G1027-G1034 V-Grooves


  • Available in 2 sizes
  • 200 lb / 500 lb capacity,
  • Compression testing

More details

G1027-G1034 V-Grooves

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Downloads
Data Sheet for all Grips and Attachments

Buy Now
Products

Product
Price
Quantity
G1029 Flat head, #10-32F
€ 20,00
G1036 Flat head, 5/16-18F
€ 25,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
