G1024-G1031 Extension Rods

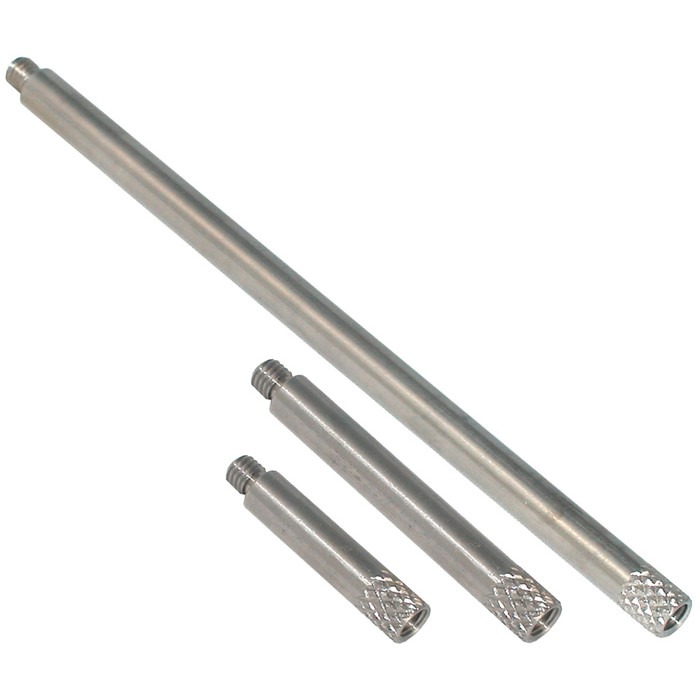

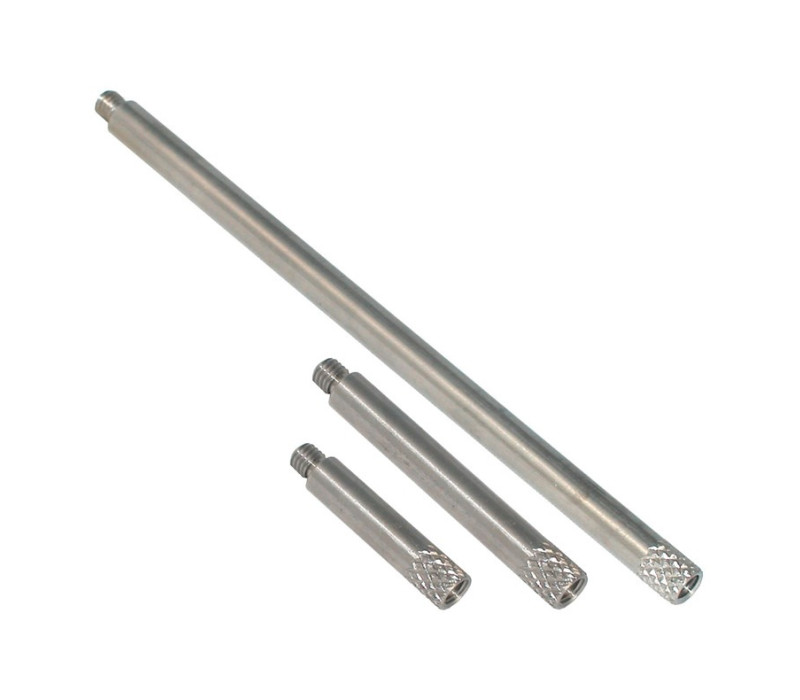

The G1024 and G1031 extension rods are used in situations where an attachment or grip cannot be used directly connected to a load cell, or mounting feature.
Both G1024 and G1031 come in three length sizes, 25,4 – 50,8 – 127 mm.
G1024 comes in a diameter of 6,4 mm with a #10-32F/M thread, with a capacity of 1000 N.
G1031 comes in a diameter of 12,7 mm and a 5/16-18F/M thread, with a capacity of 2500 N.
These extension rods are suitable for tension and compression testing however it is not recommended for compression applications as misalignment could result in buckling and damage to the force sensor.
Features
- Suitable for tension and compression testing (not reconmended for compression testing see general)
- Capacity 1000/2500 N
- Male and Female thread
- Available in 2 thicknes and 3 length versions
Dimensions
G1024-G1031 Extension rod
| Model |
Capacity N (lb) |
Weight kg (lb) |
A mm(in) |
ØB mm(in) |
C |
D |
|---|---|---|---|---|---|---|
| G1024 | 1000 (200) |
0.023 (0.05) |
127.0 (5.0") |
6.4 (0.25") |
#10-32F | #10-32M |
| G1024-1 | 0.009 (0.02) |
50.8 (2.0") |
||||
| G1024-2 | 0.005 (0.01) |
25.4 (1.0") |
||||
| G1031 | 2500 (500) |
0.113 (0.25) |
127.0 (5.0") |
12.7 (0.5") |
5/16-18F | 5/16-18M |
| G1031-1 | 0.045 (0.10) |
50.8 (2.0") |
||||
| G1031-2 | 0.023 (0.05) |
25.4 (1.0") |
Related Products

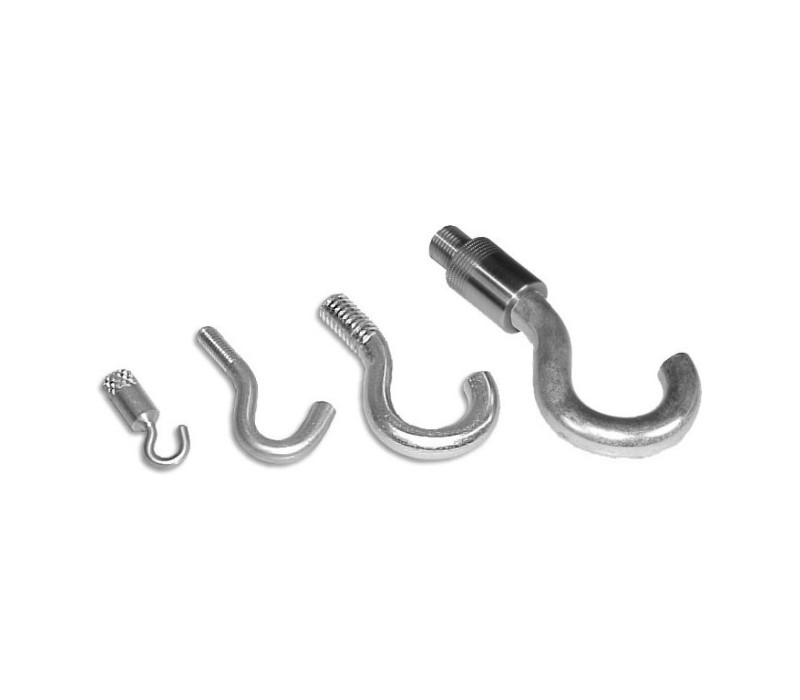

G1028, G1038, G1035 and G1042 Hooks
- Tensile testing
- Capacities available from 100 N up to 4500 N
- Select from four sizes, snap hook is also available
More details

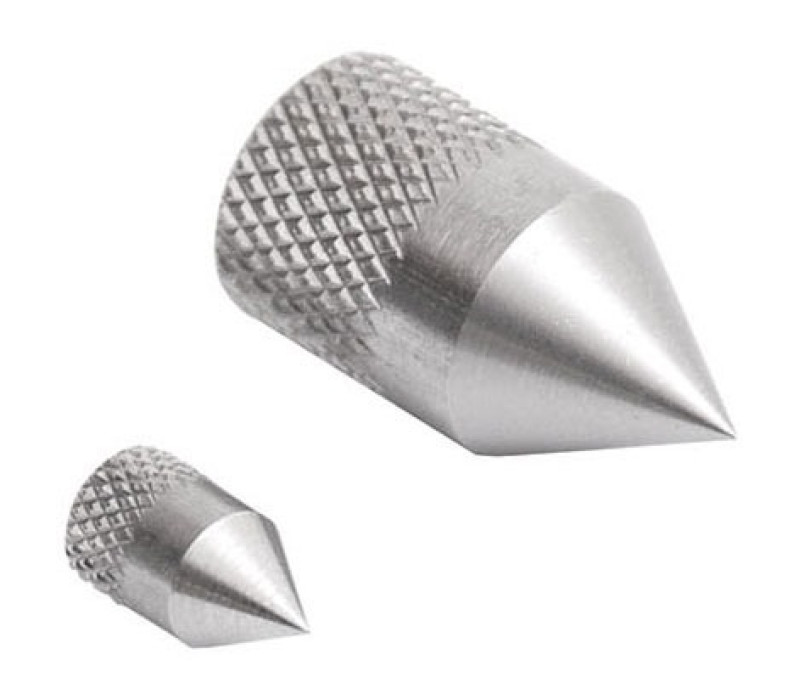

G1026-G1033 Cones
- Available in 2 sizes
- Capacity 1000 and 2500 N
- Suited for puncture and compression testing
More details

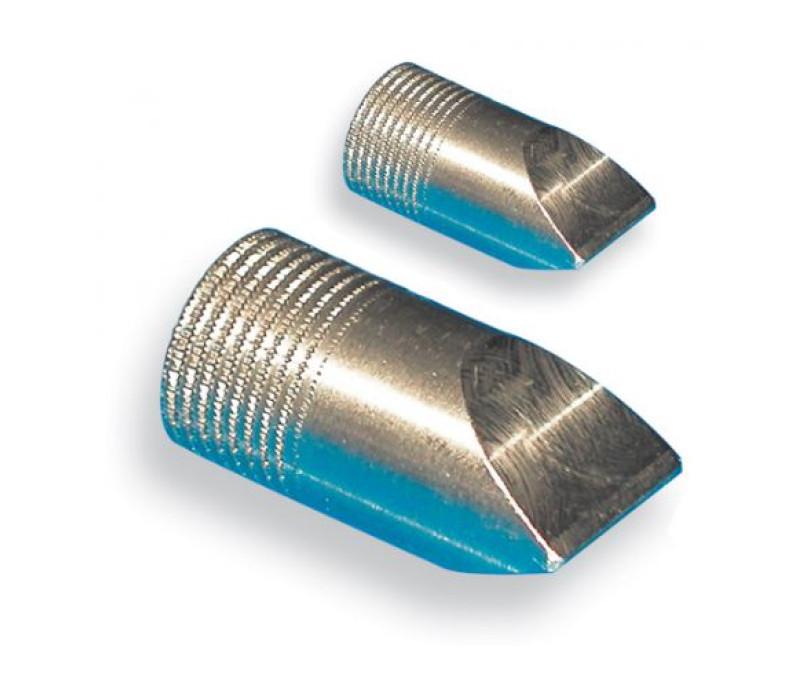

G1025-G1032 Chisels
- Available in 2 sizes
- For compression testing
- Capacity 1000 N / 2500 N
More details

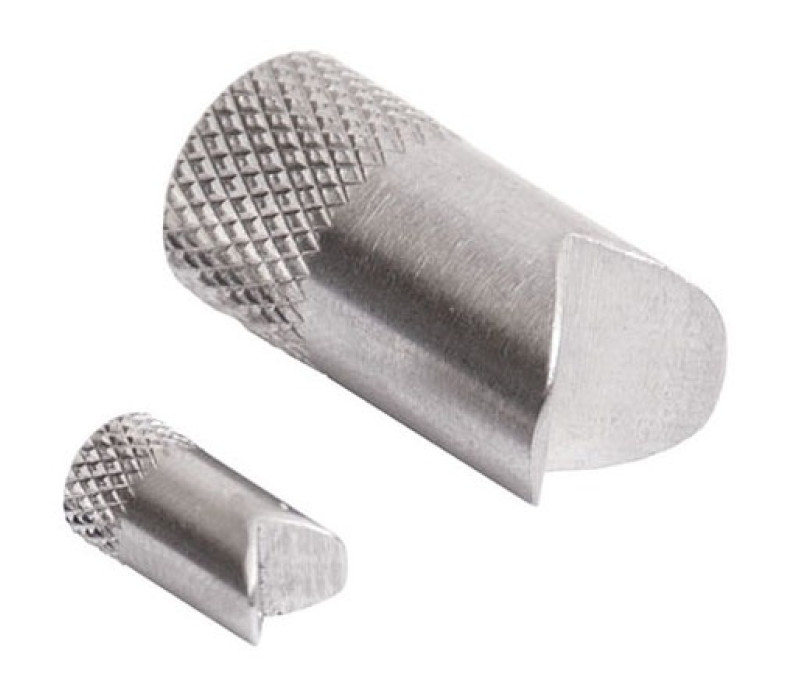

G1027 - G1034 V-Groove Attachments
- Available in 2 sizes
- 200 lb / 500 lb capacity,
- Compression testing
More details

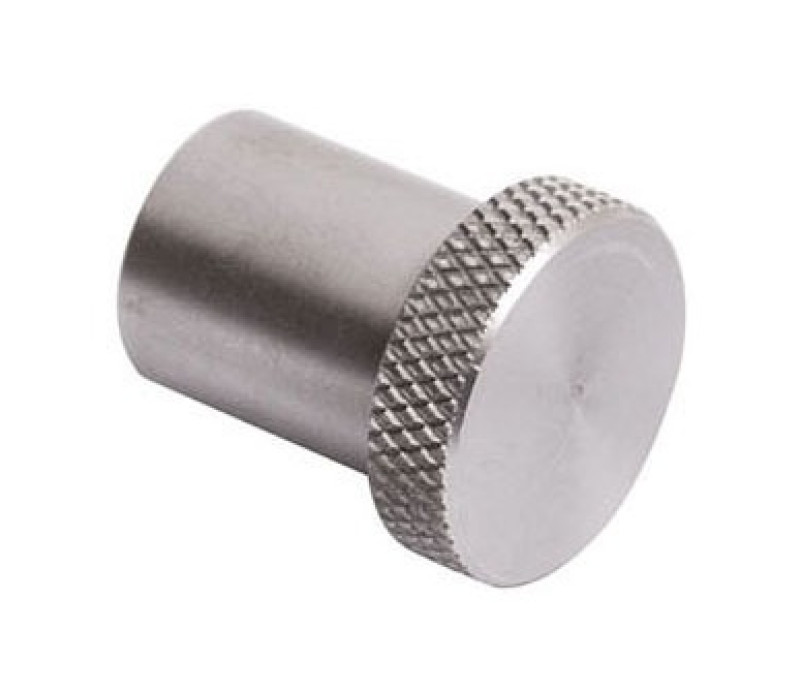

G1029 - G1036 Flat Heads
- General compression testing
- Capacity 1000 N / 2500 N
- Available in 2 sizes
More details
