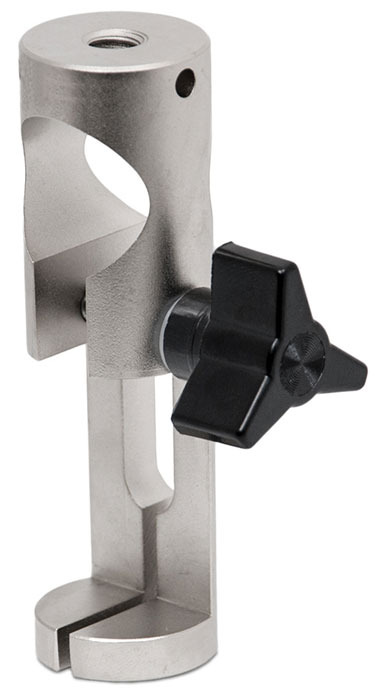

G1001 Wire Terminal Grips


Made in the USAThe grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. There are three models for different wire diameters available.

These grips generally used with the G1002 dual roller grip, and choice of force gauge test stands to generate a complete terminal and crimp testing system.


Dimensions
Model

Capacity
(N)
Sample Size
(mm)

Weight
(g)
ØA
   (mm)
       B
    (mm)
     C
    (mm)
      D
   (mm)
G1001 1000 0 - 3.1 (0 - AWG 8) 130 25.4 86.4 0 - 3.1 36.8
G1001-1 1000 3.1 - 6.3 (AWG 2 - AWG 8) 130 25.4 86.4 3.1 - 6.3 36.8
G1001-2 1000 6.3 - 9.5  130 25.4 86.4 6.3 - 9.5 36.8



Features
  • Capacity: 1000 N (200 lb)
  • Thread: 5/16-18 UNC (Includes 5/16-18M to #10-32F adapter and #10-32M/M stud with jam nuts)
  • Sample size: 0-9.5 mm
  • This grip includes 5/16-18M to #10-32F adapter and #10-32M/M stud with jam nuts

Specifications
Thread:5/16-18 UNC
Capacity:1000 N (200 lb)
Size:87,12 x 25,4 mm (L x D) (3.43"L x 1"D)
Weight:0.13 kg (0.29 lb)
Country of origin:USA

Related Products

G1002 Dual Roller Cam Grip


  • Capacity: 1000 N (200 lb)
  • Thread: #10-32 UNF
  • Sample size: 0-8.6 mm

More details

G1002 Dual Roller Cam Grip

G1076 Wire Terminal Grip


  • Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
  • Rotating turret with magnetic detents snaps to the desired slot width
  • Available blank insert for unique sample dimensions

More details

G1076 Wire Terminal Grip

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Downloads

Buy Now
Products

Product
Price
Quantity
G1001 Wire terminal grip, 0-3.18 mm, 5/16-18F
€ 299,00
G1001-1 Wire terminal grip, 3.18-6.35 mm, 5/16-18F
€ 299,00
G1001-2 Wire terminal grip, 6.35-9.53 mm, 5/16-18F
€ 299,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
