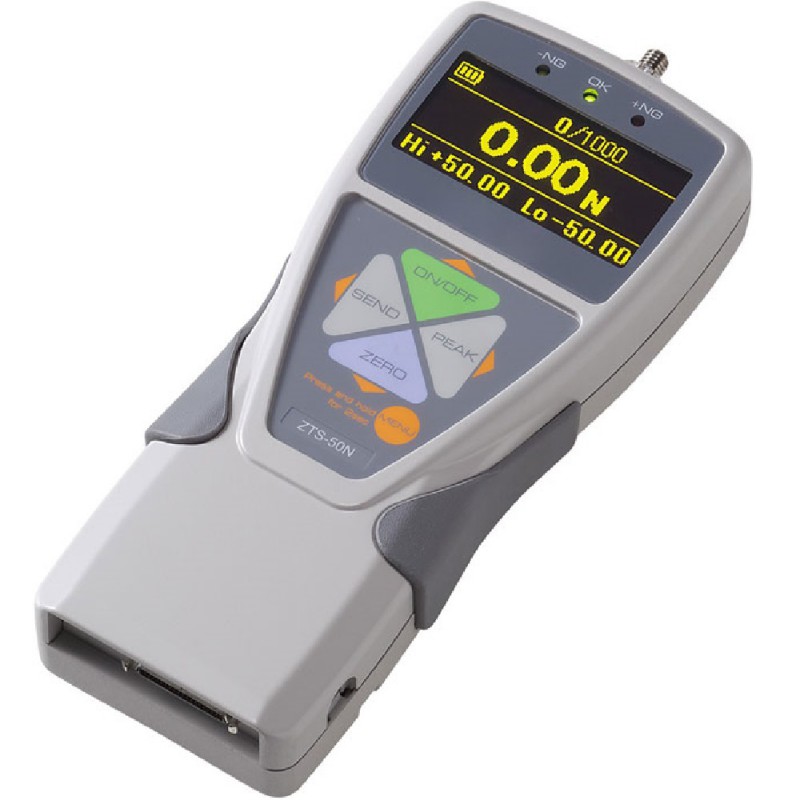

ZT Digital Force Gauge with Luminescent EL Display


The ZT-Series Force Gauge is equipped with an electro luminescent display, which is highly visible in dark locations. It is a very user friendly meter with his easy-to-use menus. It has multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japanese.
The ZT digital force gauge can be used for the following applications:

  • 90 degree peel test
  • Film sticking test
  • Crimp test
  • Bending test


The included data logger software ZT-Logger can transfer data to PC by one click. It includes

  • Displayed value at when you press SEND button
  • Continuous data (10 data / sec). (You can make a graph with Excel later)
  • Data saved in internal memory


The ZT-Series Force Gauge is available in 2 versions:
Series ZTS (Standard) & Series ZTA (Advanced)

The ZTA (advanced) has more useful functions:

  • Feature 1: Displacement I/O becomes possible, this means that you can input/output displacement as well as force when you combine with a test stand having a linear scale by a dedicated cable or DMK scale.
  • Feature 2: Continuous data (100data / sec) can be saved in USB flash drive, this means that You can save 100 data / sec at real time in USB flash drive in CSV format. You can also transfer internal memory data to USB flash drive.
    Even in the case when you cannot connect PC during measurement, you can save data in USB flash drive, and later transfer data to PC via the USB drive. On PC you can draws the data into a graph with Excel.
  • Feature 3: Maximum/minimum value among internal memory data can be indicated.
    - Average value among internal memory data can be indicated.
    - You can set a certain load value (A), and it can capture 2 peak values right before the certain load value dropped.


You can use it by hand-held for basic compression/tension tests, but we recommend that you combine the force gauge with a test stand.



Features
  • Luminescent display is highly visible in dark locations
  • Ergonomic design with non-slip grips, heavy duty metal construction
  • Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
  • Color-coded LED indicators (green, orange, red) and output signal for Go/No Go testing
  • Capacity up to 5000 N/Kg (push/pull)
  • Overload capacity 200% F.S.
  • 1,000 data memory for recall or download
  • External switch display hold and clear
  • Internal Ni-MH batteries or AC adapter
  • Real time and peak mode (selectable)
  • kgf, lbf, and N units are selectable
  • Overload alarm and output signal
  • Easy-to-use menus: make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.
  • Processes and transmits 2,000 data per second

Complete Kit
The ZT digital force gauge is delivered in a complete set, including
  • Full set of attachments
  • ZT Logger data acquisition software
  • USB cable
  • AC adapter/charger
  • Calibration certificate traceable to NIST
  • Carrying case
The OH-1 handle is included with the ZTS/ZTA 550 & 1100 models.

Specifications
Accuracy
± 0.2% F.S., ± 1 LSD
Selectable Units
Newtons, kgf (gf) or lbf (ozf)
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature
0 to 40 °C (32 to 100 °F)
Display
4-digit Organic EL
Display update
10 / sec
Sampling rate
2000 data / sec at maximum
Weight
From 2N to 1000N model: Approx.490g
2500N, 5000N: Approx.1100g
Warranty
1 year

Dimensions
Dimensions Digital Force Gauges ZT


ZT-Series Feature Comparison Chart
Electroluminescent display (ELD) ZT-Series ZT-Series
Functions ZTS ZTA
Peak hold
OK/NG judgment
Reverse display
Sensitivity 4 steps 4 steps
Multi display
Internal memory 1000 data 1000 data
+/- Force
Auto zero timer
+NG alarm
Auto shut off
Calendar
1st/2nd peak drop -
Displacement detection at force peak -
Displacement Reset -
Output ZTS ZTA
Serial (RS232C)
Mitutoyo digimatic [*4]
Analog +/- 2V F.S. approx. +/- 2V F.S. approx.
USB
High/low set points
Overload warning
High/low output -
Memory in USB flash drive
[USB flash drive is not included]
-
Displacement -

Tension Ranges
ModelRanges Display Resolution Thread Included attachment
ZTS/ZTA-2 2 N
200 gf
7 ozf
2.000 N
200.0 gf
7.00 ozf
0.001 N
0.1 gf
0.01 ozf
M6 A1 to A8
ZTS/ZTA-5 5 N
500 gf
18 ozf
5.000 N
500.0 gf
18.00 ozf
0.001 N
0.1 gf
0.01 ozf
M6 A1 to A8
ZTS/ZTA-20 20 N
2 kgf
4.4 lbf
20.00 N
2.000 kgf
4.400 lbf
0.01 N
0.001 kgf
0.001 lbf
M6 A1 to A8
ZTS/ZTA-50 50 N
5 kgf
11 lbf
50.00 N
5.000 kgf
11.00 lbf
0.01 N
0.001 kgf
0.01 lbf
M6 A1 to A8
ZTS/ZTA-100 100 N
10 kgf
22 lbf
100.0 N
10.00 kgf
22.00 lbf
0.01 N
0.01 kgf
0.01 lbf
M6 A1 to A8
ZTS/ZTA-200 200 N
20 kgf
44 lbf
200.0 N
20.00 kgf
44.00 lbf
0.01 N
0.01 kgf
0.01 lbf
M6 S1 to S8
ZTS/ZTA-500 500 N
50 kgf
110 lbf
500.0 N
50.00 kgf
110.0 lbf
0.1 N
0.01 kgf
0.01 lbf
M6 S1 to S8
ZTS/ZTA-1000 1000 N
100 kgf
220 lbf
1000 N
100.0 kgf
220.0 lbf
1 N
0.1 kgf
0.1 lbf
M6 RS1, S2 to S8
ZTS/ZTA-2500 2500 N
250 kgf
550 lbf
2500 N
250.0 kgf
550.0 lbf
1 N
0.1 kgf
0.1 lbf
M10 B1 to B8
ZTS/ZTA-5000 5000 N
500 kgf
1100 lbf
5000 N
500.0 kgf
1100 lbf
1 N
0.1 kgf
1 lbf
M10 B1 to B8

Downloads

Related Products

MX-110 Motorized Vertical Test Stand


  • One stand for both compression (push) and tension (pull) tests
  • Jog, Single Cycle, Continuous Cycle, Force Control

More details

MX-110 Motorized Vertical Test Stand

MX-275 Motorized Vertical Test Stand


  • One stand for both compression (push) and tension (pull) tests

More details

MX-275 Motorized Vertical Test Stand

MX-500 Motorized Vertical Test Stand


  • One stand for both compression (push) and tension (pull) tests
  • Maximum load 500 lb

More details

MX-500 Motorized Vertical Test Stand

Buy Now
Products

Product name
Price
Quantity
ZTS-2E Digital Force Gauge with USB output
€ 1.107,00
ZTS-5E Digital Force Gauge with USB output
€ 1.107,00
ZTS-20E Digital Force Gauge with USB output
€ 1.107,00
ZTS-50E Digital Force Gauge with USB output
€ 1.107,00
ZTS-100E Digital Force Gauge with USB output
€ 1.107,00
ZTS-200E Digital Force Gauge with USB output
€ 1.107,00
ZTS-500E Digital Force Gauge with USB output
€ 1.107,00
ZTS-1000E Digital Force Gauge with USB output
€ 1.225,00
ZTS-2500E Digital Force Gauge with USB output (Included with OH-1 Handle)
€ 1.333,00
ZTS-5000E Digital Force Gauge with USB output (Included with OH-1 Handle)
€ 1.500,00
ZTA-2E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-5E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-20E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-50E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-100E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-200E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-500E Advanced Digital Force Gauge with USB output
€ 1.160,00
ZTA-1000E Advanced Digital Force Gauge with USB output
€ 1.279,00
ZTA-2500E Advanced Digital Force Gauge with USB output (Included with OH-1 Handl
€ 1.387,00
ZTA-5000E Advanced Digital Force Gauge with USB output (Included with OH-1 Handl
€ 1.554,00

Accessories

Product name
Price
Quantity
ISO-17025 - *ISO-17025 ISO/IEC 17025 Long-form Certificate & Test Data (*with new meter)
€ 187,00
OH-1 Handle for digital Force Gauges
€ 100,00
CB-108 Analog Output Cable for ZTS & ZTA
€ 88,00
CB-208 RS232 Serial Output Cable with Sub D 9 plug for ZTS & ZTA
€ 88,00
CB-308 Digimatic SPC Cable for ZTS & ZTA
€ 88,00
ZT-RL Force Recorder Software - Light Edition
€ 302,00
ZT-RS Software Force Recorder Software for ZTS & ZTA - Standard Edition
€ 418,00
ZT-RP Software Force Recorder Software for ZTA - ProEdition
€ 647,00
All mentioned prices are excluding VAT & excluding shipment costs.
