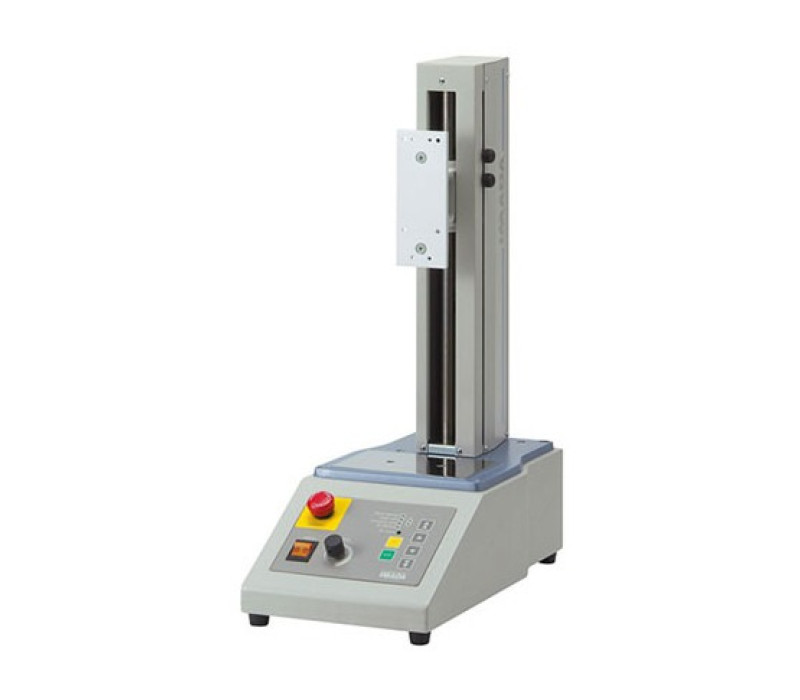

MX-110 Motorized Vertical Test Stand

Name: MX-110 Motorized Vertical Test Stand
SKU: 126705
Price: 2544.00 EUR

Capacity: 110lbs / 50Kg / 490N

The new MX-110 test stand offers consistent and reliable testing. The combination of a screw drive system and state-of-the-art brush-less motor provides extremely smooth and powerful operation over the entire speed range.

Connect the MX-110 test stand with a Z Series force gauge and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z Series force gauge, or maintain the force between the Z Series High and Low set points. Force control is ideal for fatigue or non-destructive testing.

The MX-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 and ZP force gauges.

€ 2.544,00

Order now

One stand for both compression (push) and tension (pull) tests
Force Controlled operation with Z2 and ZP force gauges
3 speed ranges:
0.4 – 11.5 in/min
0.7 - 23.0 in/min (MS)
1.5 - 47.0 in/min (HS)
Jog, Single Cycle, Continuous Cycle, Force Control
Maximum clearance 9" (with extender 14")

Ordering Guide

Model	Speed range	Distance Meter
MX-110	0.4 – 11.5 in/min (10 - 292 mm/min)
MX-110-MS	0.7 - 23.0 in/min (18 - 584 mm/min)
MX-110-HS	1.5 - 47.0 in/min (38 - 1194 mm/min)
MX-110S	0.4 – 11.5 in/min (10 - 292 mm/min)
MX-110S-MS	0.7 - 23.0 in/min (18 - 584 mm/min)
MX-110S-HS	1.5 - 47.0 in/min (38 - 1194 mm/min)

Capacity	110lbs / 50Kg
Travel Rate	Refer to Ordering Guide above
Dimensions	Refer to Dimensions above
Compatible Gauges	Z2 and ZP
Warranty	2 years
*Note	Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

Products

Item	Product	Price
132275	MX-500N Motorized, stroke 285 mm, manual and automtic operation, max. capacity 500 N	€ 2.544,00
132276	MX-110-MS Medium Speed Motorized Test Stand
132277	MX-110-HS High Speed Motorized Test Stand
132278	MX-110S Motorized Test Stand with Distance Meter
132279	MX-110S-MS Motorized Test Stand with Distance Meter
132280	MX-110S-HS Motorized Test Stand with Distance Meter

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

MX-110 Motorized Vertical Test Stand

Features

Dimensions

Specifications

Ordering Guide

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges

HV-N Series: Manual Test Stands

Order Now

MX-110 Motorized Vertical Test Stand

Features

Dimensions

Specifications

Ordering Guide

Related Products

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges

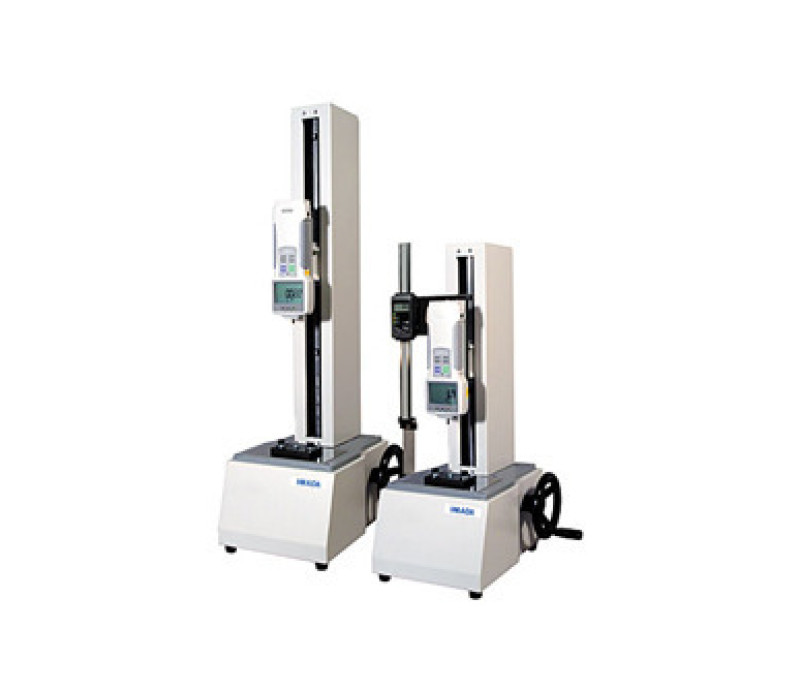

HV-N Series: Manual Test Stands
