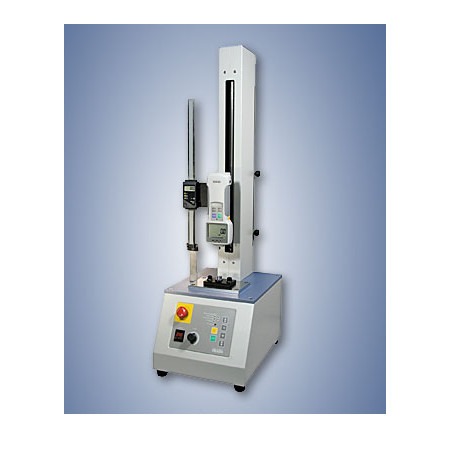

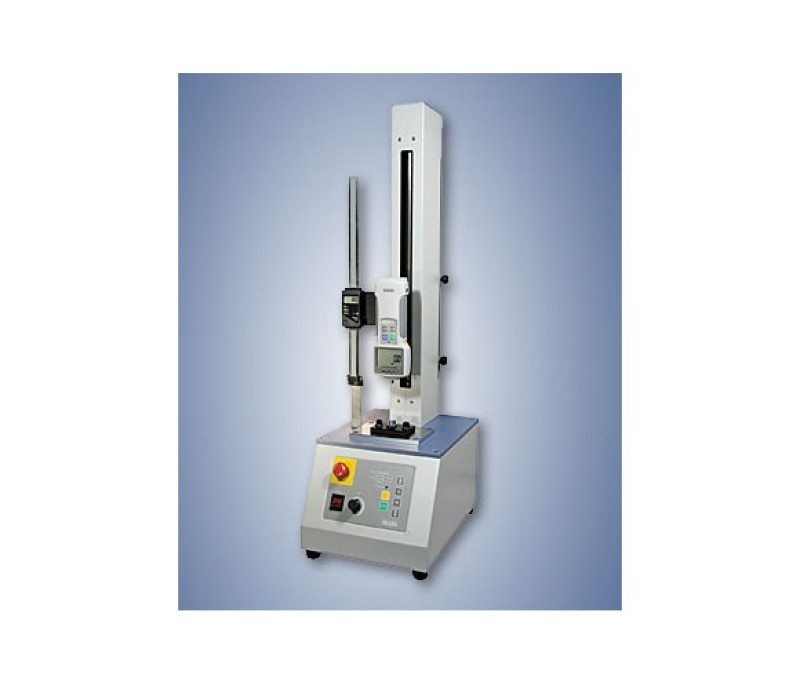

MX-275 Motorized Vertical Test Stand

Name: MX-275 Motorized Vertical Test Stand
SKU: 126714

Capacity: 275 lbs / 125 Kg / 1225 N

The new MX-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

Connect the MX-275 test stand with a Z Series force gauge (Z2 or ZP Series), and enable force controlled testing.

High/Low Set Point Force Control
Force control is activated when the applied force is at or between the high and low set point(s) of the force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

One Way Force Control
Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. This makes the MX-275 ideal for non-destructive testing.

Speed control, quick switch and emergency stop are standard features. Optional timer and digital distance meter are available.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.

One stand for both compression (push) and tension (pull) tests
Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
Clearance 16"
Force Controlled operation with ZP & Z2 Series force gauges
Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
Wide speed range: 0.4 – 9.4 in/min (optional speed ranges available)
Optional timer and digital distance meter

Capacity	275 lbs / 125 Kg
Travel Rate	0.4 – 9.4 in/min
Dimensions	Refer to Dimension above
Warranty	2 years
*Note	Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

Products

Item	Product	Price	Quantity	Action
132268	MX-275 Motorized Vertical Test Stand
132269	MX-275S Motorized Vertical Test Stand with Distance Meter

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
