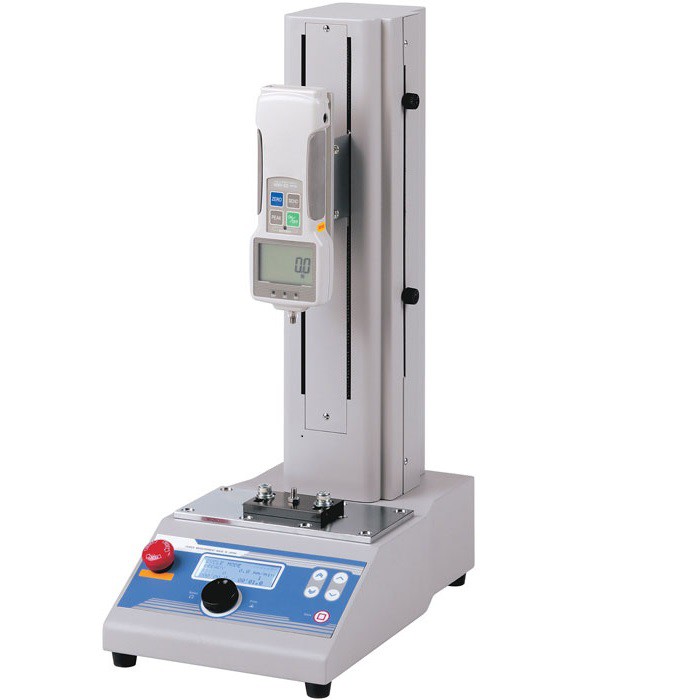

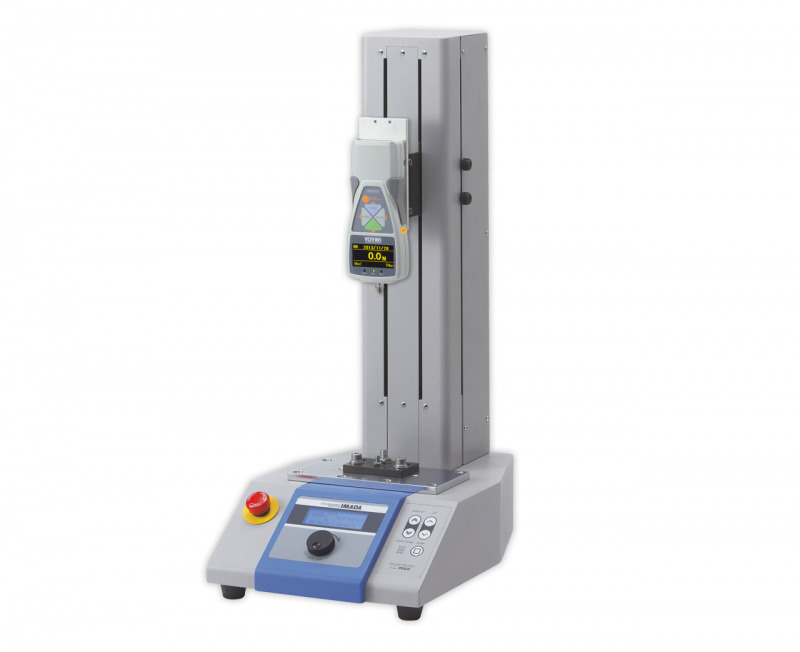

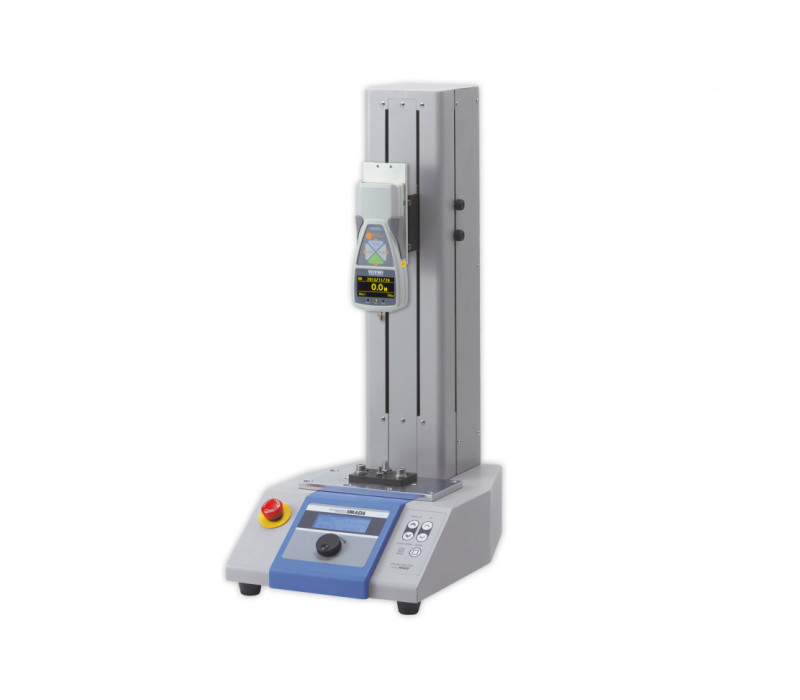

    MX2 Motorized Test Stand

    Explore the MX2 Motorized Test Stand, designed to deliver advanced force testing across various industries. Equipped with digital speed control, a timer, and a cycle counter, this robust and efficient model is perfect for both destructive and non-destructive testing, ensuring high precision and repeatability in all operations.

    Highlighted Features:
    • Advanced Test Control: Easily adjust modes, speed, and the number of cycles through an intuitive LCD interface.
    • Exceptional Compatibility: Integrates high-quality force gauges to form complete measurement systems.
    • Optimized Design: Its all-steel construction and programmable setup allow it to adapt to any testing protocol.
    • Easy-to-Read LCD Display: Adjust mode, speed, test duration, and cycle number effortlessly.

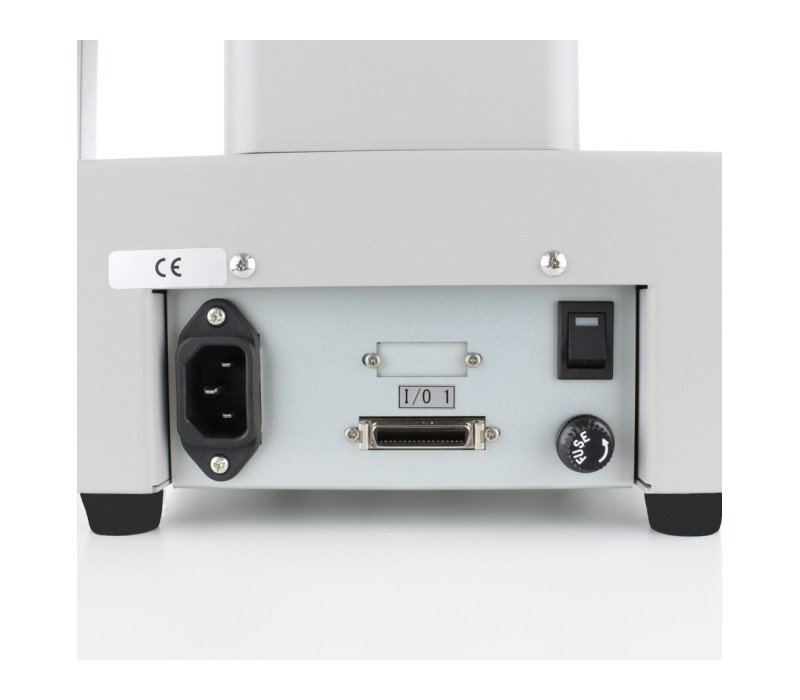

    • I/O Connection: Facilitates integration with external devices, enhancing test synchronization and control.
    • Customizable Functions: Adapt the test stand for destructive, non-destructive, and force limit tests.
    • Force Maintenance: Controls applied force between high and low set points, ideal for creep or fatigue tests.
    Available Options:

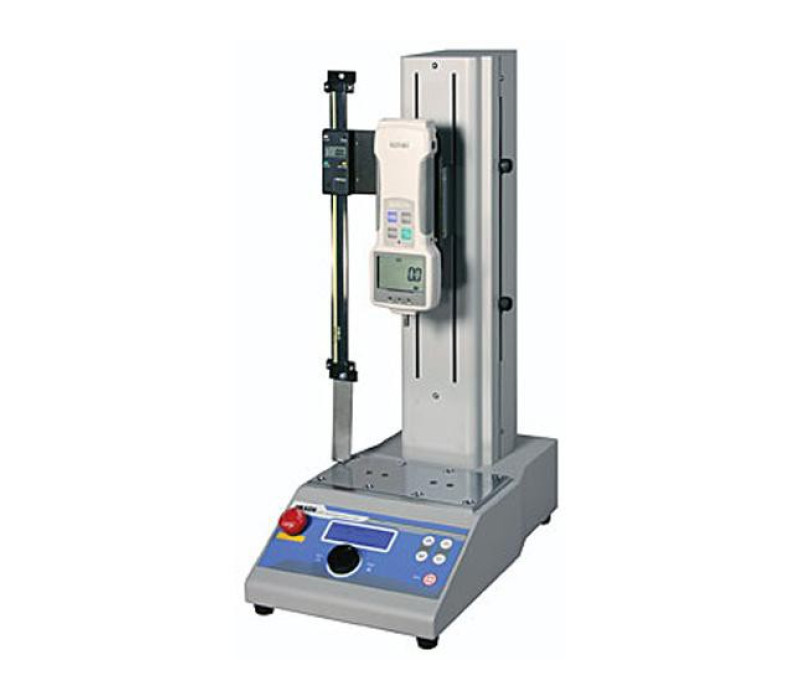

    • S Option: Equips a length scale for precise force-displacement measurements.
    • L Option: Increases the equipment's stroke by 200 mm or 300 mm more than the standard model, suitable for tests requiring a greater range of movement.
    • V Option: Allows the operational speed to be adjusted to better suit specific test requirements.
    • CN Option: Includes an I/O connector for easy integration with other devices, facilitating automation and test control.
    • FA Option: Equips a linear scale on the test stand, which when used with a ZTA series digital photometer, allows for force-displacement measurement.
    Key Benefits:
    • High Repeatability: Ensures consistent results thanks to digital accuracy in speed and distance settings.
    • Versatility in Configuration: Available in multiple capacities and speeds, it adapts to specific testing needs.
    • Easy Setup and Use: With settings accessible via an intuitive interface, it facilitates use by both technicians and non-technicians, optimizing productivity.
    Contact us for more information on how the MX2 can optimize your measurement processes and to receive personalized advice on the ideal solution for your application.
    Price from € 763,00
    Order now

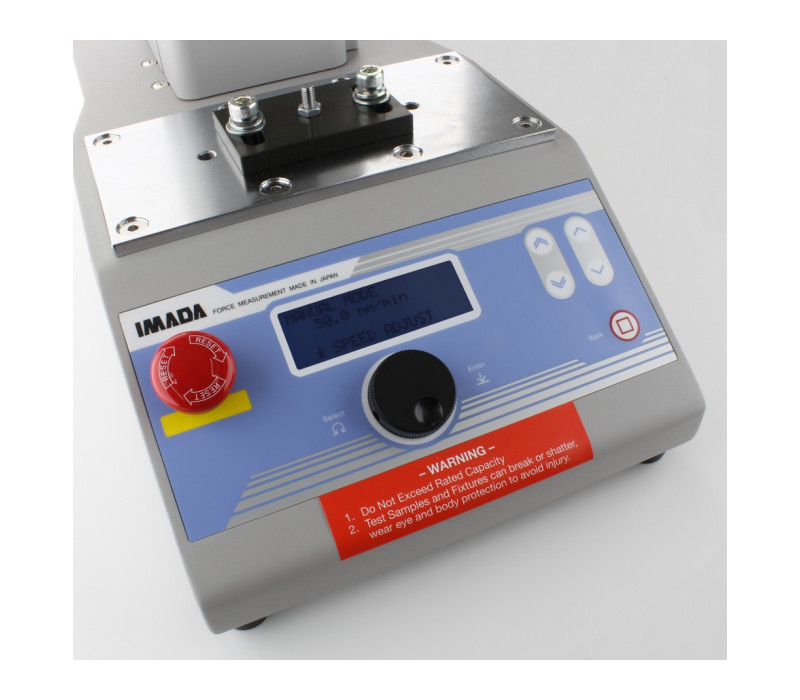

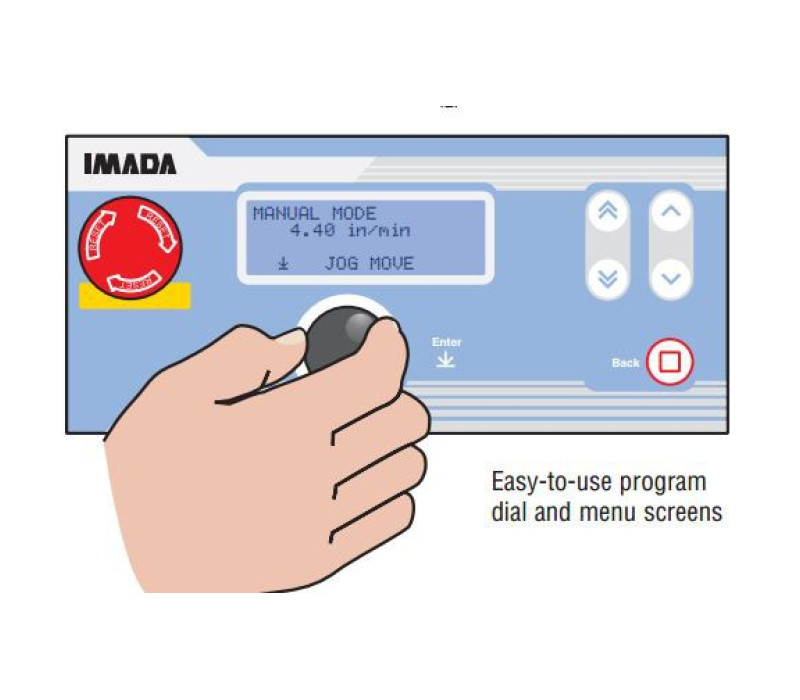

    • Intuitive Program Dial and Menu Screens: Control mode, speed, timer, and cycles, allowing precise adjustments with ease.
    • Advanced Pause Timing Configuration: Adjustable every 0.1 seconds up to a maximum of 99 minutes and 59.9 seconds, providing flexibility for detailed tests.
    • Dual Support for Tests: Enables the performance of both compression (push) and tension (pull) tests, covering a wide range of testing applications.
    • Force Controlled Operation: Compatible with ZT series dynamometers, optimizing accuracy in force-controlled tests.
    • Conditional Overload Prevention: Protects equipment and samples during intensive tests, ensuring integrity and repeatability.
    • Ultra Structural Rigidity: Minimal deflection of 0.5 mm at maximum load, ensuring structural accuracy even under extreme stress.
    • Versatility in Operation Modes: Includes Manual, Increment, Single Cycle, Continuous Cycle, and Force Control (with ZT Series gauges), adapting to diverse testing needs.
    • Advanced Test Counter: Capability to count or set up to a maximum of 65,535 tests, facilitating the planning and execution of large volumes of tests.
    Complete Kit

    Comes with:

    • MX2-Test stand (without force gauge)
    • Power cable
    • Grip mounting adaptor
    • High capacity gauge mounting plate (only for MX2-1000N)
    • Small gauge mounting plate (only for MX2-2500N)
    • Cover
    • Manual
    Dimensions-MX2
    Application Examples
    CapacityMX2-110: 50 Kg / 500 N
    MX2-275: 125 Kg / 1250 N
    MX2-550: 250 Kg / 2500 N
    StrokeMX2-110: 230 mm
    MX2-275: 290 mm
    MX2-550: 290 mm
    Travel rateStandard speed: 10-305 mm/min
    Fast speed: 20-600 mm/min(Optional)
    Slow speed:  3 - 90 mm/min(Optional)
    Compatible GaugesZT-serie Force Gauges
    Operating temperature0 to 40 °C
    Operating humidity35-70%, avoid condensation
    WeightMX2-110: 19 Kg
    MX2-275: 26 Kg
    MX2-550: 26 Kg
    Warranty2 years

    Related Products

    Browse Related Products

    ZT Digital Force Gauge with Luminescent EL Display

    ZT Digital Force Gauge with Luminescent EL Display

    Order Now

    Products
    Item Product Price  Quantity Action

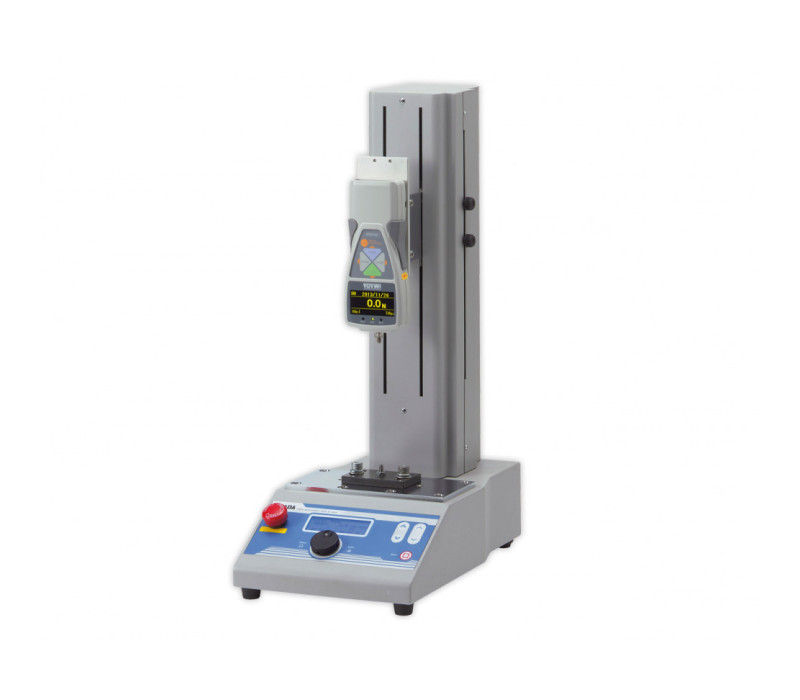

    135646MX2-500N Motorized, stroke 235 mm, manual and automatic operation, max. capacity 500 N € 2.827,00
    135647Code S - Distance Meter for MX2-500N € 763,00
    Accessories
    Item Product Price  Quantity Action
    135648CB-528 - Force Control Cable, ZTA or ZTS to MX2 € 155,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
