POSITECTOR 6000FHXS Coating Thickness Gauge


Made in the USARange: 0 - 10 mm
Resolution: 0.02 mm
Substrates: Non-Magnetic Coatings on FERROUS Metals
Temperature: up to 250° C (500° F)

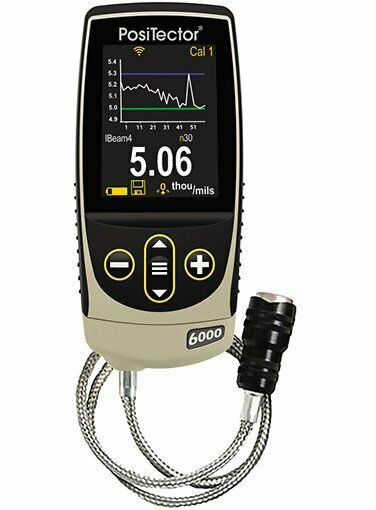

PosiTector 6000 FHXS Xtreme™ coating thickness gage for measuring coatings up to 10 mm (10,000 microns) thick in rugged environments, using magnetic principles to measure (Non-Magnetic) coating thickness on only ferrous metals, accurately and quickly.

Designed with an alumina wear face and braided steel cable, the PosiTector 6000 FHXS is ideal for measuring on hot or rough surfaces.

For typical paint and coating applications for a thickness range of 0-10 mm applied to Ferrous substrates models include 6000-FHXS1 and 6000-FHXS3.

Positector 6000Tough New Features

  • Braided stainless steel cable - kink-proof, wear and cut resistant
  • Alumina wear face for extended performance on rough substrates
  • Ability to measure on hot surfaces up to 250°C (500°F)
  • Robust probe large enough to use with gloves
Easy-To-Use
  • Ready to measure—no calibration adjustment required for most applications
  • Enhanced one-handed menu navigation
  • Flashing display—ideal in a noisy environment
  • RESET feature instantly restores factory settings
Durable
  • Temperature: up to 250° C (500° F)
  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gage body AND probe
Accurate
  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Conforms to national and international standards including ISO and ASTM
Versatile
  • Fully interchangeable probes are compatible with ALL gage bodies
  • Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Flip display enables right-side-up viewing
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Uses alkaline or rechargeable batteries (built-in charger)
Powerful
  • Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • FAST mode - faster measurement speed for quick inspection
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • Every stored measurement is date and time stamped
  • Software updates via web keep your gage current
  • Connects to PosiTector.net


Probe - Feature Comparison Chart
Feature Comparison Chart Standard
(1)
Advanced
(3)
Hi Contrast LCD Display Color screen
Color
color screen
Color
General Features Standard
(1)
Advanced
(3)
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe -

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes -
Memory Features & Capacity Standard
(1)
Advanced
(3)
Reading Storage Capacity 1000 in one group 250,000 in up to 1000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels -
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings -
Multiple stored calibration adjustments for measuring on a variety of substrate conditions -
Connection Options Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
PosiSoft Solutions Standard
(1)
Advanced
(3)
PosiSoft Desktop Software Desktop software for PC or Mac computer
PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers
PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings
PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments -

Probe Specifications
High-Range
Probe Model: FHXS
Range: 0 - 400 mils
0 - 10 mm
Accuracy*: + (0,1 mils + 3%) 0 - 400 mils
+ (2 µm + 3%) 0 – 10,000 µm
*Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading.

Specifications
Measuring principle:Magnetic induction principle (Ferrous)
DisplayBacklit & Reversible LCD
Data OutputIR & USB - "2" & "3" Models
Bluetooth - "3" Models
Surface Temp.Maximum 250° C (500° F)
Power3 AAA batteries, Included
Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight5.8 oz. (165 g) without batteries
Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty2 Years
Calibration CertificateCertificate of Calibration showing traceability to NIST included

Complete Kit
All Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

Accessories

Related Products

PosiTector 6000GP Coating Thickness Gauge


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000GP Coating Thickness Gauge

PosiTector 6000IP Intergral Probe Models


  • Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 microns)

More details

PosiTector 6000IP Intergral Probe Models

PosiTector 6000MP Micro Probe Models


  • High Resolution mode increases the displayed resolution for use on applications that require greater precision

More details

PosiTector 6000MP Micro Probe Models

PosiTector 6000TC Thick Coating Model


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000TC Thick Coating Model

PosiTector 6000TCX Extra Thick Coating Models


  • For extra thick paint and coatings up to 13 mm (150-500 mils)

More details

PosiTector 6000TCX Extra Thick Coating Models

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Buy Now
Products

Product
Price
Quantity
133831
PosiTector 6000-FHXS-1-KIT Basic Coating Thickness Gauge for hot or rough surfaces
€ 1.563,00
133832
PosiTector 6000-3-FHXS-KIT Advanced Coating Thickness Gauge for hot or rough surfaces
€ 2.052,00

Accessories

Product
Price
Quantity
133763
PosiTector 6000-FHXS-Probe, Cabled Ferrous, hot and rough surfaces Probe for PosiTector
€ 1.210,00
130761
PosiSoft - Analysis Software for Windows- free download

133045
PRINTERBT Bluetooth Printer for PosiTector Advanced
€ 416,00
131193
PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer
€ 25,00
137143
USBAC USB/AC Adapter Power Kit for PosiTector
€ 56,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
