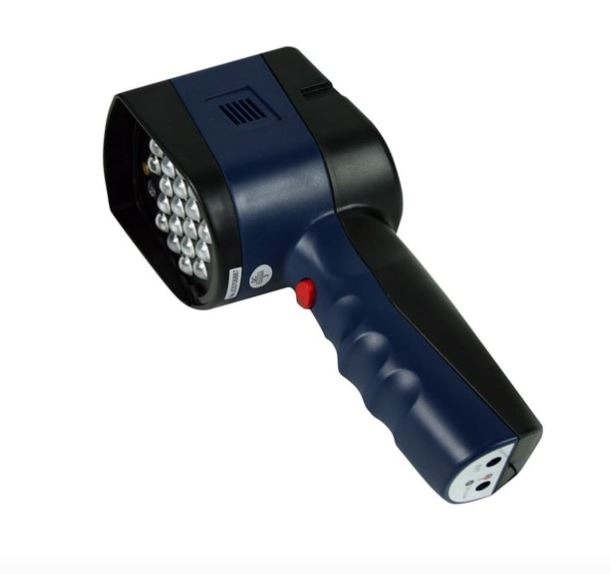

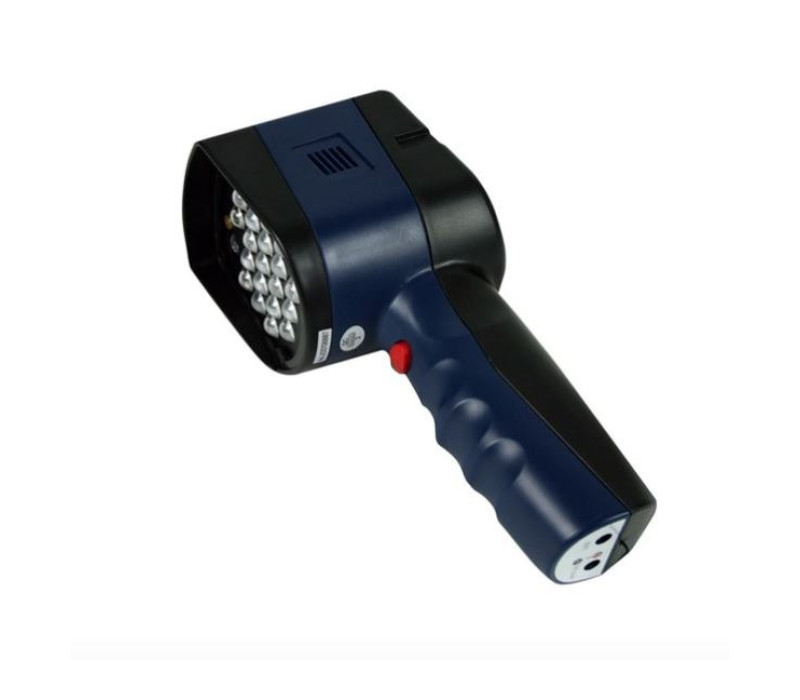

ST-5100 LED Stroboscope with Integrated Laser Speed Sensor

The ST-5100 is a portable, high-precision LED stroboscope featuring a built-in laser for auto-speed detection. With 21 ultra-bright LEDs, trigger-style activation, and dual power (battery or AC), it’s ideal for inspecting rotating or moving machinery.
Fast flash rate control and external trigger input make it perfect for maintenance and quality control. Includes carrying case.

Highlighted Features:

Auto-Speed Sensing Laser: Automatically detects object speed and syncs the strobe flash rate for effortless, accurate measurements.

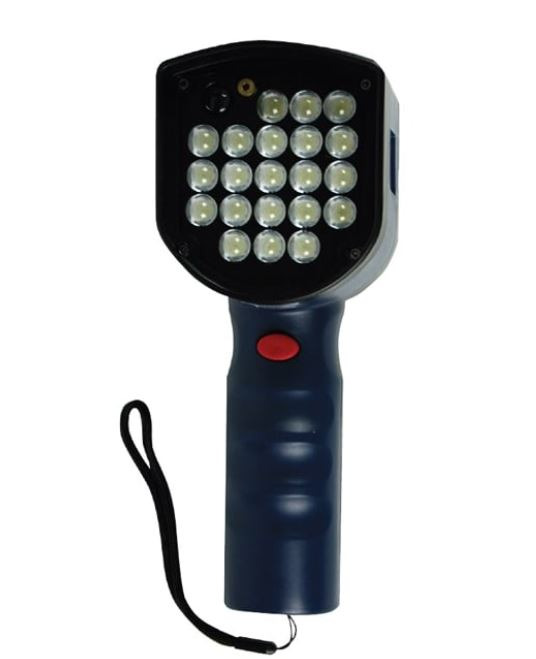

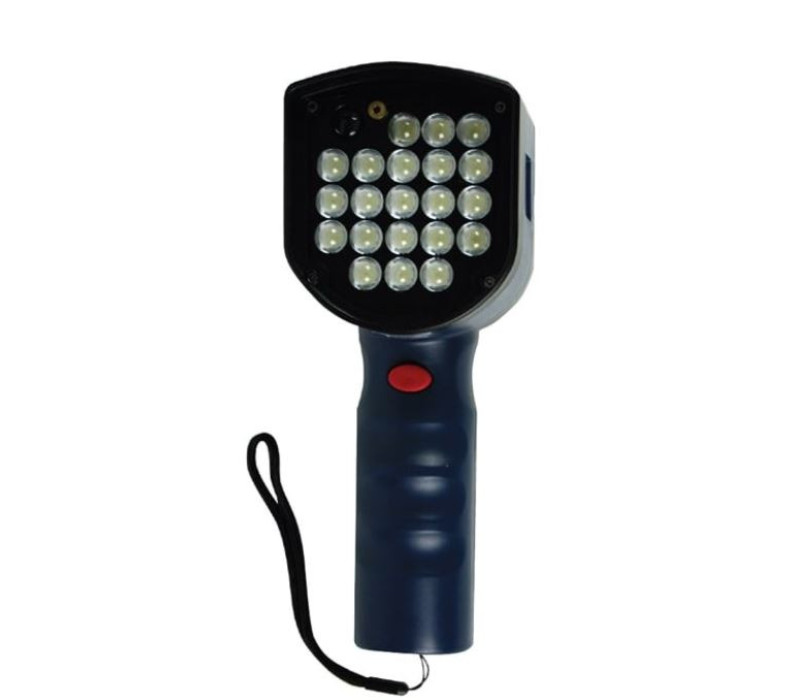

21 Super-Bright LEDs: High-intensity LED array provides powerful, stable illumination across a wide measurement range.
Lightweight & Portable Design: Compact and easy to handle, perfect for both field inspections and in-plant use.
Trigger-Style Activation: Ergonomic grip with light-trigger control reduces hand strain during prolonged operation.
Dual Power Supply: Runs on internal rechargeable batteries or AC power with the included adapter for flexible use.
Quick Flash Rate Adjustment: Fine-tune flash frequency with +/- buttons or make rapid changes using x2 / ÷2 controls.
External Sensor Compatibility: Supports external trigger input via connection cable for precise, application-specific synchronization.

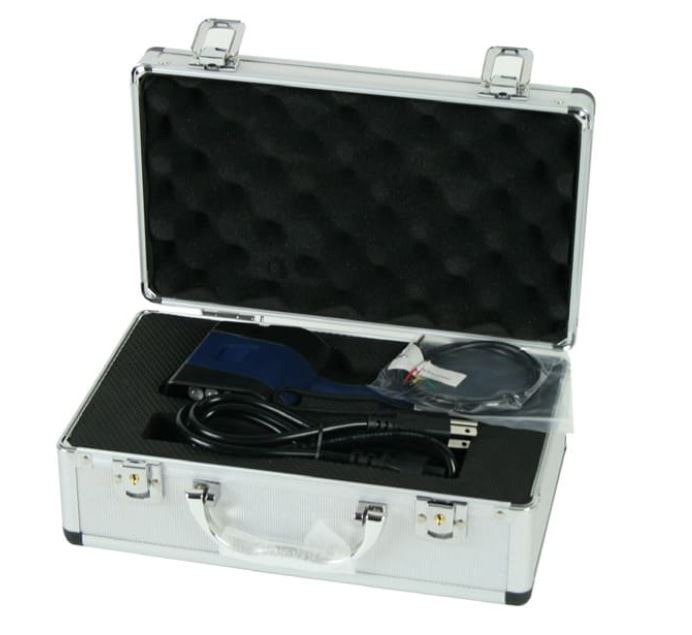

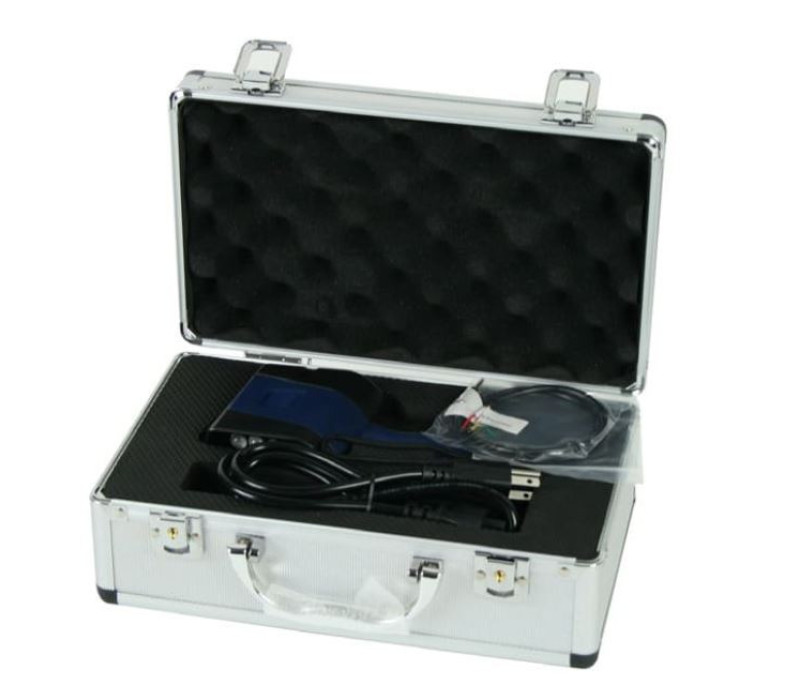

Protective Carrying Case: Each unit is supplied with a durable case for safe transport and storage.

Key Benefits:

Auto-Speed Synchronization: Built-in laser automatically detects motion speed and adjusts flash rate—streamlining setup and operation.
Bright, Stable LED Illumination: Equipped with 21 ultra-bright LEDs for crisp, consistent visibility across a wide range of speeds.
Dual Power Options: Operates on a rechargeable internal battery or standard AC power, offering flexibility in any environment.
Ergonomic, Trigger-Style Grip: Designed for comfort during extended use, reducing operator fatigue with a balanced, easy-to-hold form factor.
Quick & Precise Flash Control: Adjust flash rate instantly with x2/÷2 quick-change buttons and fine-tune with +/- controls.
External Trigger Capability: Supports synchronization with external sensors via included connection cable for added versatility.
Portable & Durable: Lightweight design and protective carrying case make it ideal for field use or maintenance applications.

Need more information or a personalised quote? Contact us.

Auto-Speed Sensing Laser
Flash Rate Range: 30 to 120,000 FPM ; 0.5-2000 Hz
Internal, fast-charge rechargeable battery
CE and RoHS Approval
1-Year warranty

ST-5100 LED Stroboscope
AC power adapter,
Sensor Input Cable
Manual
Carrying Case
(Calibration Certificate is OPTIONAL)

Flash Rate Range	30 to 120,000 FPM ; 0.5-2000 Hz
Accuracy	0.01% ±1 digit of F.S. @ 25°C
Lux Rating (Approx.)	6000 FPM & 85 Brightness: Distance 20 cm 9500 lx with 178 mm irradiation dia., Distance 50 cm 2275 lx with 279 mm irradiation dia. 1500 FPM & 85 Brightness: Distance 20 cm 4250 lx with 178 mm irradiation dia., Distance 50 cm 1375 lx with 279 mm irradiation dia
Lamp Lifetime	Approximately 3~5 years depending on usage.

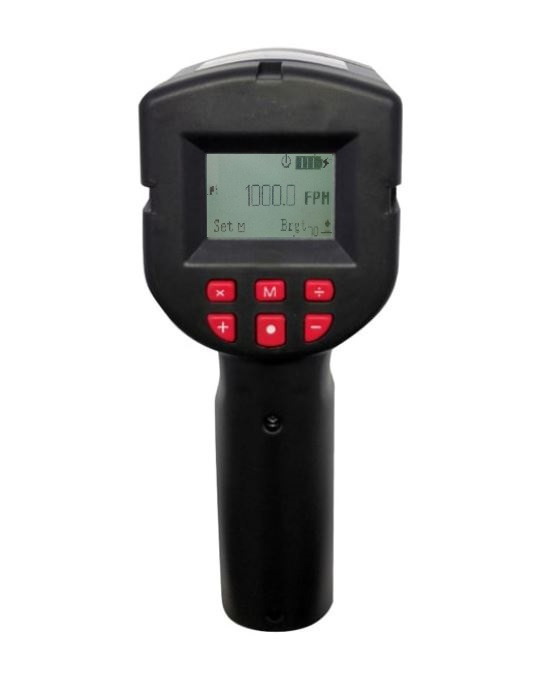

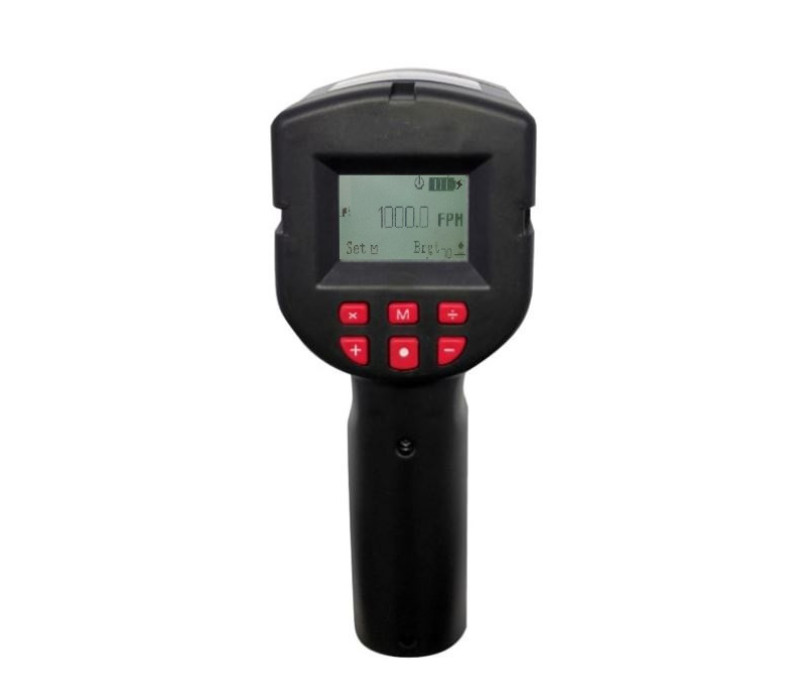

Display	Backlit LCD
Resolution	30 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM; 0.5~2000 HZ = 0.1 Hz
Flash Duration	0.1°- 2.5° = 1-100 on display
Power Requirement	100-240 VAC 50/60Hz
Battery	Lithium DC 12.6V 2600 mAh
Battery Life	Approx. 5 hours depending on settings
External Sensor Input	12 V Pulse
Sensor Power Supply	12 V dc up to 200 mA
Input Pulse Width	Over 50 μs
Temperature Limits	0-35°C
Product Weight	280 g
Product Dimensions	228 x 86 x 40 mm
Warranty	1 year
Approvals:	CE, RoHS

Products

Item	Product	Price	Quantity	Action
138156	ST-5100 - Battery Powered Stroboscope

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
