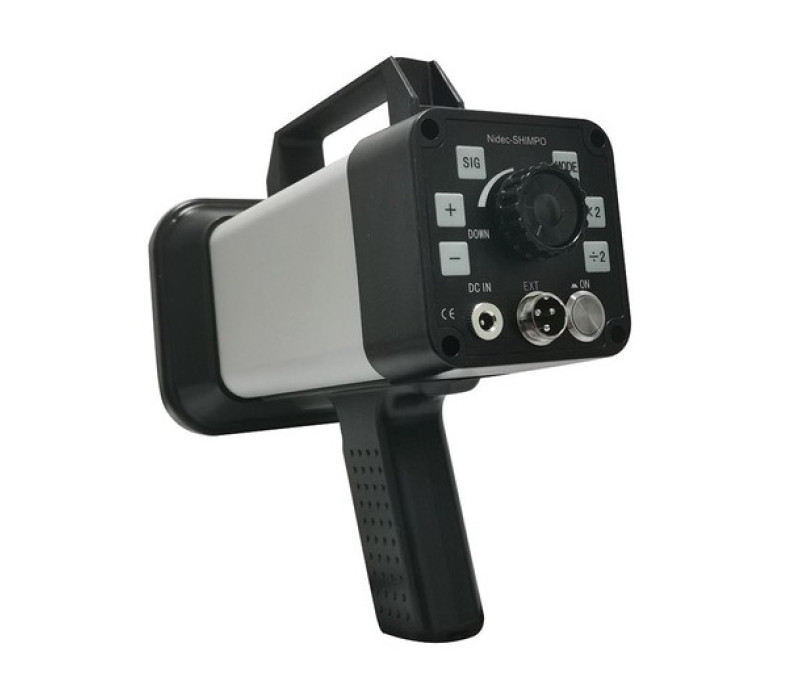

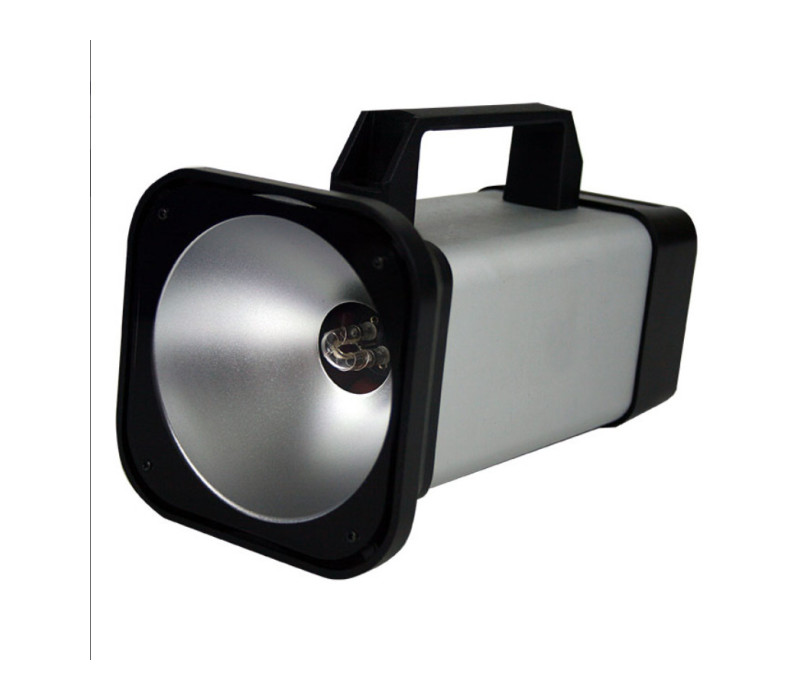

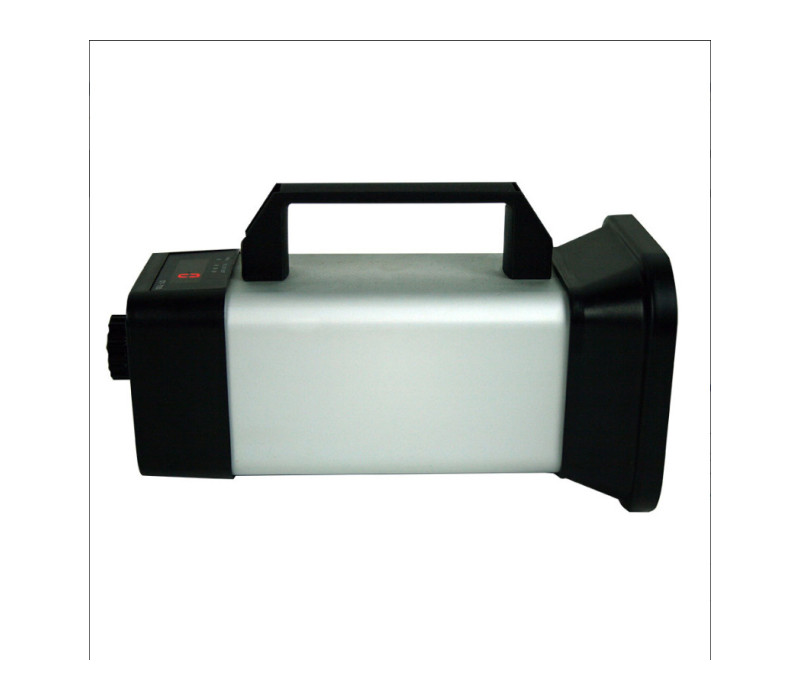

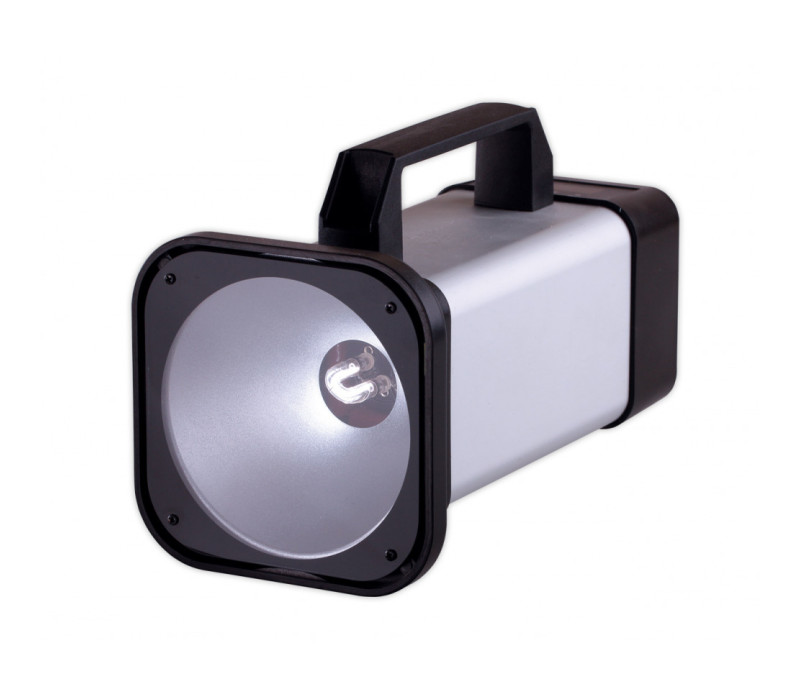

DT-735 Xenon Stroboscope with rechargeable Battery

The DT-735 Portable, Lightweight Stroboscope with Rechargeable Battery

Checkline's DT-735 is an affordable industrial-quality stroboscope that is portable and highly stable. It can be used for observation and non-contact inspection of moving parts.
Applied on a moving target the DT-735 stroboscope provides the user the illusion of stopped or slowed down equipment movement.

Flash Range: from 60 to 12,000 RPM/FPM

With its rugged metal enclosure the DT-735 can withstand harsh industrial usage. Included are handles for top and bottom to aid in portability and flexible usage.
The DT-735 is powered by an internal rechargeable battery, and can also be operated directly from AC-Power for continuous use.The flash rate can be altered by the user during operation to visually inspect rotating or reciprocating machinery without stopping production.
This makes the DT-735 the perfect tool for quality inspection and preventive maintenance on this type of equipment.

NIST-Traceable Calibration Certificate & Test Report optionally available
Can be operated directly from AC-Power for continuous use

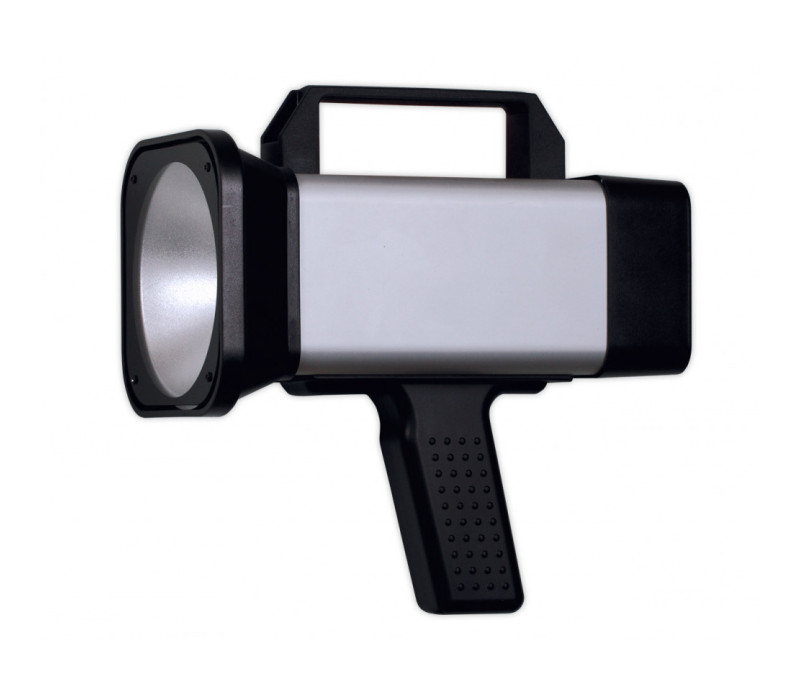

Includes top and bottom handle to allow user operation preference

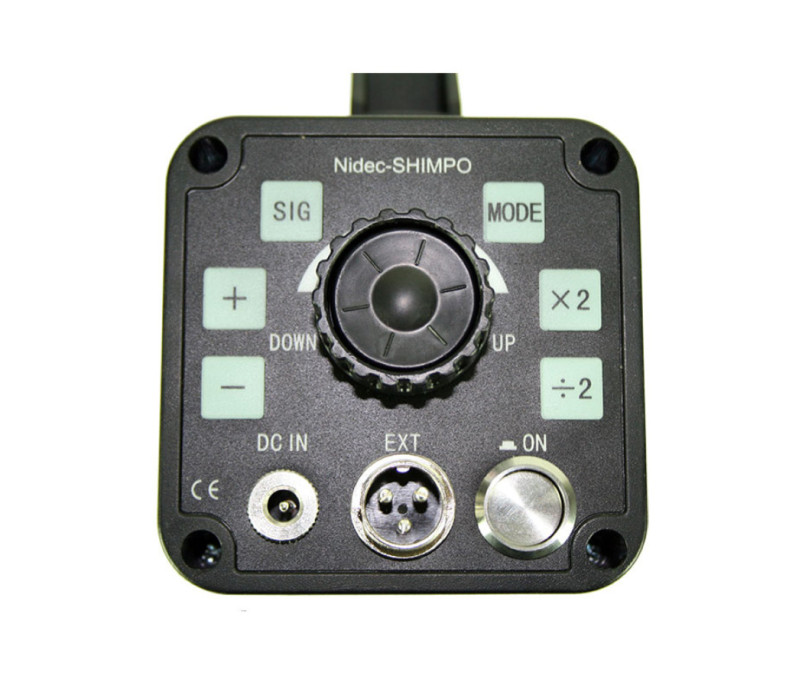

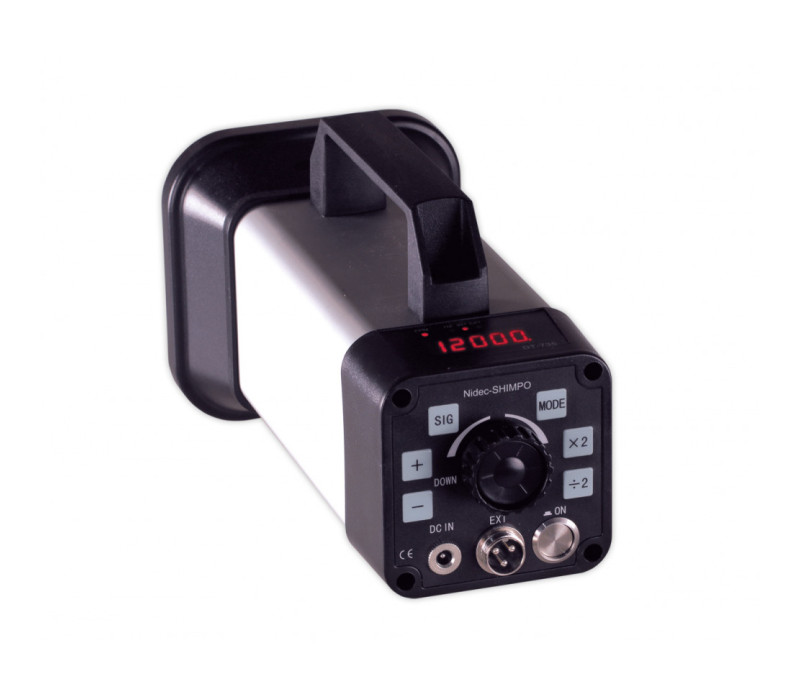

Easy-to-use controls with bright LED display
CE Certified

The DT-735 comes with:

Upper and Lower Handle
AC converter charger with cable
3 pin female M16 threaded connector
English manual

A traceable calibration certificate is optionally available.

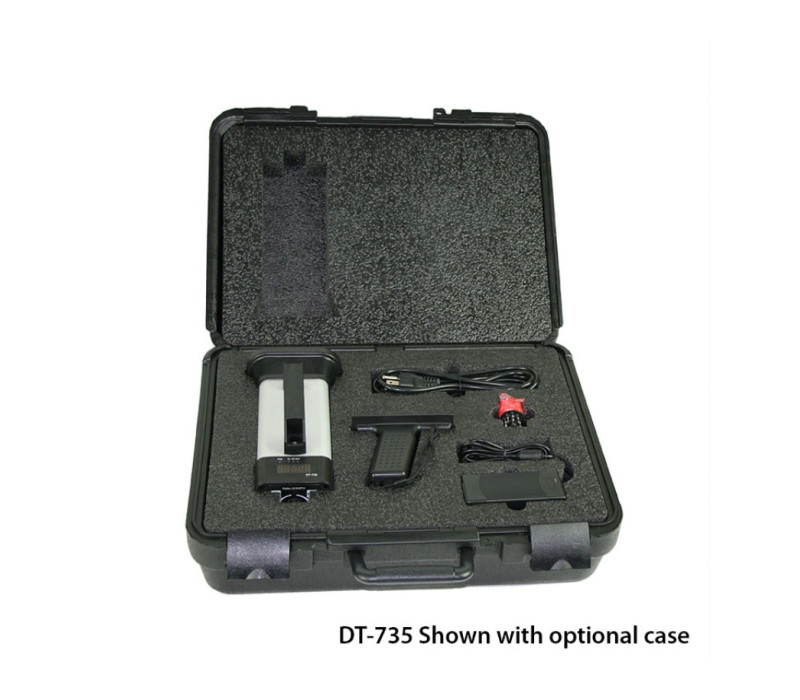

The DT-735-KIT includes an additional carrying case and a spare flash tube.

Flash range	60 -12.000 FPM
Flash Resolution	0.1 from 60-9999; 1 from 6,001-12,000
Accuracy	± 0.01%
Display	LED 5 digit, 10 mm high
Flash Tube	Xenon ≤ 45W
Tube Life	50.000.000 flashes
Flash Duration	10-30 μs automatically adjusts with flash rate
External Trigger Input	5V ~ 12V pulse signal (high level trigger) up to 50 mA
Lux Rating	20 cm Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 400 mm irradiation diameter 50 cm Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 600 mm irradiation diameter
Battery Type	Ni-MH
Battery Life	1.5 to 2 hours depending on settings
Charging Time	5 hours to full charge
Power Requirement	100-240 VAC 50/60 Hz
Operating Temperature	0 - 40°C
Air humidity	85 % RH, max.
Dimensions	250 x 120 x 120 mm
Product Weight	1,25 kg
Package Weight	1,86 kg
Warranty	1 year
Certification	CE
Included Accessories	Upper and Lower Handle, AC charger with cable

Products

Item	Product	Price	Quantity	Action
138152	DT-735 Battery Powered Stroboscope 230 VAC
138150	DT-735-KIT Battery Powered Stroboscope Kit 230 VAC

Accessories

Item	Product	Price	Quantity	Action
138242	FLASHTUBE735 Spare Flash Tube for DT-735 & DT-311D series stroboscopes
140126	BAT-735 - Replacement Rechargeable Battery for DT-735 Stroboscope, NiMH, 12V 2500mAh

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
