LED Stroboscope with external trigger input/output

The DS-2000LED-UV is a battery-powered hand-held UV LED stroboscope and has been especially developed for inspecting UV ink on labels, security tags, watermarks and many others.

The DS-2000LED-UV has a superior light output, which is ensured by 7 state-of-the-art UV LEDs mounted in a precision-machined aluminum housing. Furthermore these long lasting, very bright LEDs won’t require replacement and thus make this UV stroboscope a perfect choice for harsh printing environments.

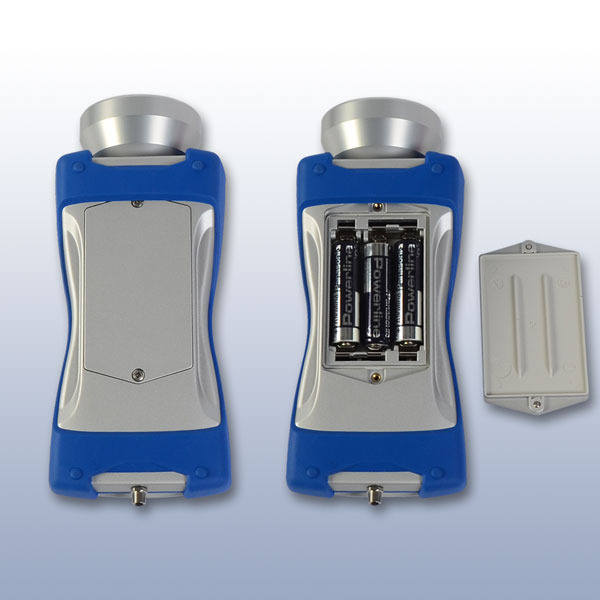

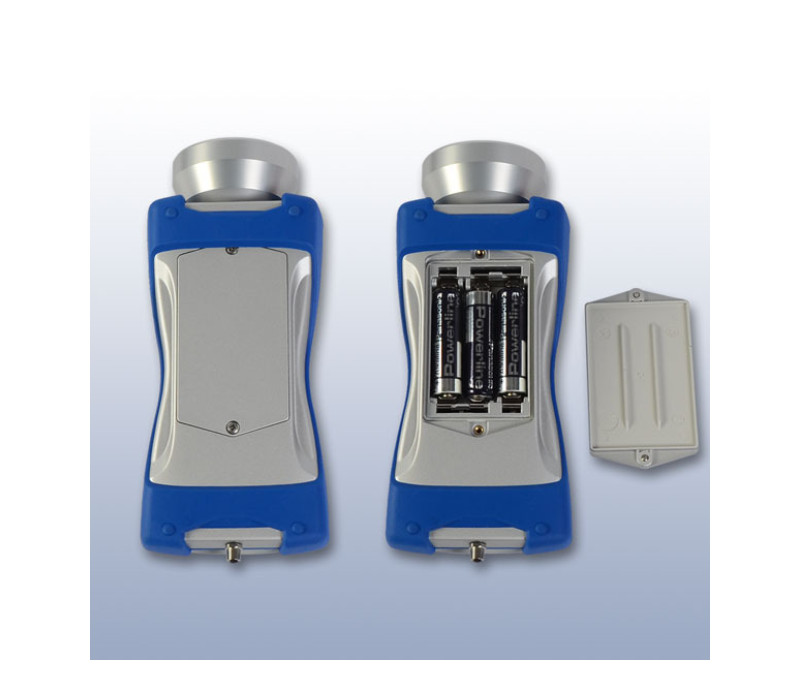

Powered by 3 AA batteries, the DS-2000LED-UV can operate even at the highest flash rates for up to six hours. An easy-to-use interface allows the operator to quickly adjust the flash speed.

A high-impact plastic housing with rubber sleeve provides additional protection as well as improved grip.

3 AA-Batteries provide six hours of continuous use operation
Intuitive controls allow user to quickly adjust flash rate and shift phase
User-selected units of Hz or FPM (Flashes Per Minute)
2-Year warranty
IP 65 rated housing provides protection from water jets

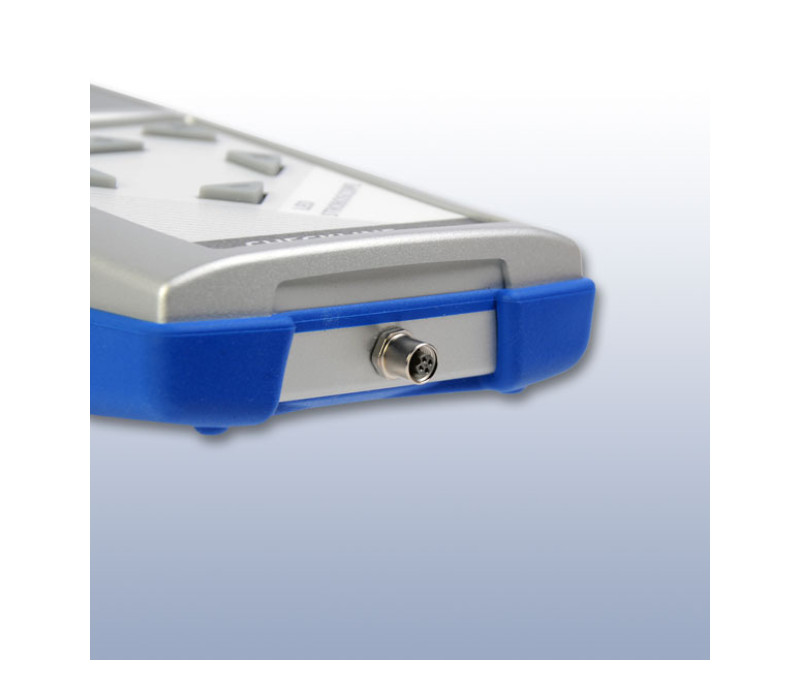

An External Trigger Input signal can be used to externally control the flash rate
The Trigger Output provides a frequency output signal which can be used by data collection devices to record flash rate

The DS-2000LED-UV Strobe is supplied in a foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries in total), Traceable Calibration Certificate and Operating Instruction Manual.

UV Wavelength	380-390 Nanometers
Frequency Range	30 - 300,000 FPM (0.5 - 5000 Hz)
Flash Duration	Adjustable (1 - 8522 μs)
Accuracy	± 0.02% ± 500ns
Resolution	± 0.1 FPM (30 - 999) ± 1 FPM 1000+
UV Light Spectrum	380…390 nm
Protection Class	IP65 (Protection from Dust and Water Jets)
Display	LCD, multiple lines
Certification	CE (as per EU norms)
Power Supply	3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material	Aluminum / ABS Heavy duty design
Dimensions	191 x 82 x 60 mm
Weight Approx	400g (including batteries)
Temperature Range	0° - 45° C
Battery Life	NiMH: approx 11h at 6.000 FPM Disposable: approx 6h at 6.000 FPM
Default Settings	FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Trigger Input	3 - 32 V, NPN + PNP Low Level: < 1 V Principle: Optocoupler, voltage-free
Trigger Output	Level: max. NPR, max 32V Pulse Length: Adjustable Maximum current: 50mA Reverse voltage protection: Yes Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Warranty:	2 years

Products

Item	Product	Price	Quantity	Action
137066	DS-2000LED-UV Digital LED Stroboscope	No longer available

Accessories

Item	Product	Price	Quantity	Action
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
