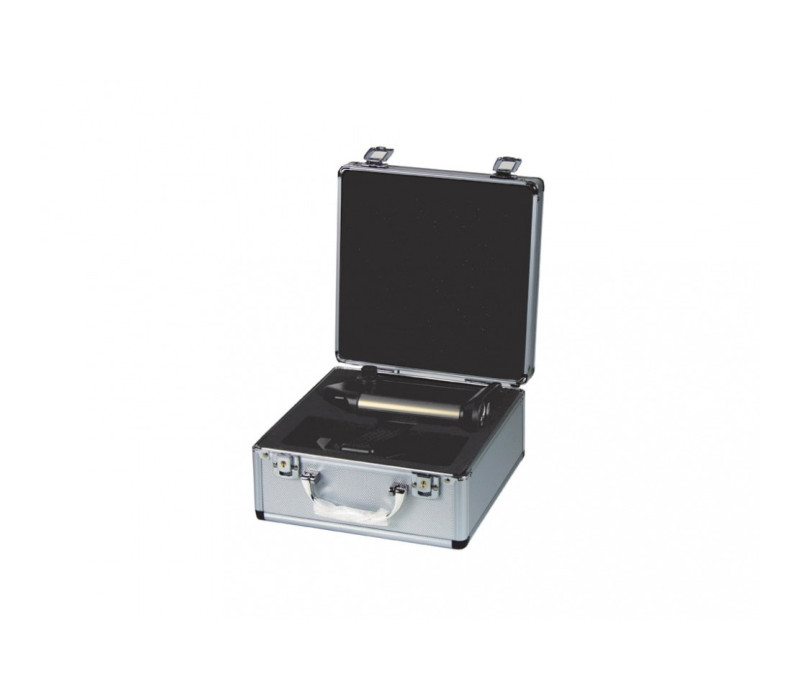

DT-366 Carrying Case

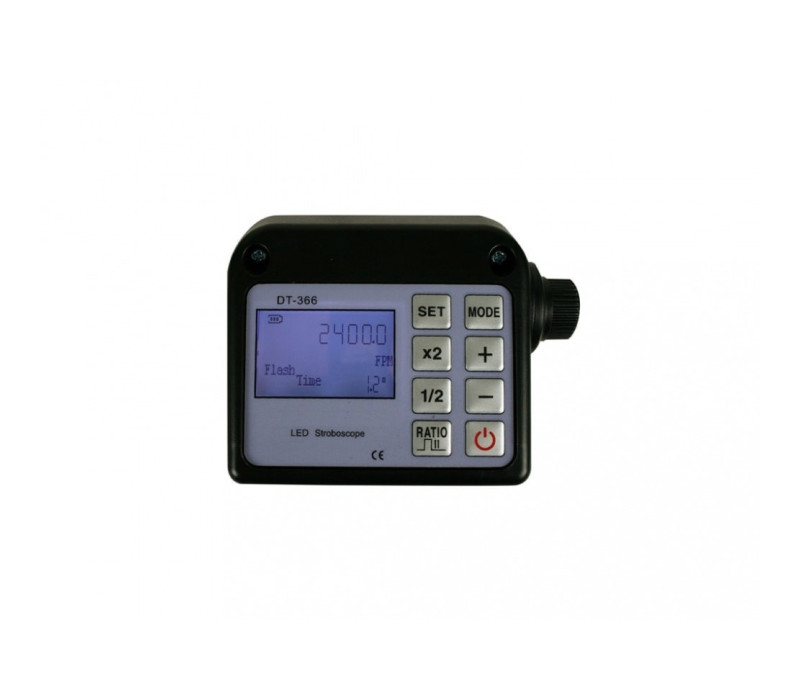

DT-366 display

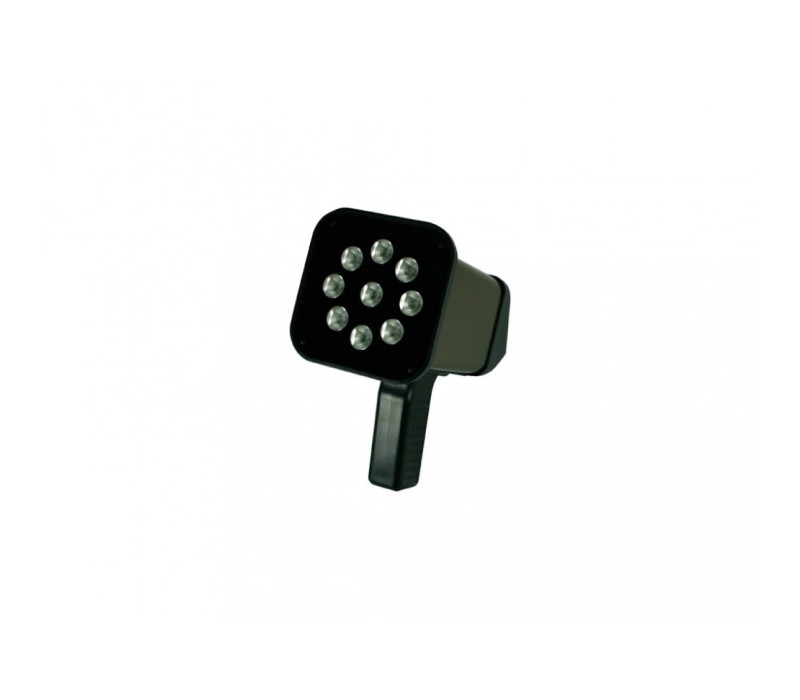

9 LED's

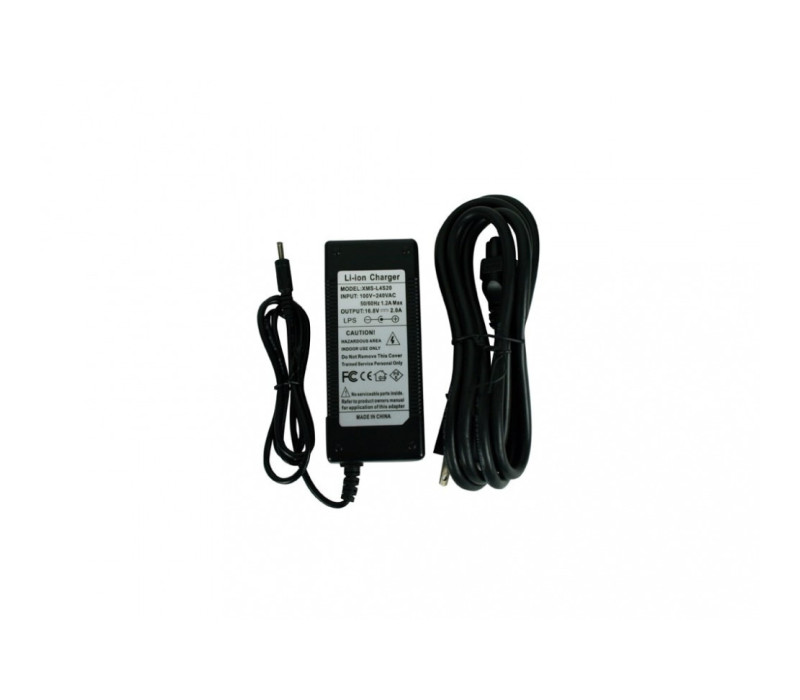

Power Adapter - 100-240 VAC 50/60Hz

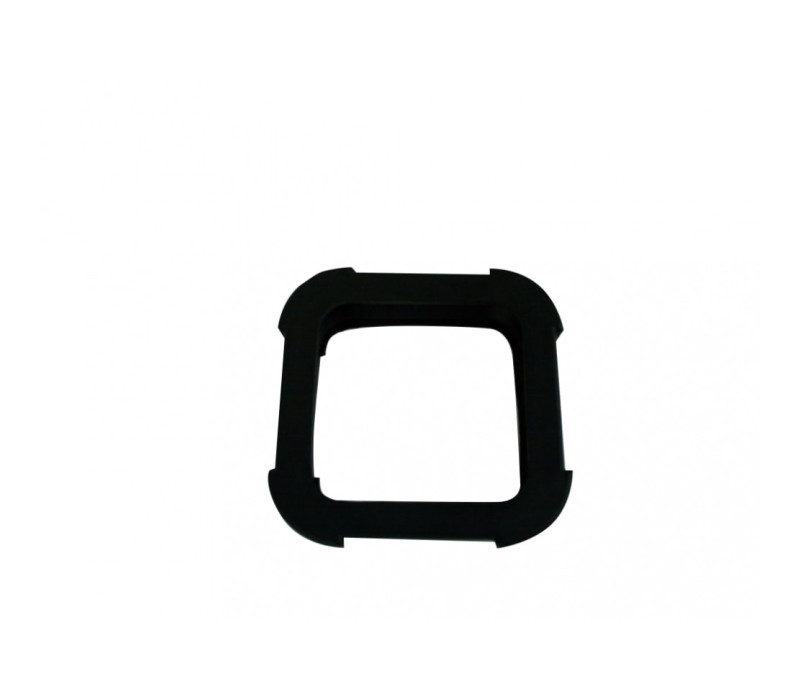

SG-735 Rubber Strobe Guard

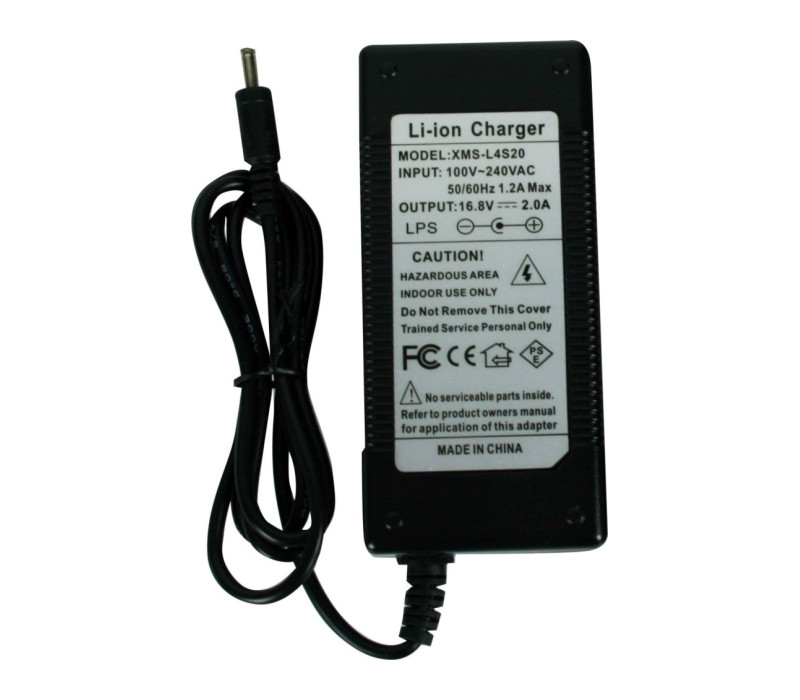

139533 - ST-CHRG-2 - Charger for use with DT-366 (No powercord)

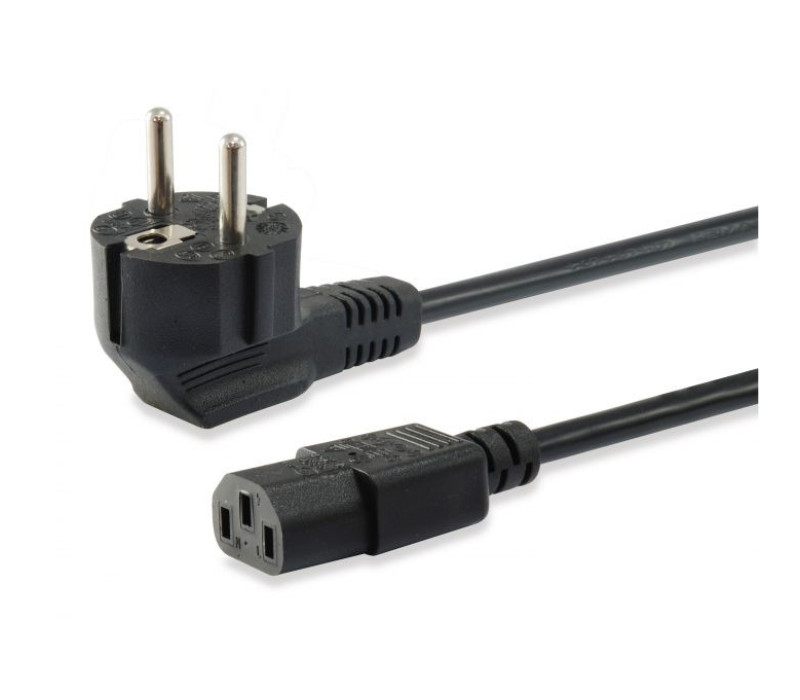

133113 - Power Cord EU, C13 to Schuko

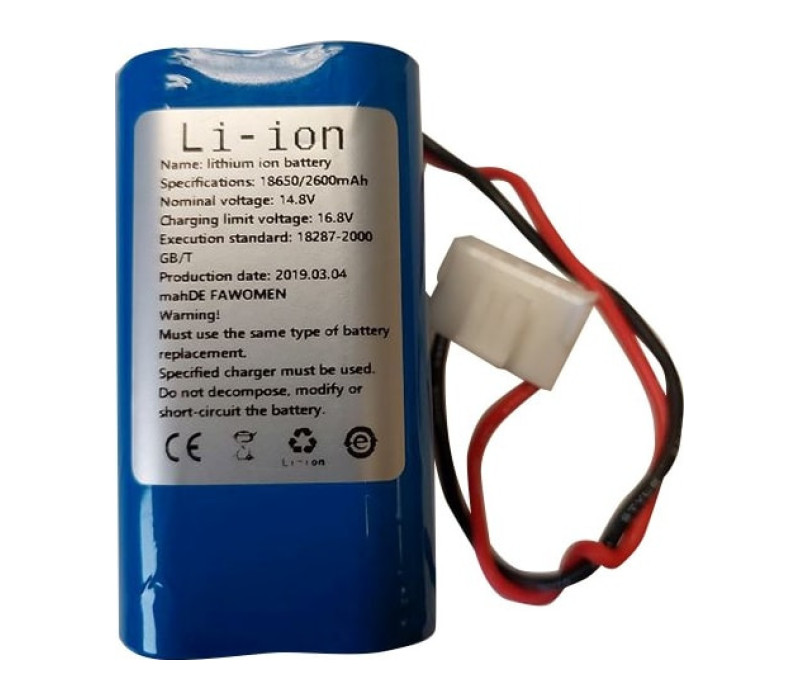

139534 - BAT-320BL - Rechargeable Battery for ST-320BL and DT-366 Stroboscopes

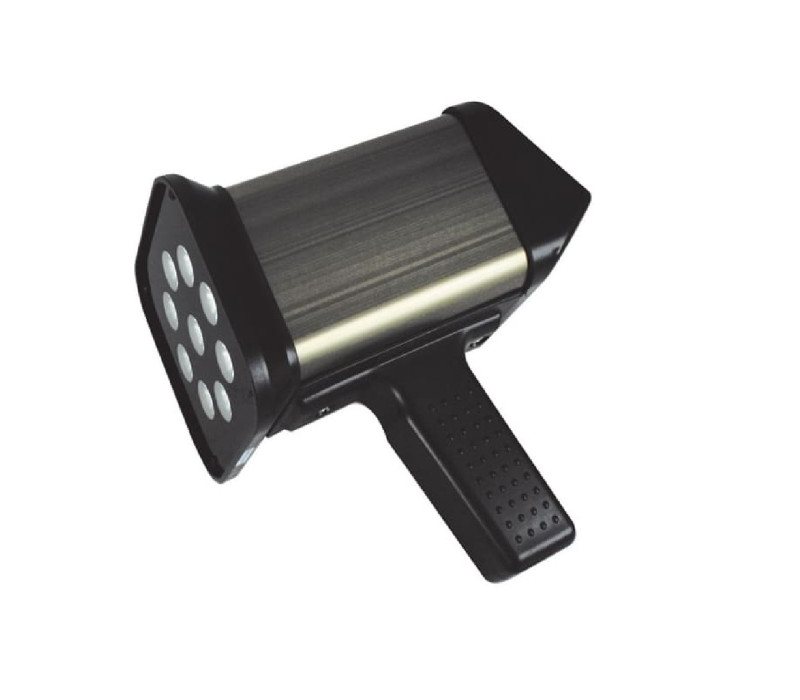

DT-366 Battery Powered LED Stroboscope

Important Note: DT-365 LED Stroboscope has been discontinued and replaced by the DT-366 Battery Powered LED Stroboscope.

With the portable battery powered LED Stroboscope DT-366 you can create the illusion of viewing slowed or frozen images. It is capable of flashing its LED lights in a synchronous frequency to the operating machinery.
The DT-366 has a flash rate range from 30 to 120.000 FPM with an accuracy of 0,01% ±1 digit of the F.S.

The Checkline DT-366 has a Adjustable Flash Pulse duration that makes sharper images for detailed inspection possible. The Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle.

The backlit LCD display can be used perfectly in dimly lit areas. Also can the Flash rate be synchronized with process speed with input from sensor or controller.

The DT-366 can be be mounted permanently with the 1/4-20 UNC connection, or be used with the removable trigger handle (trigger handle is included)
It has a rechargeable lithium battery, and is able to last up to a full 12 hours of operation.

Portable High-Intensity LED Stroboscope
Range: 30 - 120.000 RPM/FPM
Power: Built-in NiMH battery
- phase shift adjustment
- external trigger input
Easy adjustment with flash dial combined with x2/÷2 and fine tuning +/- buttons
Adjustable Flash Pulse duration achieves sharper images for detailed inspection

The DT-366 comes with

Carrying Case,
Power Charging Adapter with Cord,
Bottom and Top Handle
Manual

Flash Rate Range	30 to 120,000 FPM ; 1-2000 Hz
Accuracy	0.01% ±1 digit of F.S. @ 25°C
Lux Rating (Approx.)	@6000 FPM: Distance 20 cm 6850 lx with 254 mm irradiation dia., Distance 50cm 2325 lx with 355 mm irradiation dia. @1500 FPM: Distance 20 cm 3395 lx with 254 mm irradiation dia., Distance 50 cm 1350 lx with 355 mm irradiation dia
Lamp Lifetime	Approximately 3~5 years depending on usage.
Display	Backlit LCD
Resolution	60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM = 1 FPM; 1~200 HZ = 0.01 Hz; 201~2000 = 0.1 Hz
Flash Duration	0.1°- 2.5°
Power Requirement	100-240 VAC 50/60Hz
Battery	Lithium DC 16.8V 2600 mAh
External Sensor Input	15 V Pulse Input; Mini-USB
Sensor Power Supply	15 V dc up to 50 mAh
Input Pulse Width	Over 50 μs
Input Signal Flash Delay	v
Temperature Limits	0-35°C
Humidity Limits	35 to 85% RH
Protection Class	NEMA 4X (IP65)
Housing	Aluminum & ABS
Product Weight	1 kg
Shipping Weight	2,65 kg
Dimensions	203 x 110 x 192 mm
Approvals	CE
Warranty	1 Year
