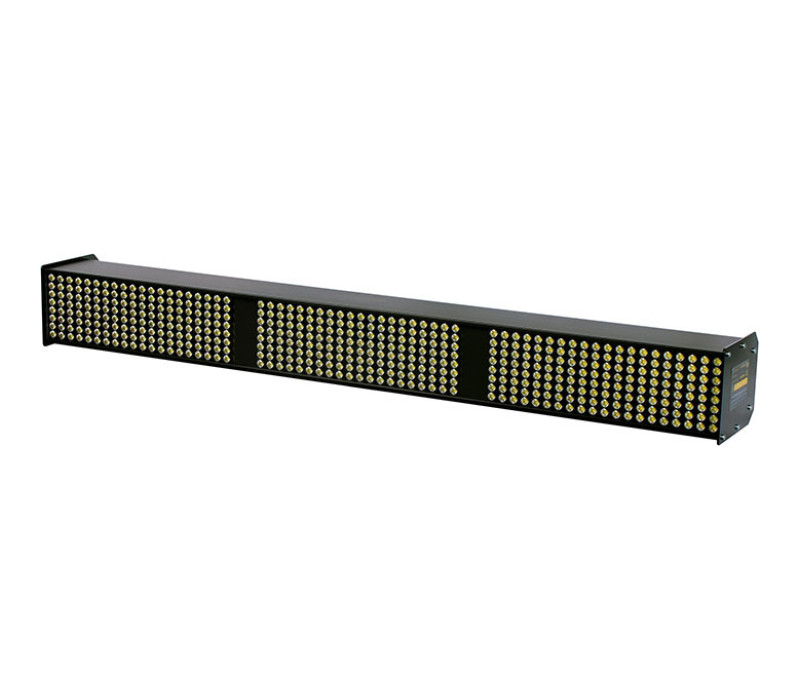

LS-36-LED stroboscope for inspection

LS-36-LED stroboscope for inspection

High-performance LED stroboscope for stationary attachment with powerful light output for uniform illumination of very large webs

The new Checkline LS-36-LED inspection stroboscope is designed for stationary attachment to machines and is suitable for various optical inspection works. This stroboscope has 480 high-performance LEDs, which are arranged in a 60 x 8 matrix to enable bright, sharp images with an even light distribution for web widths of up to 1200mm and wider. Additional tracks can be covered with a series connection of two or more stroboscopes in a master /slave arrangement. In this case, perfect synchronization is achieved by transmitting the trigger signal using a connecting cable.

The LS-36-LED comes with the latest industrially available high-performance LEDs, which will not have to be replaced over the entire product life. The particularly large illumination area, its excellent light intensity and inaudible operation make this stroboscope the perfect choice for even the most difficult industrial application with very unfavorable lighting conditions. It is particularly suitable for continuous use, such as in the printing industry, steel processing industry or in label printing plants.

Advantages of the LS-36-LED:

High light output: 480 high-performance LEDs enable uniform illumination during various inspection work.

High focus: With an adjustable flash duration of 1-1000 µseconds, you can easily find the perfect balance between light intensity and image sharpness.

Flexible adjustment for all applications: The stroboscope can be controlled directly by the trigger signal of your system without further adjustments or control units. If you use several trigger signals simultaneously, you can toggle by using the switch on the side.

LS-FCM flash control module: A simple and inexpensive way to control the flash frequency. This control module just simply has to be plugged into one of the two inputs on the back of the device.

LS-SCU stroboscope control: For setting the flash frequency, phase shift, delay time and the trigger divider. This device is connected to the strobe by a cable and works like a remote control when the strobe is out of range.

Request price >>

Light intensity 14.000 Lux
LEDs do not have to be replaced during the life of the product
Extra wide and even illumination area for web widths up to 1200mm and wider
Flash rates of up to 120,000 FPM (2000 Hz) for high speed applications
For webs over 1200mm, two or more stroboscopes can be connected in series
Adjustable light intensity and sharpness
Including universal power supply

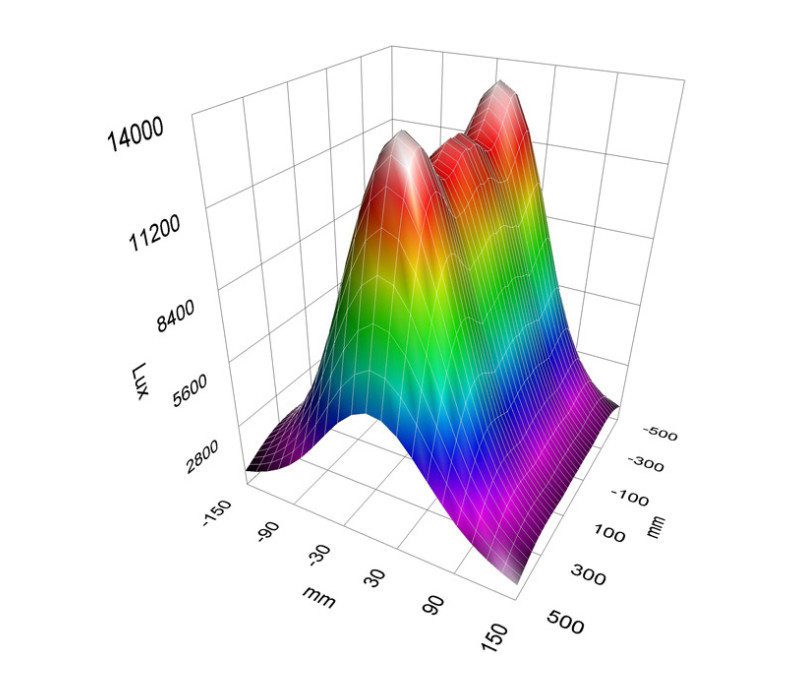

Luminous intensity (lux) vs. distance

Lichtstärke (LUX) vs. Entfernung

Overview of the LED strobe models

Model:	Led's:	Array size:	Brightness (peak):	Housing width:
LS-5-LED	80	10 x 8	6000 Lux	150 mm (6 inch)
LS-9-LED	120	15 x 8	7500 Lux	230 mm (9 inch)
LS-9-LED-WB	120	5x8 (3x)	7500 Lux	440 mm (17 inch)
LS-18-LED	200	25 x 8	9000 Lux	440 mm (17 inch)
LS-36-LED	480	60 x 8	14000 Lux	948 mm (37 inch)

LEDs:	480
Frequency range:	0 - 120,000 FPM (flashes per minute)
Power supply:	24V DC (21.6….26.4VDC) / 3.0A (72 Watts) Universal AC power supply INCLUDED
External Trigger Input:	3 - 30 V / max. 5 mA Potential-free optocoupler
Trigger output:	For parallel connection of several stroboscopes
Light Intensity:	Adjustable
Light intensity Single Flash:	1.4 Mega-Lux / 30 cm / 12"
Illumination Area:	30 x > 100 cm / 12 x > 40"
Light spread:	2 meter width (78") at 60 cm (24") distance from web
Flash colour:	Approx. 5,000 - 8,300 K
Material housing:	Aluminium
Dimension:	948 mm x 130 mm x 112 mm
Weight:	4.200 g
Ambient temperature:	0 - 40 °C (32 - 104 °F)
Storage temperature:	0 - 40 °C (32 - 104 °F)
Humidity:	max. 95% not condensing
Mounting Holes:	Located on underside of housing: (1) 1/4 - 20UNC in center
Guarantee:	1 year

Products

Item	Product
137105	LS-36-LED Linear LED Stroboscope with 480 LEDs

Accessories

Item	Product
130696	LS-SCU Remote Control Unit & Connection cable with LS-DIN at both ends (1,5 mtr)
131143	LS-GAPSENSOR for triggering strobe on gaps between labels
130699	LS-CABLE-PT Cable for connection to 2nd Strobe transferring both power and trigger signal
130700	LS-DIN 5 Pin DIN Connector
132205	LS-REGSENSOR for triggering strobe on registration marks on printed piece

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

LS-36-LED stroboscope for inspection

Features

Specifications

Overview of the LED strobe models

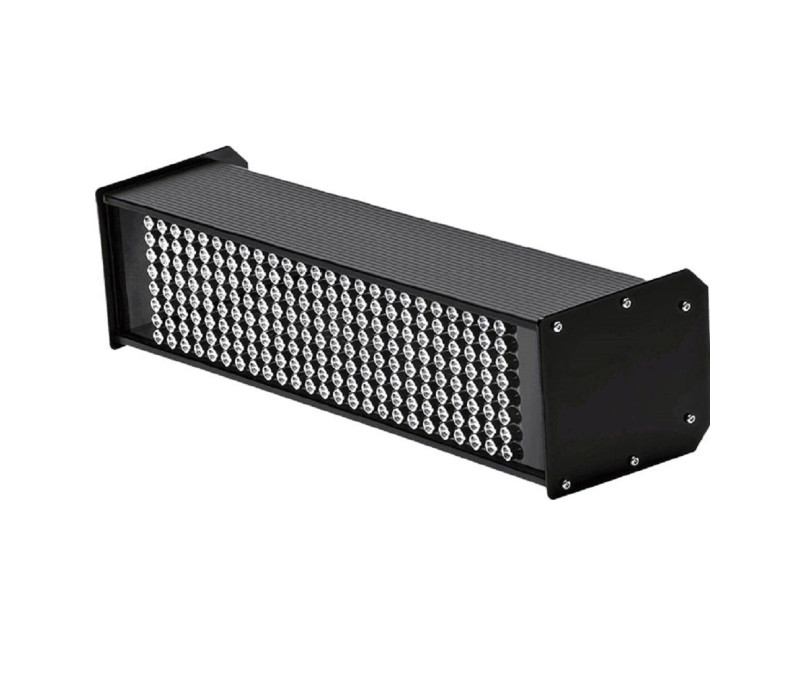

LS-18-LED Fixed-Mount Linear Stroboscope

LS-9-LED Fixed-Mount Linear Stroboscope

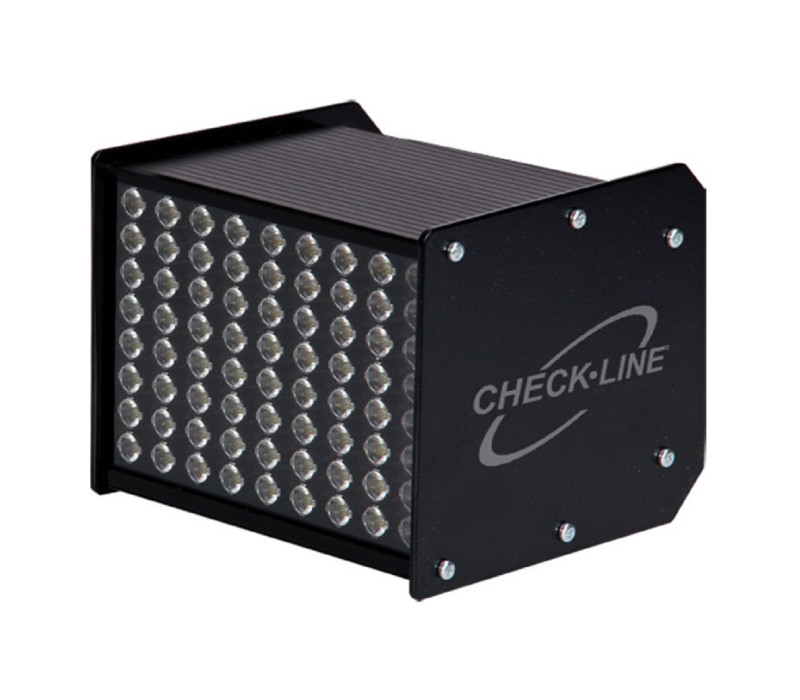

LS-5-LED Fixed-Mount Linear Stroboscope
