DS-2000LED Stroboscope

DS-2000LED Stroboscope

Measuring Range: 30 - 300,000 FPM (5000 Hz, max)
Flash Brightness: 3000 Lux (@ 6000 FPM)

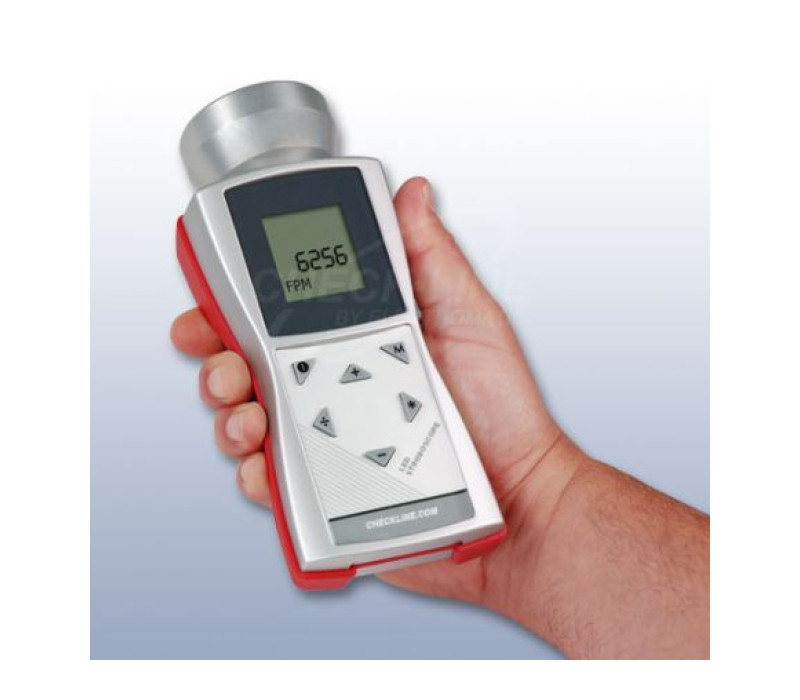

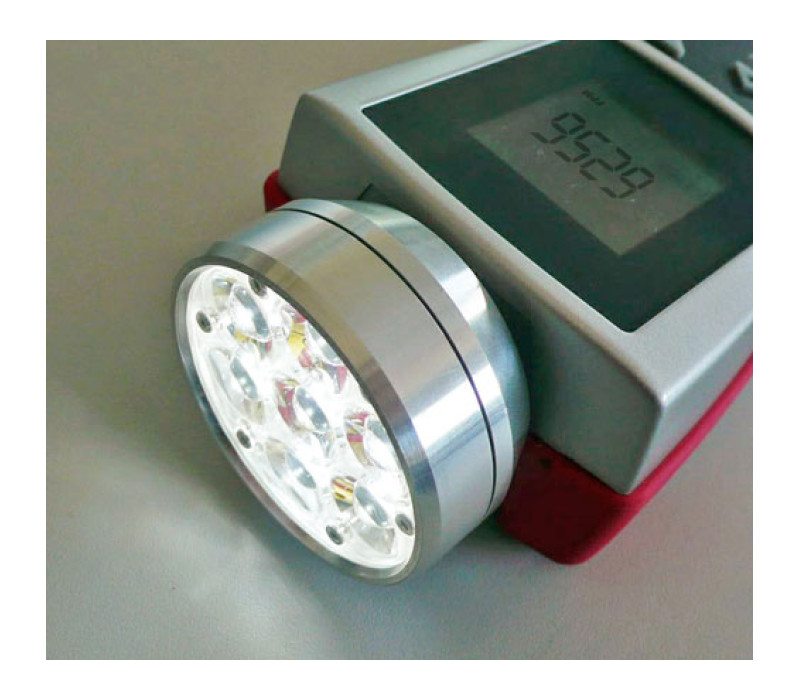

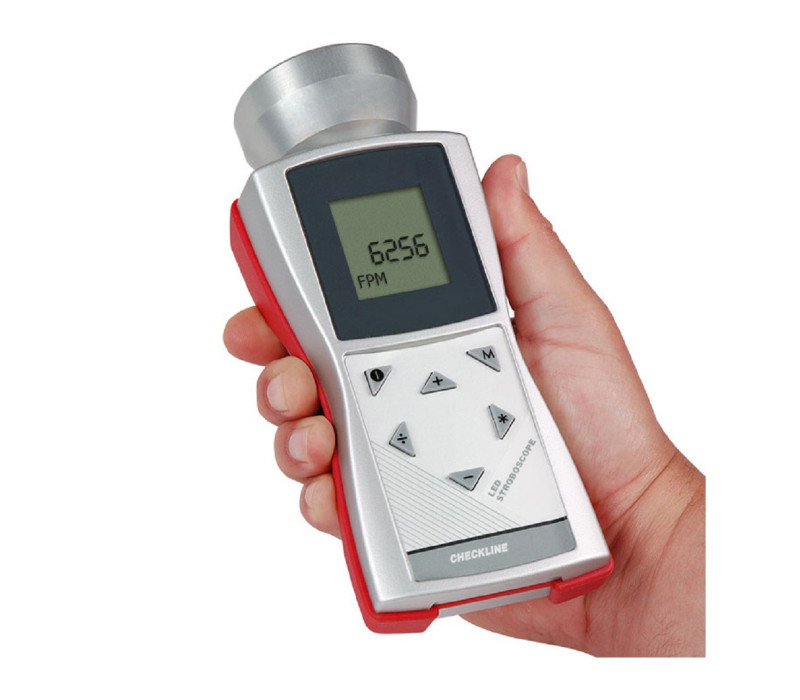

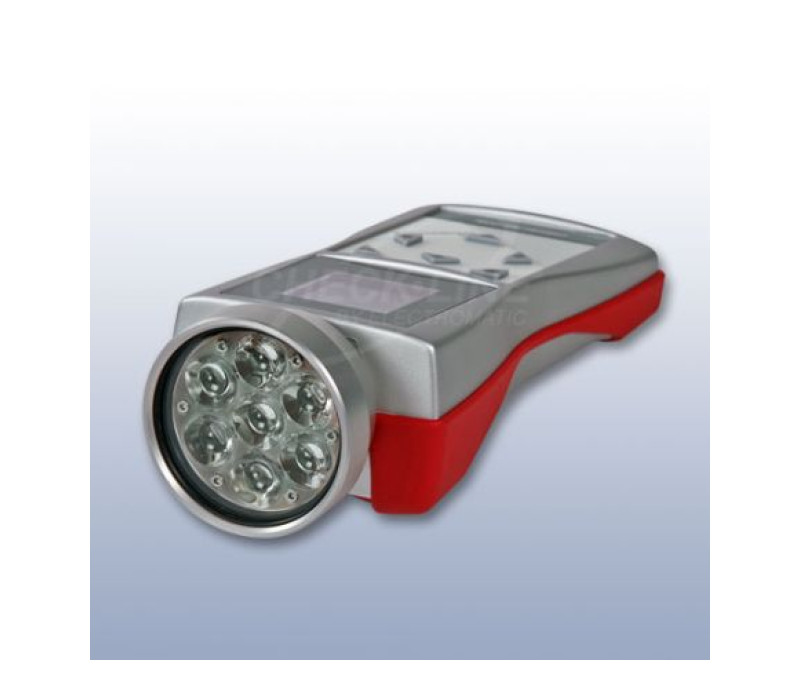

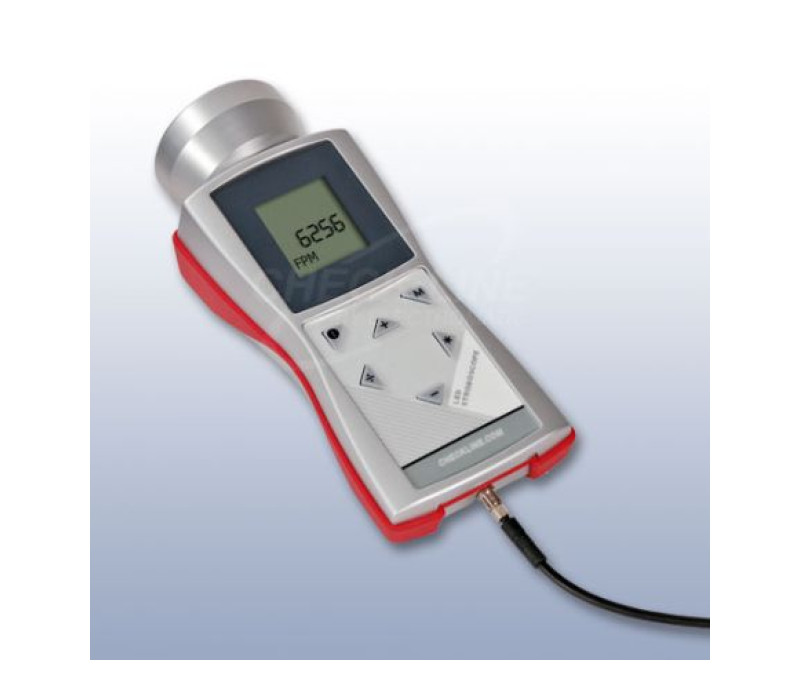

Designed for maximum performance, portability and ease of use, the DS-2000LED is a hand-held battery powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market.

The DS-2000LED can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard AA-batteries . Keypad controls adjust flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.

Supplied in a high-impact plastic with rubber protective sleeve providing additional protection as well as improved grip for the operator. Lifetime LEDs do not wear-out or need replacement making this product ideal for use on the factory floor, in the field or in the laboratory. Applications include ideal for speed, motion and vibration analysis, on rotating shafts, fans, cams, hi-speed motion analysis for speakers or ink-jet printing and more.

Lifetime LEDs do not wear-out or need replacement
Produces the brightest flash and sharpest image over the entire range to
Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 20 cm)
NIST-Traceable Calibration Certificate provided

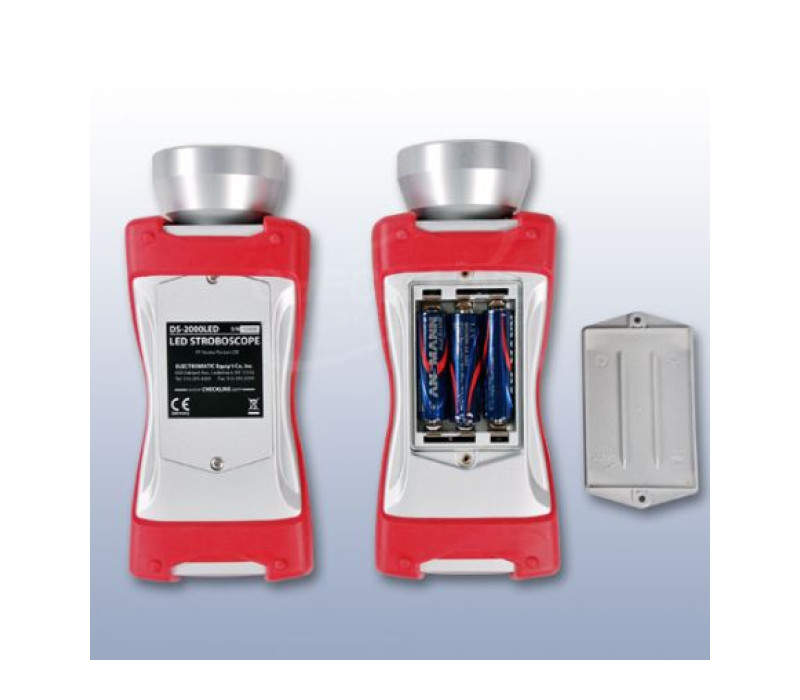

Three (3) AA-Batteries provide six hours of continuous use operation
External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT
User-selected units of Hz or FPM (Flashes Per Minute)
2-Year warranty

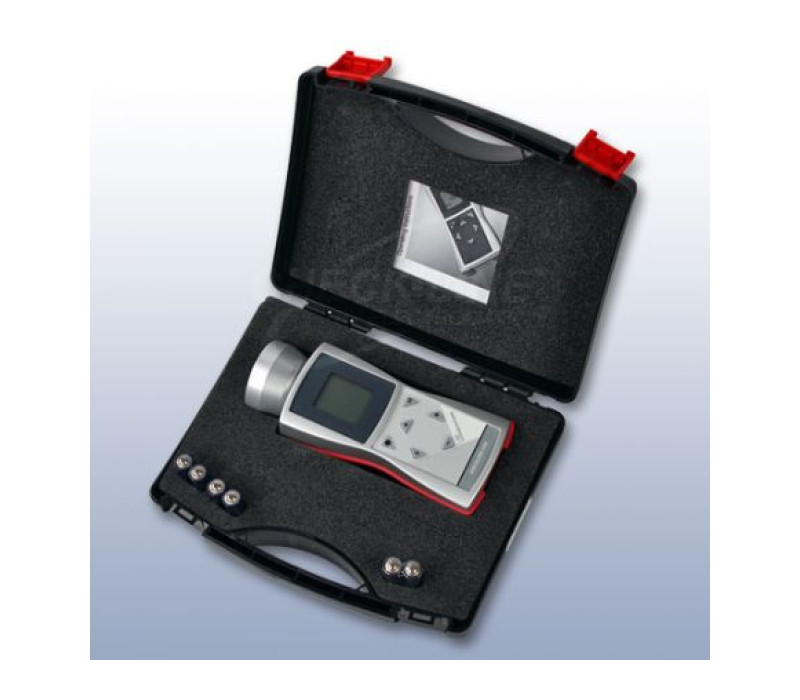

DS-2000LED Strobe is supplied in a foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), Traceable Calibration Certificate and Operating Instruction Manual.

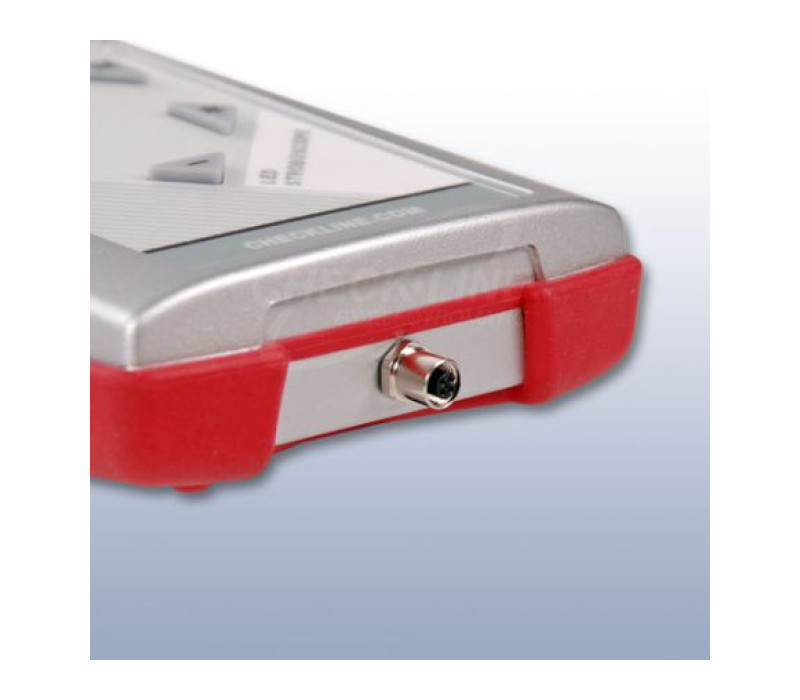

DS-2000LED-OT Strobe also includes a connector for external trigger signal and 3 meter/10ft. trigger cable.

Light Output (LUX) vs Distance

at 20 cm Distance, 6000 flashes/min (FPM)

Frequency Range	30 - 300,000 FPM
Flash Duration	Adjustable (1 usec up to 8522 usec)
Accuracy	0.045% (+/- 1 digit) or better
Resolution	± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness	3000 Lux @ 6000 FPM / 20cm (7.9 inch)
Protection Class	IP65 (Protection from Dust and Water Jets)

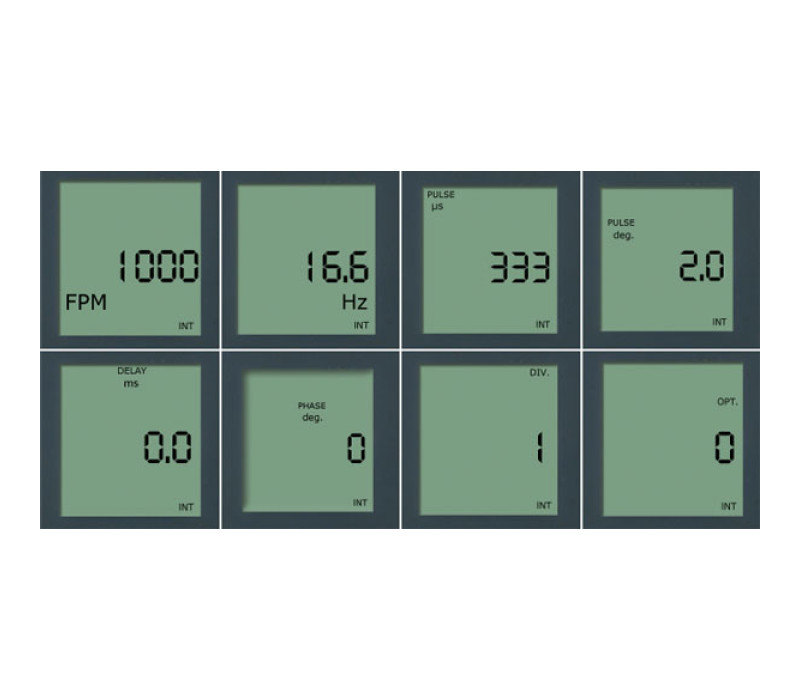

Display	LCD, multiple lines
Certification	CE (as per EU norms)
Flash Color	Approx. 6.500 K
Power Supply	3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material	Aluminum / ABS Heavy duty design
Dimensions	191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx	400g (including batteries)
Temperature Range	0° - 45° C / 32° - 113° F
Battery Life	NiMH: approx 11h at 6.000 FPM Disposable: approx 6 h at 6.000 FPM
Warranty	2 Years
Trigger Input	Principle: Optocoupler, voltage-free
Principle	Optocoupler, voltage-free
Low Level	< 1 V
Level	3 - 32 V, NPN + PNP
Trigger Output	Principle: Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Principle	Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Level max.	NPR, max 32V
Pulse Length	Adjustable
Maximum current	50mA
Reverse voltage protection	Yes
