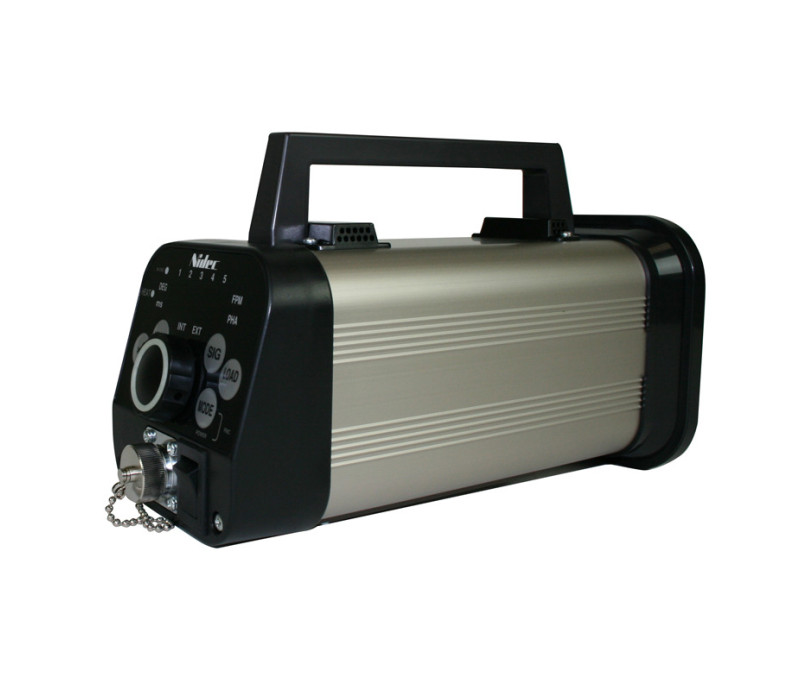

DT-3015N i side

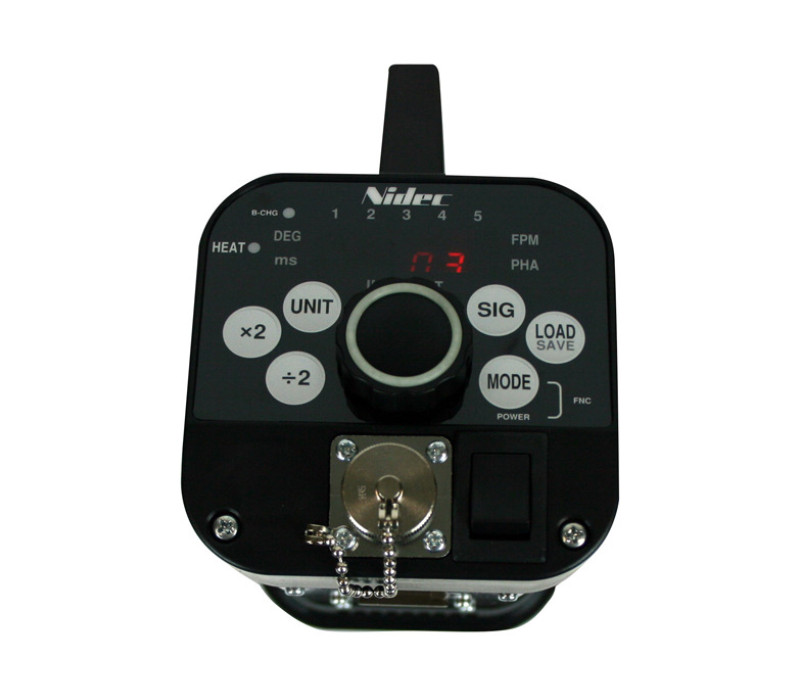

DT-3015N - back

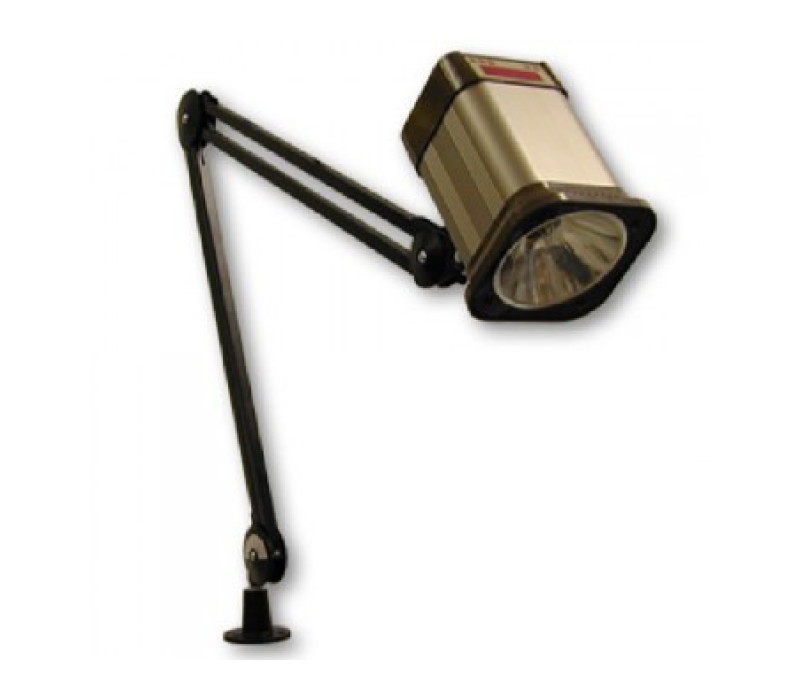

130268 - SAS-DT300 Flexible swing arm for DT-311A/315A stroboscope

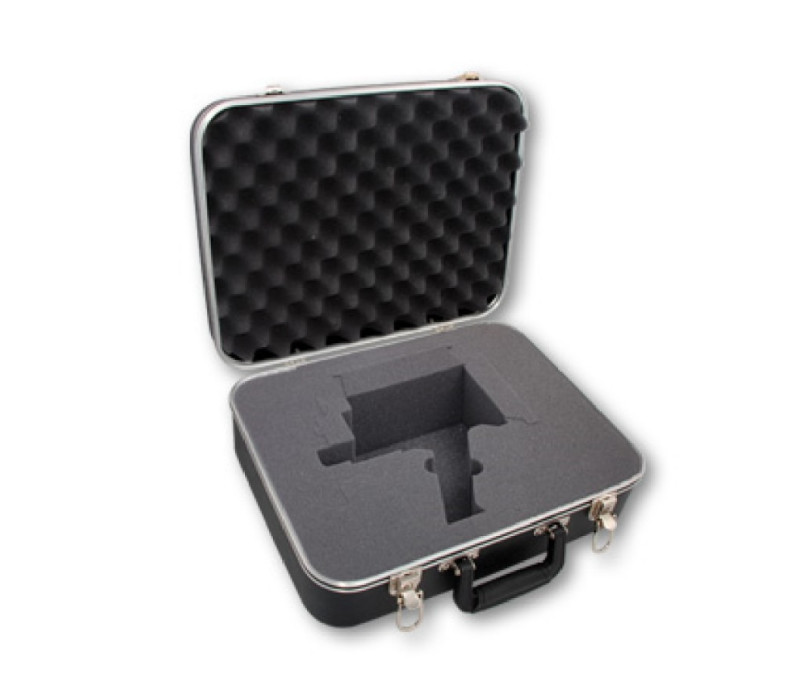

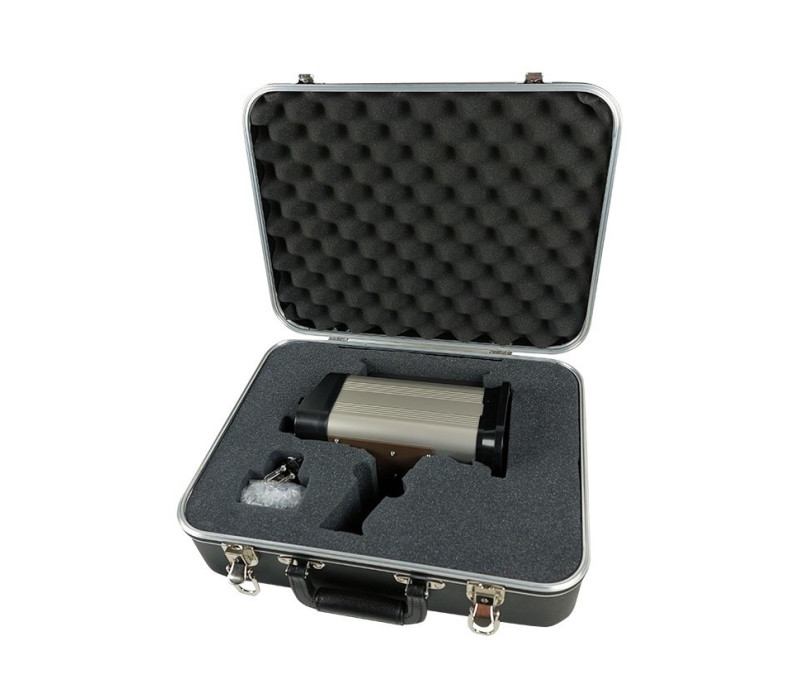

130267 - DT-300CC - Carrying Case for DT-311D, DT-3015N & DT-3011N Stroboscopes

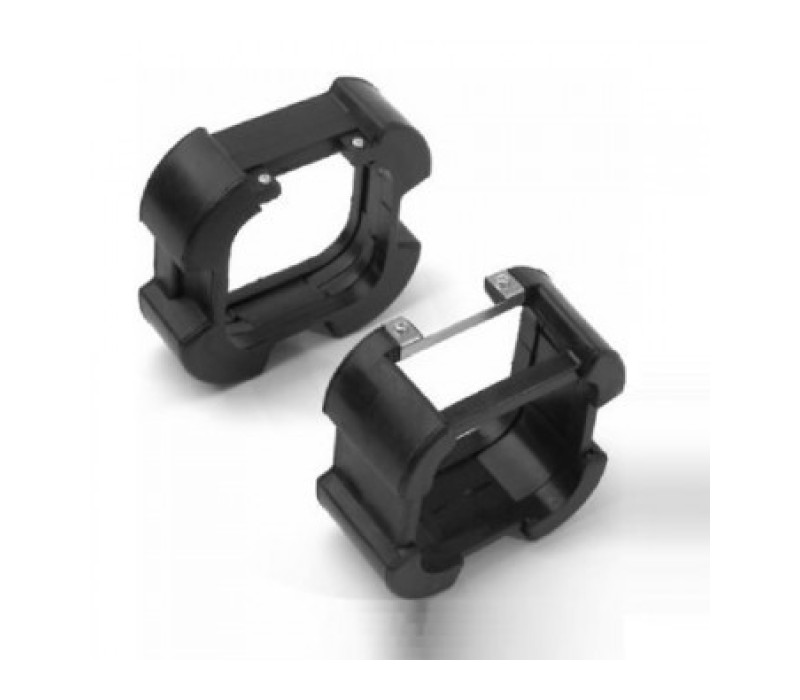

125974 - DT-CAPS Shock absorbing caps for DT-311A/315A stroboscope

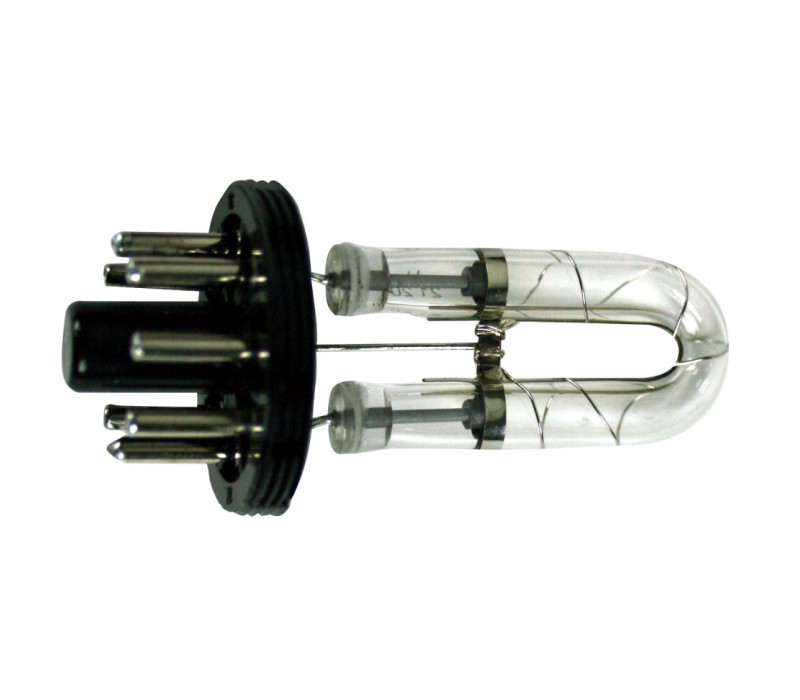

139377 - FLASHTUBE3010N Spare Flash Tube for DT-3015N & DT-3011N series stroboscopes

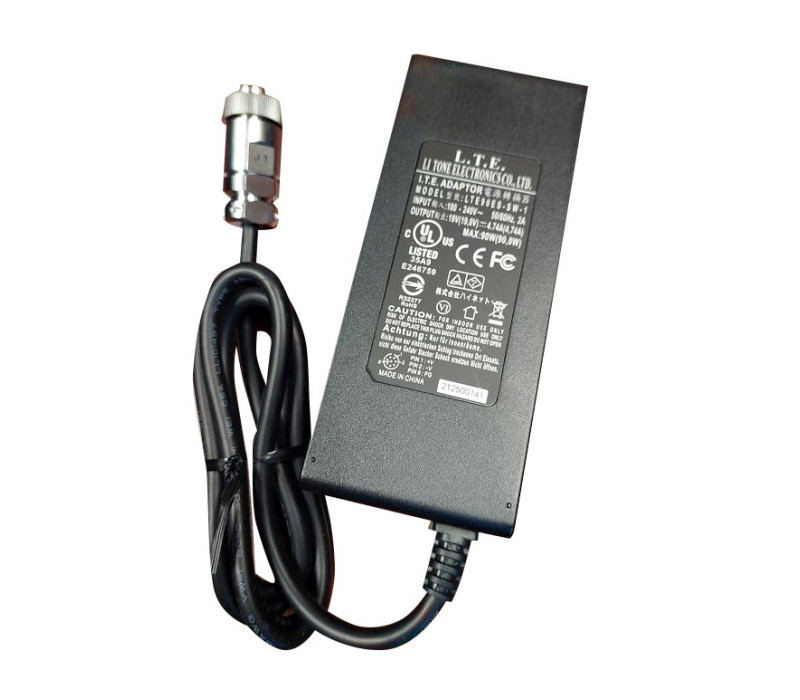

139380 - DT-3015CHRG - AC Adapter/Charger Universal Power Supply for DT-3015N Stroboscope, 100-240 VAC (No power cable)

130267 - DT-300CC - Carrying Case for DT-311D, DT-3015N & DT-3011N Stroboscopes

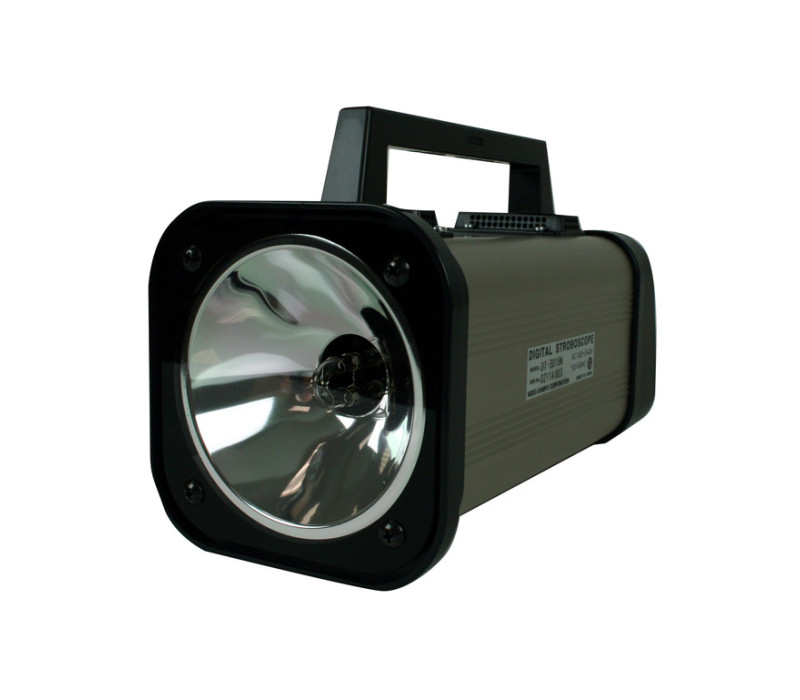

DT-3015N Portable Xenon Stroboscope with Rechargeable Battery

Important Note: The DT-3015A Digital Stroboscope has been discontinued and replaced by the DT-3015N Portable Xenon Stroboscope.

DT-3015N Portable, Lightweight Xenon Stroboscope with Rechargeable Battery
Flash Range: Adjustable from 40 to 35,000 RPM/FPM

The DT-3015N from Checkline is an stroboscope designed for industrial use, boasting portability and exceptional stability. It serves as a valuable tool for observing and inspecting moving components without physical contact.

When directed towards a moving target, the DT-3015N stroboscope creates the illusion of halted or slowed equipment motion, facilitating detailed inspection.

Constructed with a durable metal casing, the DT-3015N withstands rugged industrial environments. Its top and bottom handles enhance portability and adaptability.
Powered by an internal rechargeable battery, the DT-3015N can alternatively run on AC power for uninterrupted operation.
Users can modify the flash rate on the fly, allowing for visual inspection of rotating or reciprocating machinery without halting production.

This versatility makes the DT-3015N ideal for quality control inspections and preemptive maintenance on various equipment types.

Features:

Fast-charging internal rechargeable battery for convenience.
Exceptional durability thanks to aluminum construction.
High polish and focused reflector eliminate "blind" viewing areas.
External trigger enables automatic synchronization with equipment.
Light emission auto-off feature adjustable from 1 to 120 minutes for extended battery life.
Phase shift, set in degrees or milliseconds, allows visual analysis of rotating/reciprocating objects.
Save up to five user configurations for quick switching between machinery.
Synchronous output allows the strobe to drive other strobes.
Easy tripod or permanent mounting with integral mounting thread.

Applications:

Quality inspection and preventive maintenance of automated motion equipment.

Price from € 1.489,00

Order now

Xenon Stroboscope with rechargeable Battery
Range: 40 - 35.000 FPM
Weight: 1,90 kg
Display: 6 digits

139381 - DT-3015N-KIT-EU - Portable Xenon Stroboscope Kit includes:

DT-3015N Stroboscope
Universal (100-240V) charger adapter with cable with EU PLUG
Spare Flashtube
Carrying Case
Manual
(Calibration certificate is optional)

138710 - DT-3015N - Portable Xenon Stroboscope (only Stroboscope)

DT-3015N stroboscope
Input signal connector
Universal (100-240V) charger adapter with cable
Manual
(Calibration certificate is optional)

Flashing Range	40.0 - 35,000 fpm (flashes per minute)
Accuracy	±0.05 % of reading
Resolution	30.0 to 5000.0 : 0.1 fpm; 5001.0 to 8000.0 to 0.2 fpm; 8001.0 to 10000.0 : 0.5 fpm; 10001.0 to 35000.0 : 1.0 fpm
Lux Rating	20 cm Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 203 mm irradiation diameter. 50 cm Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 305 mm irradiation diameter.
Lamp Lifetime	Typ.1200 hours at 1500 fpm
Display	6-digit, 7 segment red LED
Flash Duration	30 μsec
Phase Shift	0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution
Power Supply	100 to 240 VAC 50/60Hz (included)
Battery	NiMH battery- Approximate 2 hour time to full charge
Battery Life	Approx. 3 hours (when the emission count is 1500 FPM)
Input Signal	H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50 µs or more Input impedance : 10 kΩ or more
Input Signal Range	27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec
Sensor Power Supply	DC 12 VDC 40 mA
Temperature Limits	0 to 40°C
Humidity Limits	35 to 85% RH (Non- condensing)
Product Weight	1.9 kg
Approvals	RoHS
Warranty	1-Year

Products

Item	Product	Price	Quantity	Action
138710	DT-3015N - Portable Xenon Stroboscope	€ 1.489,00
139381	DT-3015N-KIT-EU - Portable Xenon Stroboscope Kit	€ 1.802,00

Accessories

Item	Product	Price

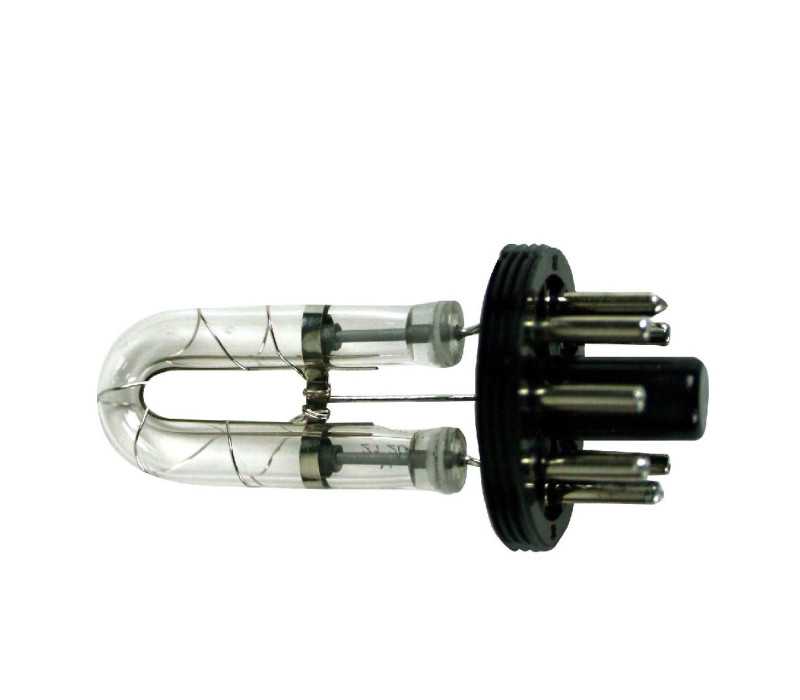

139377	FLASHTUBE3010N Spare Flash Tube for DT-3015N & DT-3011N series stroboscopes
139378	BAT-3015N - Rechargeable Battery for DT-3015N Stroboscope	€ 298,00

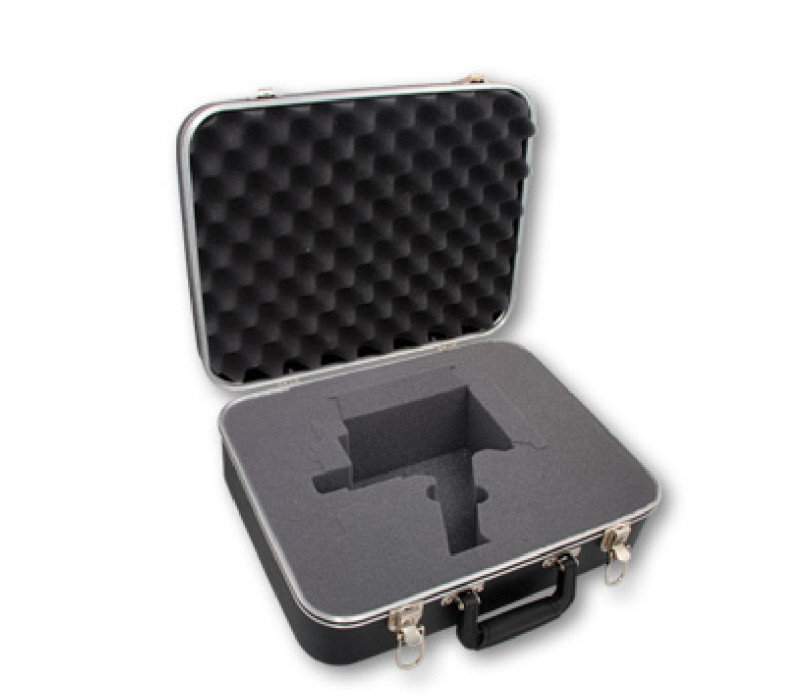

130267	DT-300CC - Carrying Case for DT-311D, DT-3015N & DT-3011N Stroboscopes

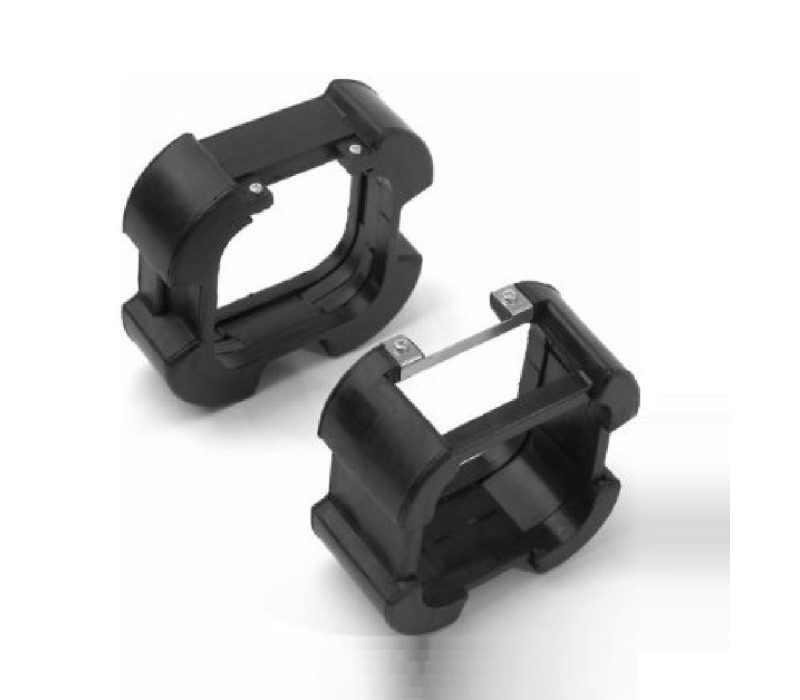

125974	DT-CAPS Shock absorbing caps for DT-311A/315A stroboscope
139380	DT-3015CHRG - AC Adapter/Charger Universal Power Supply for DT-3015N Stroboscope, 100-240 VAC (No power cable)	€ 213,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
