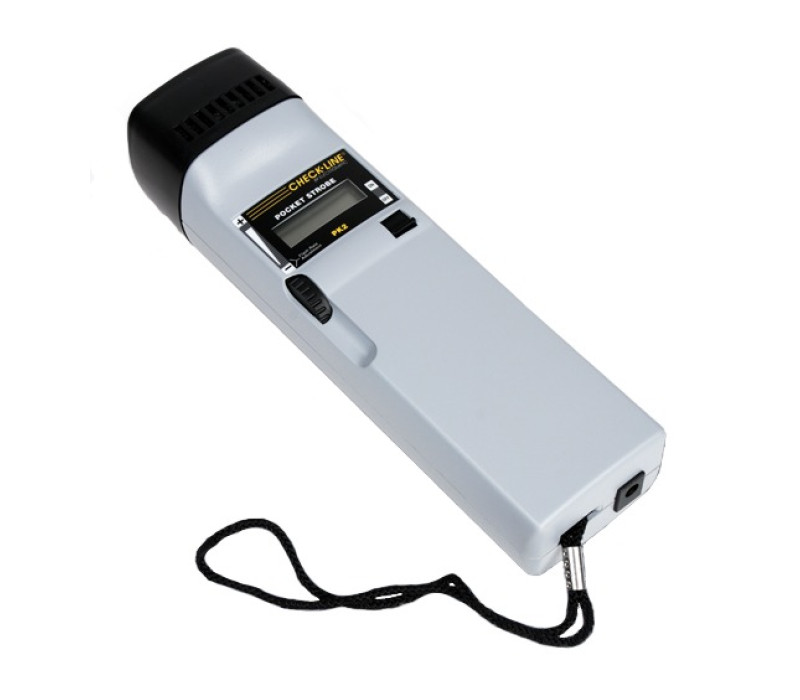

PK2X Stroboscope - Portable Pocket-Size Xenon Strobe

PK2X Stroboscope - Portable Pocket-Size Xenon Strobe

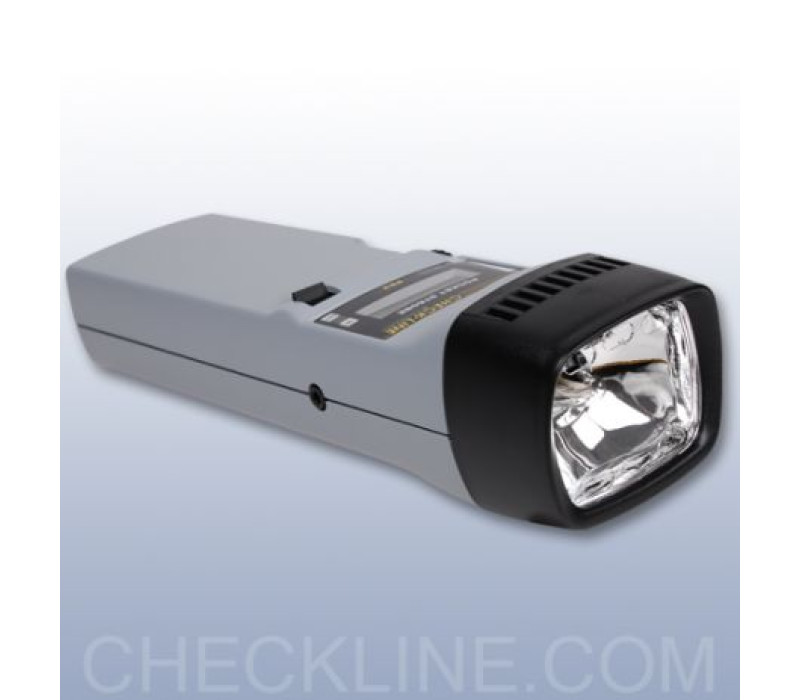

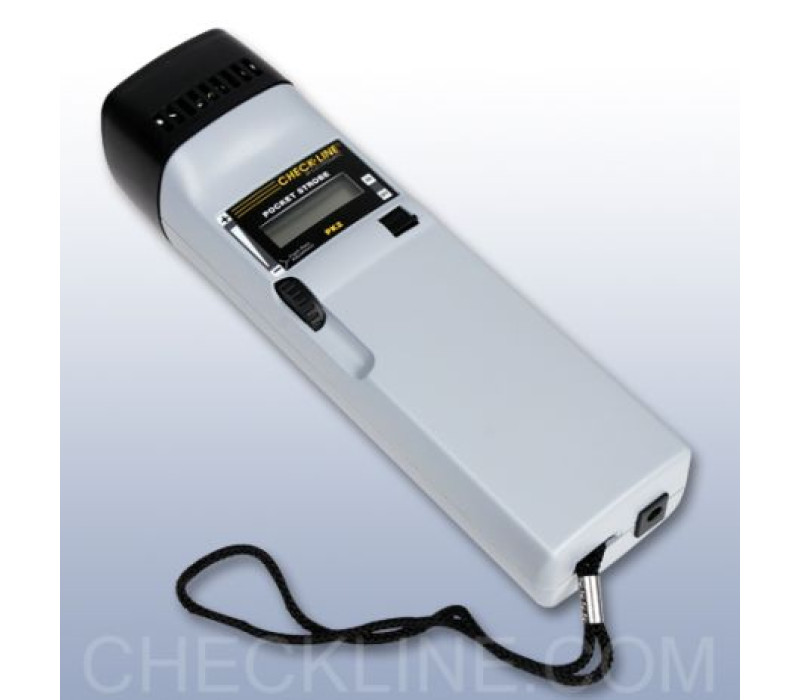

The PK2X hand-held Pocket Strobe^®, a non contact RPM measuring device for rotating and moving parts.

Convenient and accurately designed to perform non-contact RPM measurements on rotating or reciprocating parts or components.
This stroboscopic effect is accomplished by matching the flash rate of the stroboscope with the repetitive rate (RPM) of motion of the target.

The PK2X is also a proven means for inspection of moving parts/machinery by "freezing"or "slowing down" the movement. Measuring a slow motion effect is accomplished with a slight mismatch of the relative speeds.?

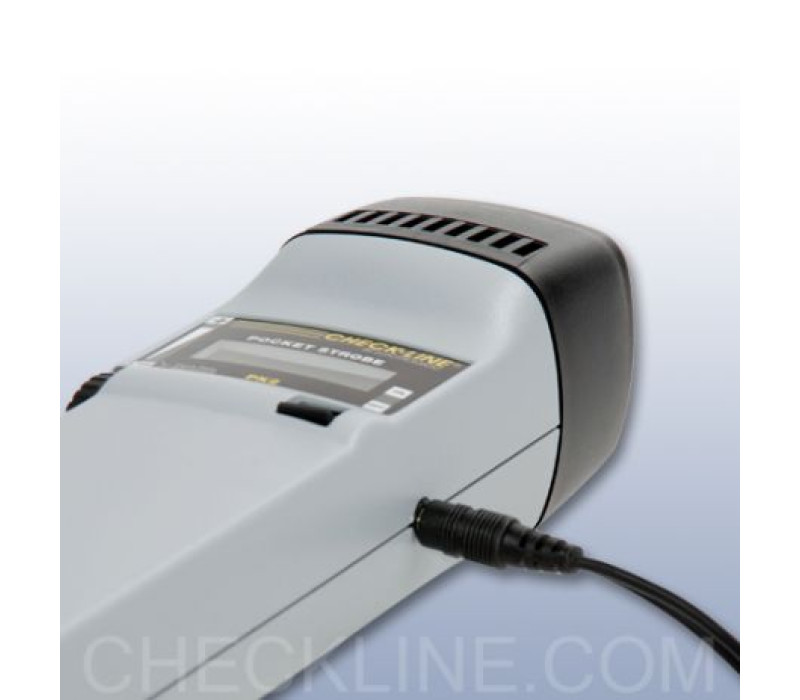

The PK2X stroboscope is powered by a rechargeable internal battery or an external AC power source allowing for continuous use if necessary, or continued use when the battery power level is low. The lightweight handheld design makes this stroboscope perfect for use by field (service) technicians or maintenance personnel.

The PK2X offers significant improvements from the previous generation model PK2 including the following:
• 50% improvement in flash brightness
• 100% improvement in battery run-time
• Doubles the choice of power by permitting operation during re-charge or continuous operation when connected to an AC-power source

The PK2X continues to offer the highest reliability, refined by over 10-years of continuous design & manufacturing improvements since the introduction of the original Pocket Strobe Model PK1 was introduced in 1996.

The PK2X stroboscope can be operated with only one hand, yet delivers performance comparable to much larger and heavier “pistol-grip” type models. It is ideal for laboratory, industrial, R&D and academic environments. Its small size and excellent performance provide superior convenience and value.

The kit includes a Universal AC-Adapter/Charger and External Trigger Jack in Carrying Case with Traceable Calibration Certificate.
Features Internal rechargeable Lithium Ion battery uses latest "smart-charge" technology for longest possible life and 2-Hour run-time on a single charge.

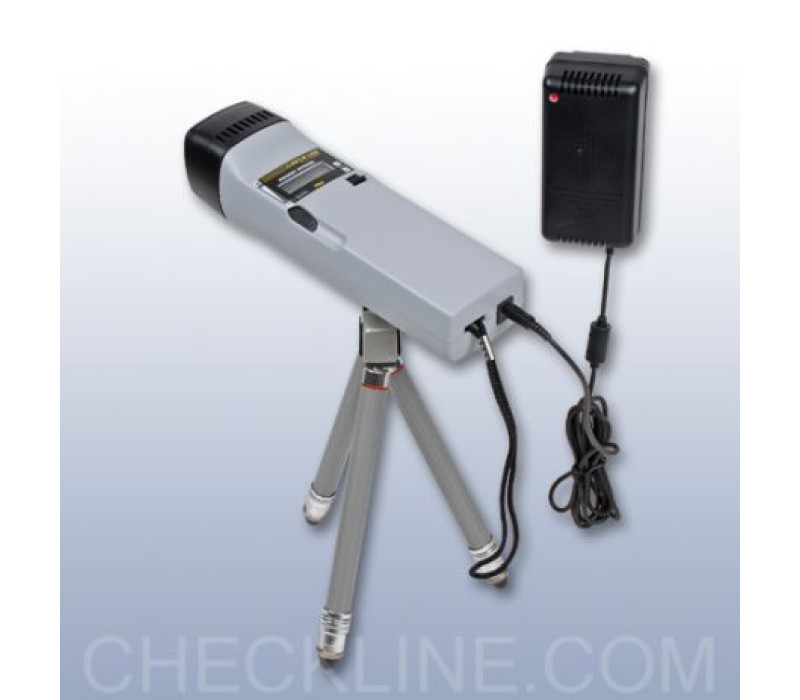

The PK2X can be mounted on a tripod.

PK2X
Flash range 30 - 12.500 RPM/FPM
and higher using harmonics

Request price >>

Battery run time of 2 hours on full charge
Operates when being recharged or run continuously via AC-power
Internal rechargeable Lithium Ion battery uses latest “smart-charge” technology for longest possible life and 2-Hour run-time on a single charge
Includes Int'l Traceable Calibration Certificate
Portable, lightweight and rugged construction

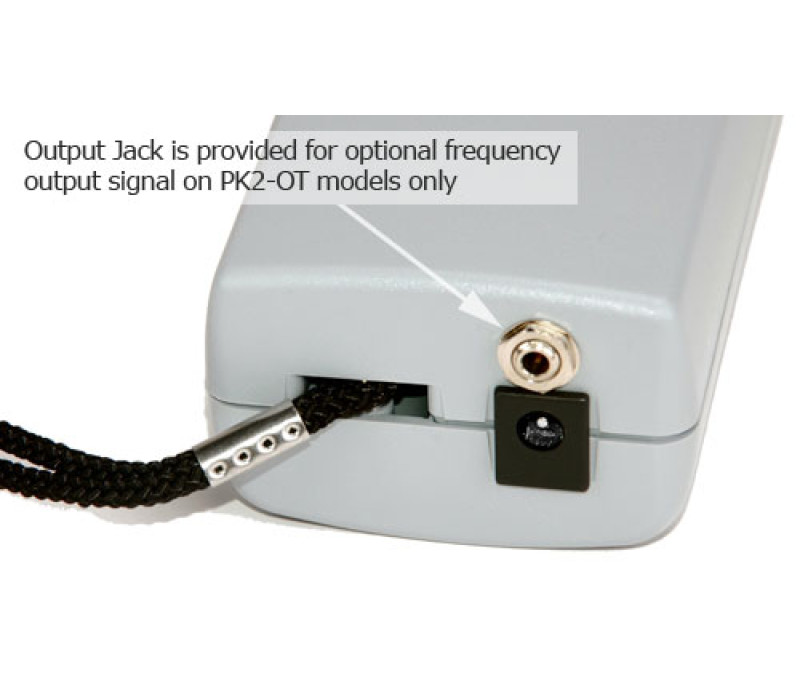

Accepts input from sensor for external flash triggering
Resolution of ±1 RPM over the entire range with highly accurate speed control and drift-free operation
Bright XENON flash intensity (over 1200 Lux) with life of 200 million flashes
Provided with a threaded insert on underside of strobe for mounting to articulating arm or other fixture

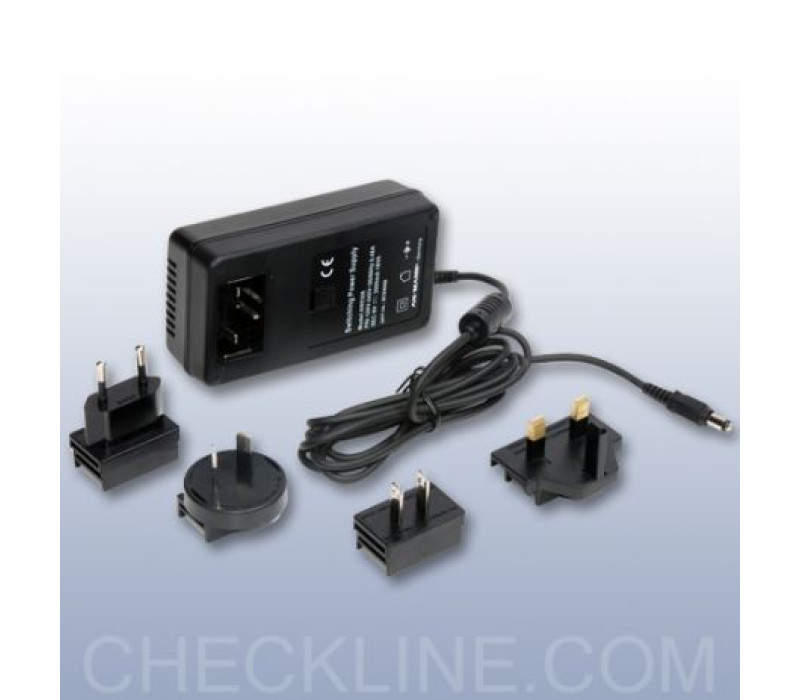

AC-Adapter/Charger can be used anywhere worldwide
(100 – 240V AC) with plug adapters provided for N. America, Europe, UK & Australia AC outlets
CE Certified

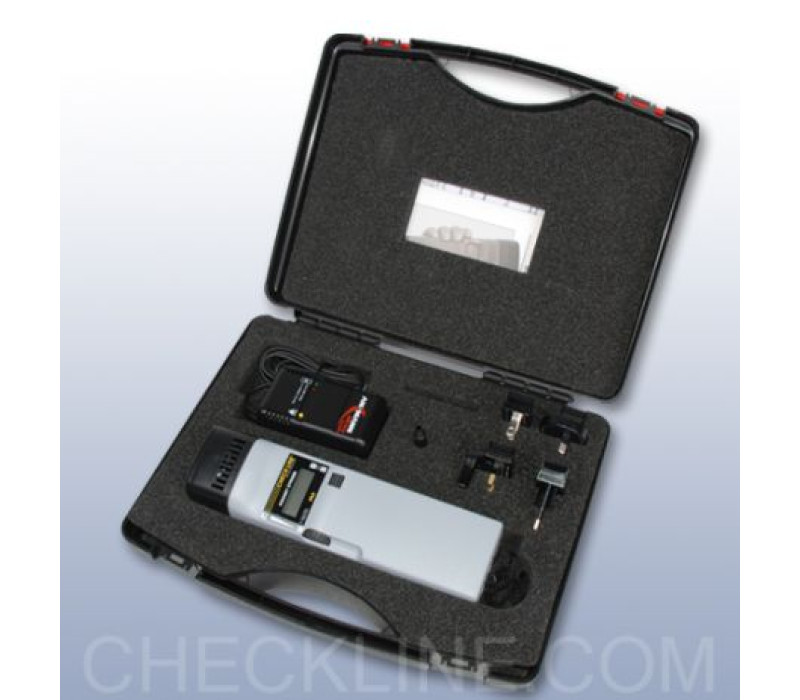

The PK2X Stroboscope is supplied as a complete kit including:

PK2X Stroboscope,
Universal AC-Adapter/Charger (with plug adapters provided for North America, Europe, UK & AU),
external input/output jack,
Traceable Calibration Certificate
instruction manual,
all supplied in a hard shell carrying case.

Flash Range	30 - 12,500 FPM

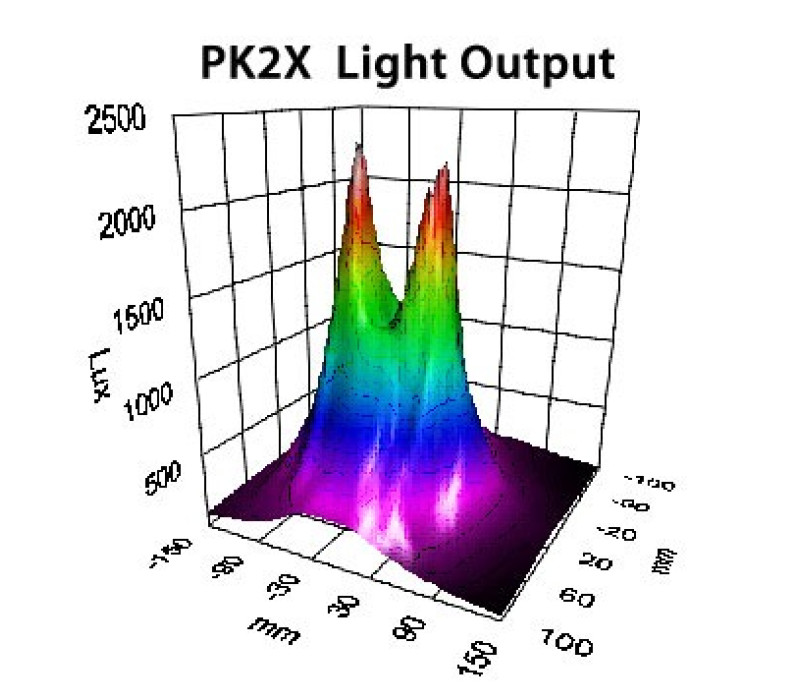

Flash Brightness	1200 Lux (8"/20cm distance @ 4500 fpm)
Accuracy	± 0.01% over entire range + 1 LSD ± 0.04 Hz
Resolution	± 1 FPM over entire range

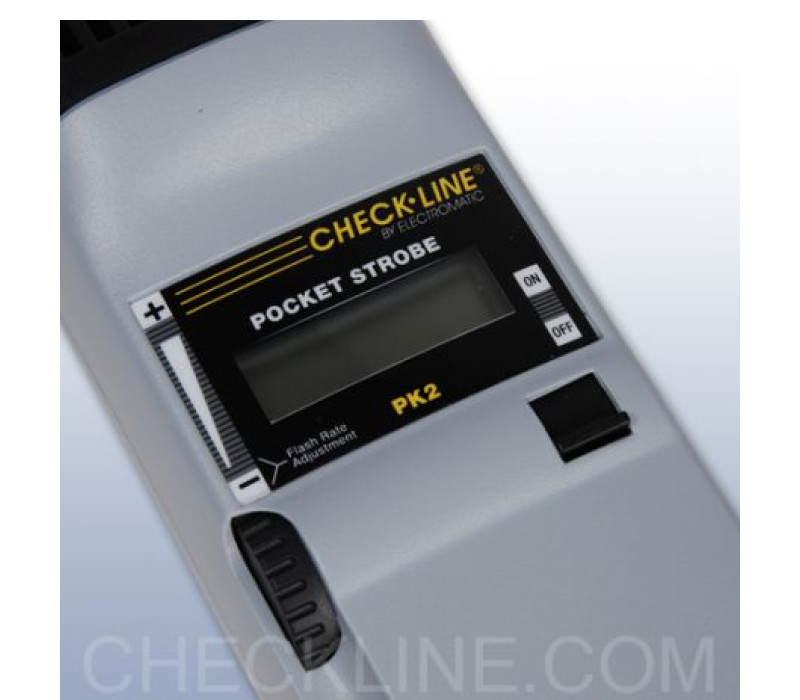

Display	5-digit LCD
Display Update	0.5 seconds
Flash Energy	170 mJ
Flash Duration	< 9 µs
Flash Tube Longevity	200 million flashes (at 6,000 fpm)
Flash Color Temp	6000K - 6500K
External Trigger	0-5 volt, DTL/TTL compatible 1/8" jack
Operating Time	Battery, 2 hours AC-Power, continuous
Battery Type	Lithium Ion (Li-Ion)
Battery Charger	AC Power Required - 100-240 VAC, 50/60 Hz DC-Output, 9V DC @ 2000 mA max Charging Time, 4-5 hours
Overcharge Protection	Yes
CE Certification	Yes
Weight	0.9 lbs (415 grams) including battery
Housing Material	High Impact ABS Plastic
Reflector Material	Aluminum
Tripod Mount	1/4-20, female insert
Operating Temp.	32 to 104° F (0 to 40° C)
Dimensions:	240 x 65 x 40mm (LxWxH)
Warranty	1 year

Products

Item	Product
130313	PK2X - Portable Stroboscope Complete Kit

Accessories

Item	Product

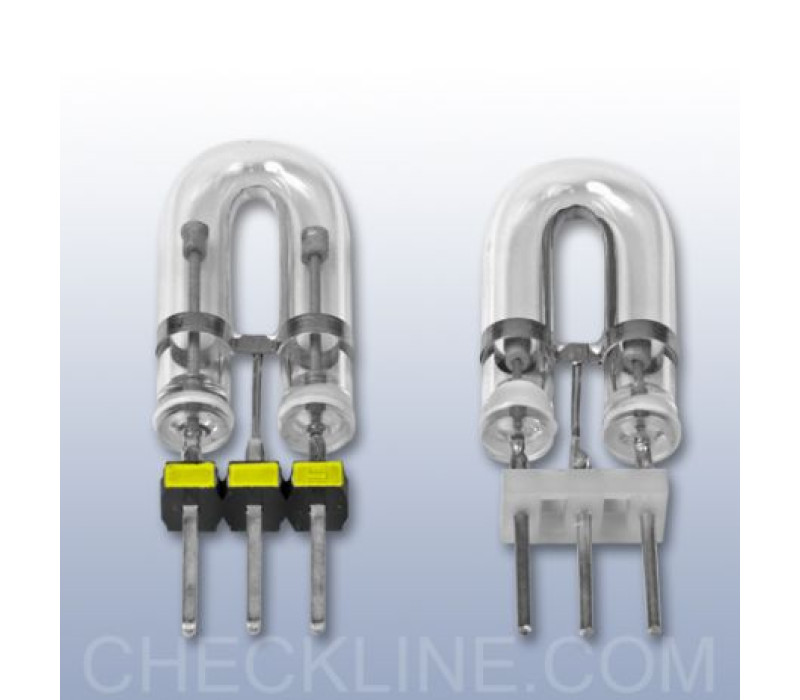

130323	PK2X-TBE Spare Flash Tube
130513	PK2X-BAT Replacement Li-ion Battery Pack
130514	PK2X-AC-BC Replacement Universal AC-Adapter/Charger (100-240 VAC)
130311	PK2-TRI Telescoping tripod
125839	PK2-BNC BNC Connecting Cable

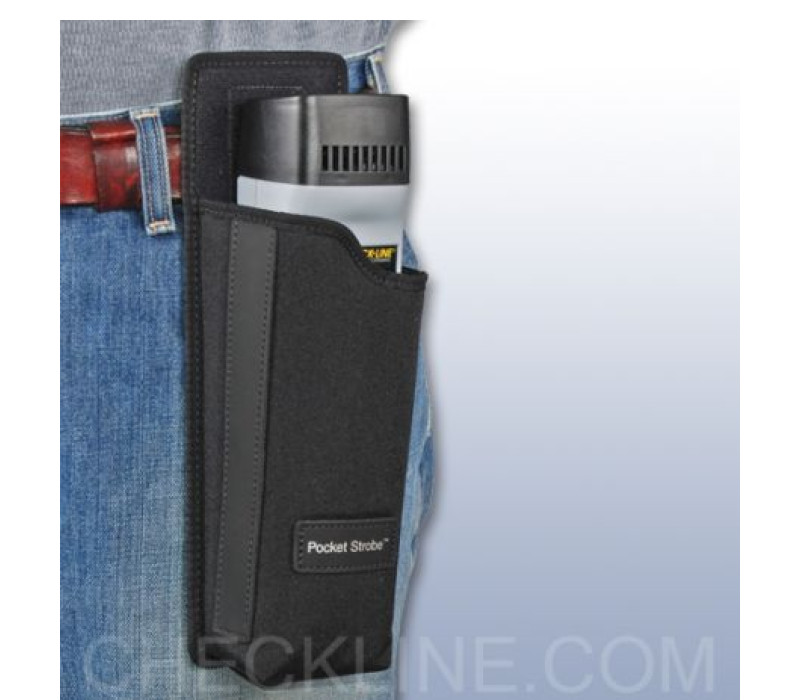

125804	PK2-HLT Holster for PK2X
